Hot Stamp for Hot and Cold Logo Embossing - Die Dimensions: 102x40mm - CNC

Product description

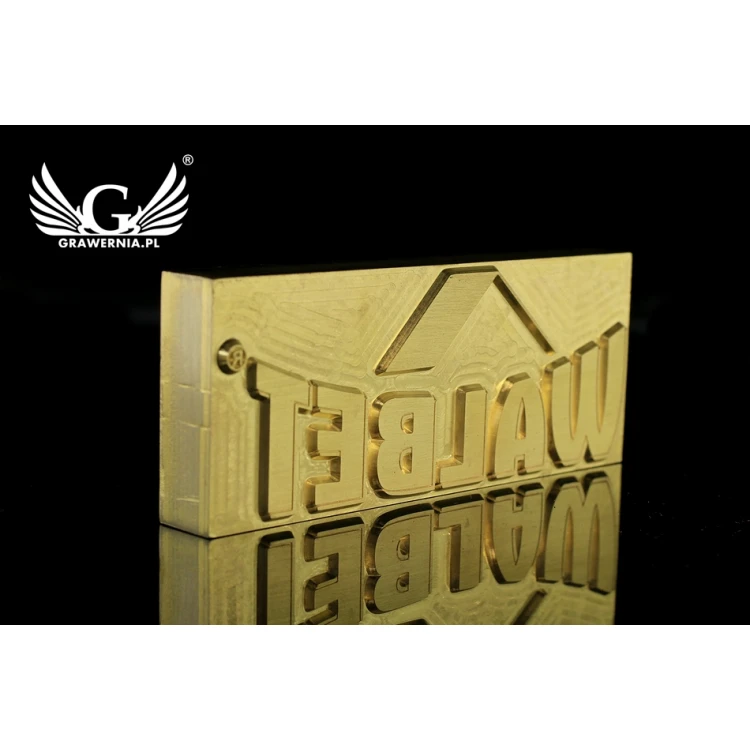

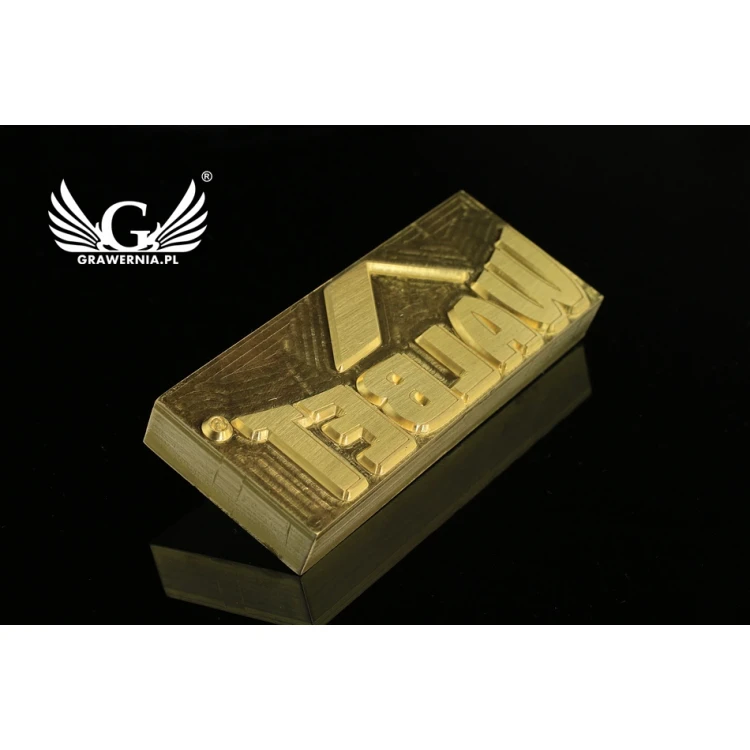

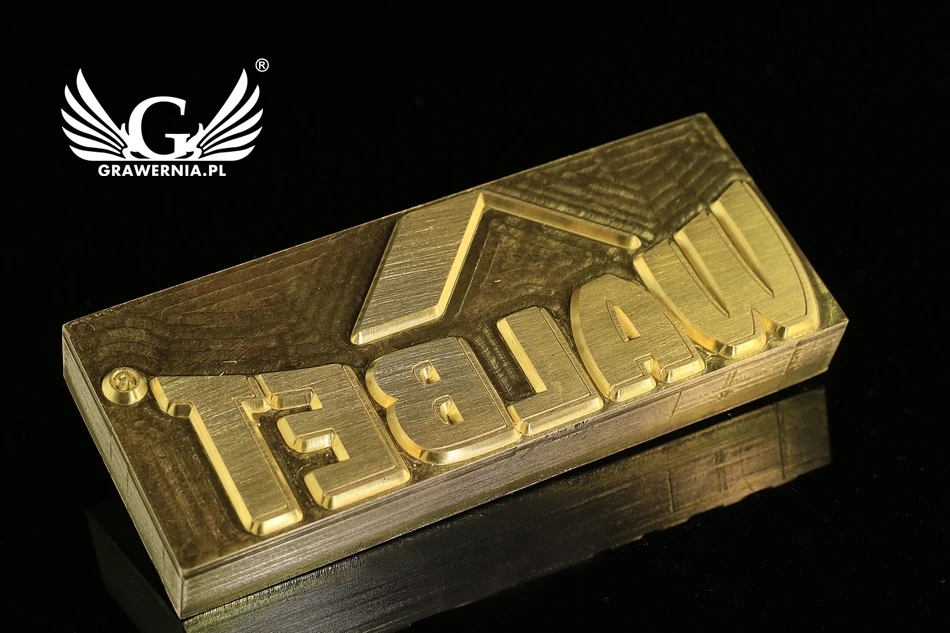

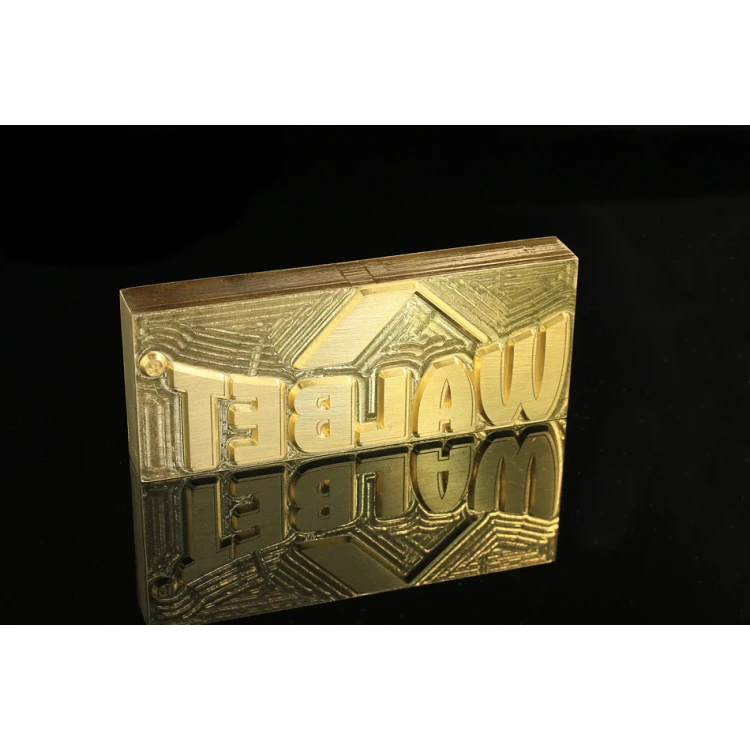

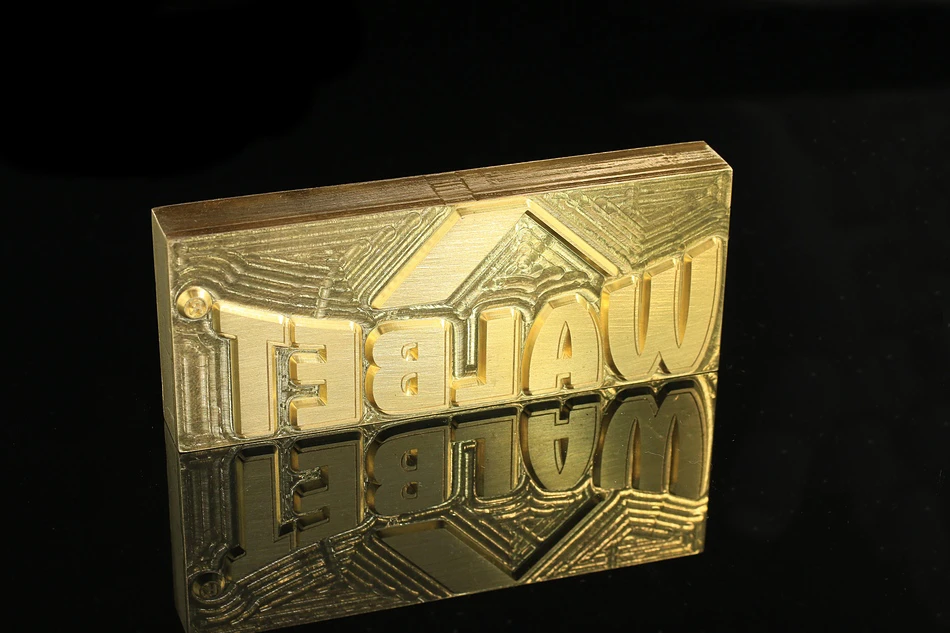

Matrix/stamp engraved with milling cutters.
Base for letters made on precision CNC engraving-milling machine

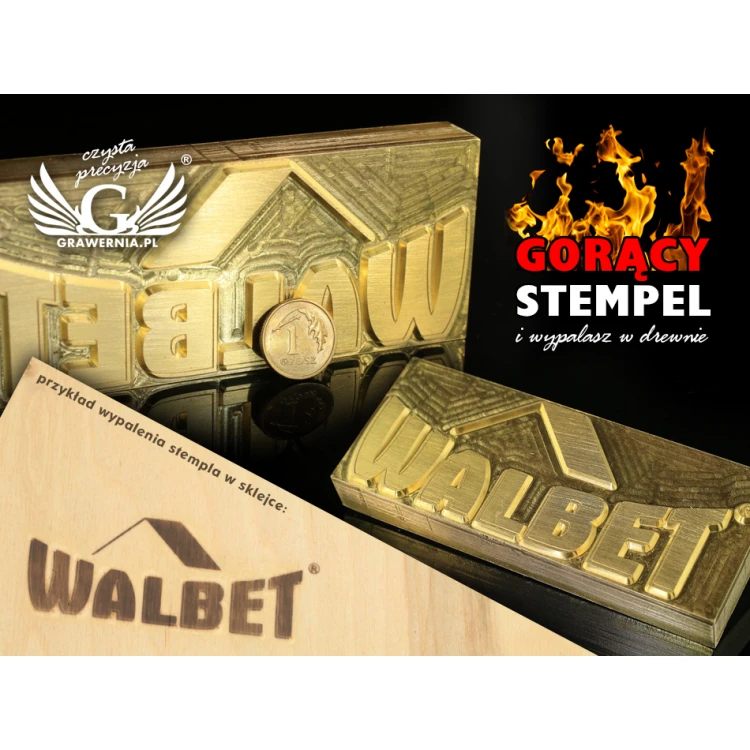

Example application: Hot stamping of logos in leather or wood.

External dimensions of stamp: 102x40mm
Imprint dimensions: 100x38mm

It is also possible to make other dimensions (subject to individual pricing).

MATERIAL: brass
DEPTH OF GRAVERY: about 1.5mm

Advantages of metal engraving with CNC router-engraving machine - technology allows to make:
- precise die
- containing letters, graphics or logos
- stable letters made in a cone
- stable graphics made in a cone
- convex or concave letters
- any content, numbering, symbol, graphic sign, logo,
- deep engraving exceeding the range of laser engraving.

If you need even greater precision, we invite you to make stamps in laser technology (extra charge).

Lead time: from 5 to 14 working days
depends on the work currently in progress.
For larger orders, lead time determined individually.

STAGES OF IMPLEMENTATION:
1. After purchase, please provide logo, graphics, content to be engraved to e-mail address: sklep@grawernia.pl.
- graphic files: cdr, ai, fh, wmf. for these files, please select the option: vector development NO.
- graphic files: jpg, bmp, png or tiff will have to undergo conversion to vector graphics enabling the matrix, so please select the option: vector development YES for these files.We accept only files with a minimum resolution of 300dpi.
2. We send the design (2-3 designs to choose from) for approval in the form of a pdf file.
3. Once the design is approved, the matrix is made.
4. Delivery

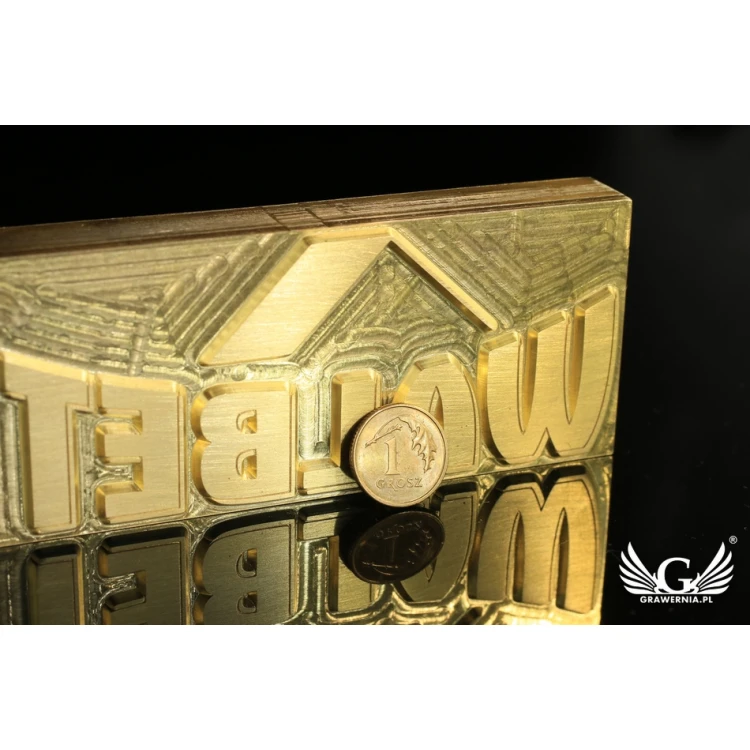

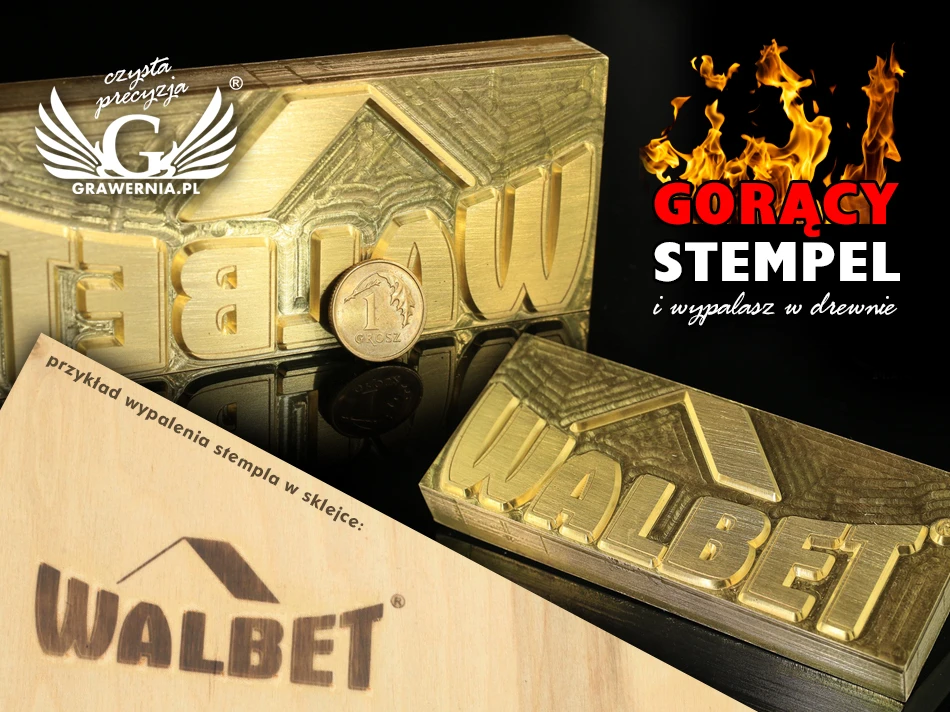

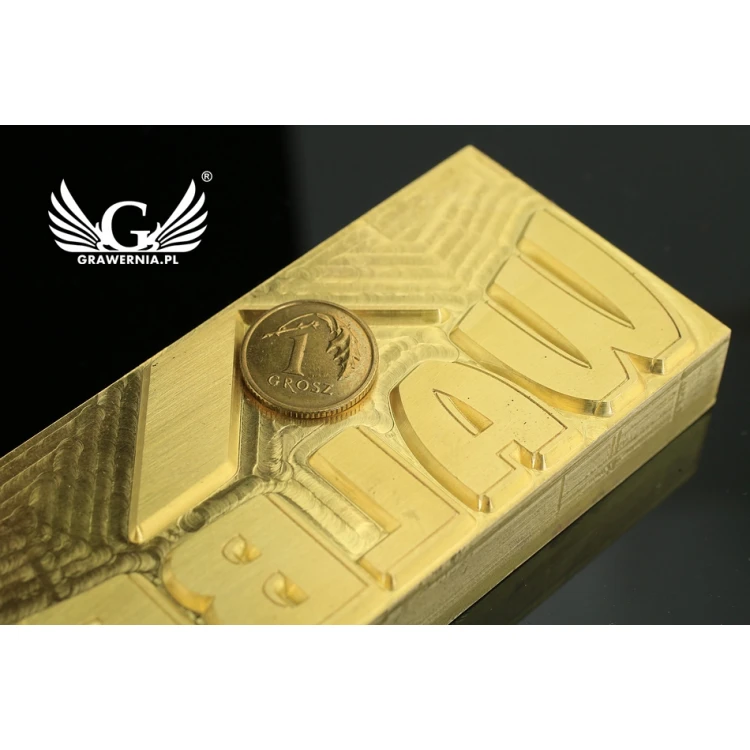

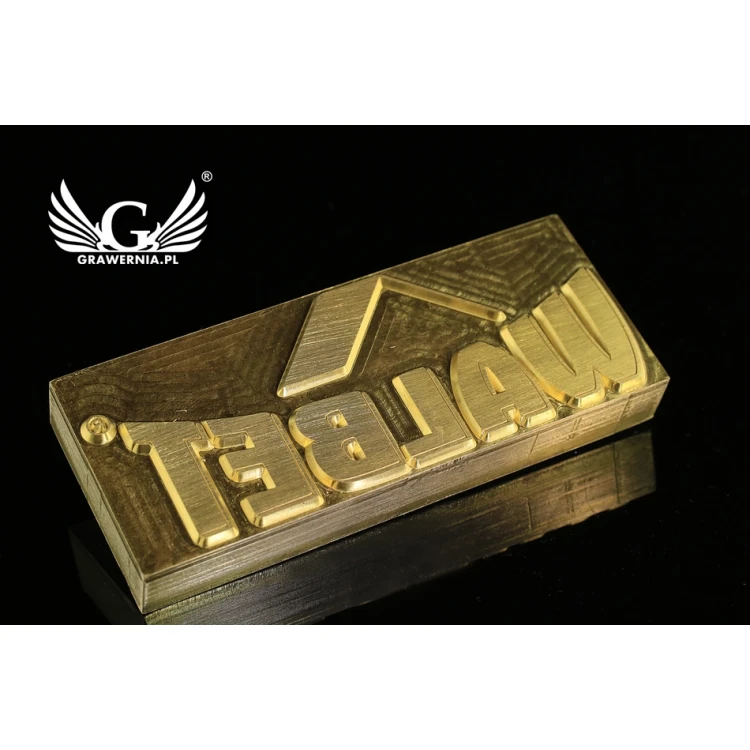

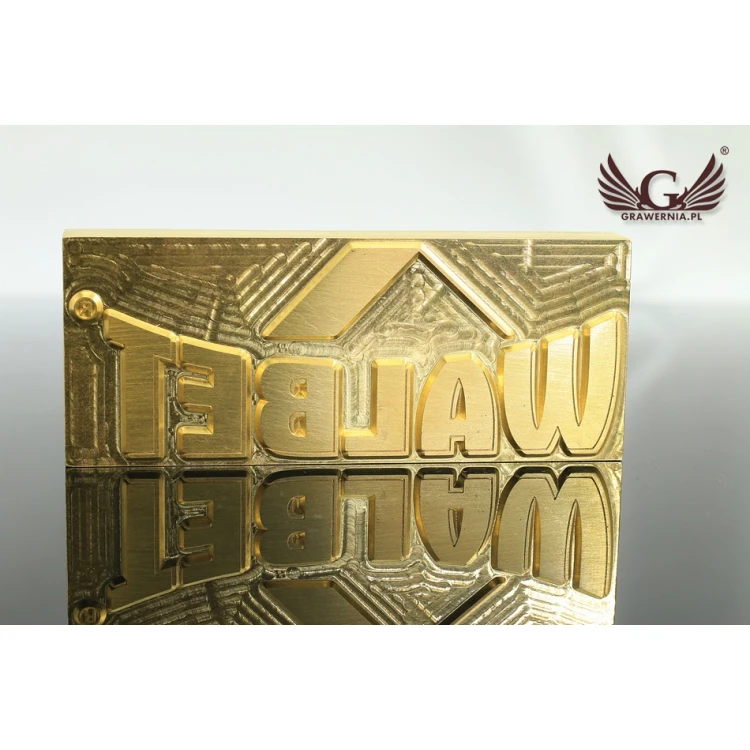

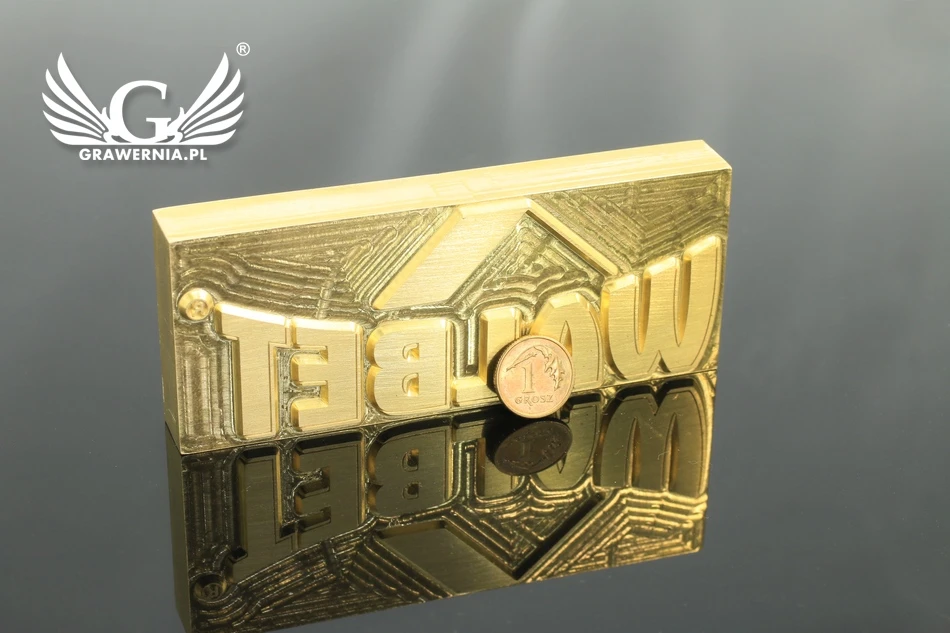

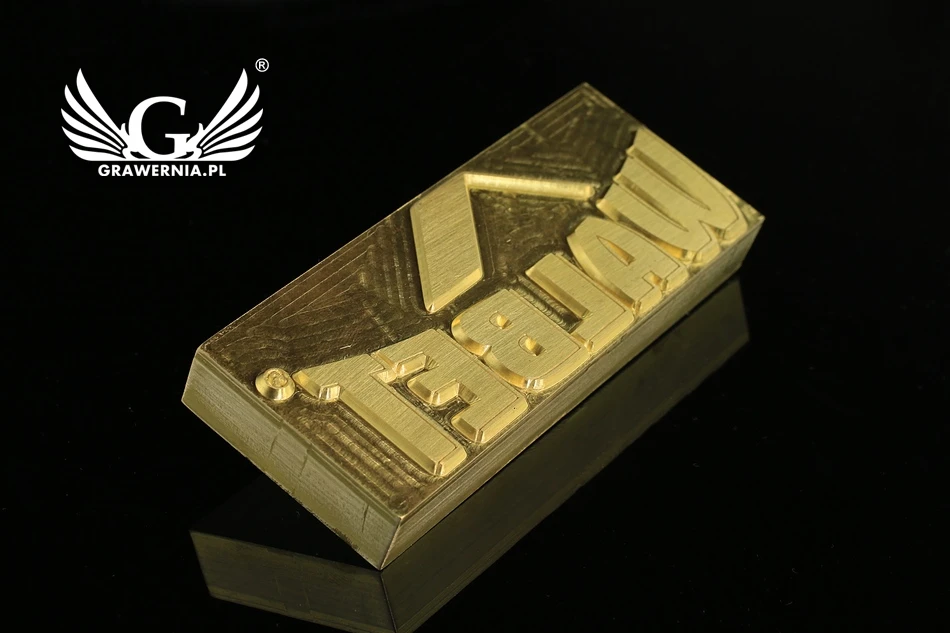

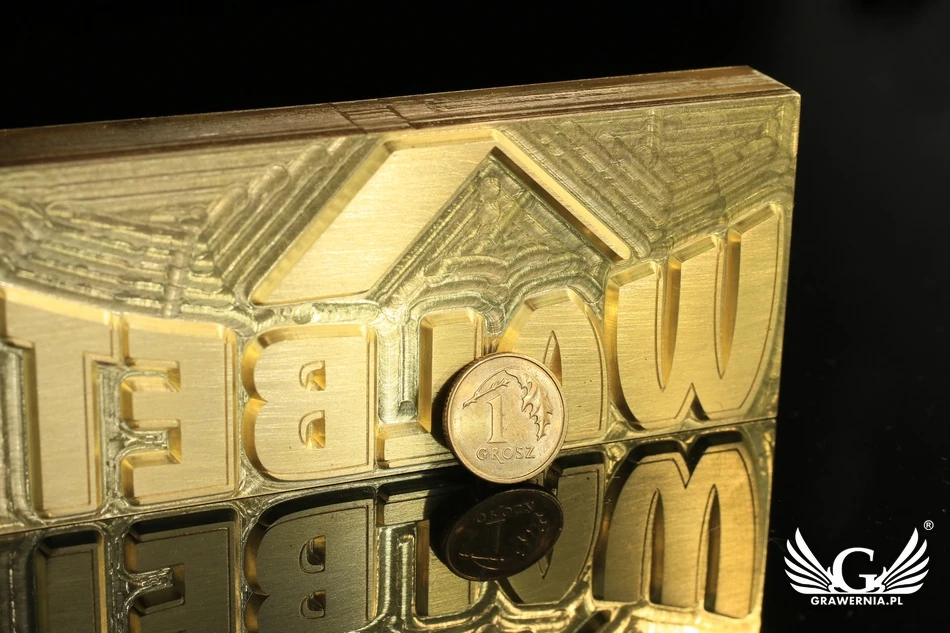

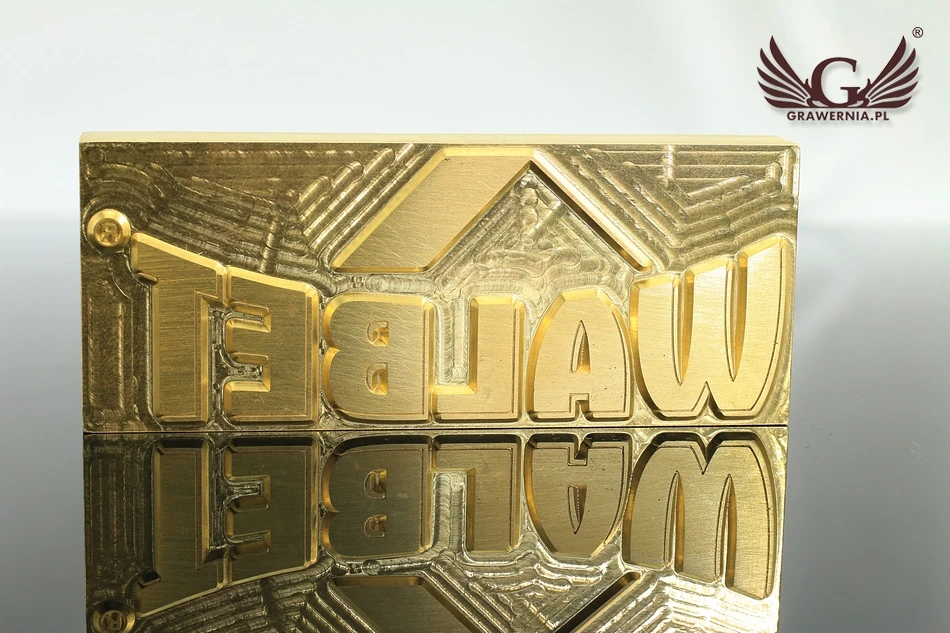

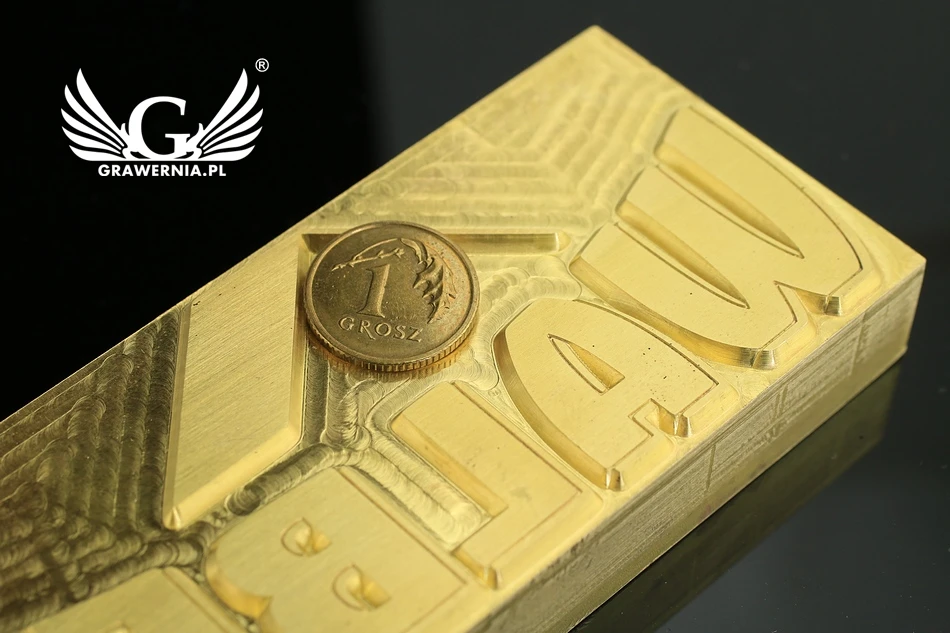

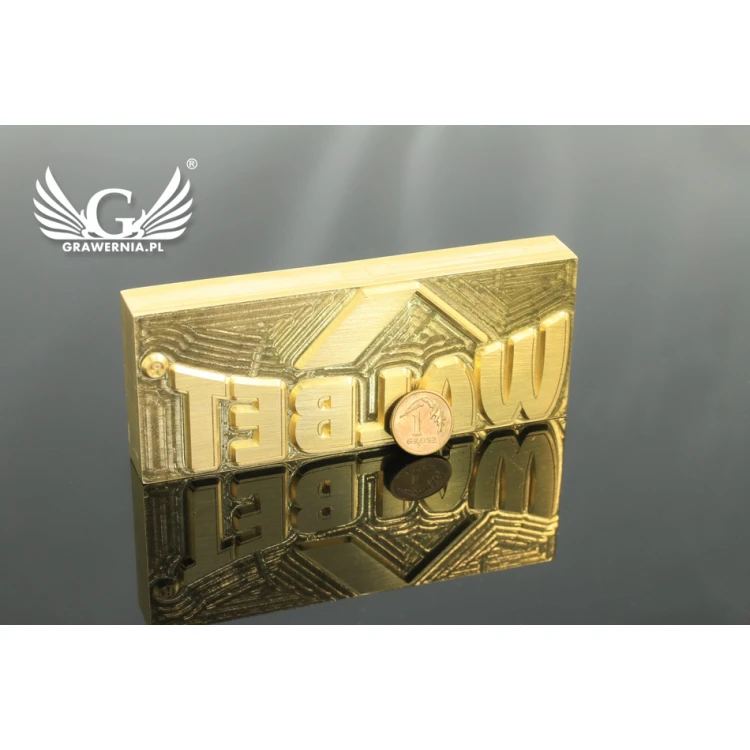

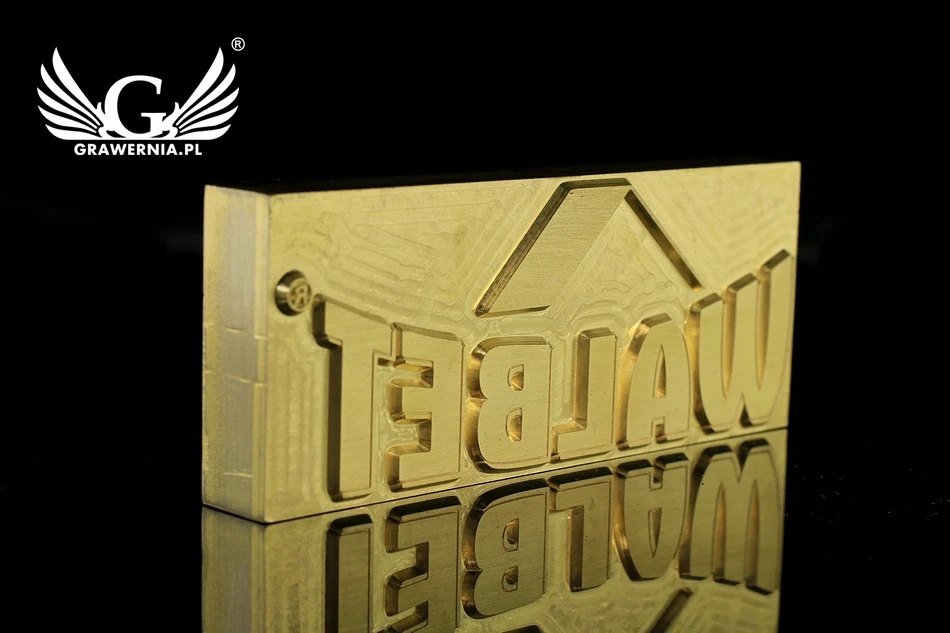

GALLERY: includes a sample implementation

OPTIONALLY RECOMMENDED:
HOT-STAMP MIRROR - the device allows you to make a HOT-STAMP type imprint in wood. The work consists in heating the brass stamp and burning the engraved logo, graphics or text by pressing it to the wooden surface.

- the burnisher is designed for continuous operation only in the vertical position. If using a tripod, the wooden handle should be removed.
- the very good balance of the device allows comfortably long work without hand fatigue.
- the heating pin is terminated with M8 thread with a length of 10mm which allows easy replacement of stamps.

Application: burning any text or logotype in wood.

RECOMMENDATIONS: Read the instructions before turning on the device to operate the burnisher safely. The device reaches a high temperature, so be very careful during operation. We can only hold the burnisher by the wooden handles. Touching metal parts risks serious burns!!! Do not heat up the burner placed on a table, board, elements made of metal, glass, stone or flammable materials. Due to the very high operating temperature, the device should be warmed up in a safe place hanging on a hook by a steel triangular eye. After finishing work, the burnisher maintains a high temperature for a long time, so we hang it on the hook until it cools down completely. To avoid fire do not leave the device heated unattended!!!

model: 400W
Rated voltage: 230V~50Hz
Power consumption: 400W
Blade temperature: 450°C
Warm-up time: 205°C depends on the dimensions of the punch
Weight: 1.2kg
Warranty: 2 years*

*when using the device for continuous operation, the life of the burnisher has been determined to be 2 years.

We will be happy to answer your questions by email and phone
