Marking cassette for hot and cold text embossing - double line - CNC065

Product description

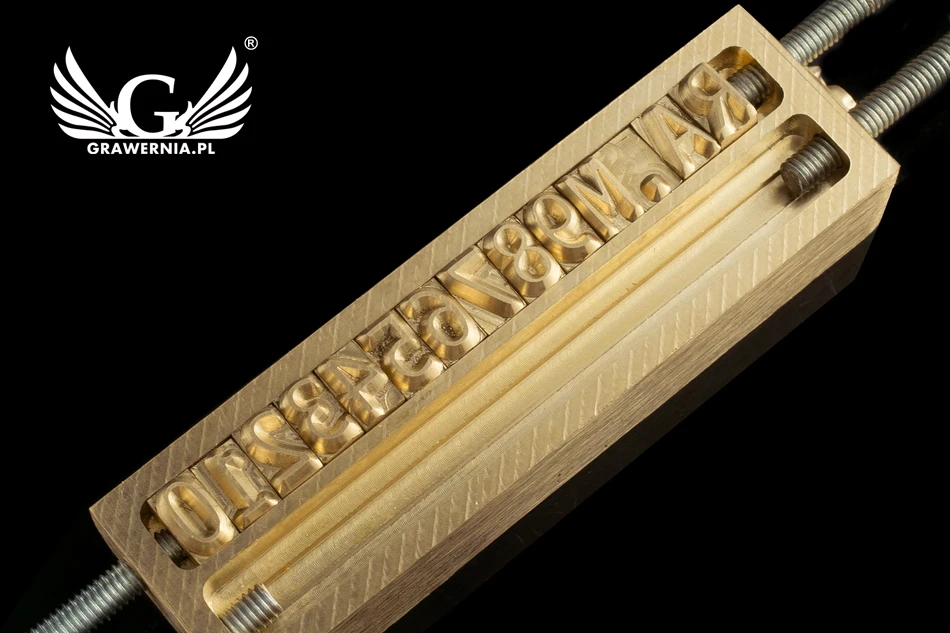

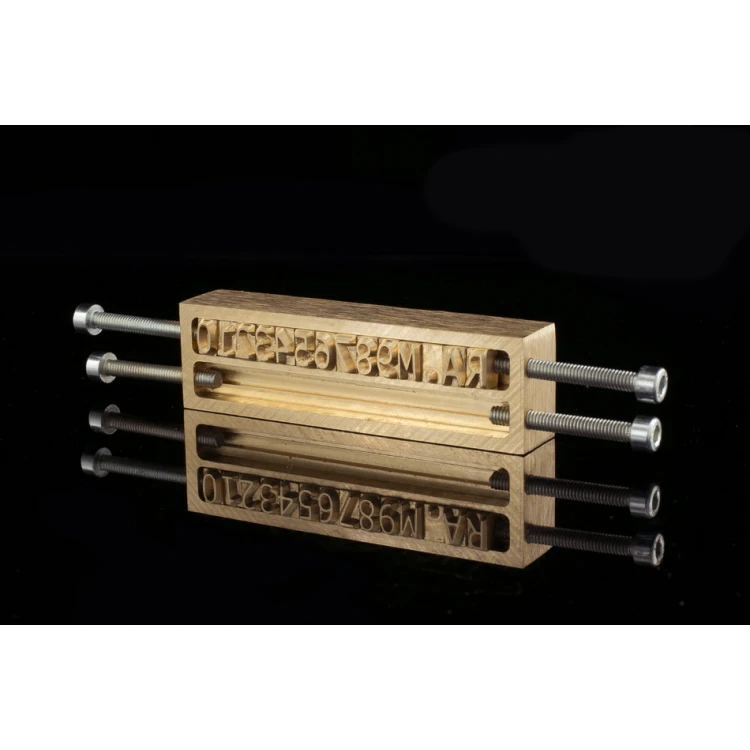

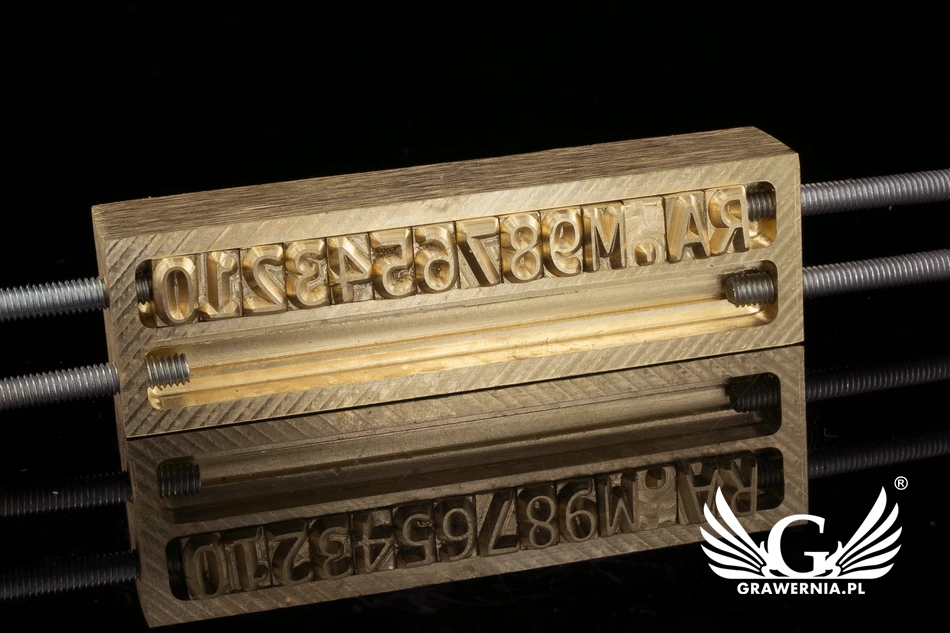

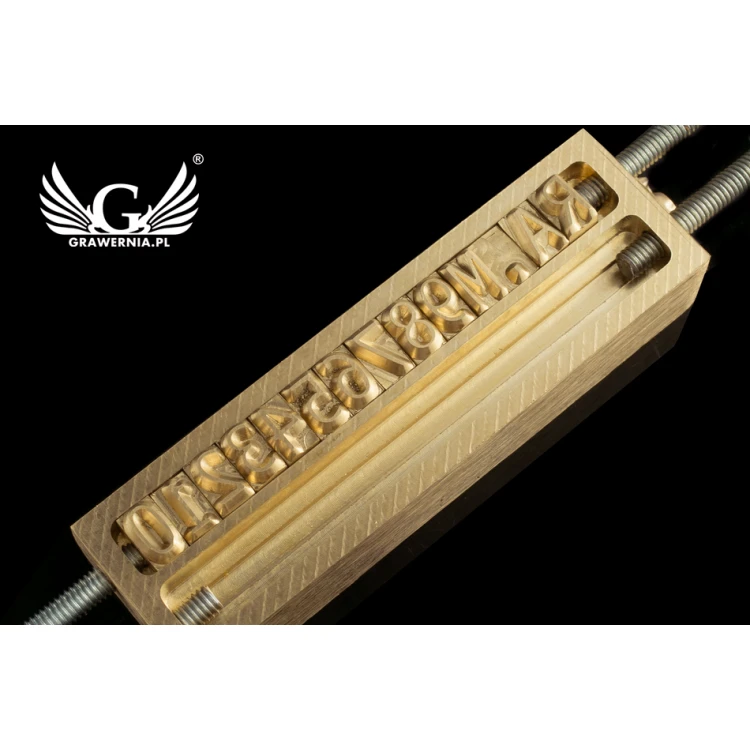

Hot stamp type two-line cartridge. Example use: Stamp for burning any combination of numbers and letters in wood and leather.

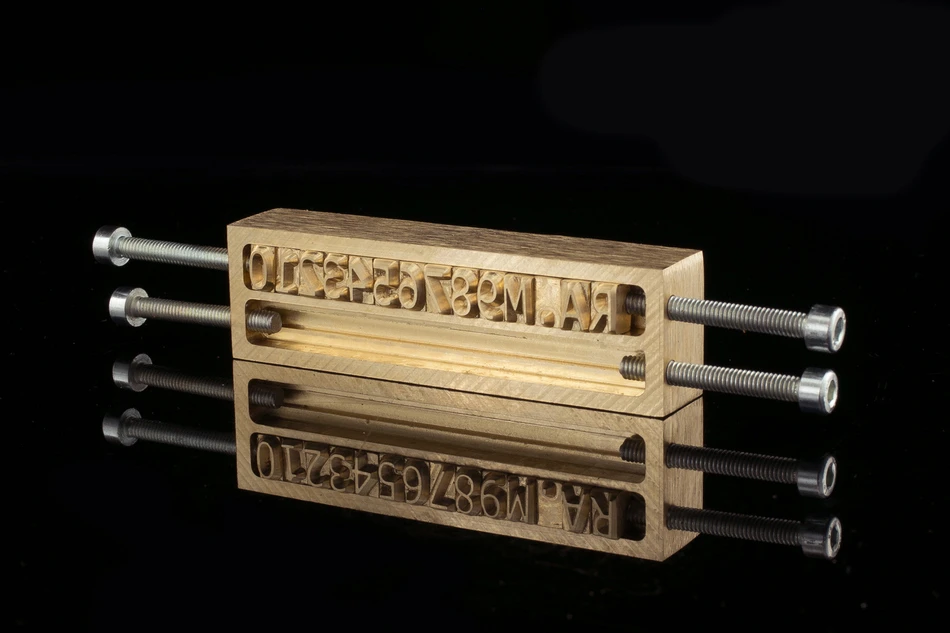

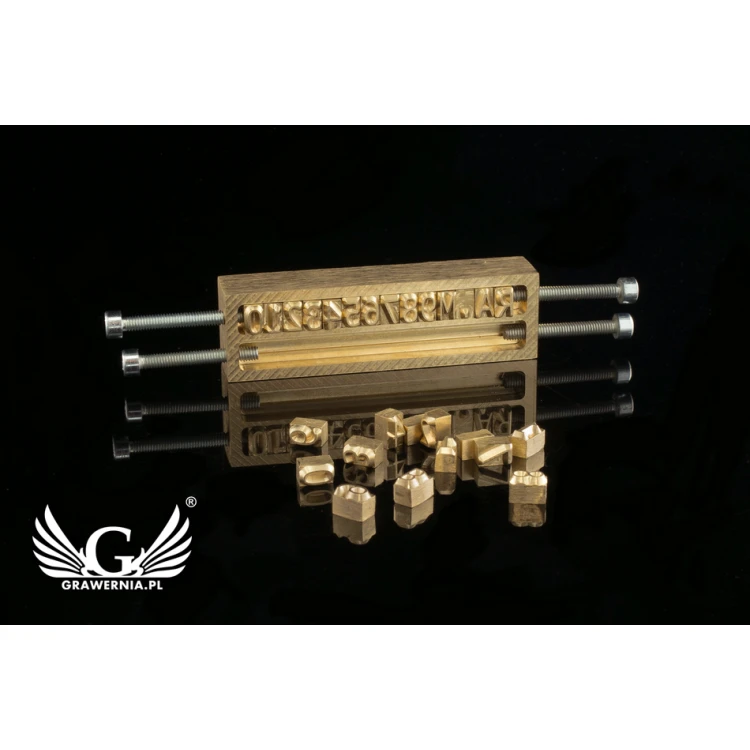

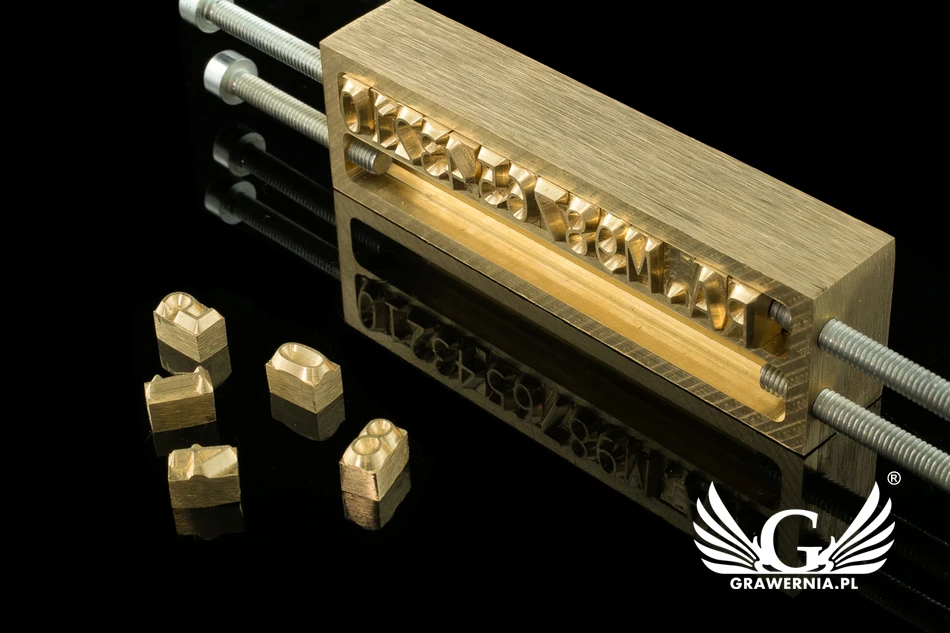

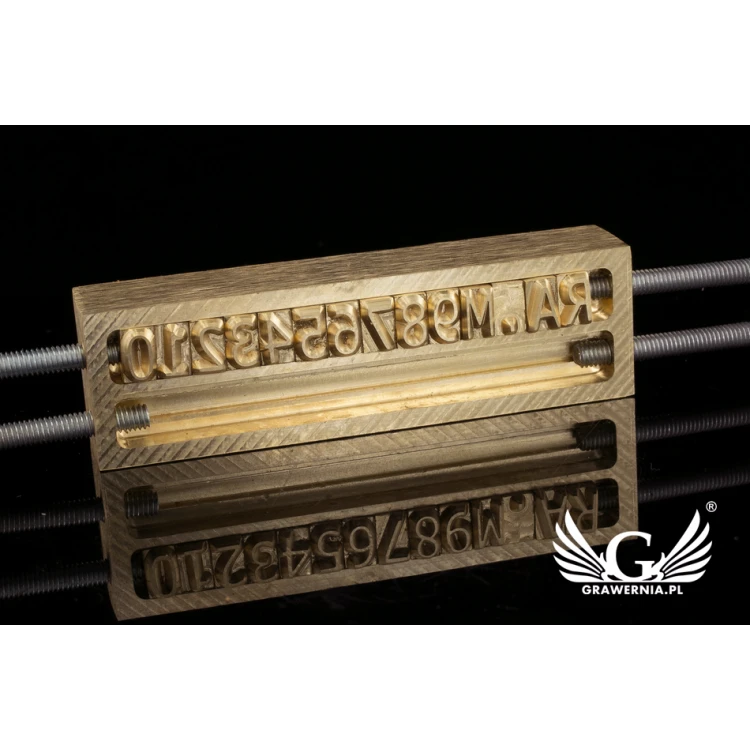

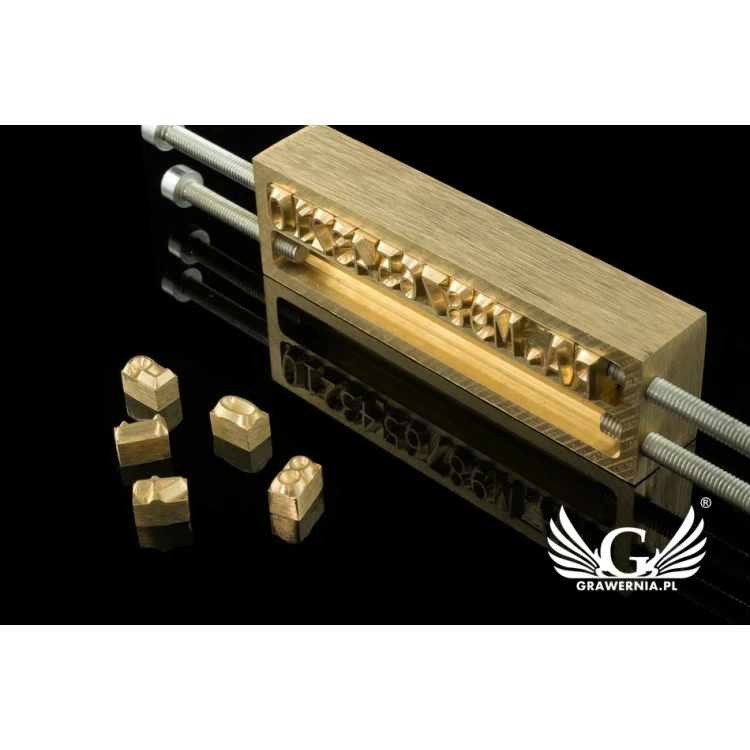

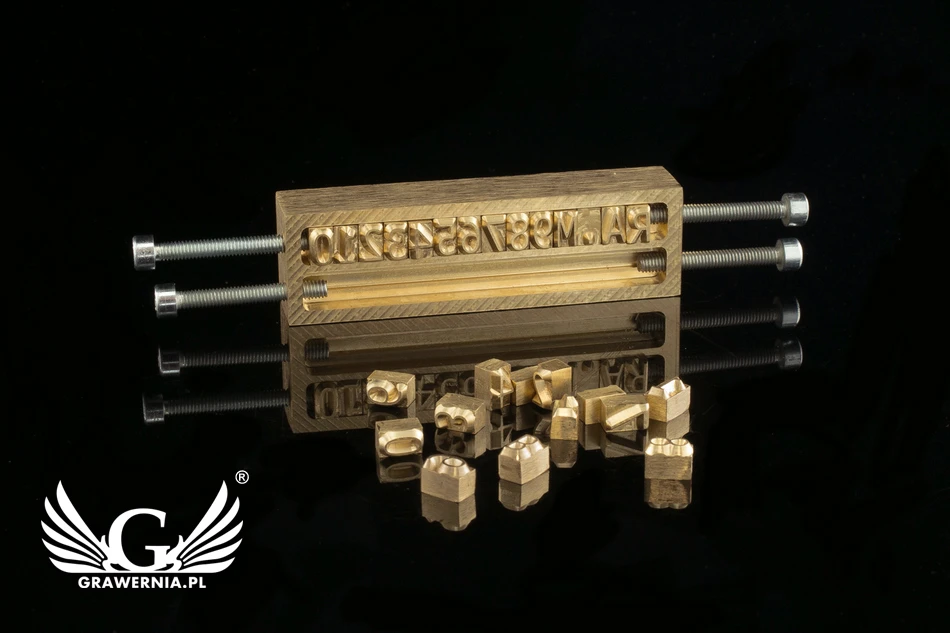

Slots made on a precision CNC engraving and milling machine. The stamp accommodates two rows of 14 positions each. Screws allow quick placement of any combination of numbers and letters. The stamp is especially recommended for factories to mark batches of products.

NOTE: The product does not include fonts, they should be purchased here depending on your needs .

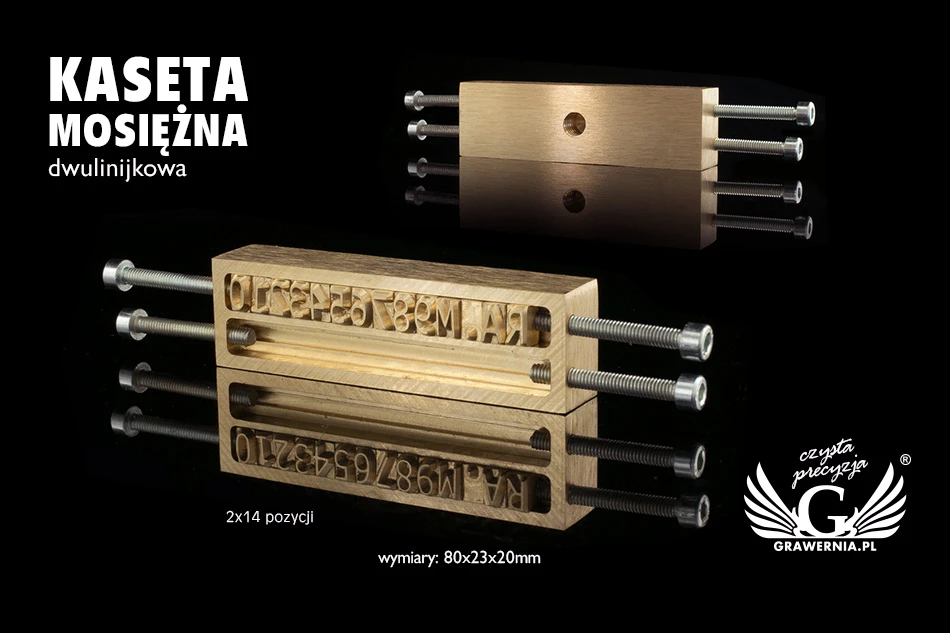

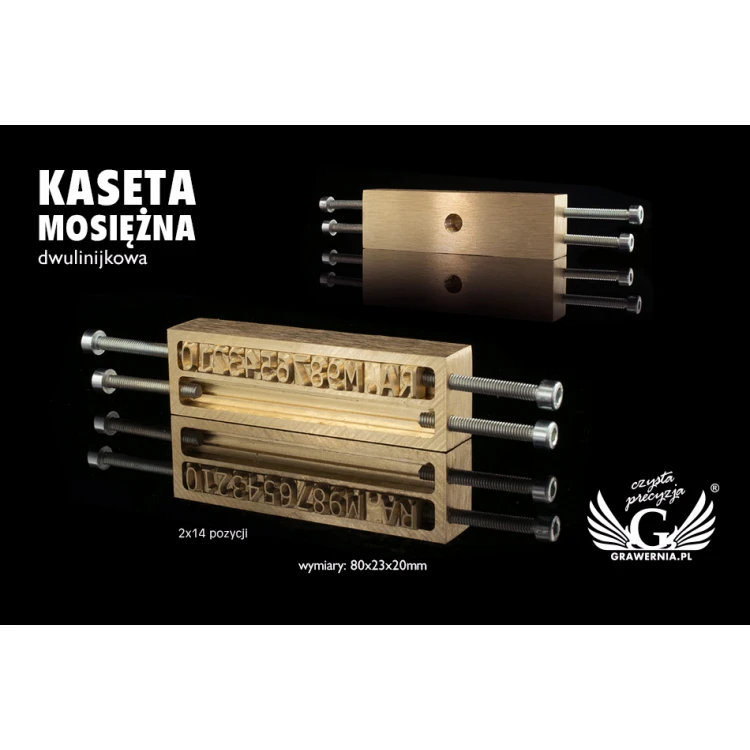

Cartridge:
- dimensions: 80x23x20mm
- maximum number of characters: 2x14
- socket depth: 4.4mm

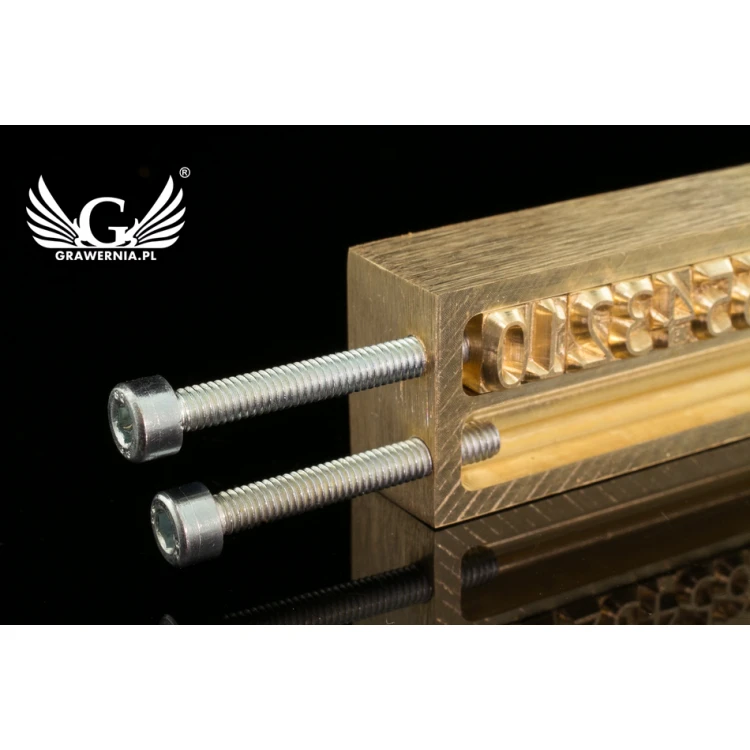

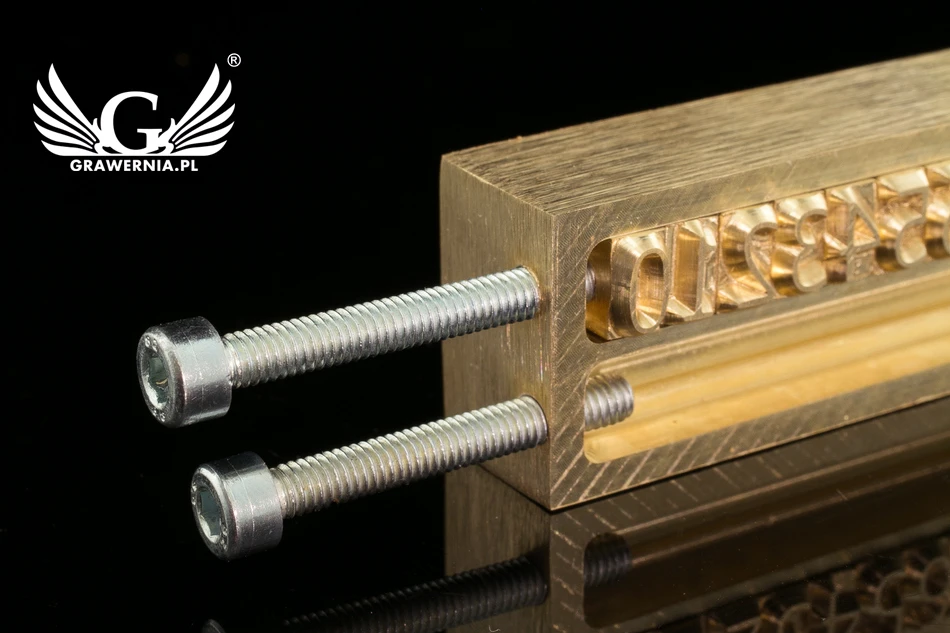

- two pressure screws for allen key

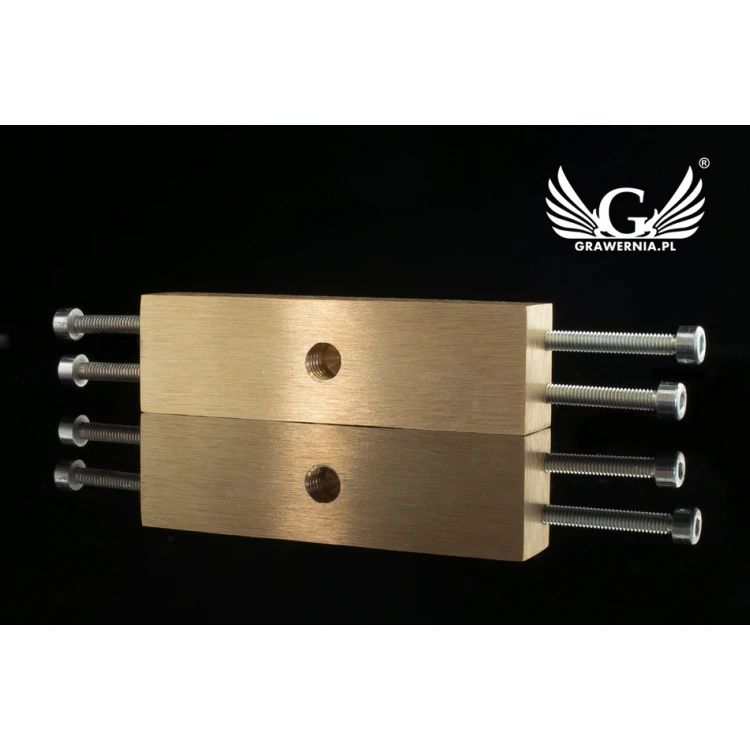

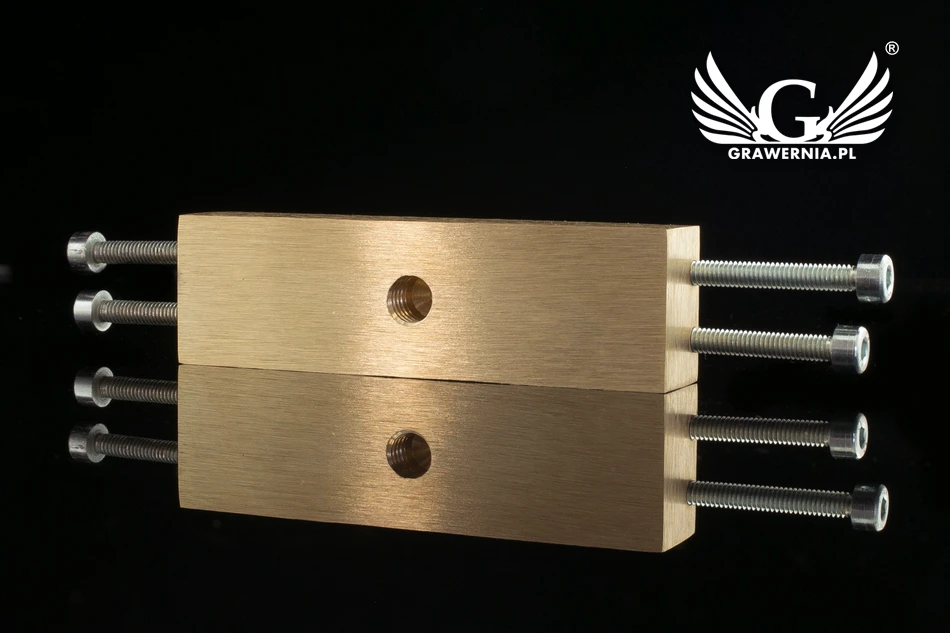

- M8 threaded hole placed centrally

MATERIAL: brass
Advantages of metal engraving with CNC milling machine - technology allows to make:

- precise die
- containing letters, graphics or logos
- stable letters made in a cone
- stable graphics made in a cone
- convex or concave letters
- any content, numbering, symbol, graphic sign, logo,
- deep engraving exceeding the range of laser engraving.

If you need even greater precision, we invite you to make stamps in laser technology (extra charge).

Lead time: from 5 to 14 days
depends on the work currently in progress.
For larger orders, lead time determined individually.

STAGES OF IMPLEMENTATION:
1. After purchase, please provide logo, graphics, content to be engraved to the e-mail address: sklep@grawernia.pl
- graphic files: cdr, ai, fh, wmf. for these files, please select the option: vector development NO
- graphic files: jpg, bmp, png or tiff will have to undergo conversion to vector graphics allowing the matrix to be made, so please for these files select the option: vector development YES
2. We send the project (2-3 designs to choose from) for approval in the form of a pdf file.
3. Once the project is approved, the matrix is made.
4. Delivery

GALLERY: contains a sample implementation


OPTIONALLY RECOMMENDED:
HOT-STAMP MIRROR - the device allows you to make a HOT-STAMP reflection in wood. The work consists in heating a brass stamp and burning an engraved logo, graphics or text by pressing it to the wooden surface.

- the burnisher is designed for continuous operation
- very good balance of the device allows comfortably for long work without hand fatigue.
- the heating pin is ended with a M8 thread with a length of 10mm which allows for easy replacement of stamps.

Application: burning any text or logo in wood.

Power consumption: 400W
Rated voltage: 230V~50Hz
Blade temperature: 450°C
Heating time to temp: 205°C is 8 minutes
Weight: 1.2kg
Warranty: 12 months
