Braille Handrail Plaque - size 150x36mm - cream laminate textures - TAB546

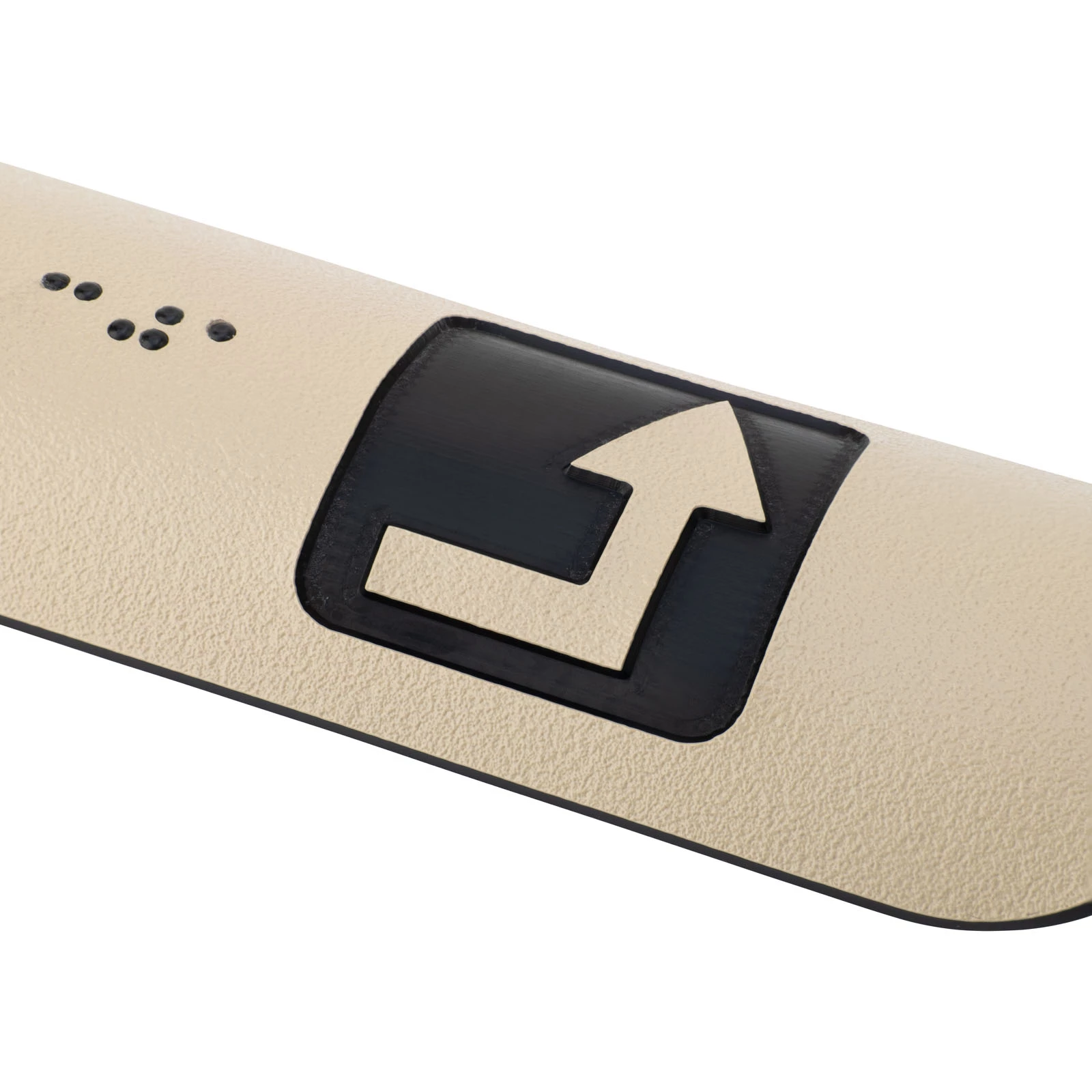

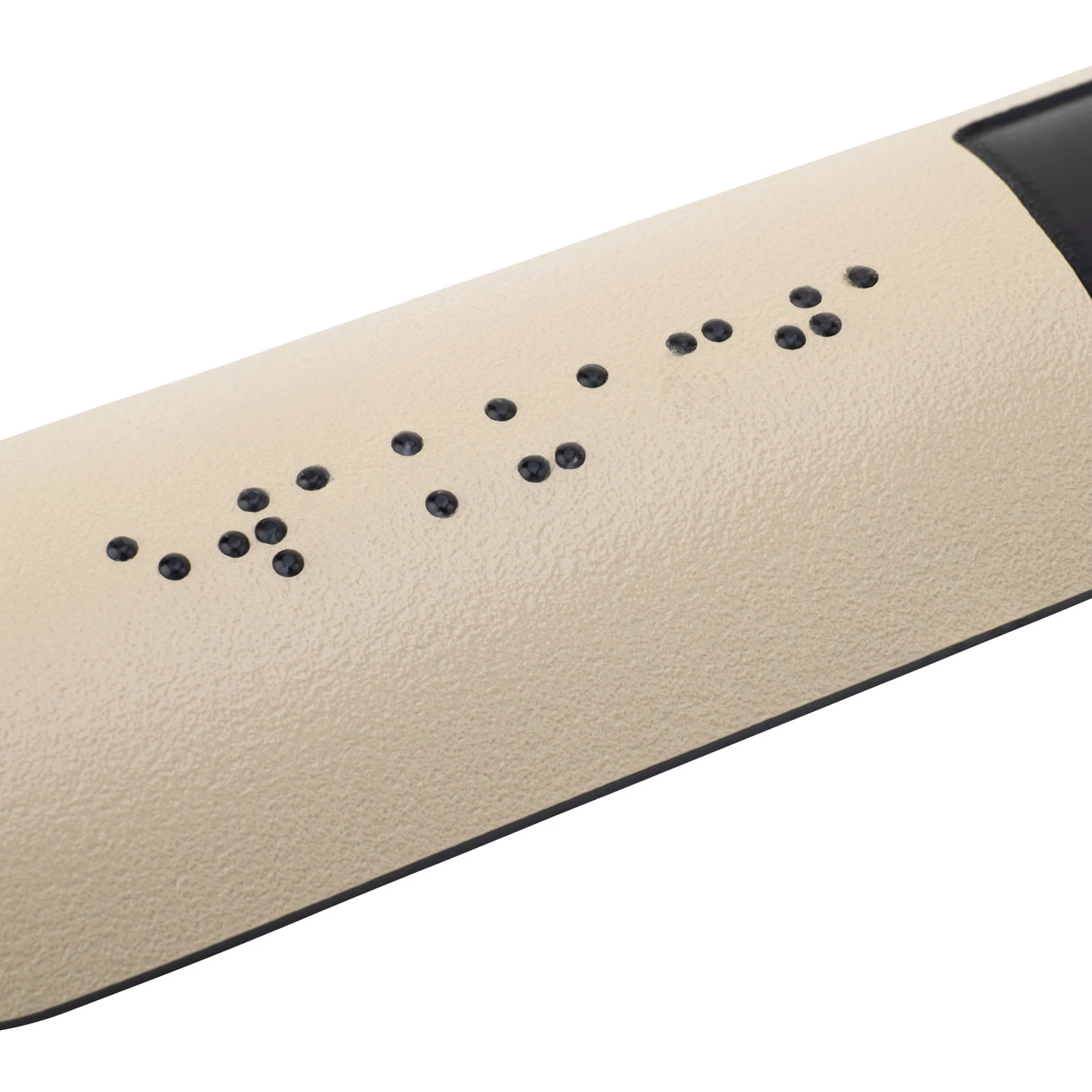

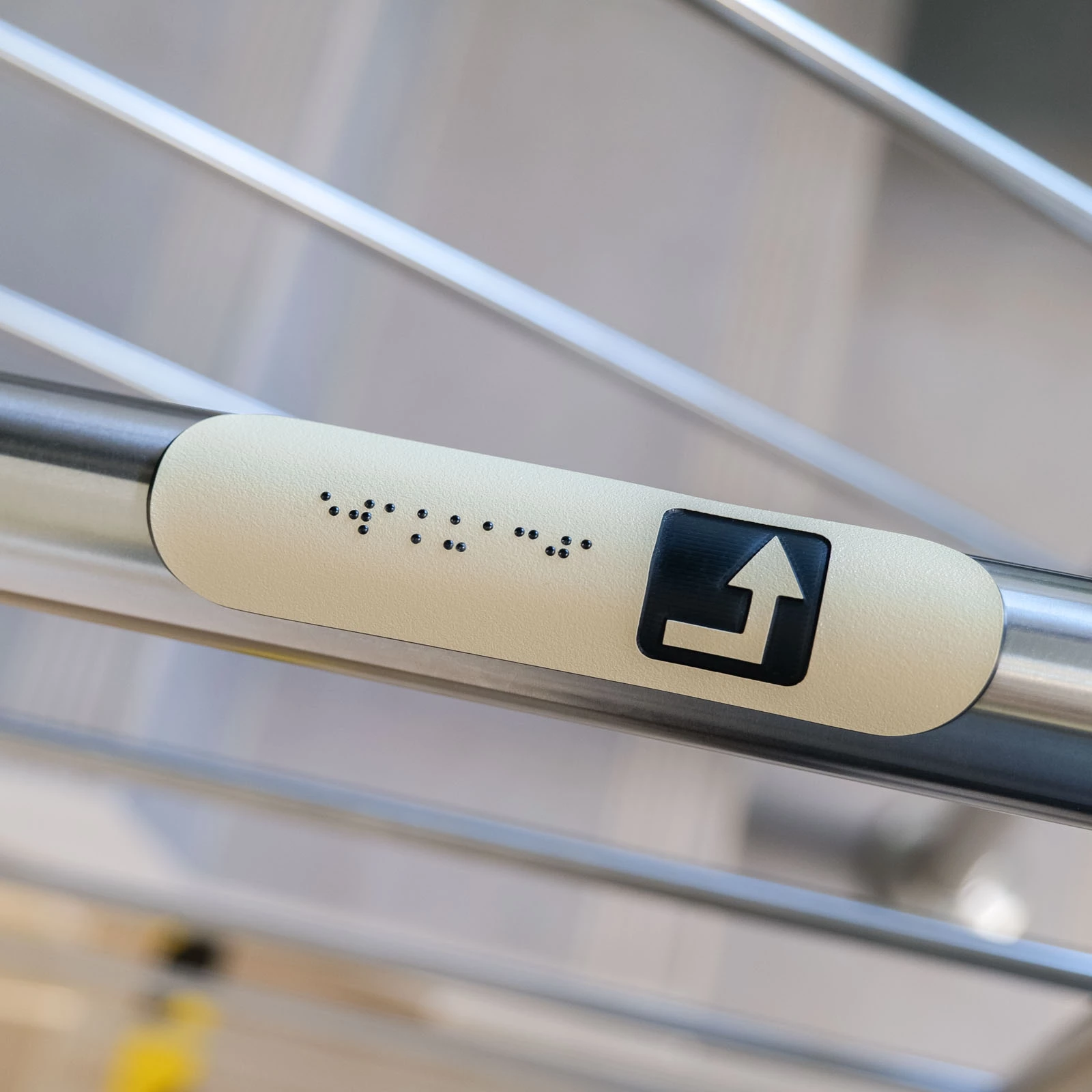

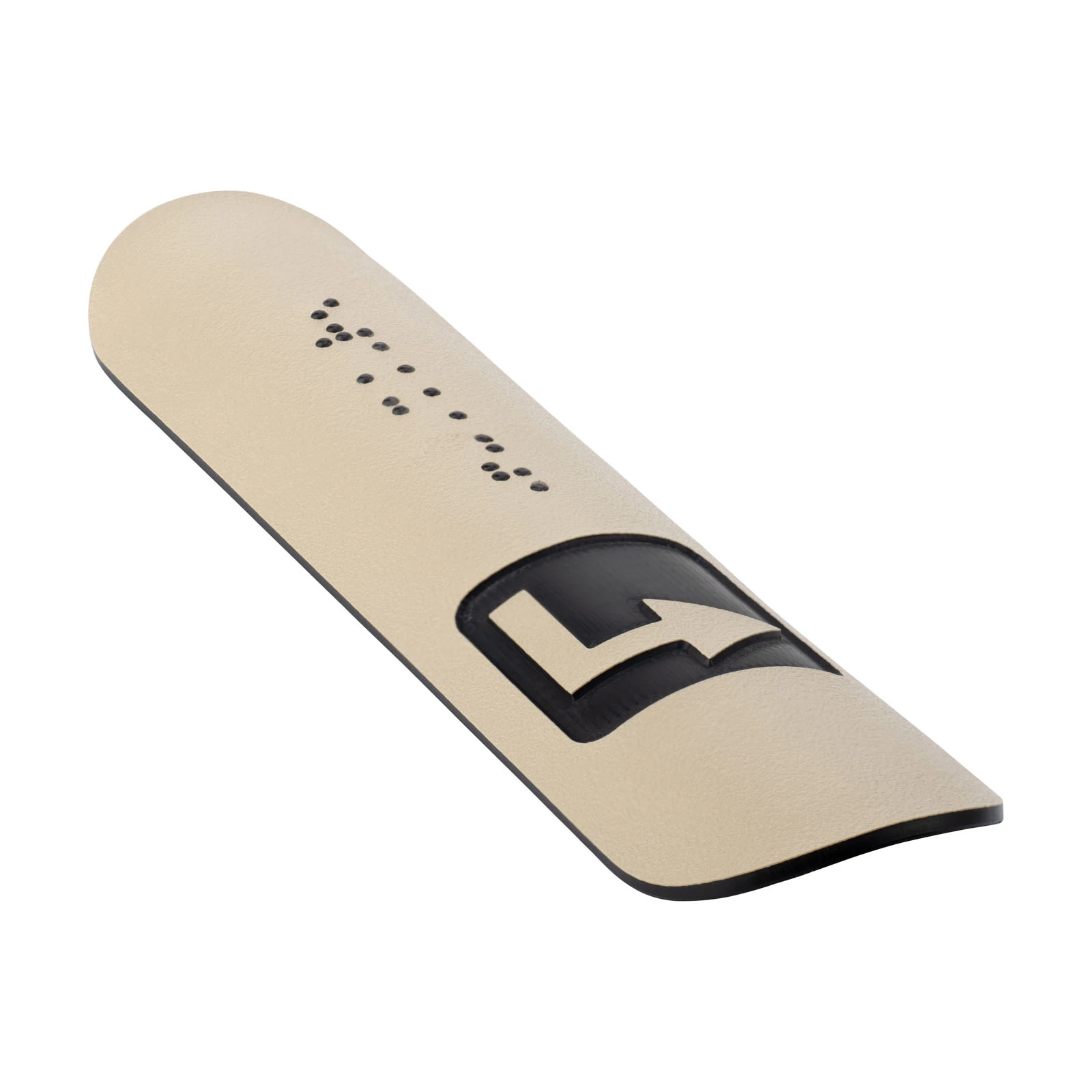

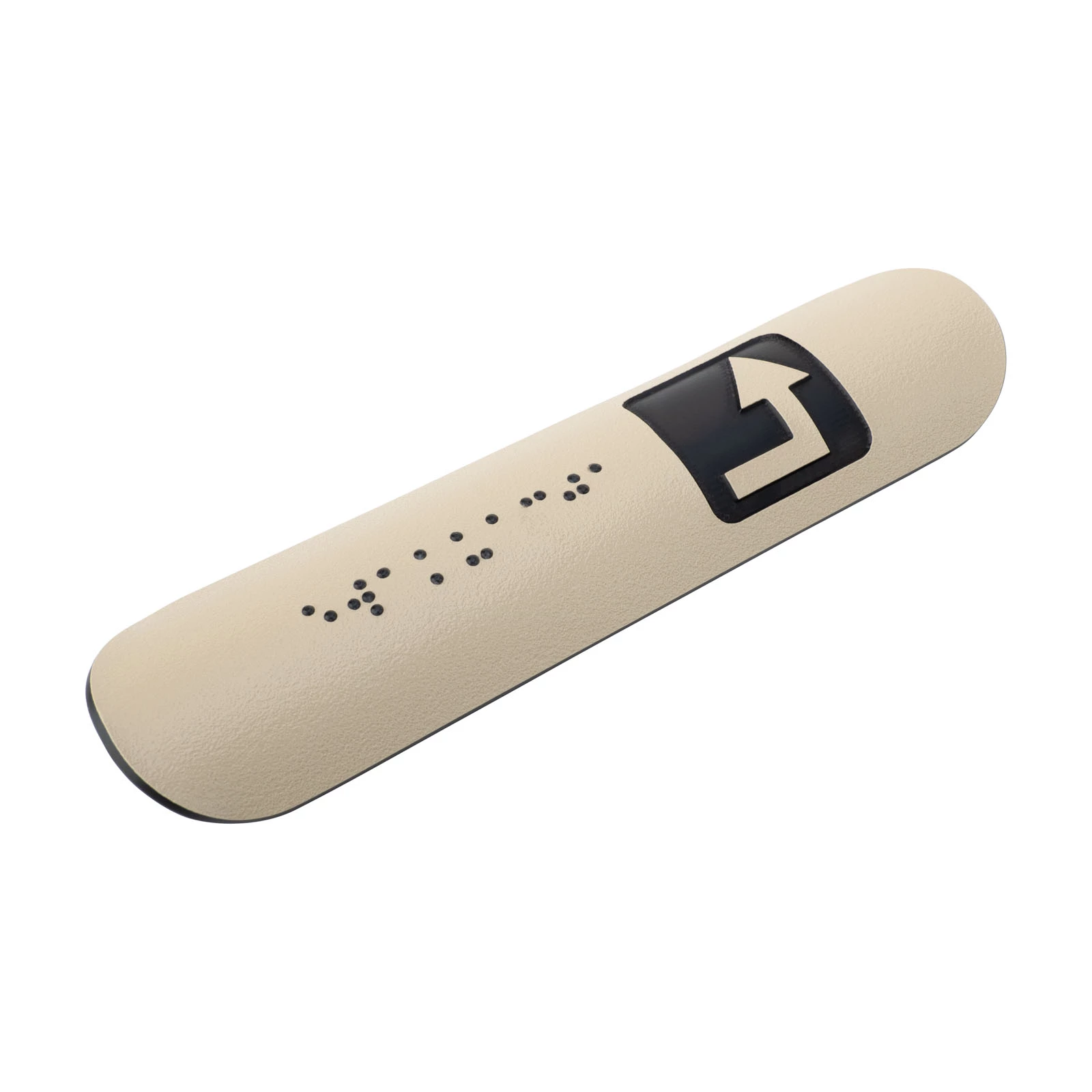

Directional overlay for handrail with Braille, made of black engraving laminate. On the plate we put any text with Braille and an arrow in any direction. The overlays are heat-bent and designed for handrails with a diameter of 40mm. The use of professional and licensed Braille balls makes the inscriptions clearly perceptible under the fingertip, the whole is punched using CNC technology. The balls in accordance with the recommendations of the PZN are placed at a height of 0.5mm and have a base width of 1.5mm. Overlays are mounted to the handrail on foam tape.



Before implementation, we prepare a design (PDF file) and send it for approval to the indicated e-mail address. At the design stage, you can contact the graphic designer at any time. After accepting the project we proceed to production.



Plaques are made according to the design in the gallery. Dimension modification is subject to individual pricing. Feel free to contact us by phone or email: sklep@grawernia.pl for more details.

dimensions: 150x36mm

materials:

- cream laminate textures 1,6mm, grainy texture

color of balls: transparent

ball height: 0.5mm (according to PZN recommendations)

text in braille: as agreed with the customer

fixing: acrylic tape



Deadline for completion of the order: from 3 to 7 working days counted from the approval of the project, which we send in a PDF file.



The content of the plaques should be attached in the last step of placing the order or sent to sklep@grawernia.pl writing the order number in the subject of the message.



We will be happy to answer your questions by phone or email.
