Braille tile plan - ADA plastic, laminate and acrylic - Dimension 550x445mm - TAB585

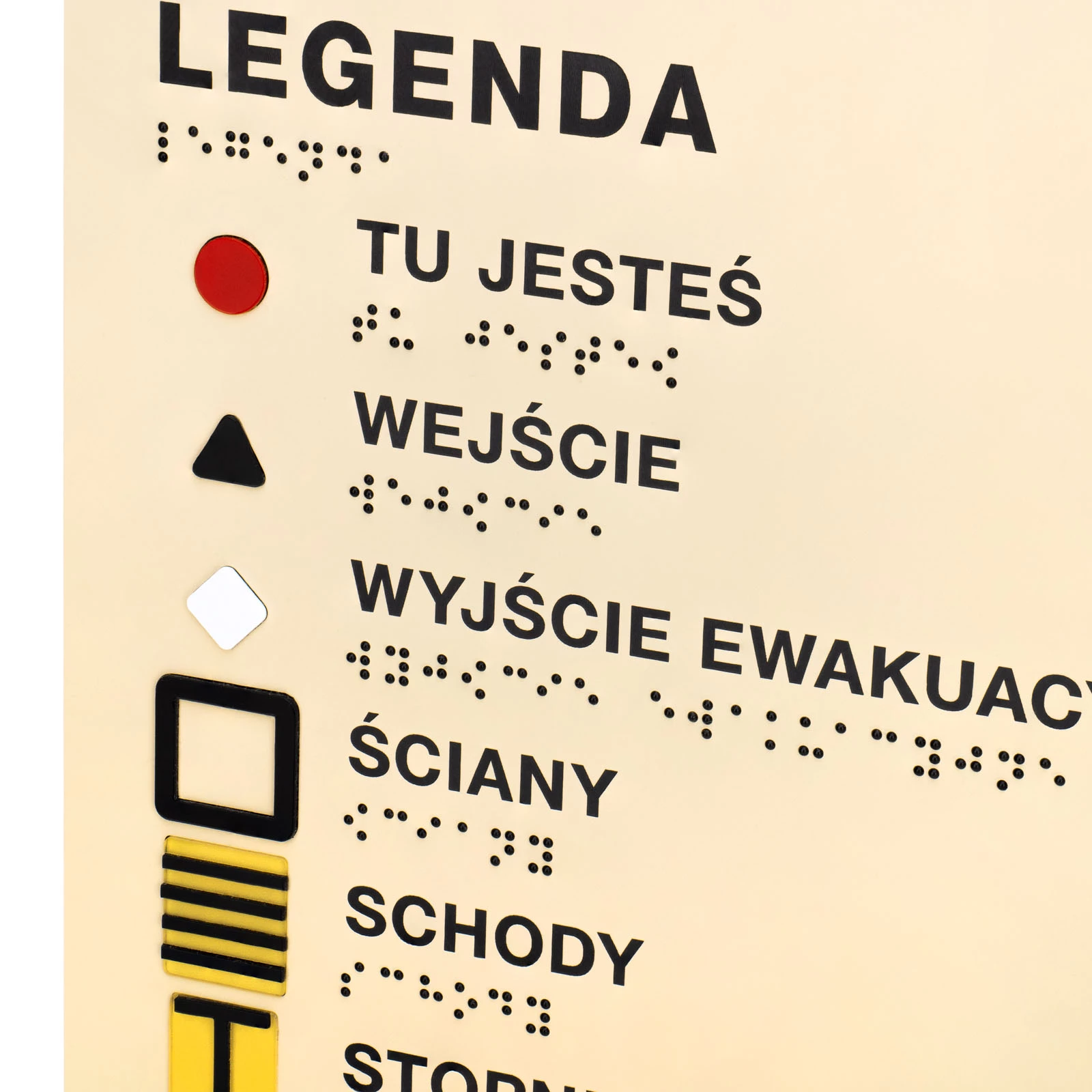

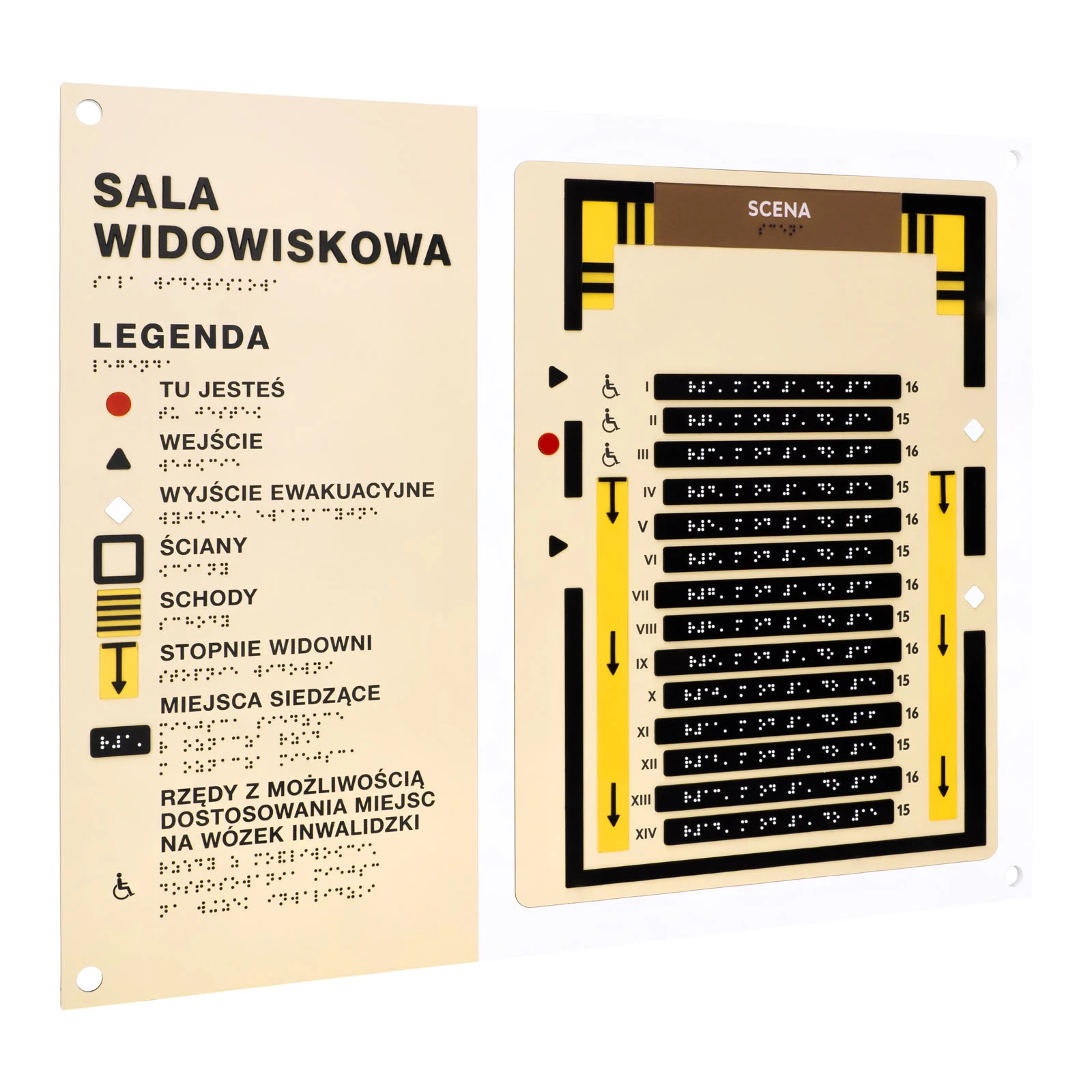

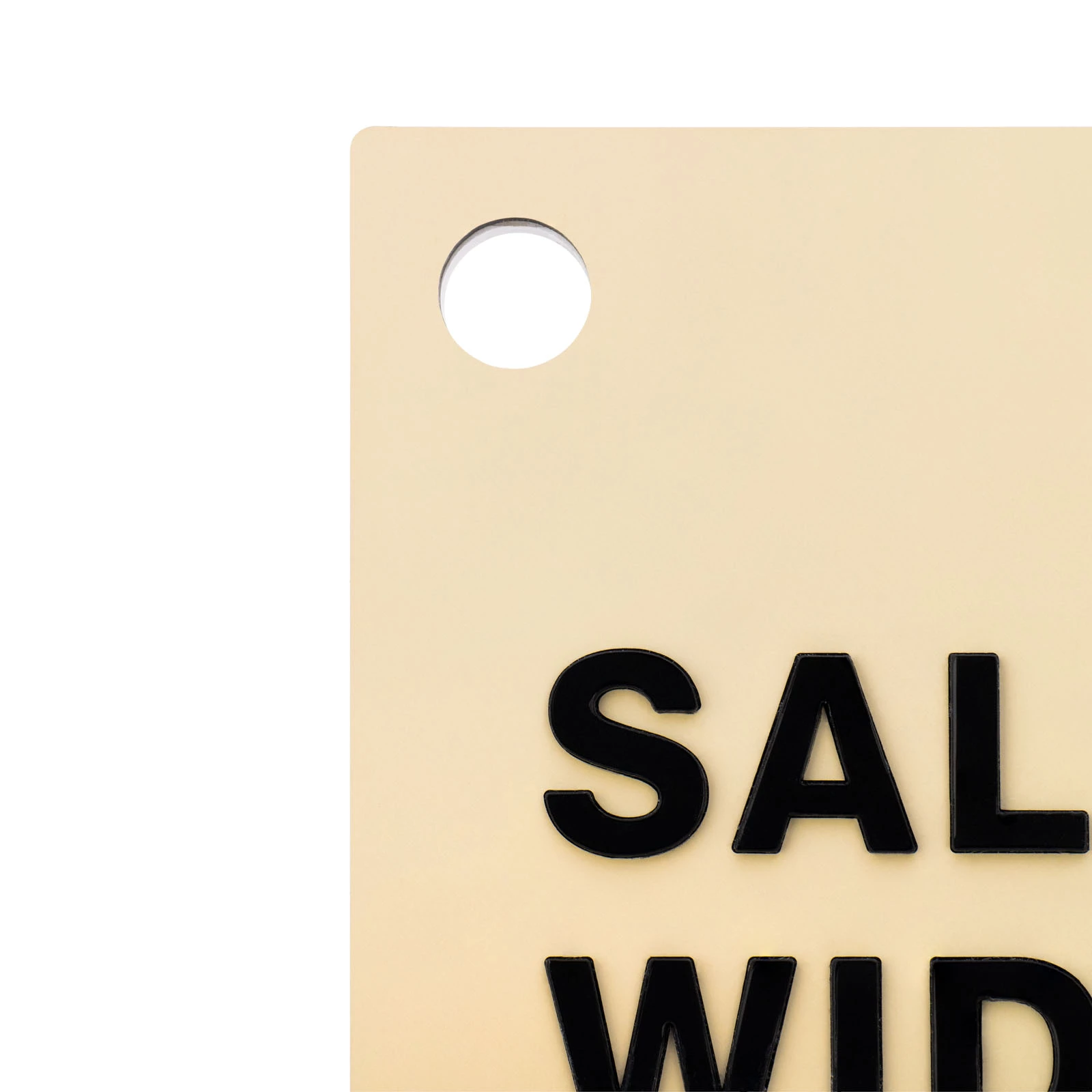

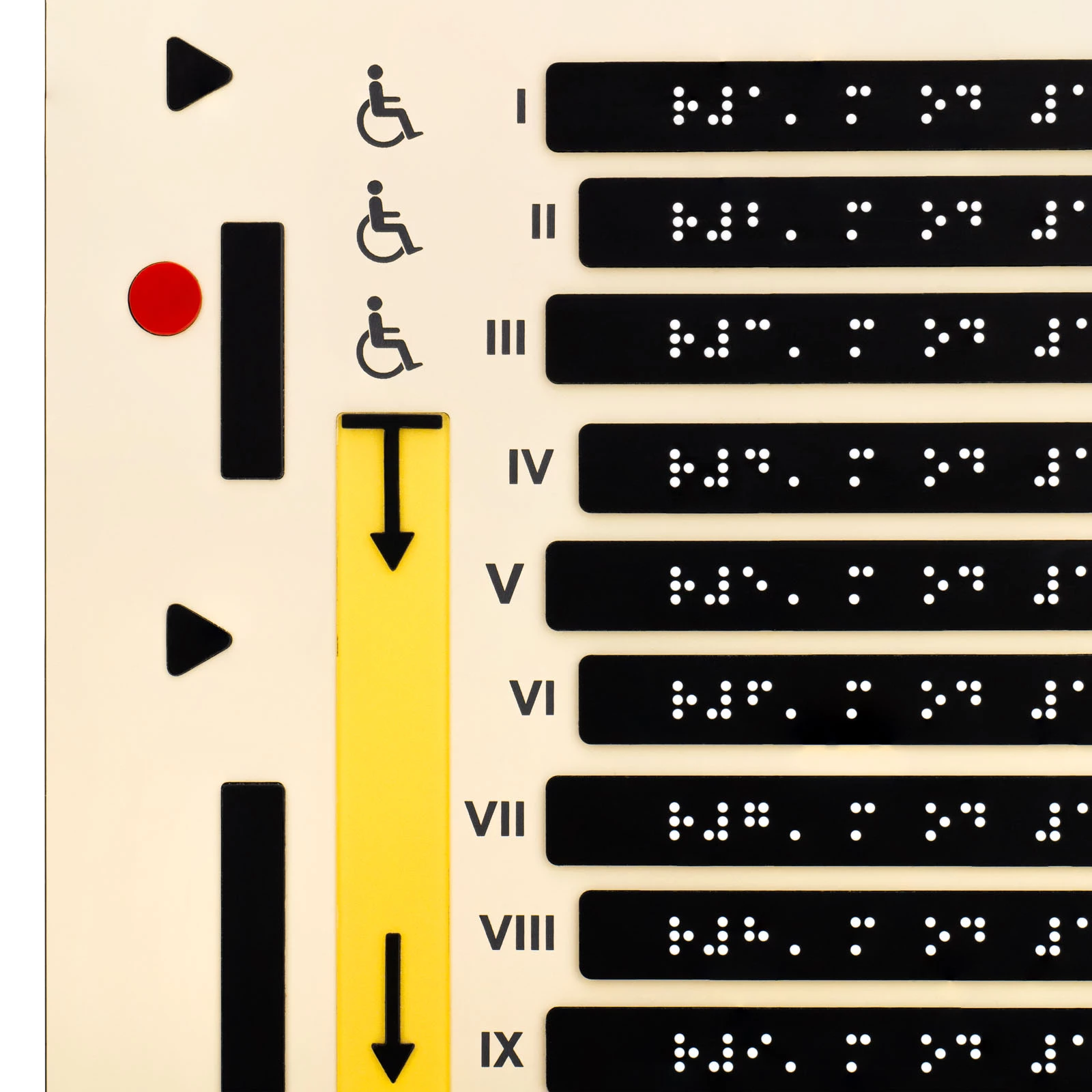

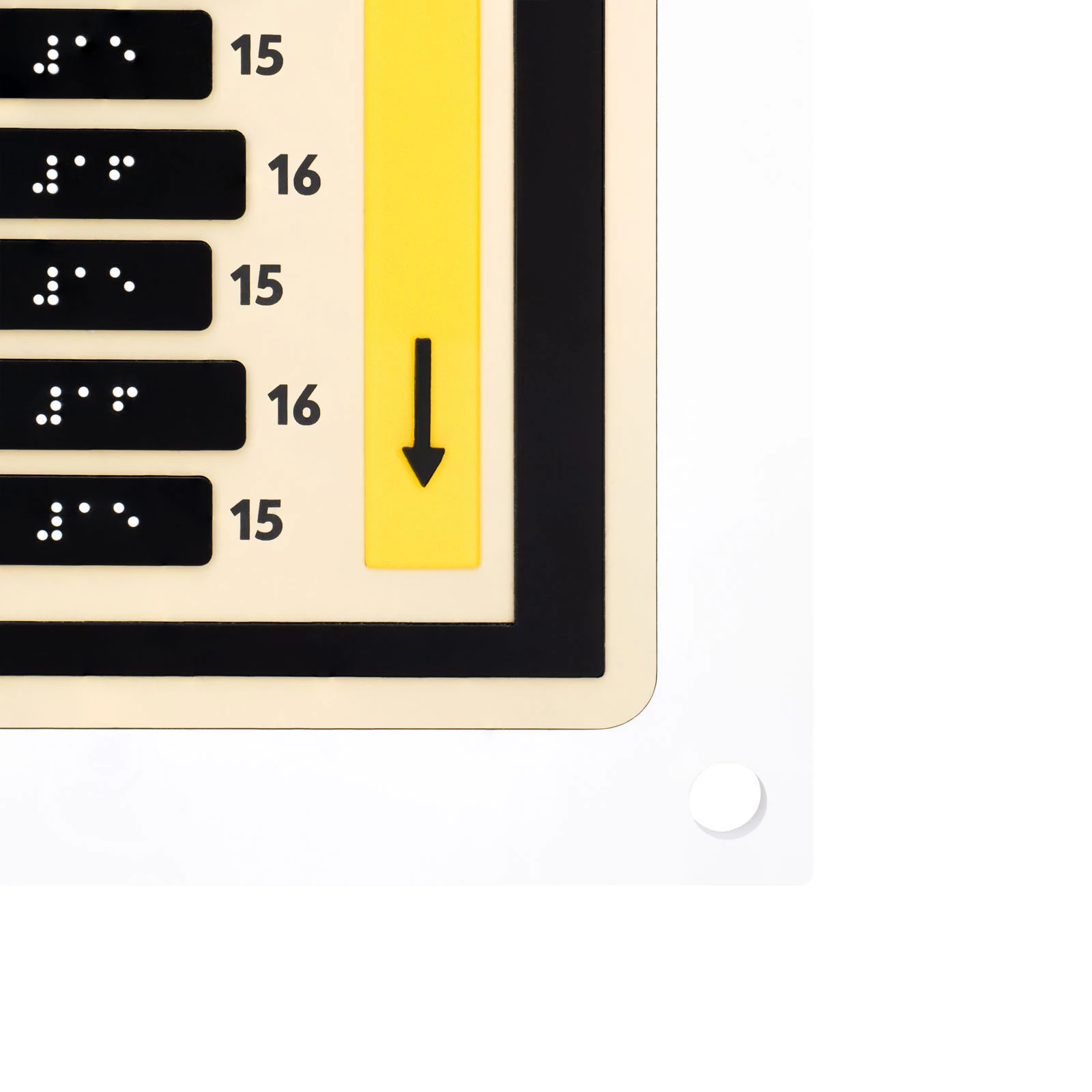

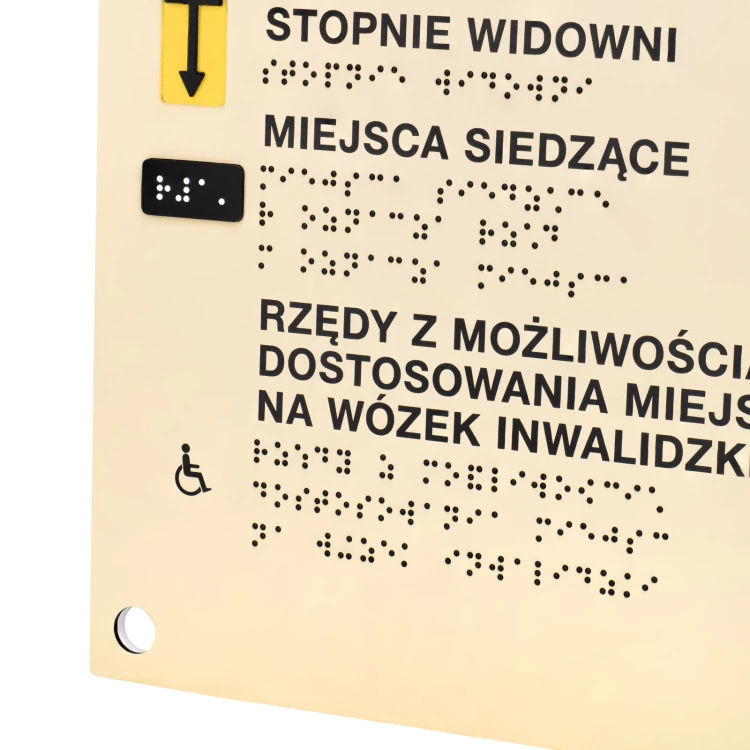

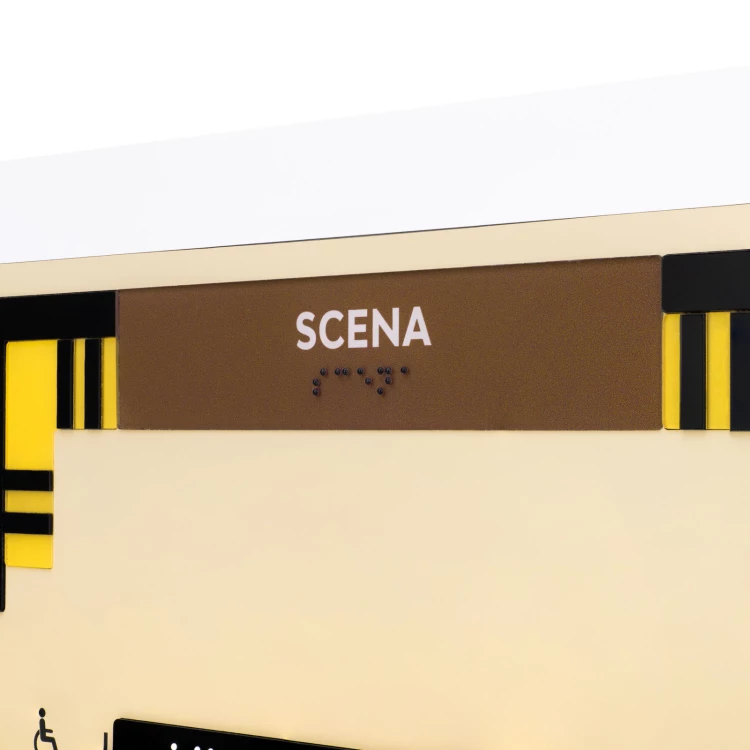

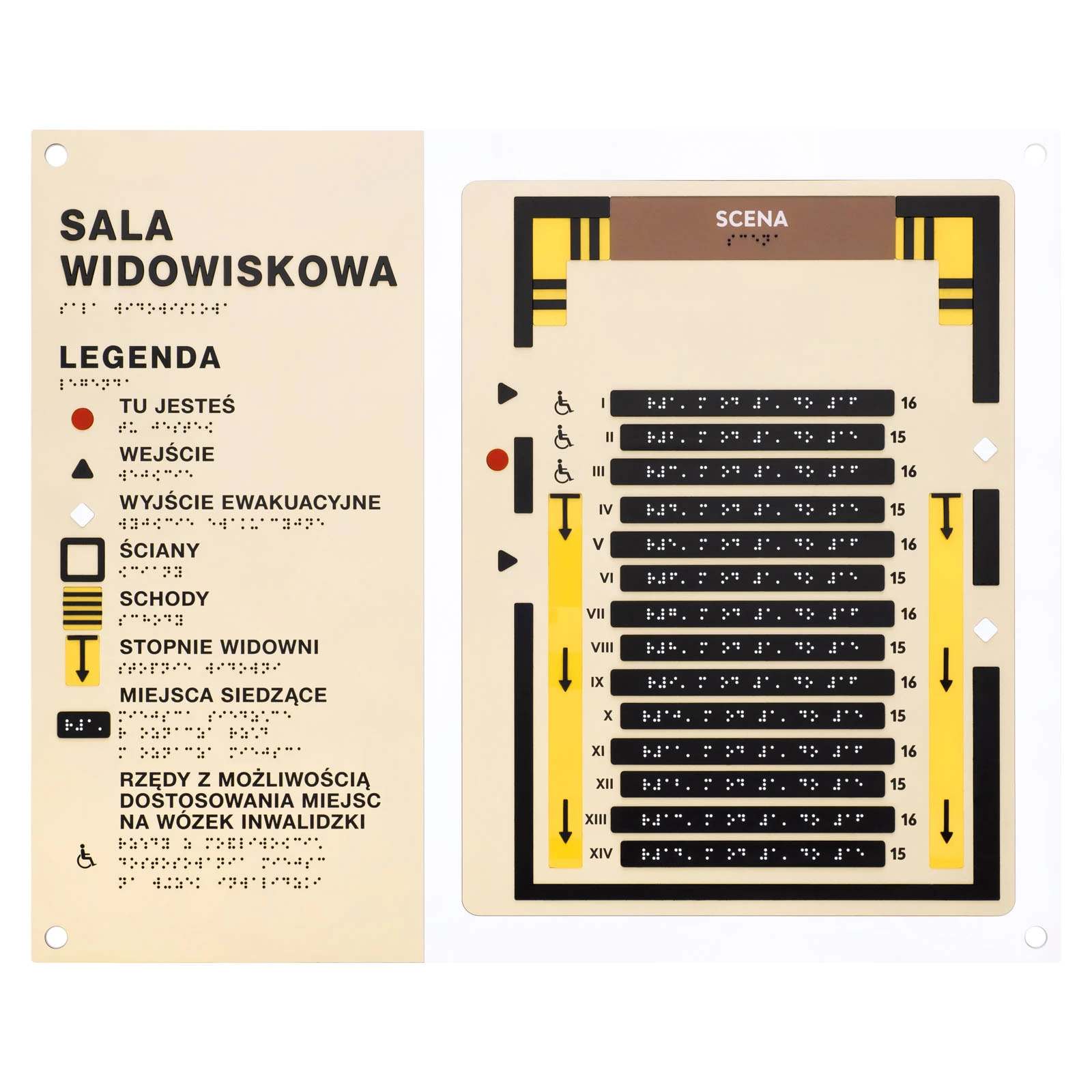

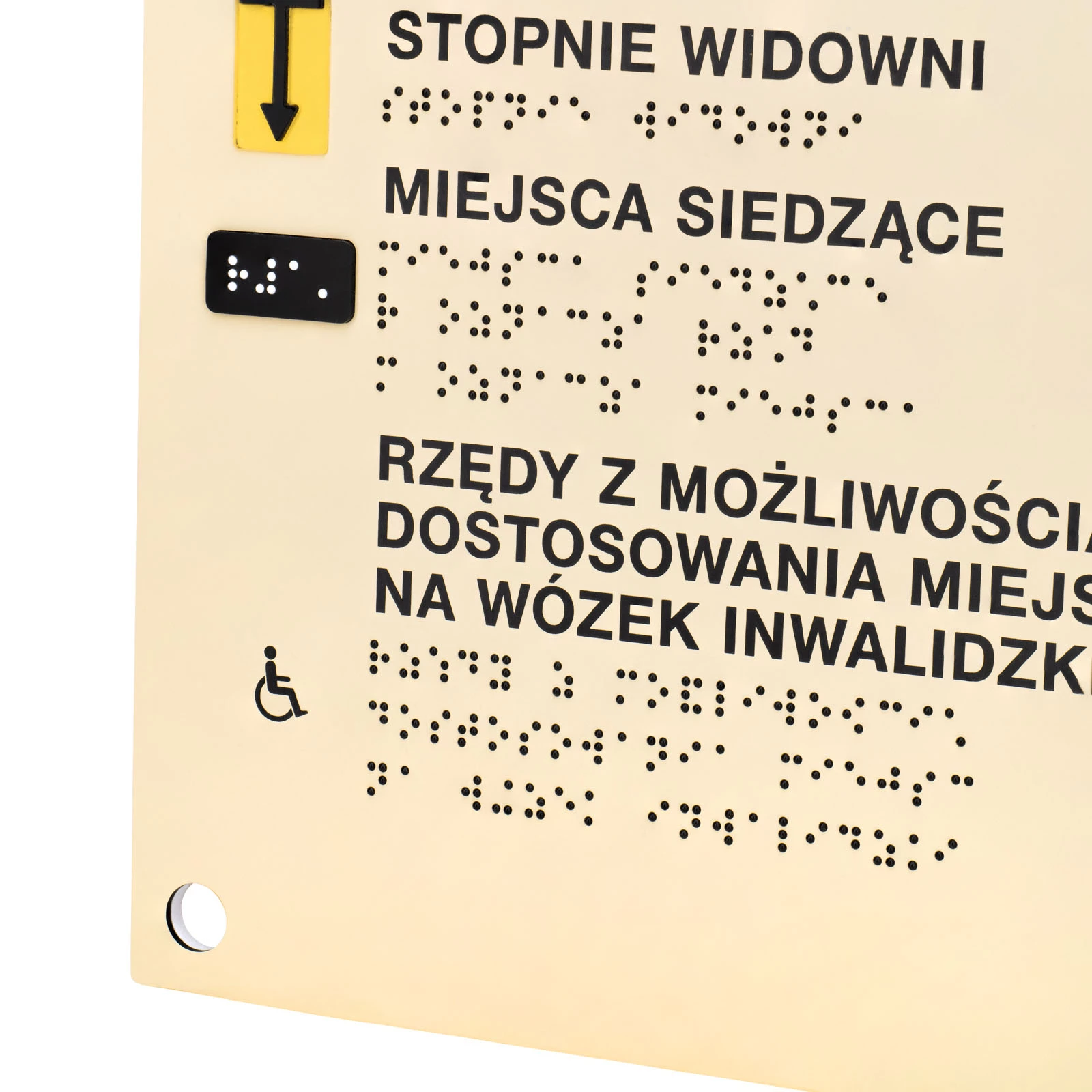

A typhographic plan with Braille applied provides a comprehensive solution for free movement in space. Each tyflographic plan is customised according to the customer's individual needs and preferences. The base of the plan is white PVC, 5 mm thick, on which there is an element made of almond-shaped laminate, 1.6 mm thick. The walls of the room, including the contents of the legend, are made of ADA plastic in black. The audience was made of the same material and is 3 mm thick. Printed acrylic has been used on the stage, similarly the stairs and steps of the auditorium are made of 1.5 mm acrylic with the addition of ADA plastic. The set has been detailed using Braille. The colours used in the design are contrasting, improving legibility for the visually impaired. Braille characters can be clearly felt under the finger thanks to the use of professional licensed Braille balls hammered in using CNC technology. In accordance with PZN recommendations, they are positioned at a height of 0.5 mm and have a base width of 1.5 mm. The whole is designed for self-assembly.



Before realisation, we prepare the design (PDF file) and send it for approval to the indicated e-mail address. You can contact the graphic designer at any time during the design phase. Once the design is approved, we begin production.
