Braille plan with tile writing - ADA material, 3D doming, laminate and acrylic - Dimension 530x350 mm - TAB696

Product description

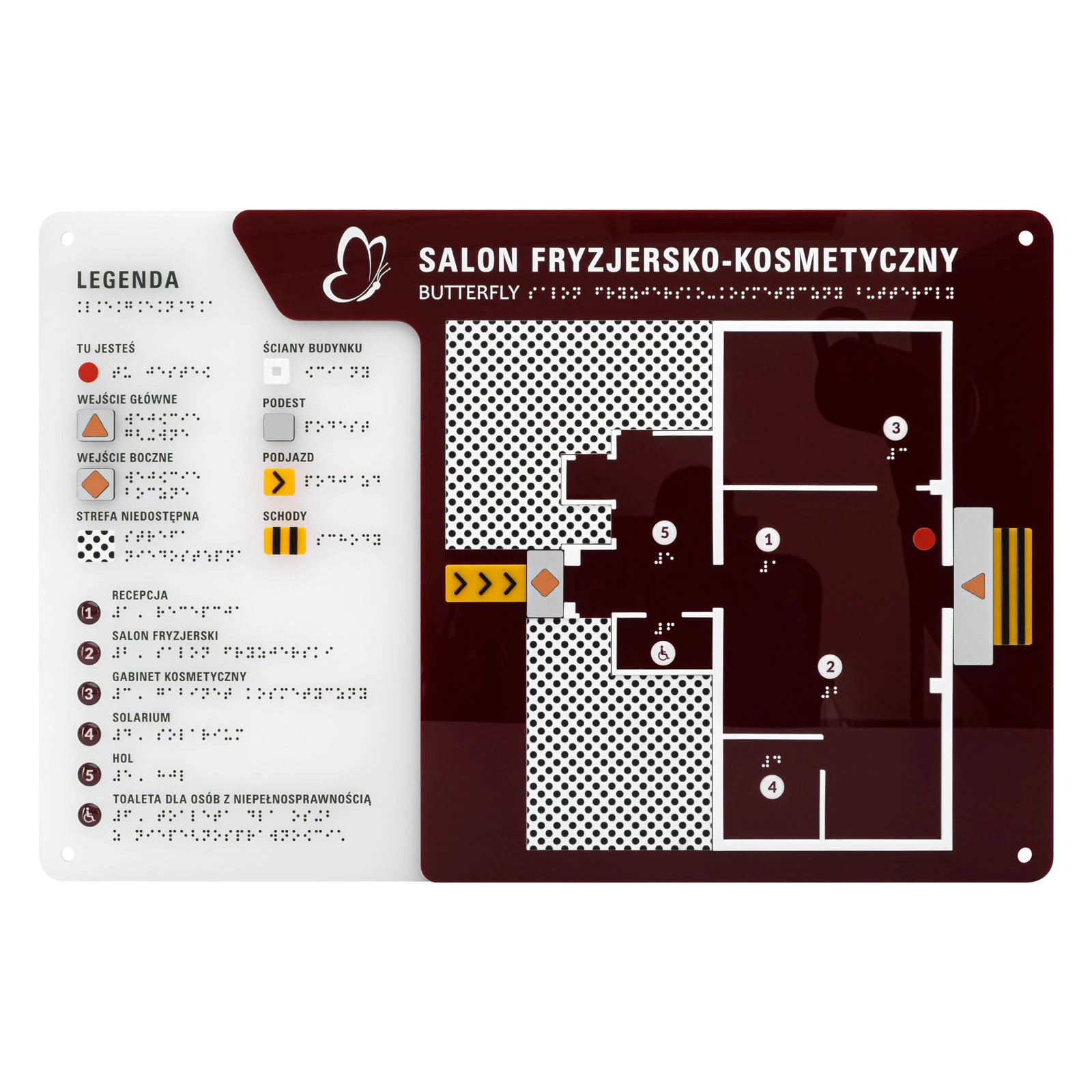

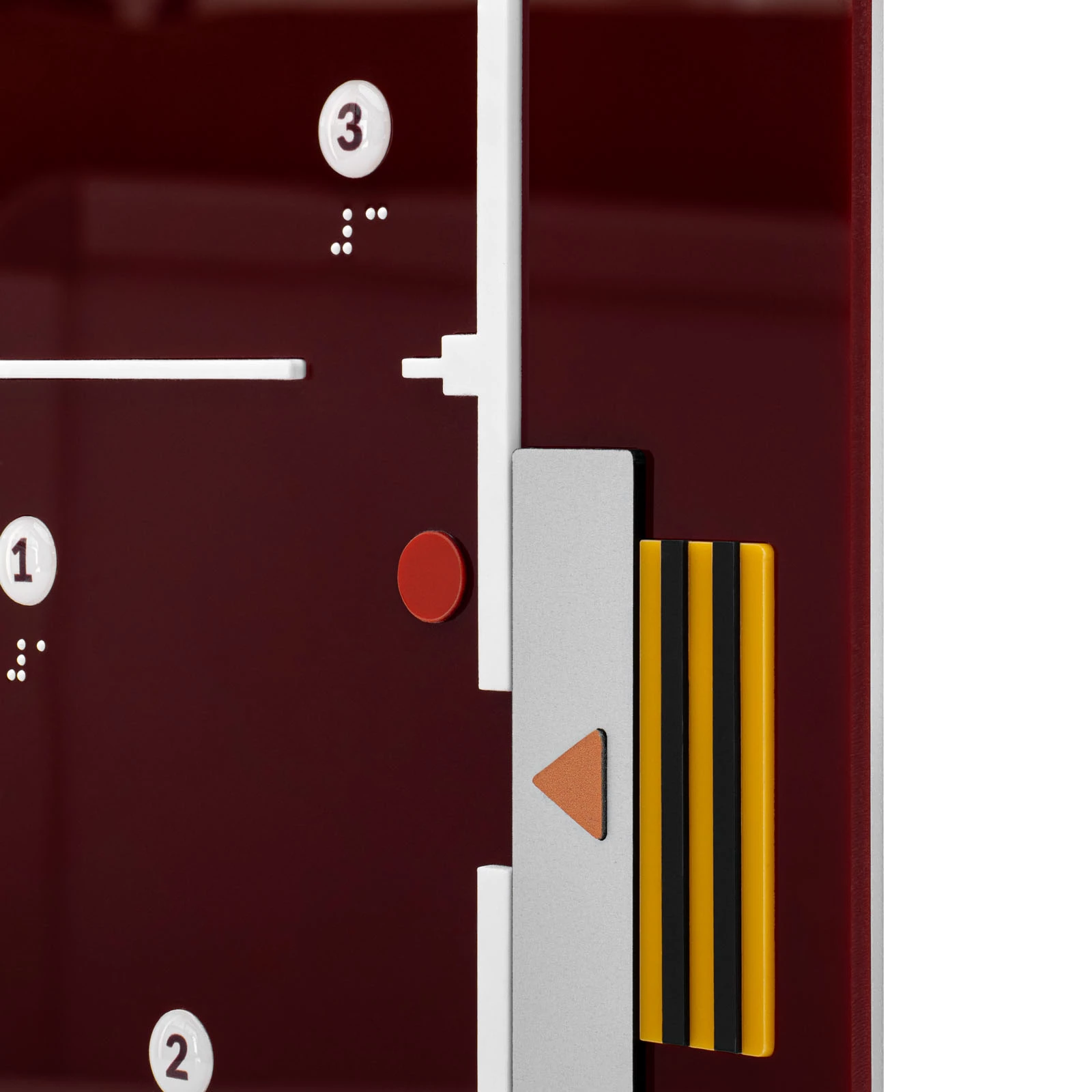

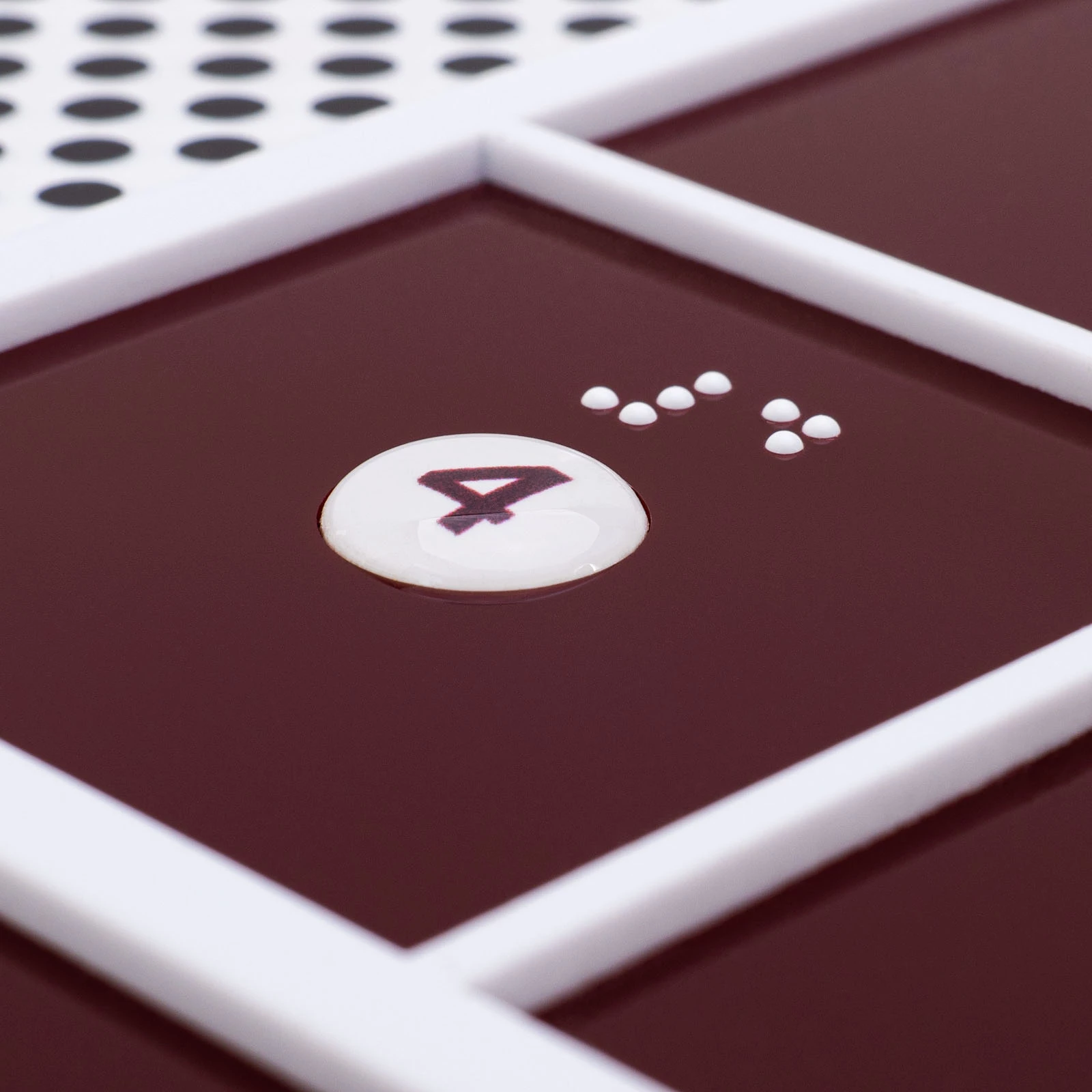

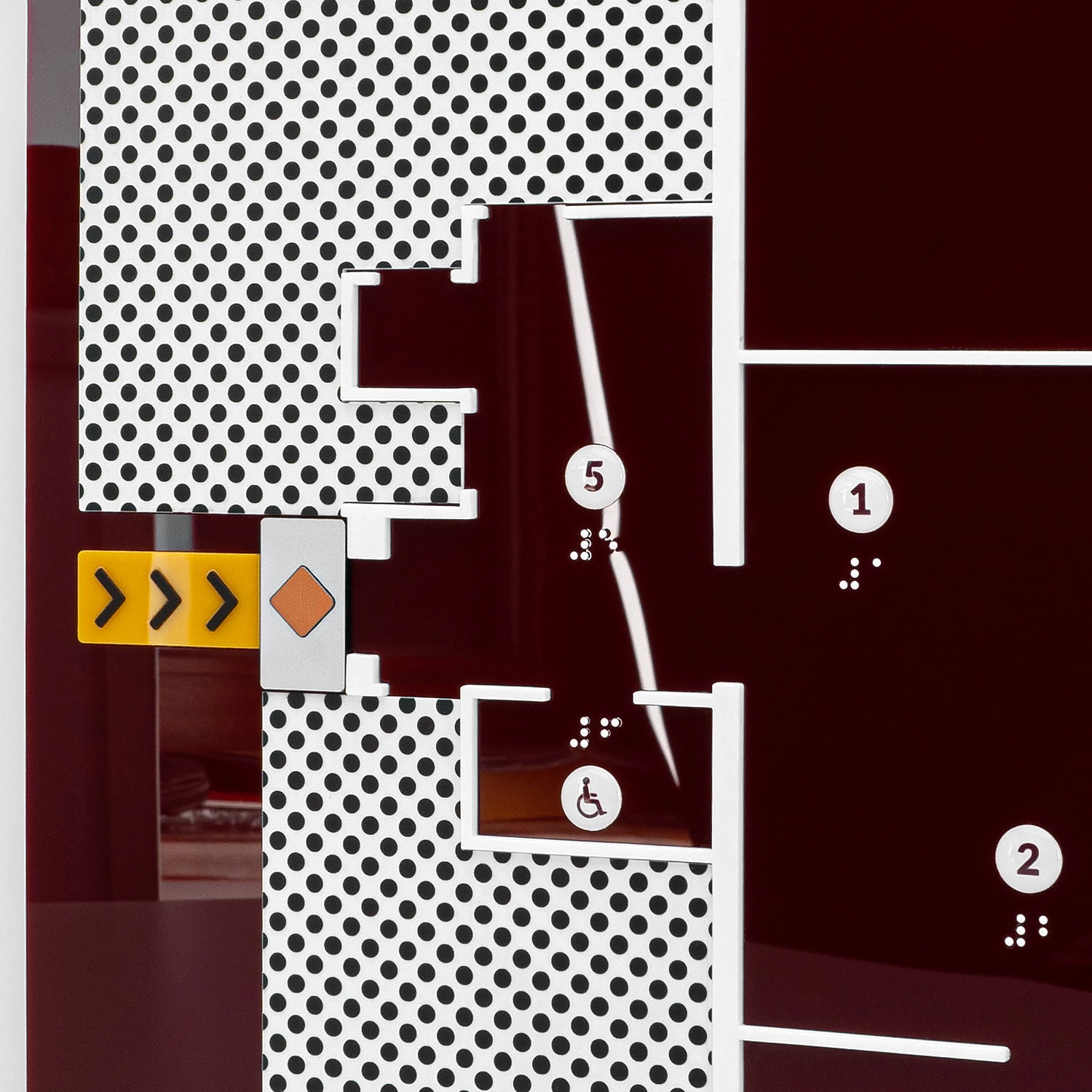

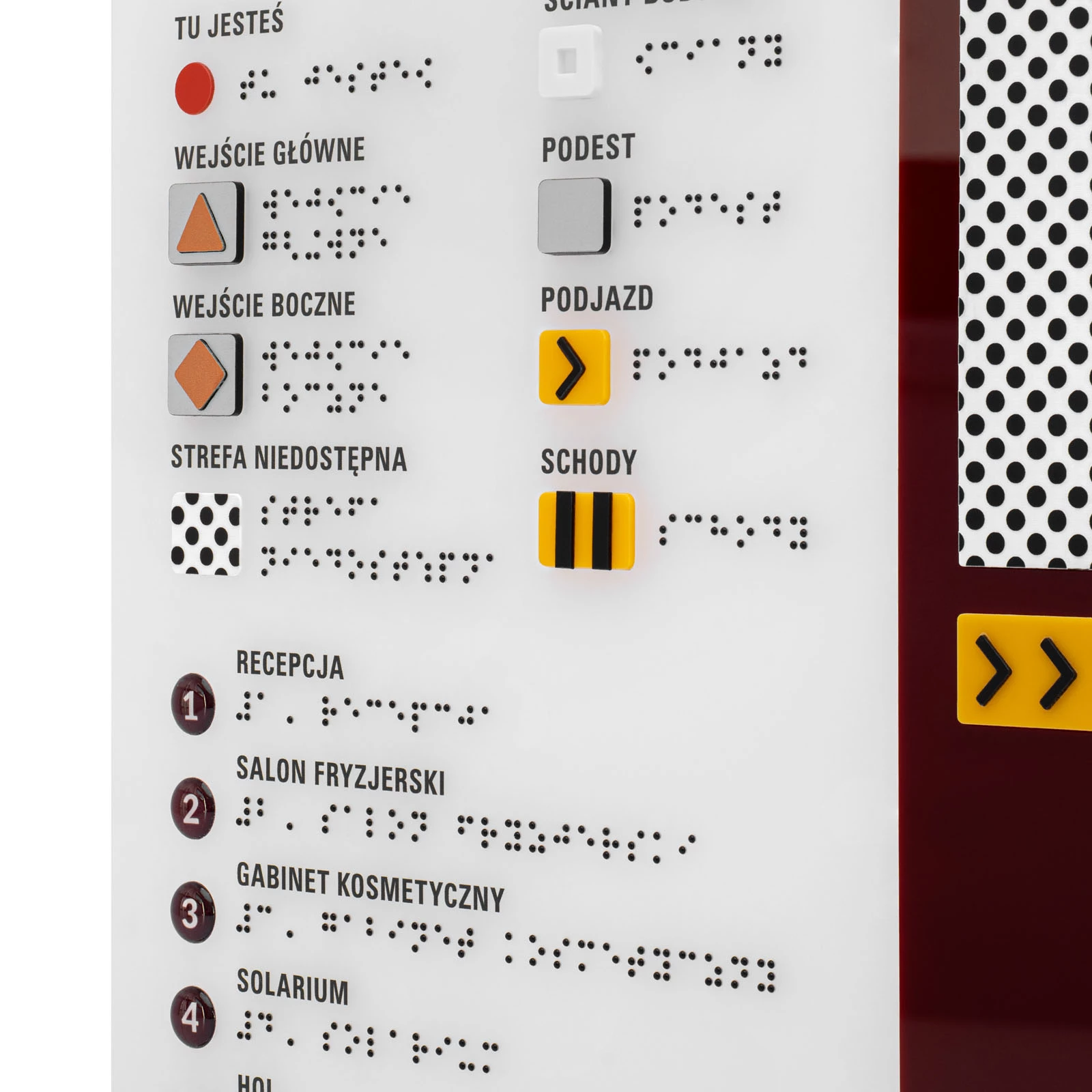

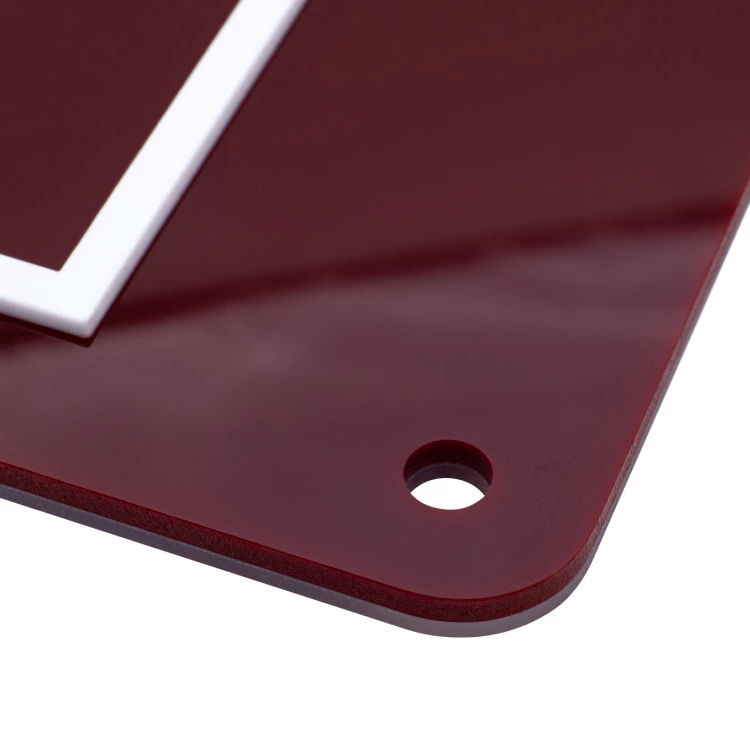

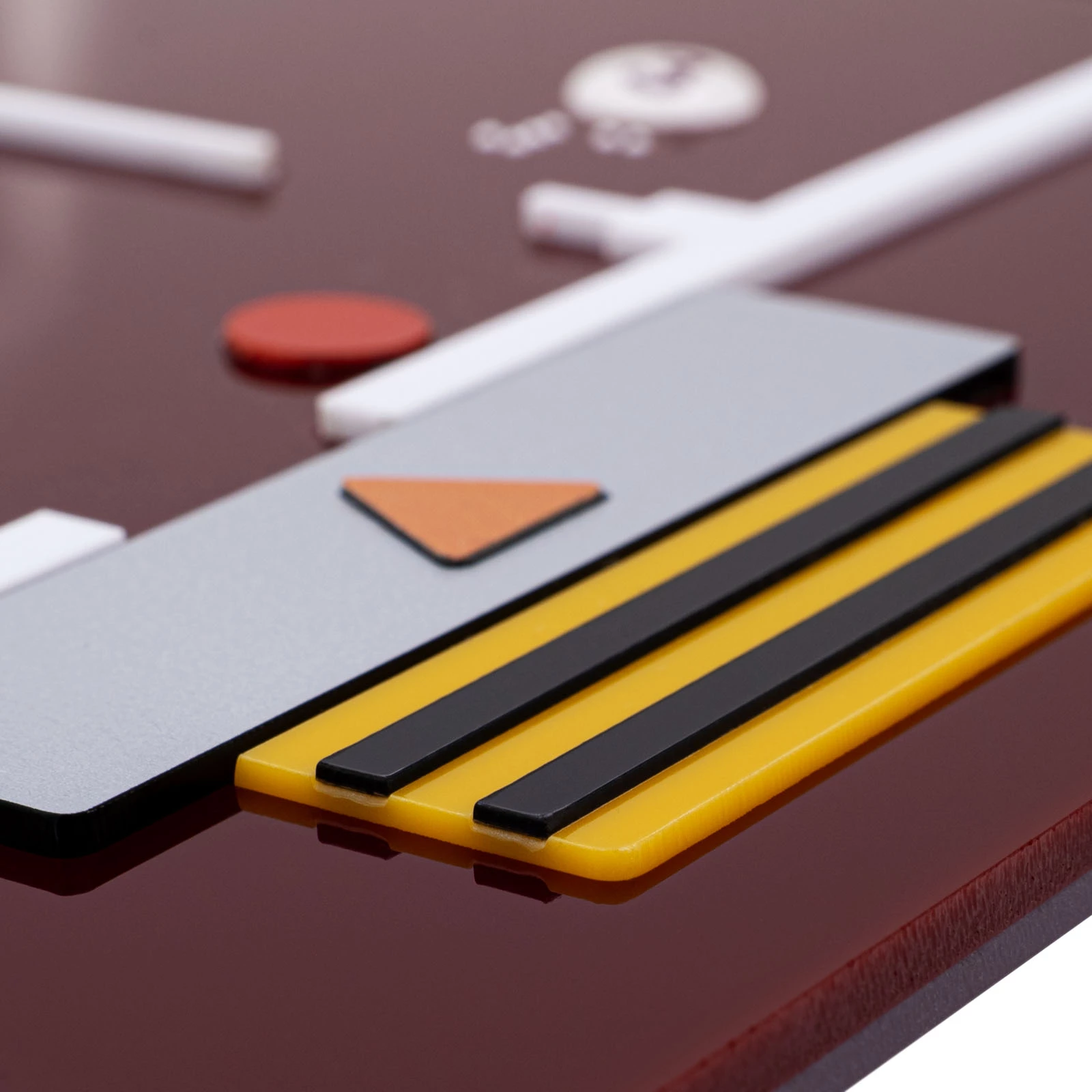

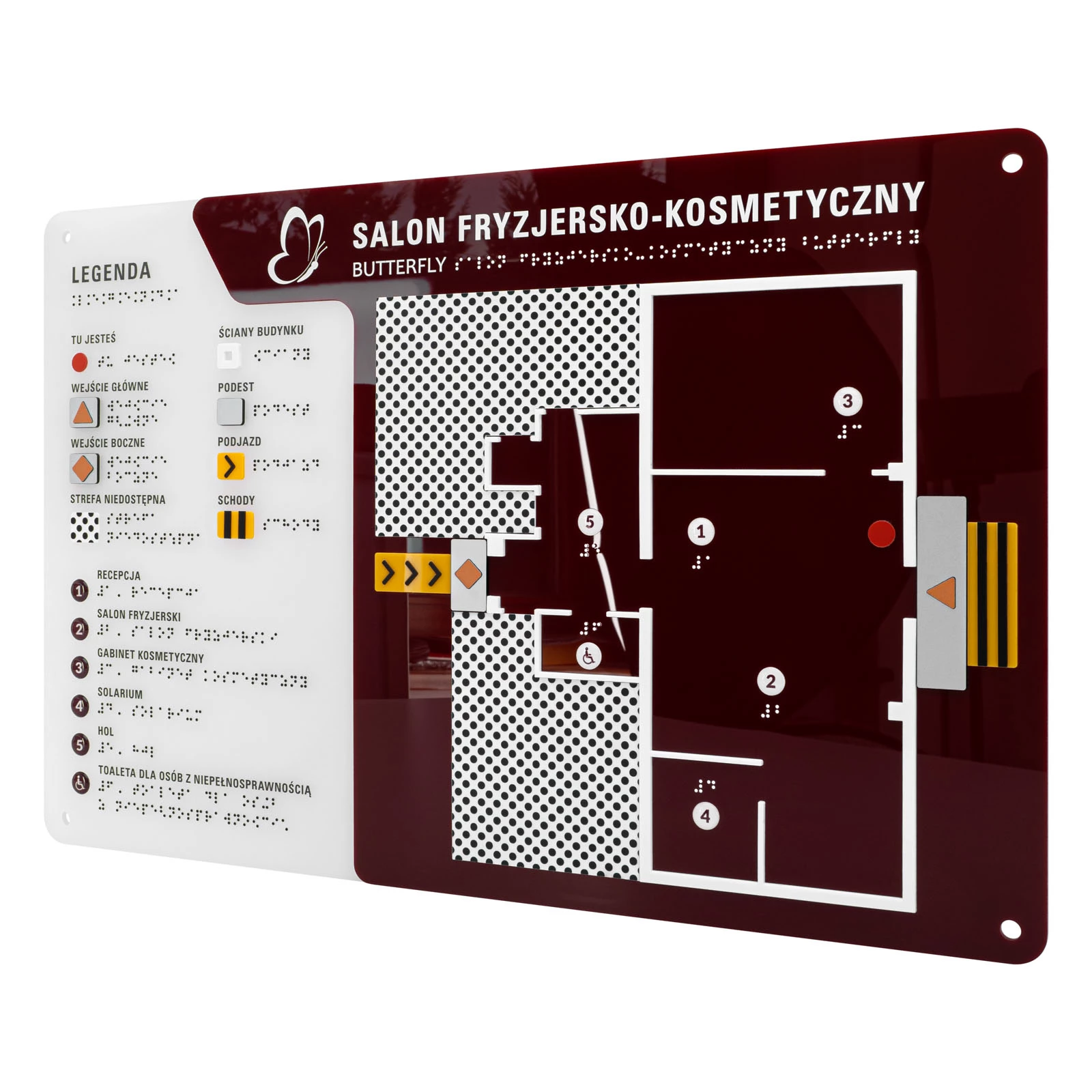

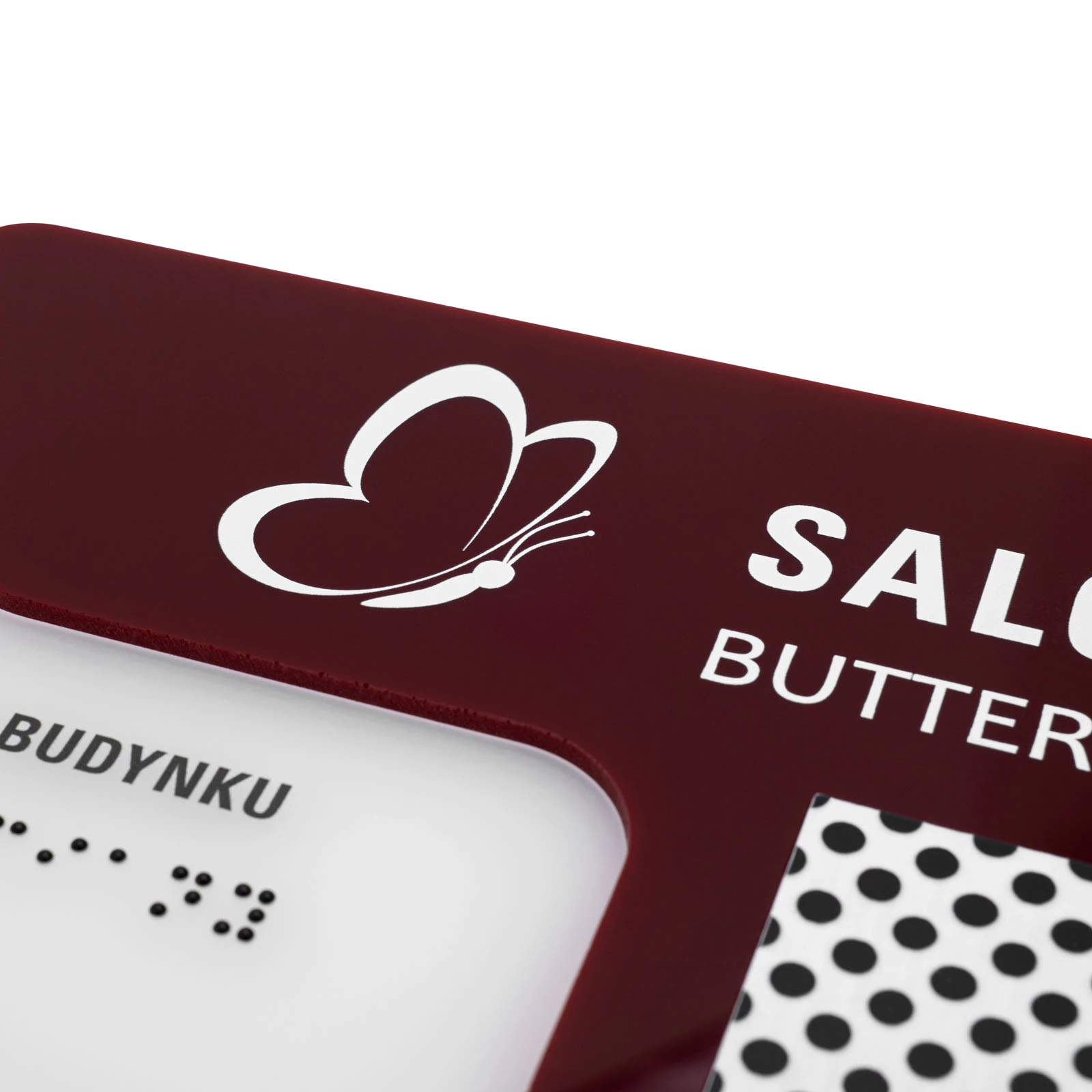

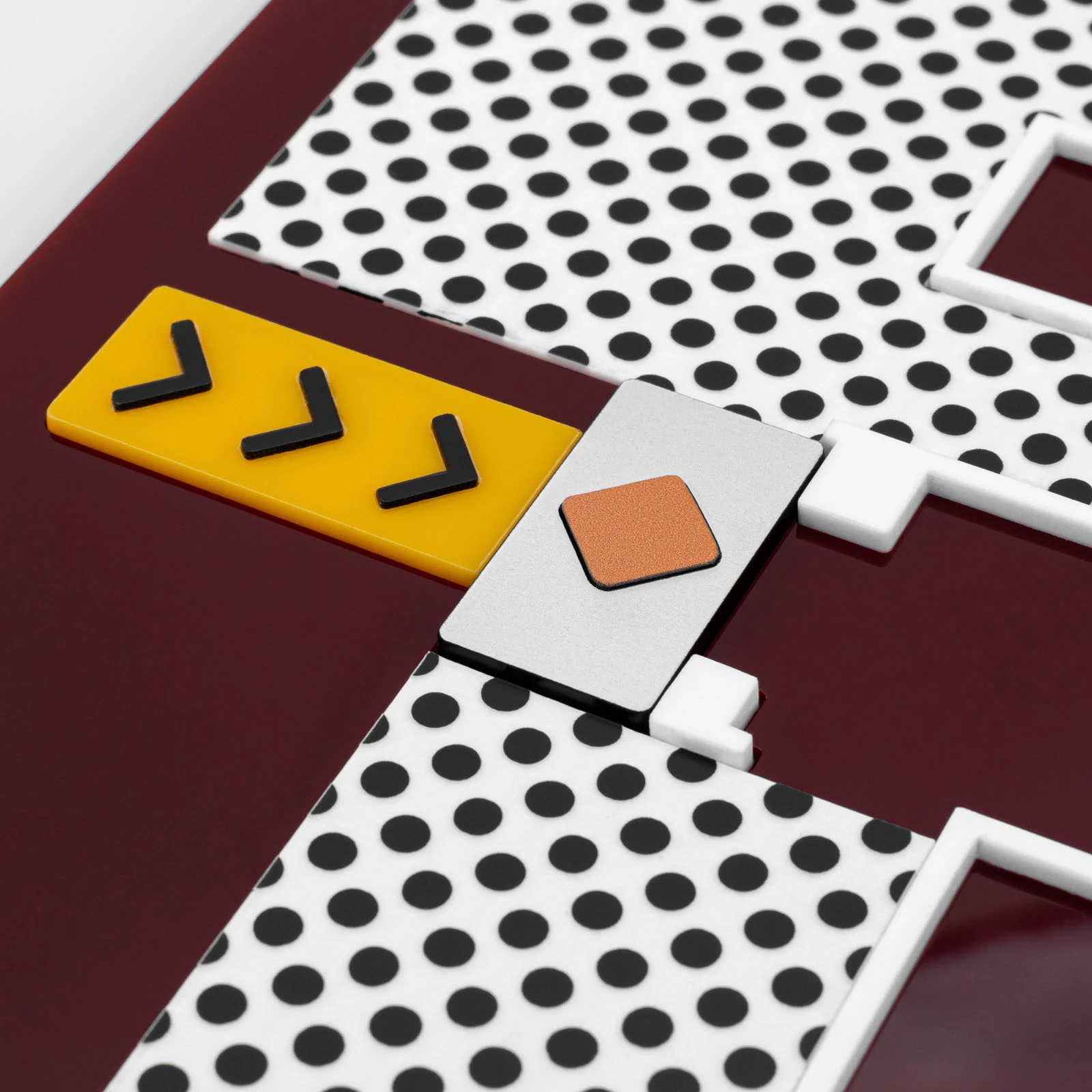

A tylographic plan with Braille writing is a comprehensive solution that makes orientation in space easier for blind and partially sighted people. Our team of specialists takes care of every detail, creating aesthetically pleasing and functional tylographic plans that are tailored to individual customer requirements. The base of our plan is 3mm thick frosted acrylic. A burgundy acrylic of the same thickness was applied to the base. The walls of the rooms on the plan were made of white ADA plastic. The stairs, driveway and inaccessible area have been made of the same material in the colours seen on the plan. The numerals in the circles are convex because they have been coated with resin (doming). The process of applying the resin darkens the white colour, resulting in an effect similar to a light grey. We produce a permanent UV print on the plan, which retains the clarity and intensity of the colours thanks to precise printing technology. The plan is described in detail using Braille. The colours used in the design are contrasting, which improves readability for the visually impaired. The braille characters can be clearly felt under the fingertip, thanks to the use of professional licensed CNC-impressed braille balls. In accordance with PZN recommendations, they are positioned at a height of 0.5 mm and have a base width of 1.5 mm. The whole is designed to be self-assembled.
