Braille tile plan - PVC hard, ADA plastic, laminate and acrylic - Dimension 475x480 mm - TAB675

Braille tile plan - PVC hard, ADA plastic, laminate and acrylic - Dimension 475x480 mm - TAB675

Price: 1 112,36 EUR/ pc

DELIVERY TIME: 7 to 14 days production time depending on the volume ordered, the complexity of the project and the time taken to prepare and approve designs.
Express engraving in 3 days the fastest in the world
Call and learn more 888 999 002

Product description

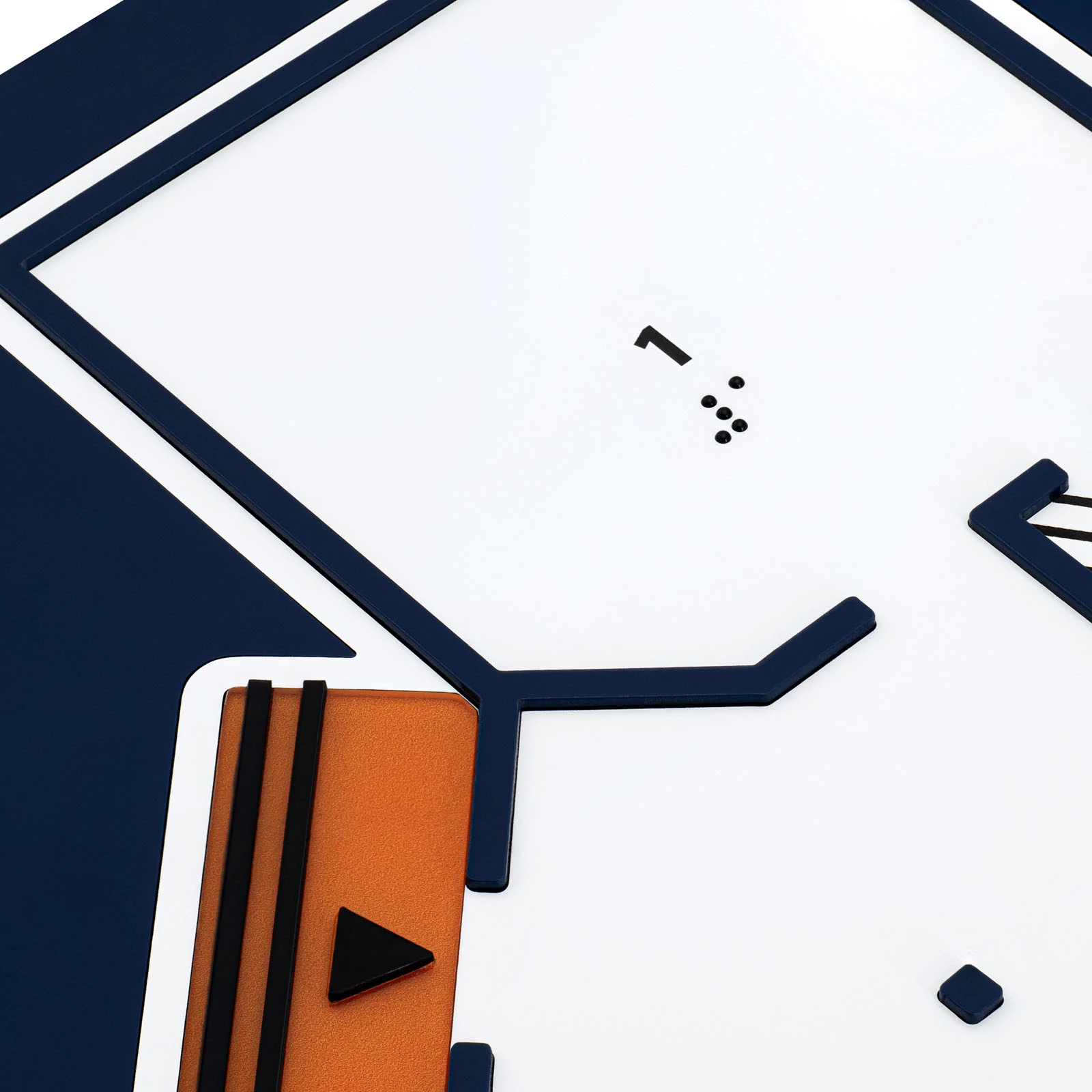

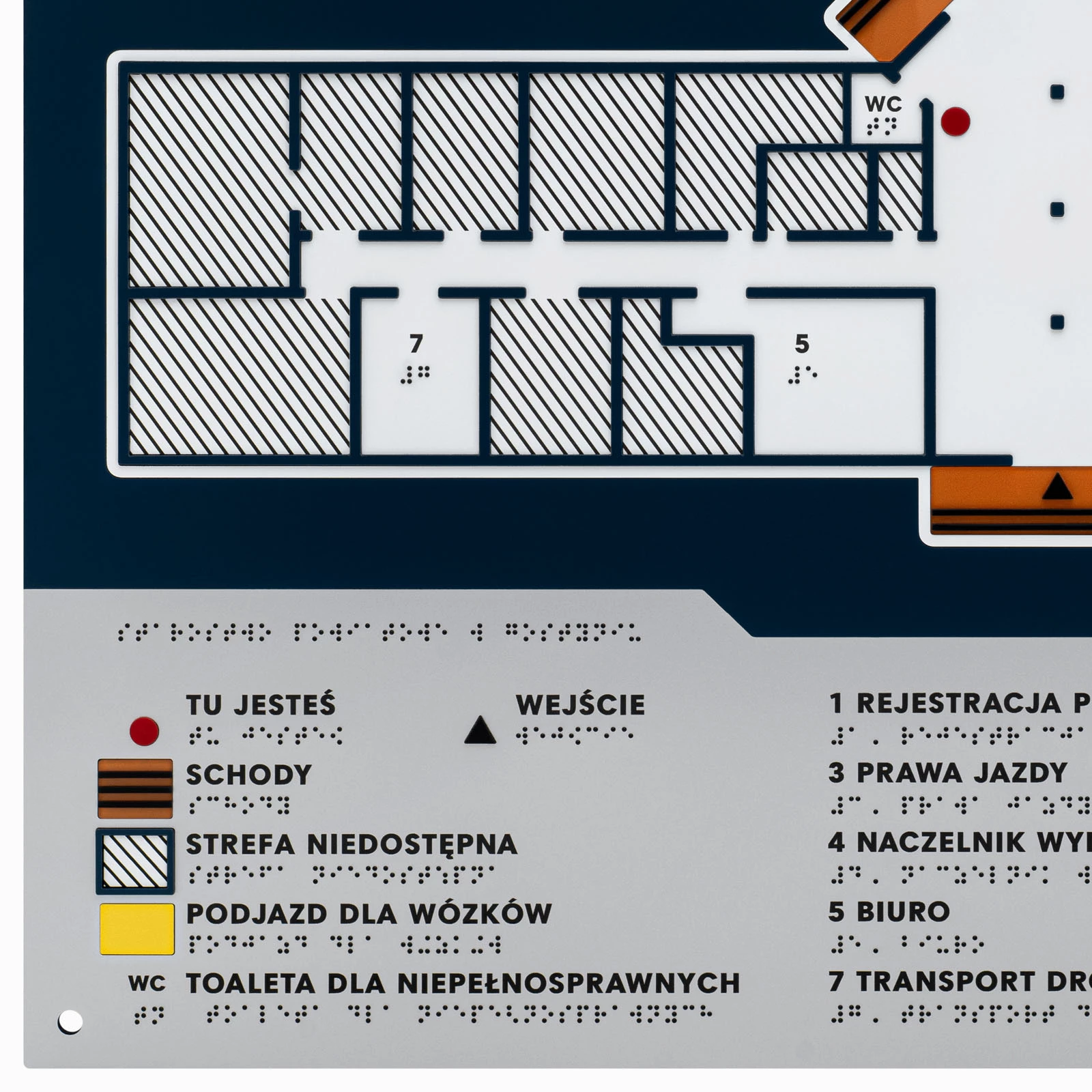

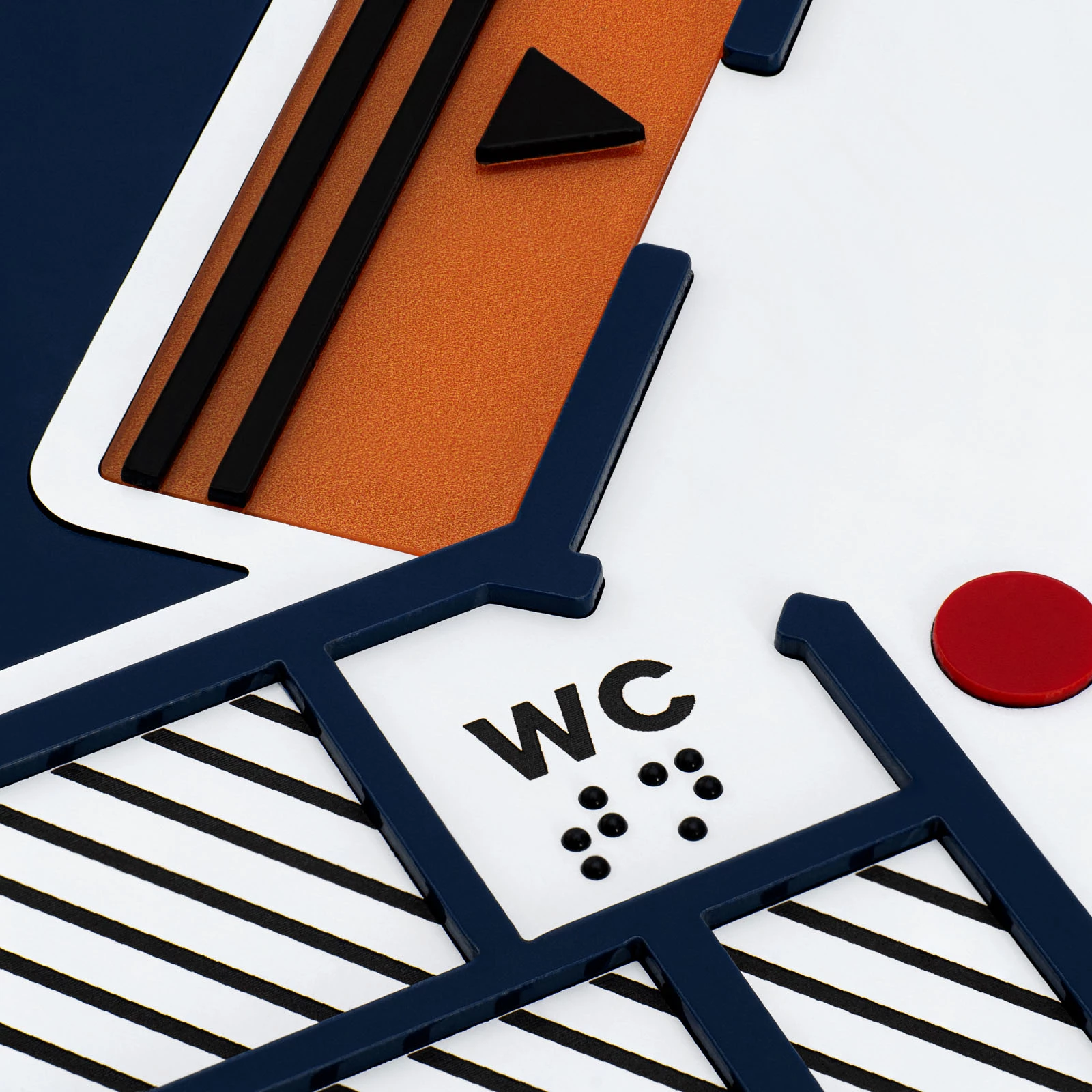

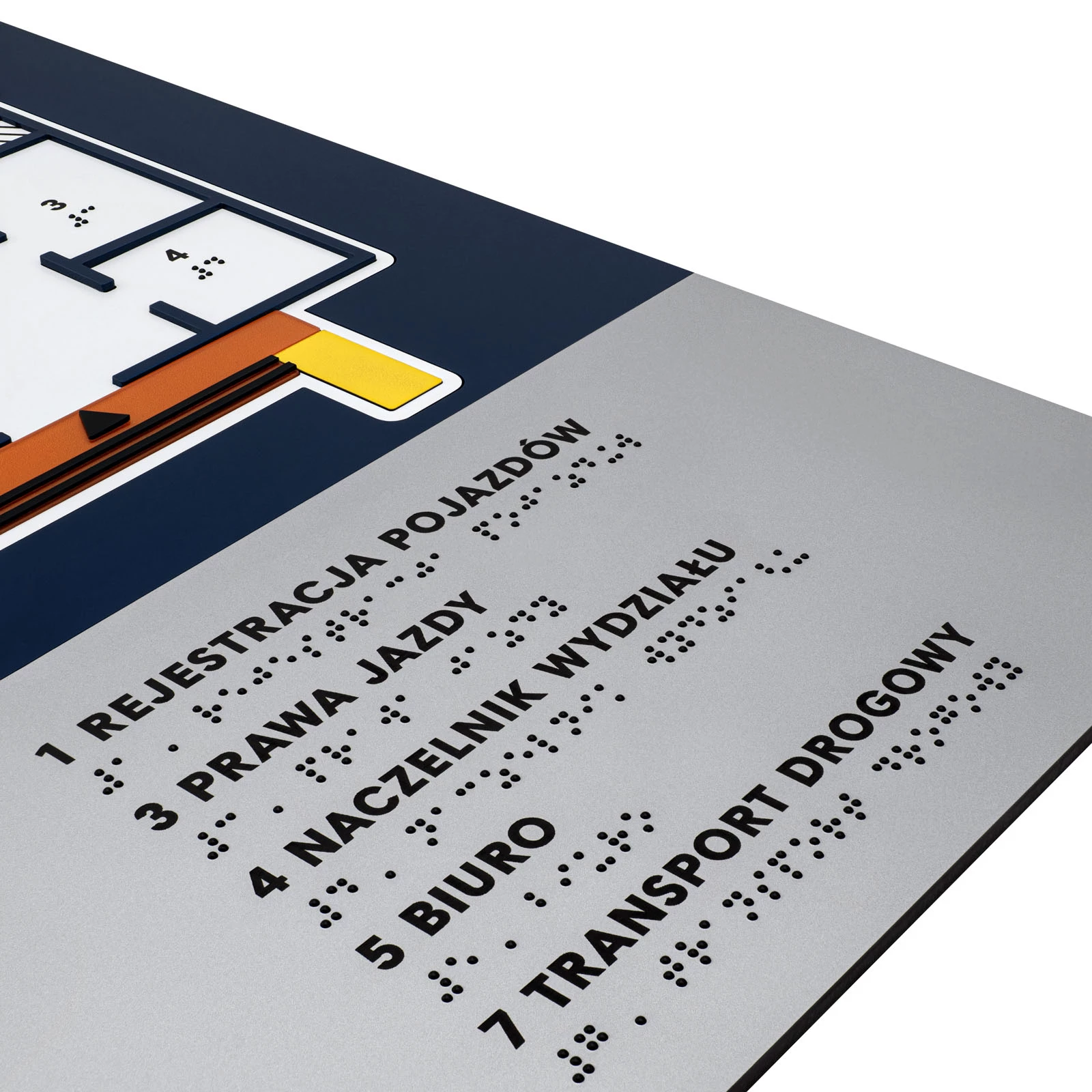

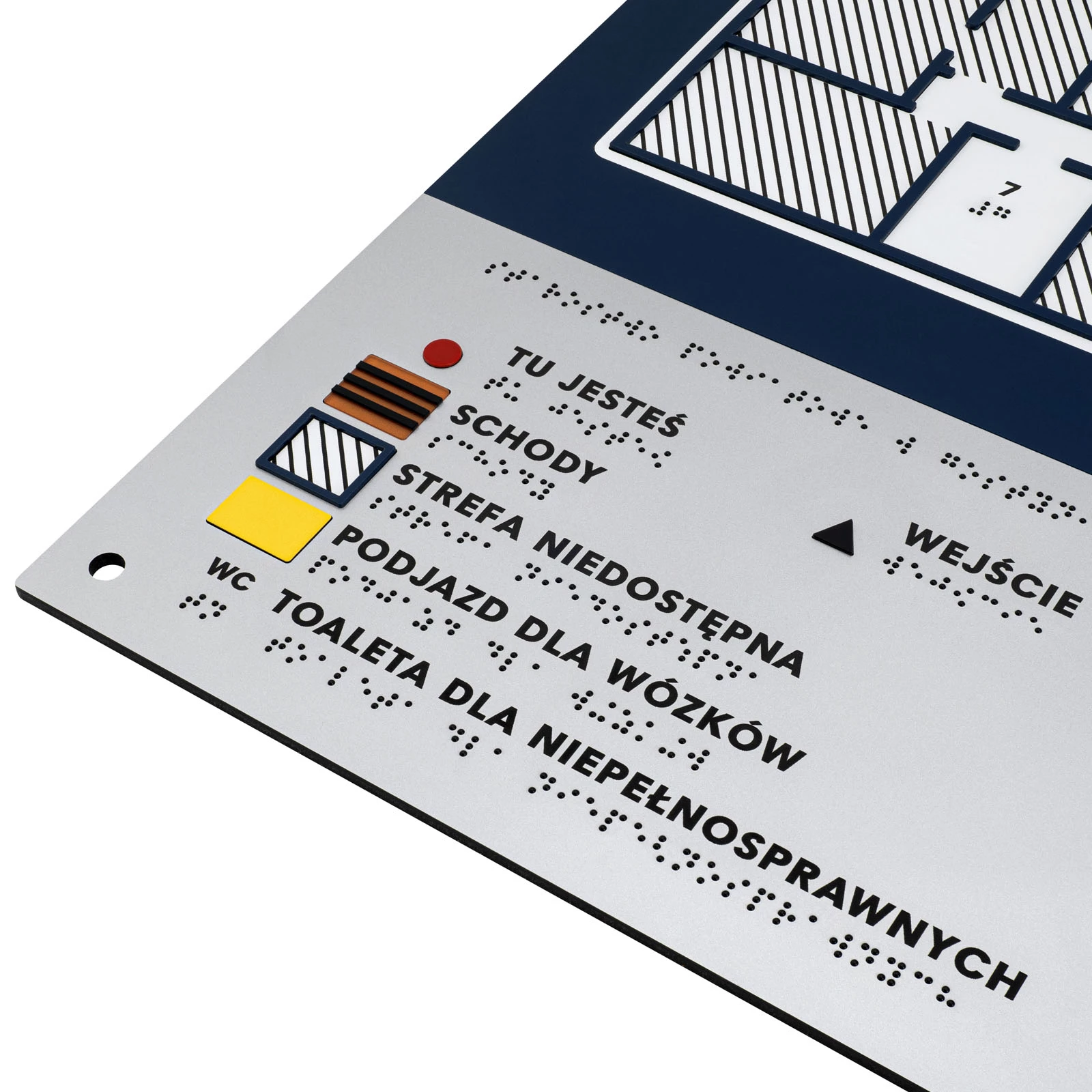

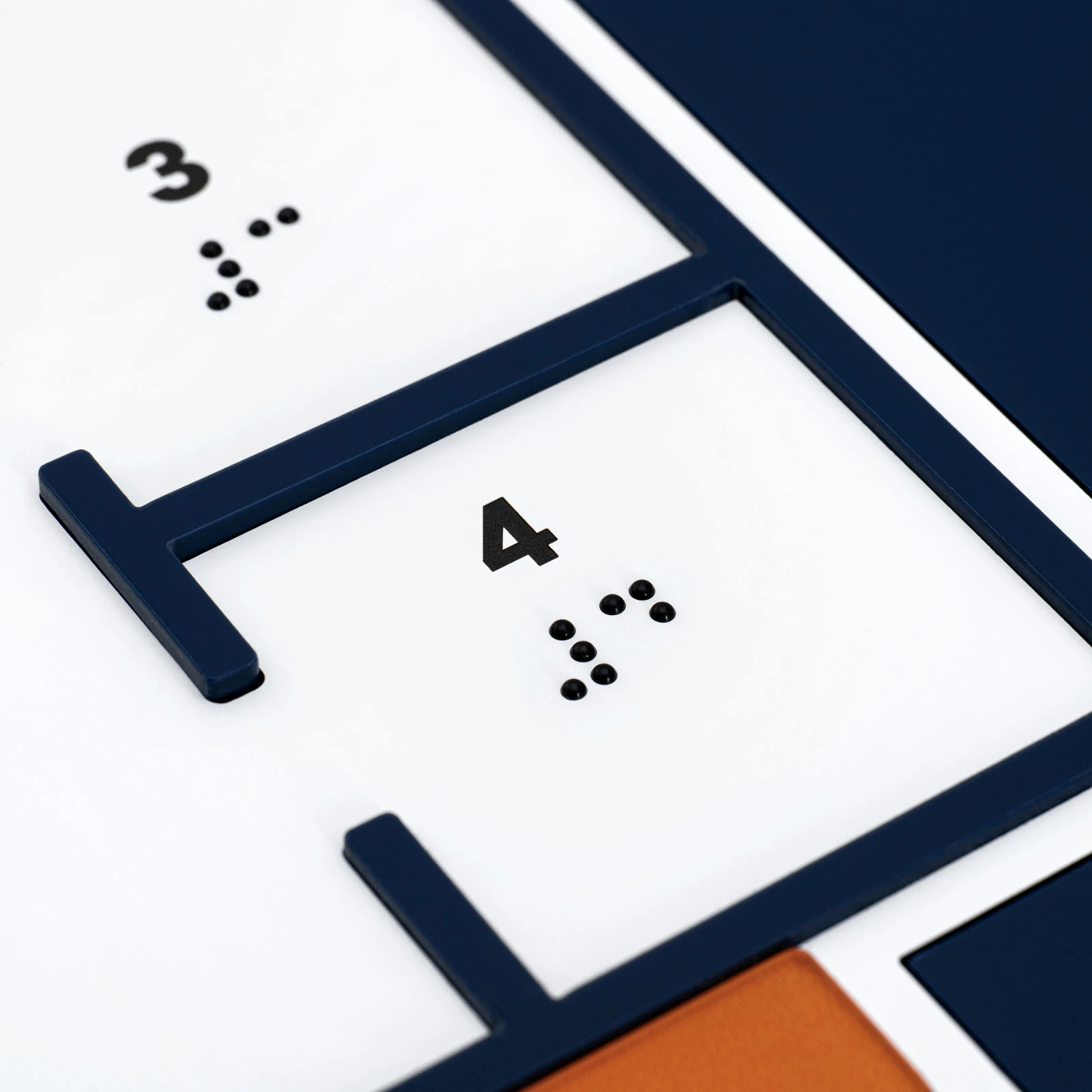

A tylographic plan with Braille writing is a comprehensive solution that makes orientation in space easier for blind and partially sighted people. Our team of specialists takes care of every detail, creating aesthetically pleasing and functional tylographic plans that are tailored to individual customer requirements. The base of our plan is 3 mm thick hard PVC in black. We produce a permanent UV print on the plan, which maintains the clarity and intensity of the colours thanks to precise printing technology. The elements visible on the plan are made of textures laminate, ADA plastic and acrylic. The plan was described in detail using Braille. The colours used in the design are contrasting, which improves readability for the visually impaired. The braille characters can be clearly felt under the fingertip, thanks to the use of professional licensed CNC-inserted braille balls. In accordance with PZN recommendations, they are positioned at a height of 0.5 mm and have a base width of 1.5 mm. The whole is designed to be self-assembled.

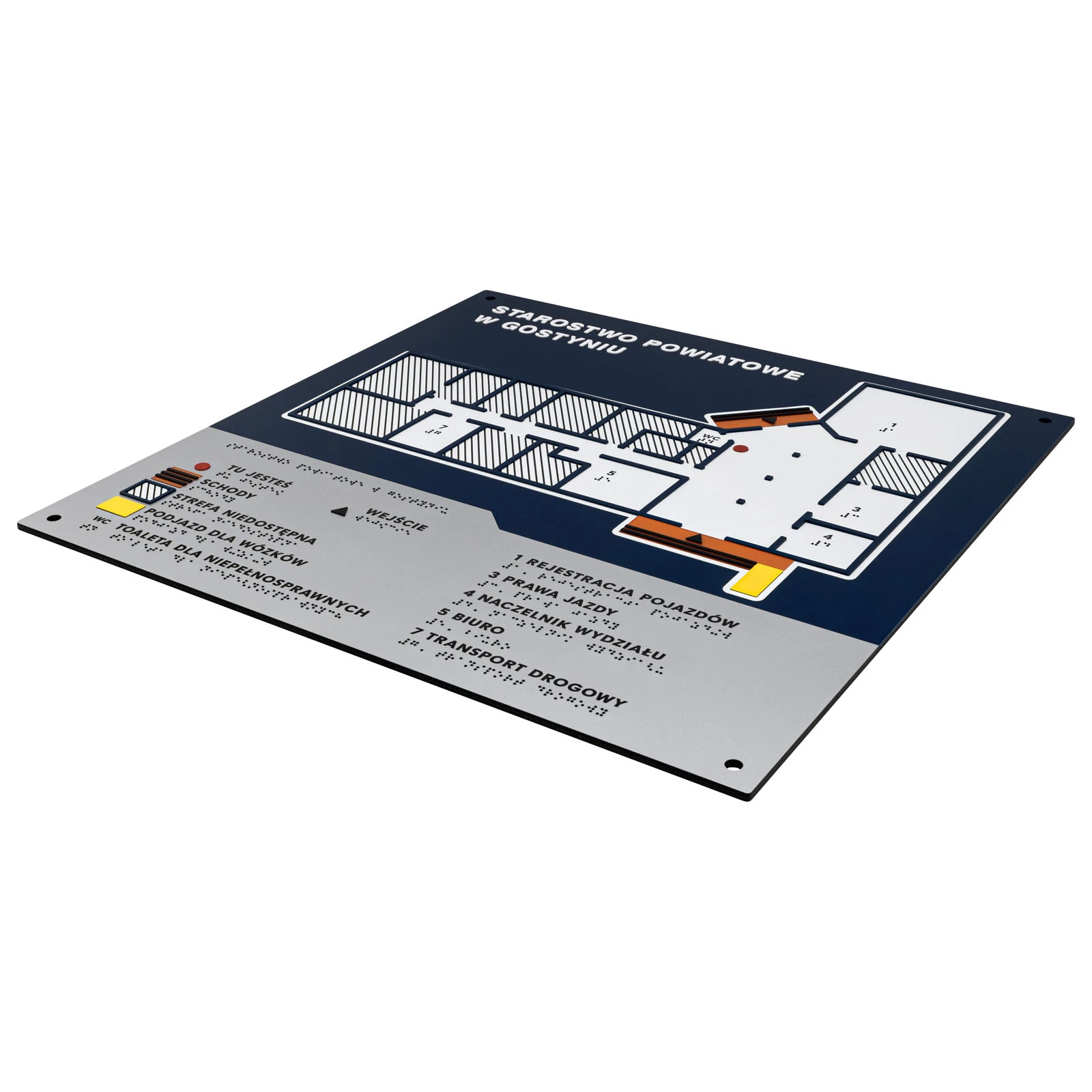

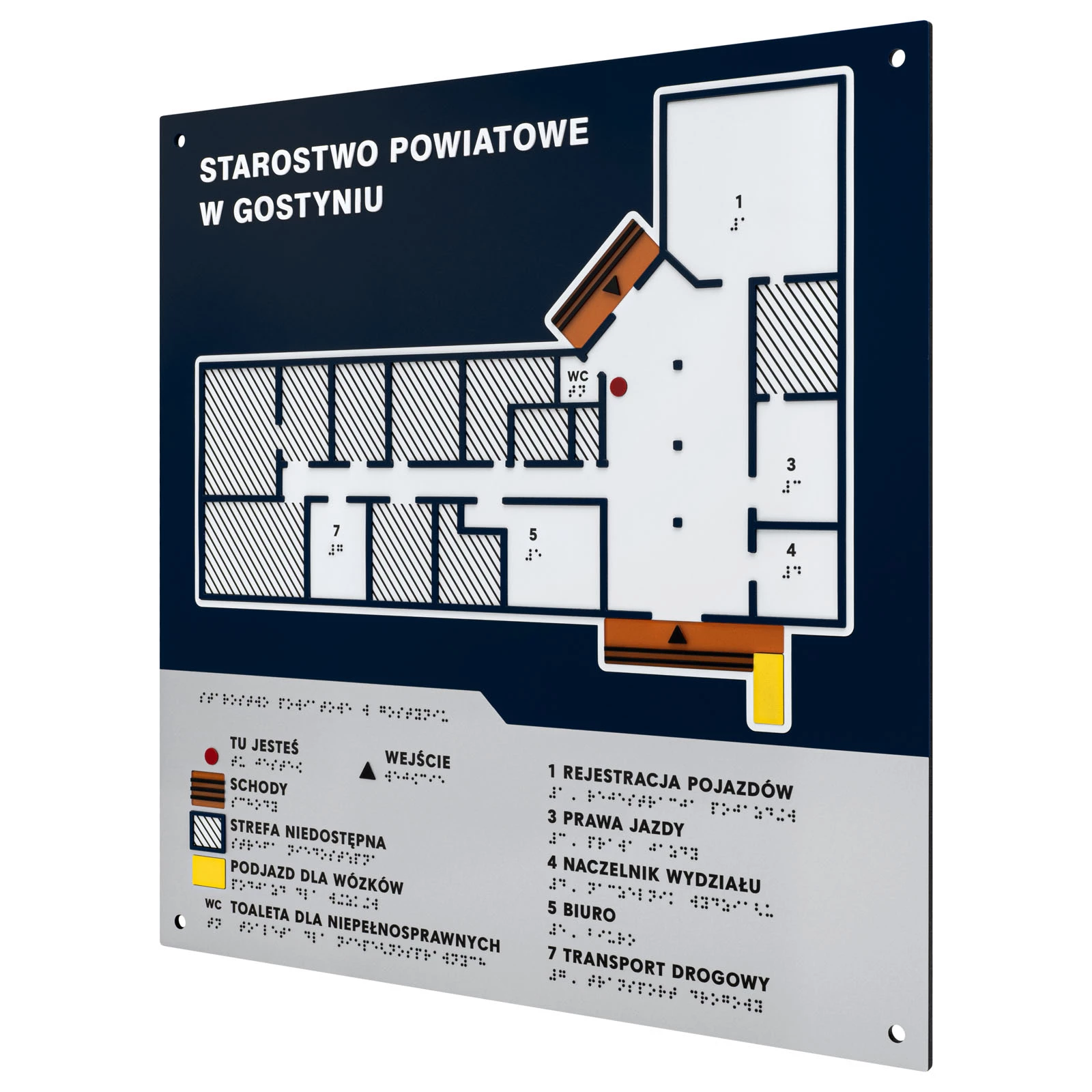

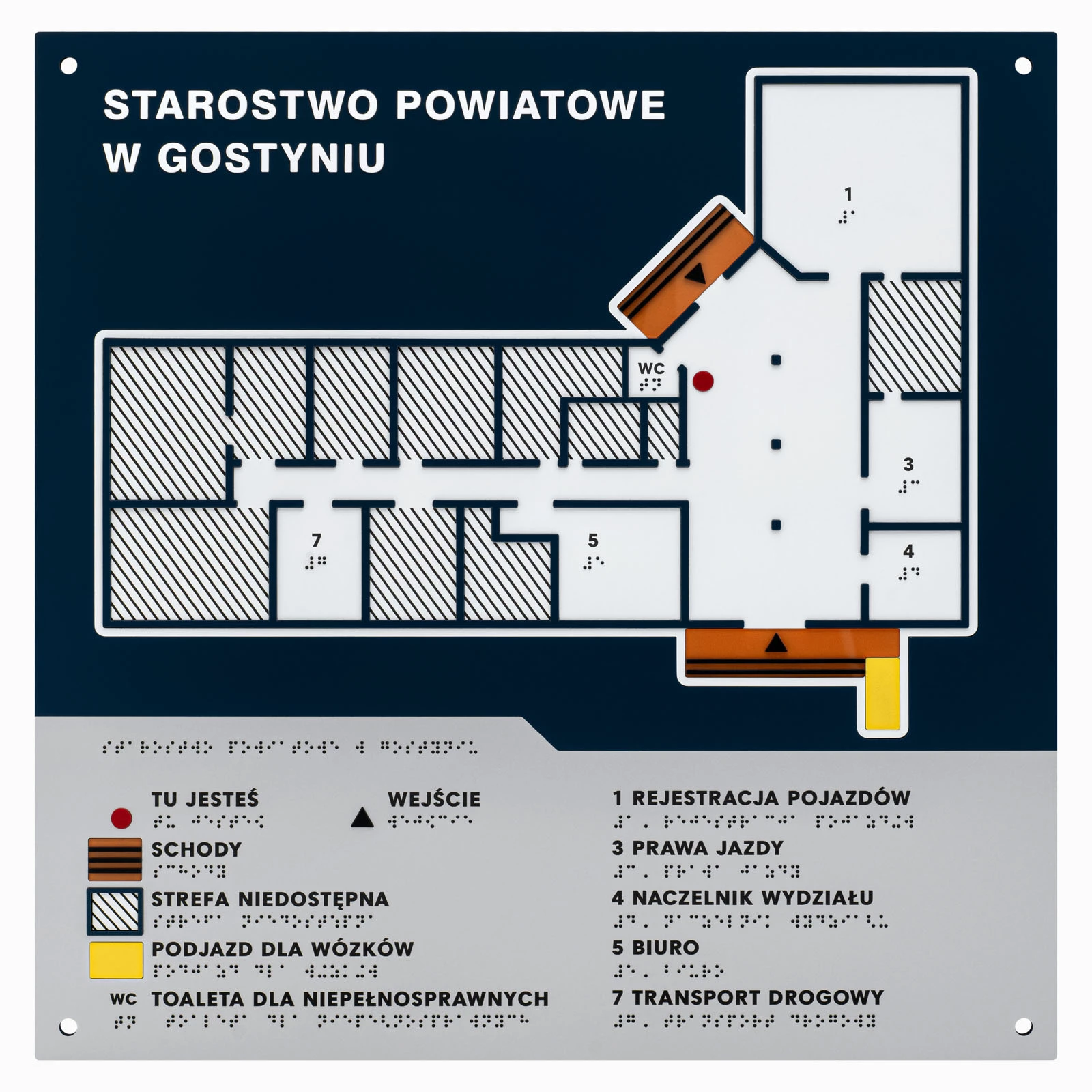

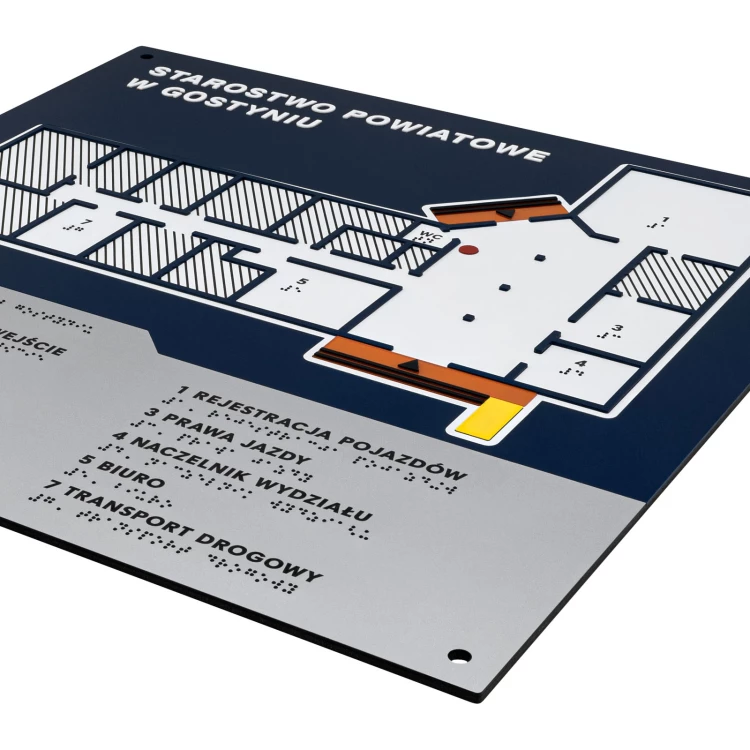

The price presented applies to the board visible in the gallery. Please feel free to contact our sales department by email or phone for a detailed quote.

Dimensions:

- width: 475 mm

- height: 480 mm

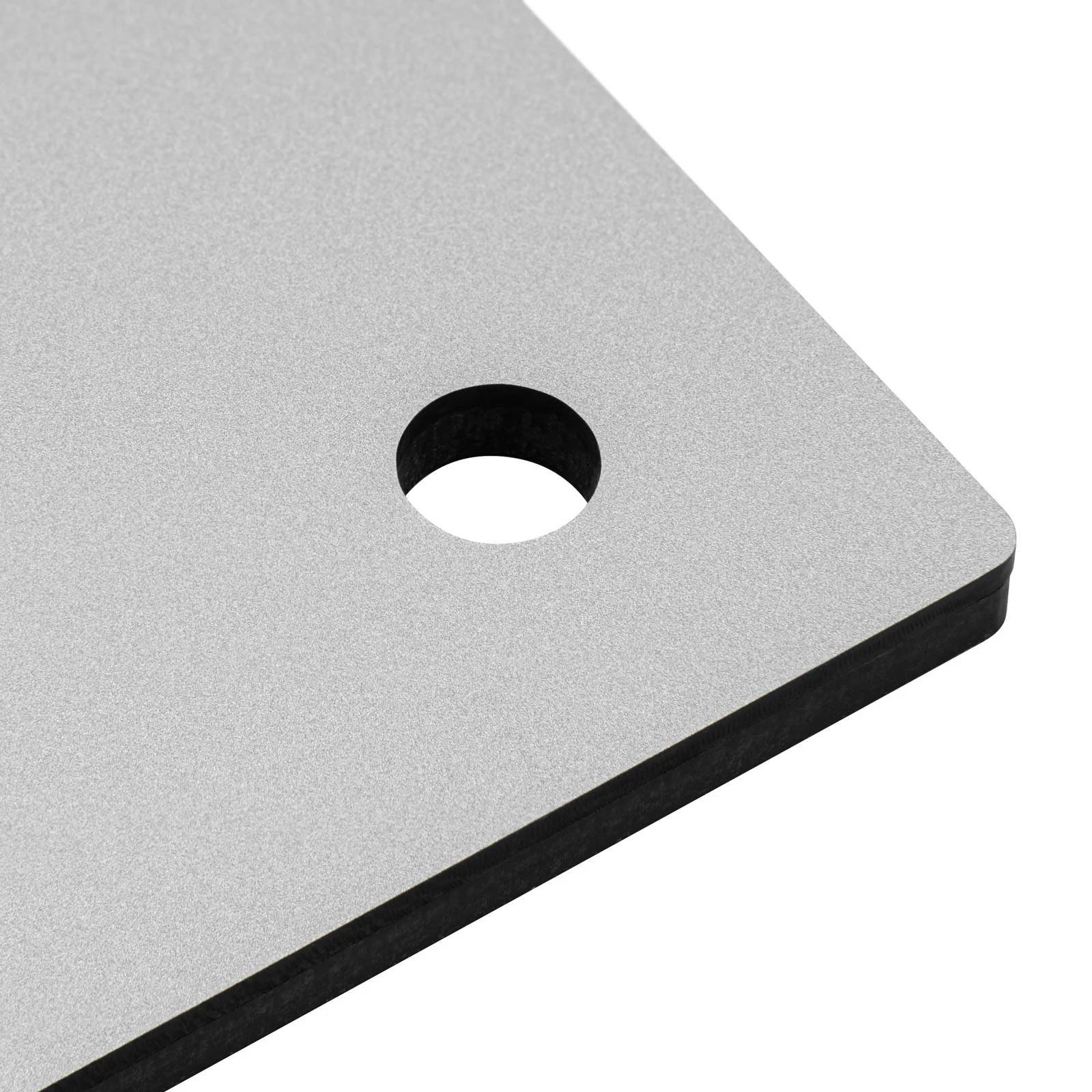

- thickness of base: 3 mm

Materials:

- 3 mm clear acrylic

- rigid PVC 3 mm in black

- textures laminate 1.6 mm in yellow

- engraving laminate 1.6 mm in white and pearl white

- ADA plastic 1 mm in white, black, red and navy blue

Braille ball colours: black

Mounting: 13 mm aluminium spacers

Manufacturing technology:

- CNC

- UV printing

- laser cutting

We produce tiffographic plans on the basis of supplied building plans or evacuation plans in vector format (AI, EPS, CDR, PDF files). We produce an individual quotation based on these.

Turnaround time is between 7 and 14 working days.

This time is calculated from the moment of approval of the design, which we send you in PDF format.

For larger orders, the lead time is determined by telephone.

The message can be sent to e-mail: sklep@grawernia.pl or attached in the last step of ordering.

We will be happy to answer your questions by email or telephone.
