Braille tile plan - PVC hard, ADA plastic, laminate and acrylic - Dimension 550x435 mm - TAB674

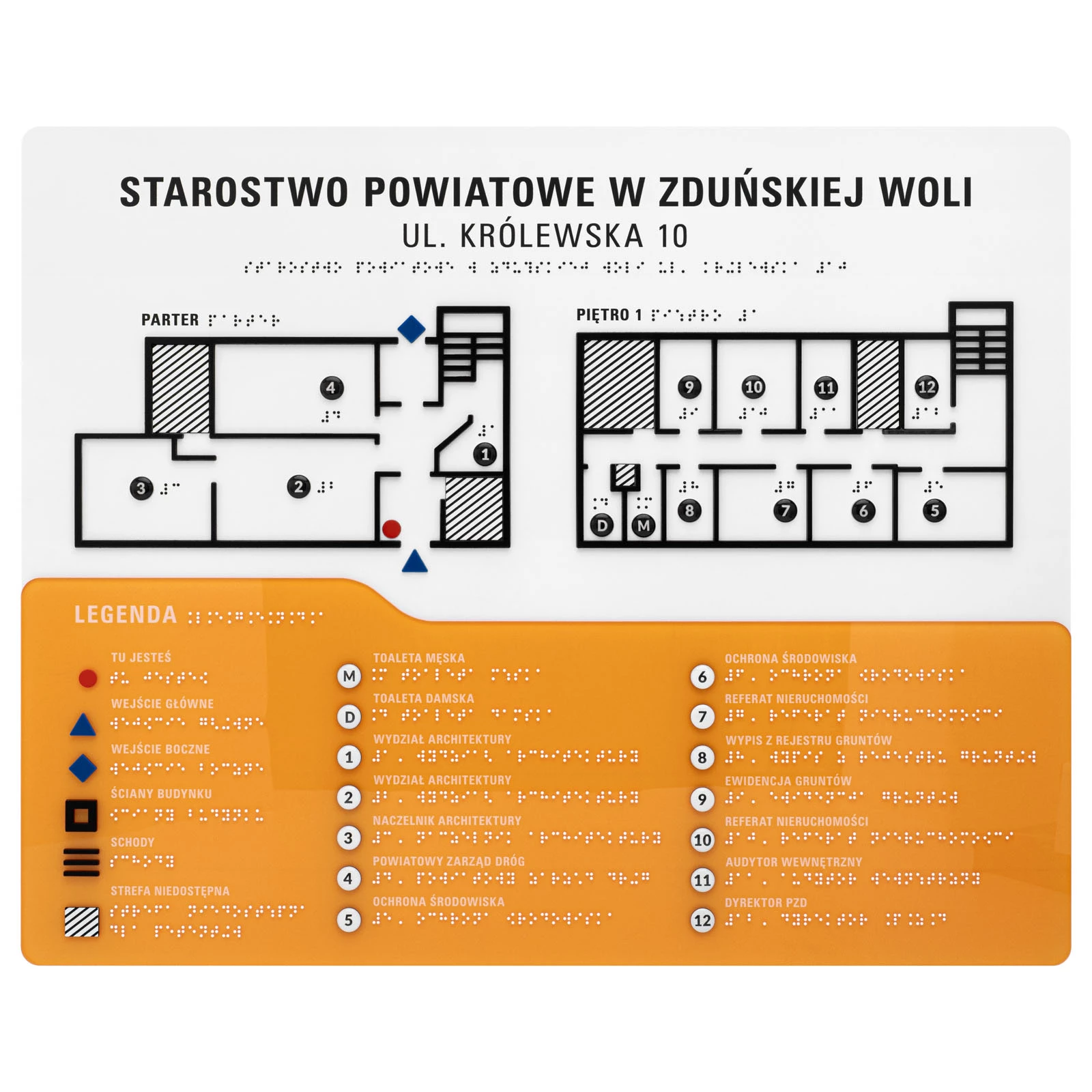

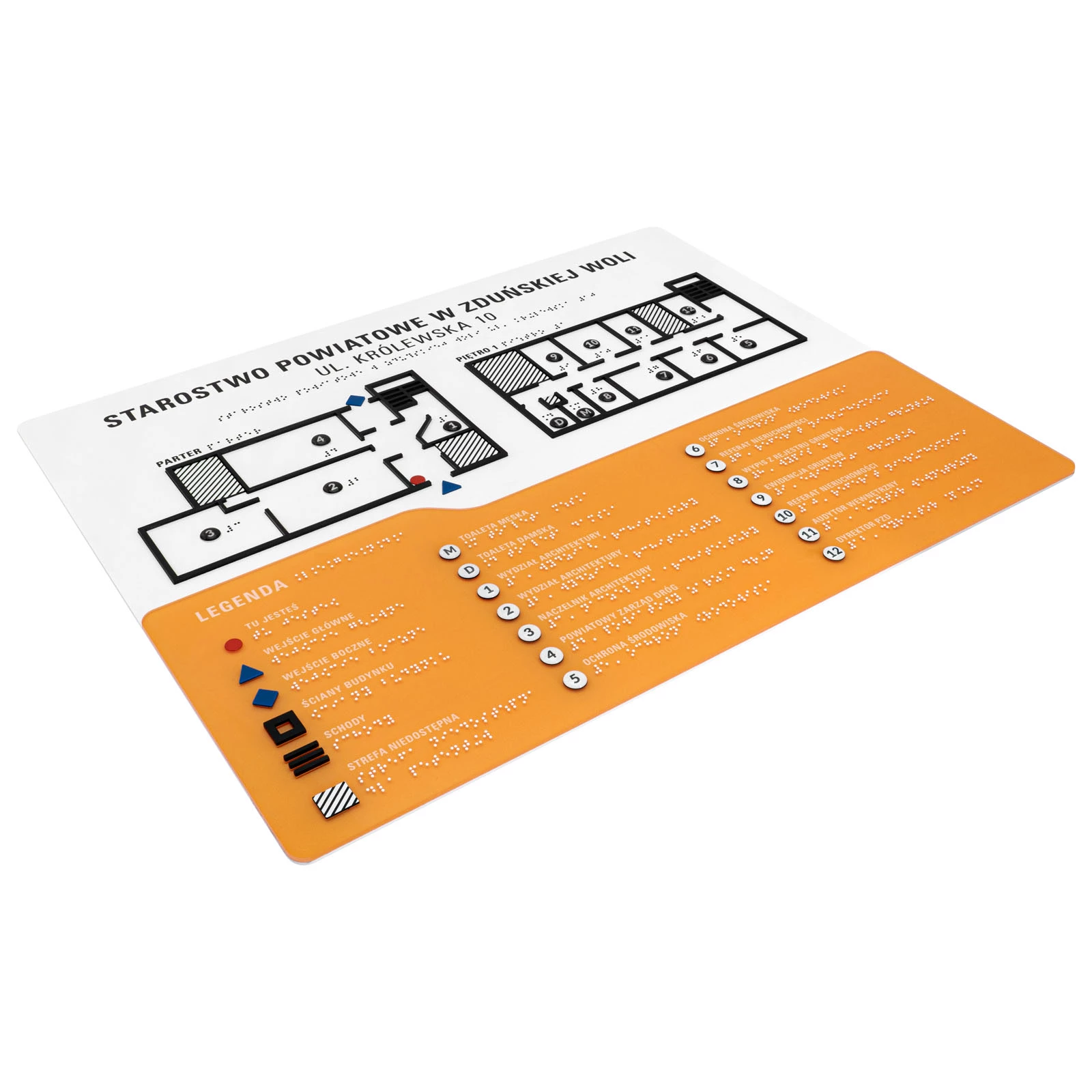

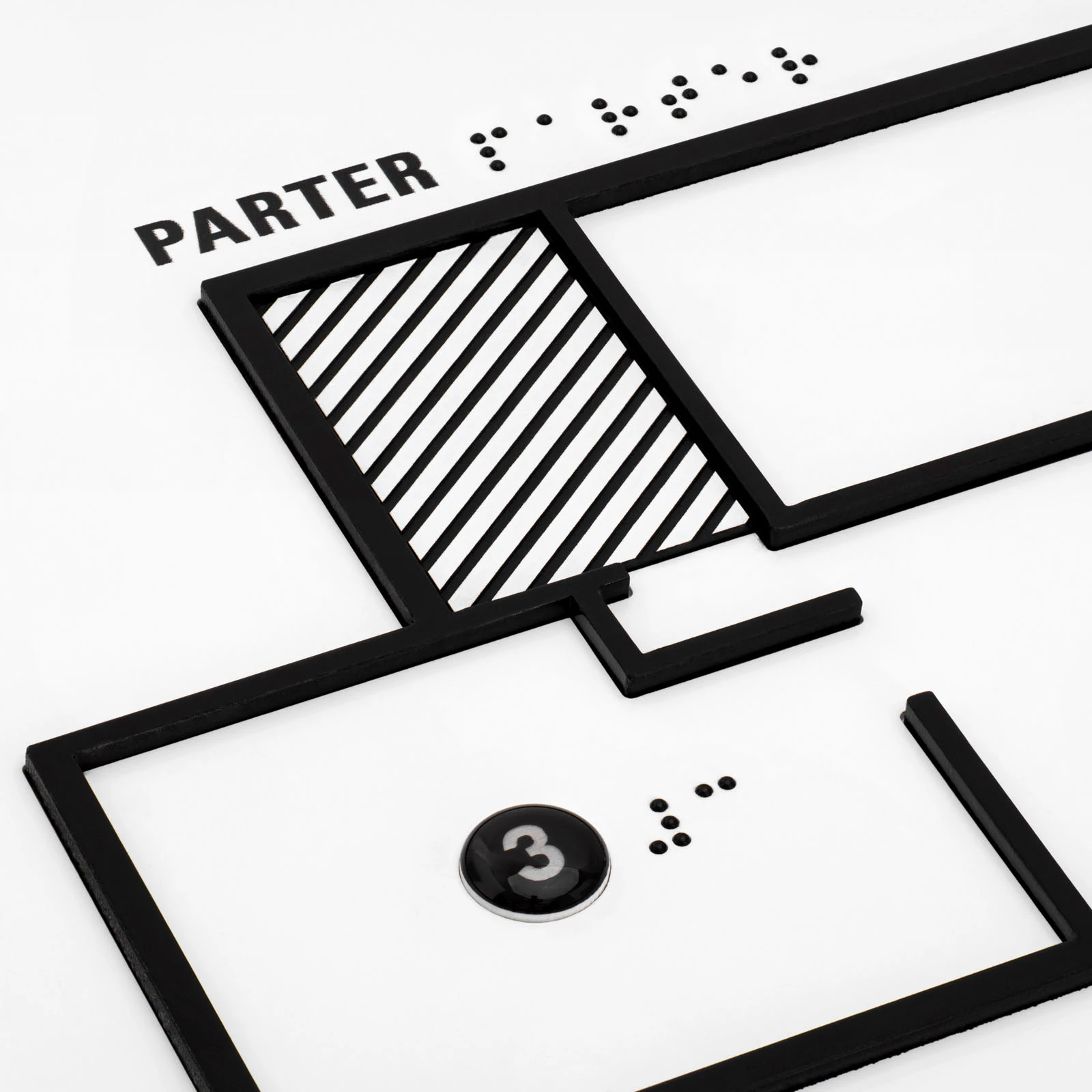

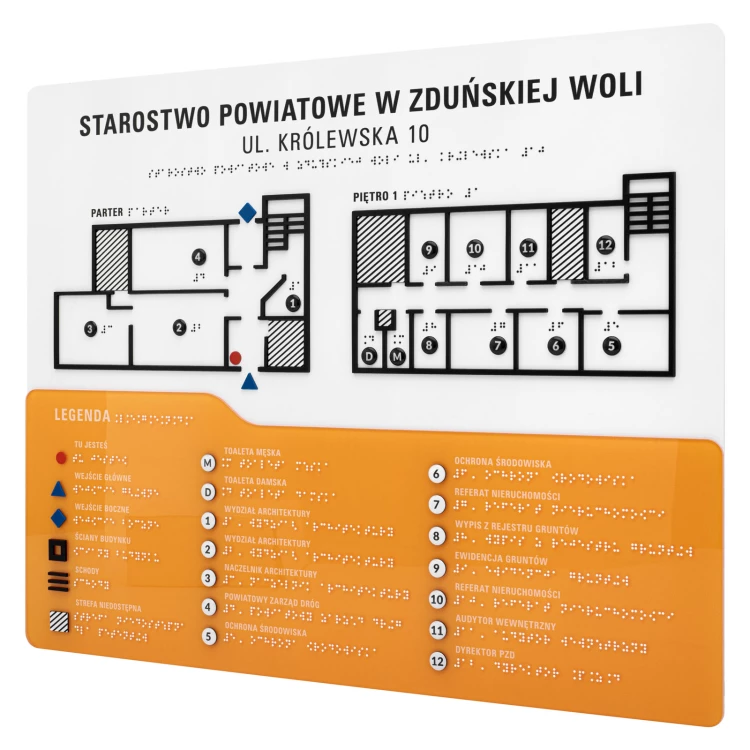

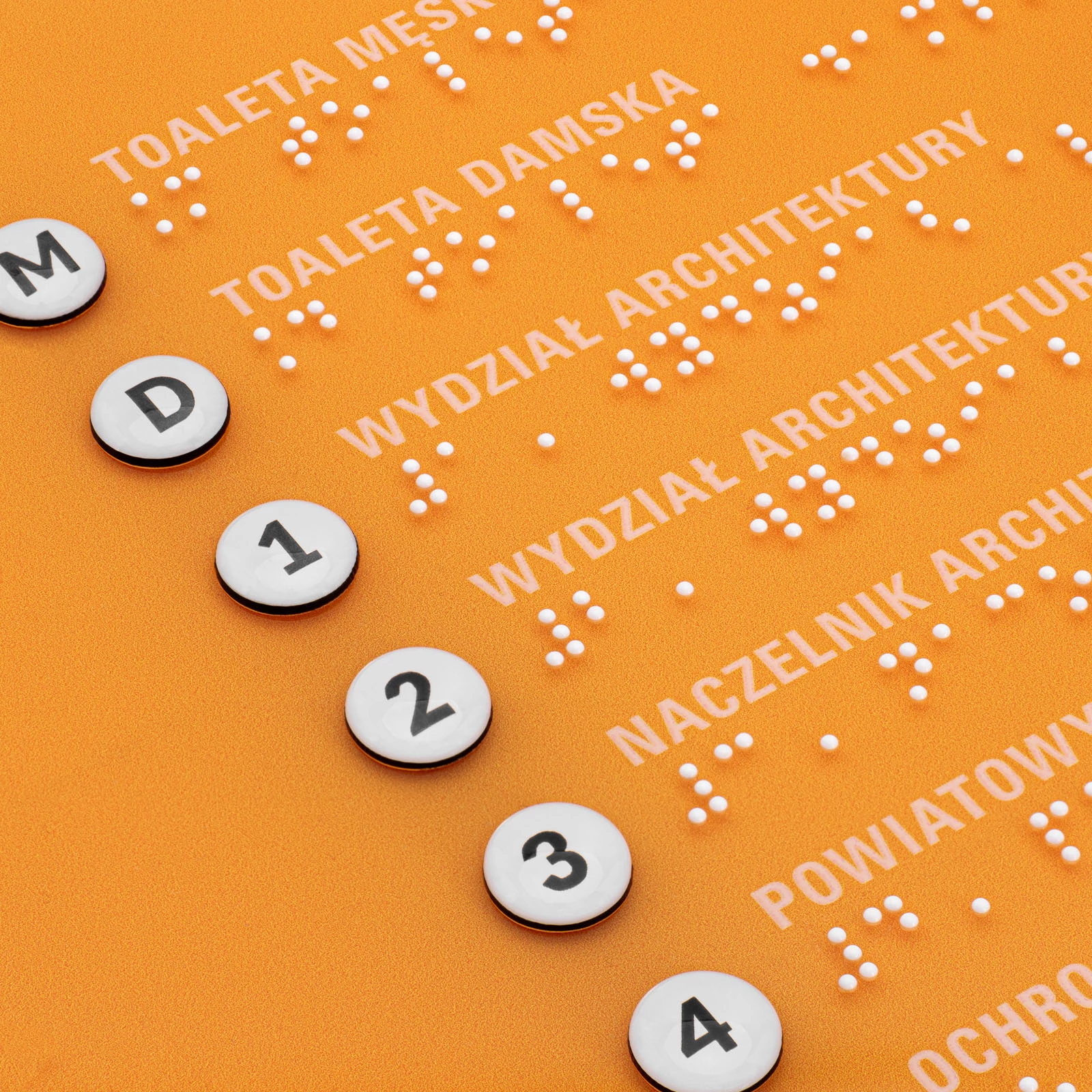

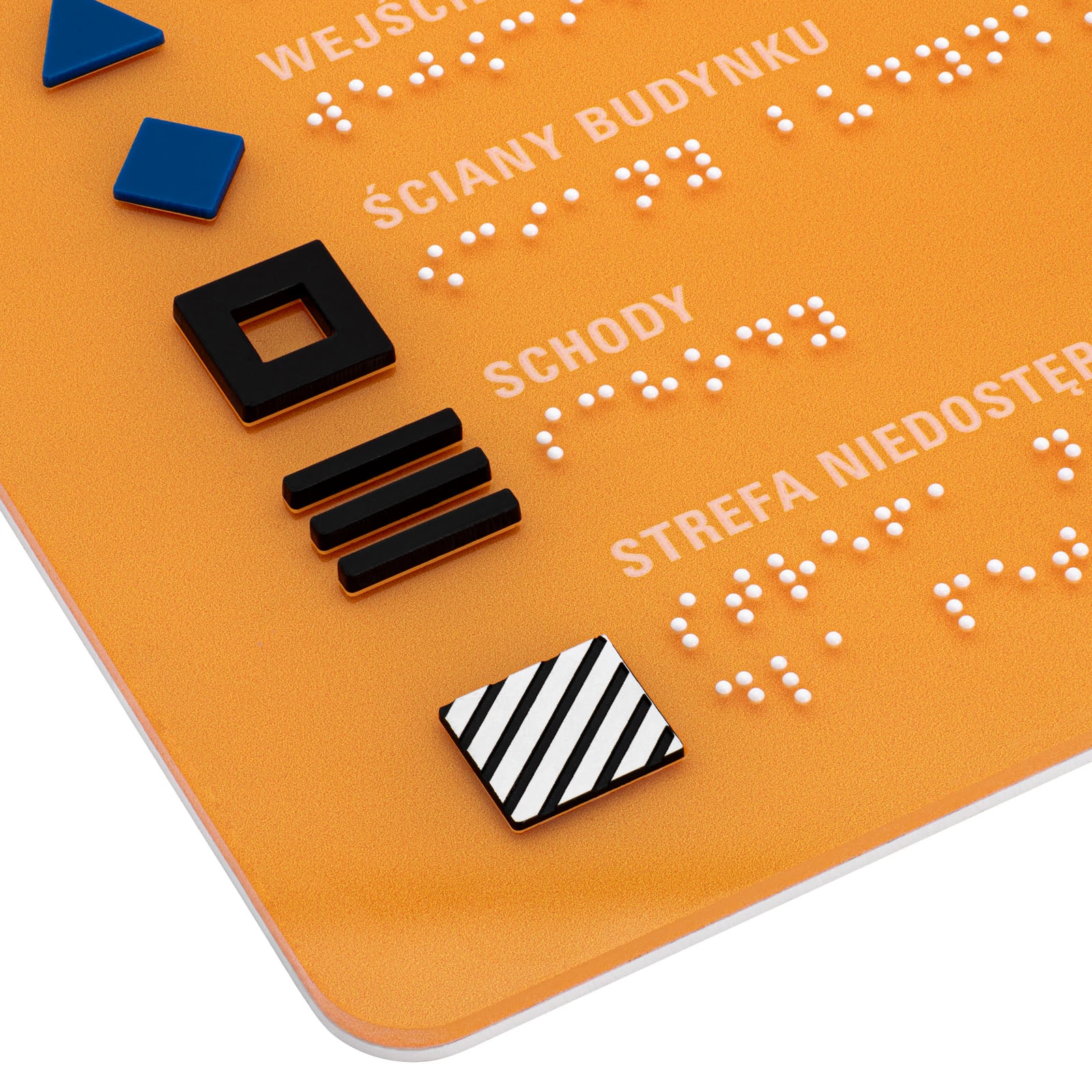

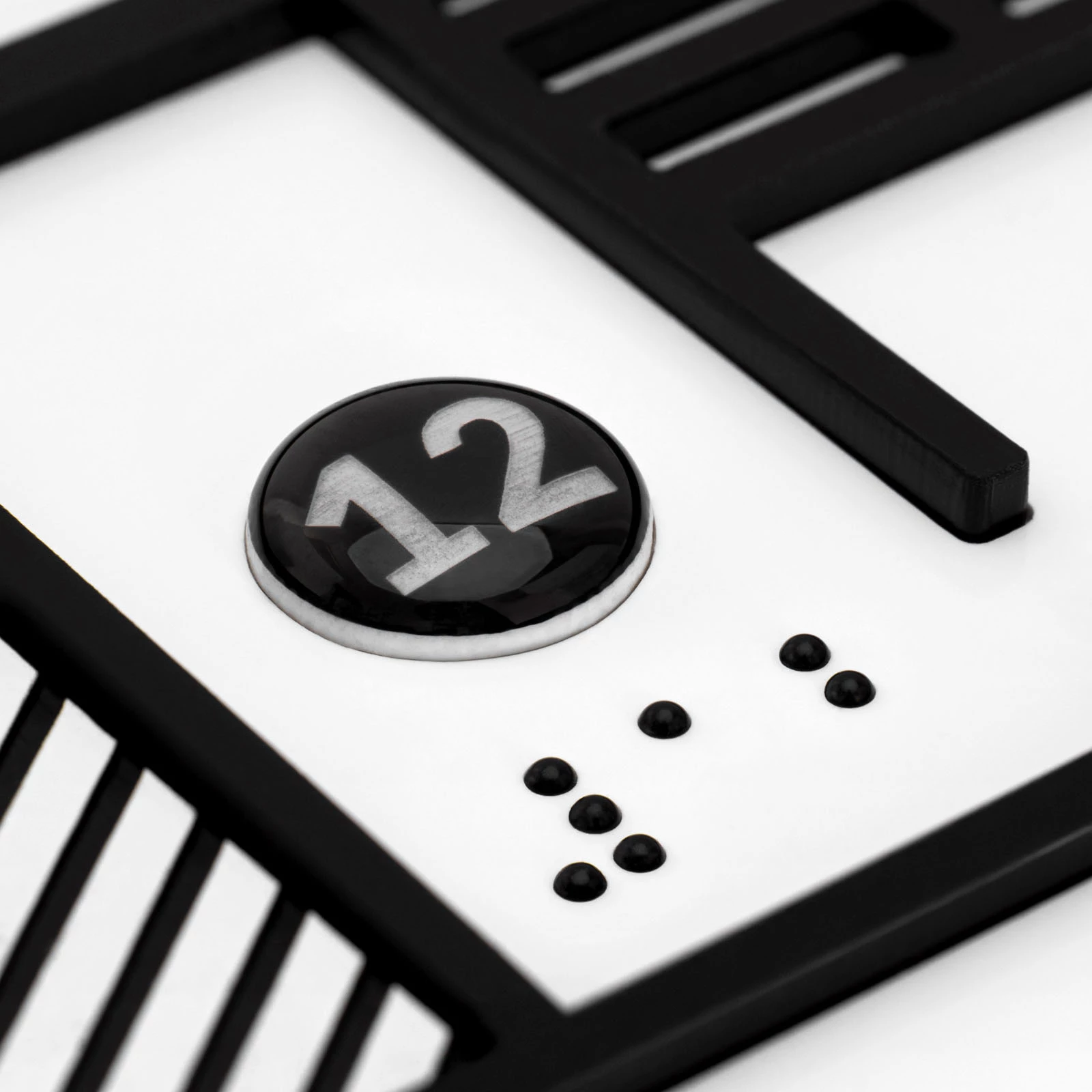

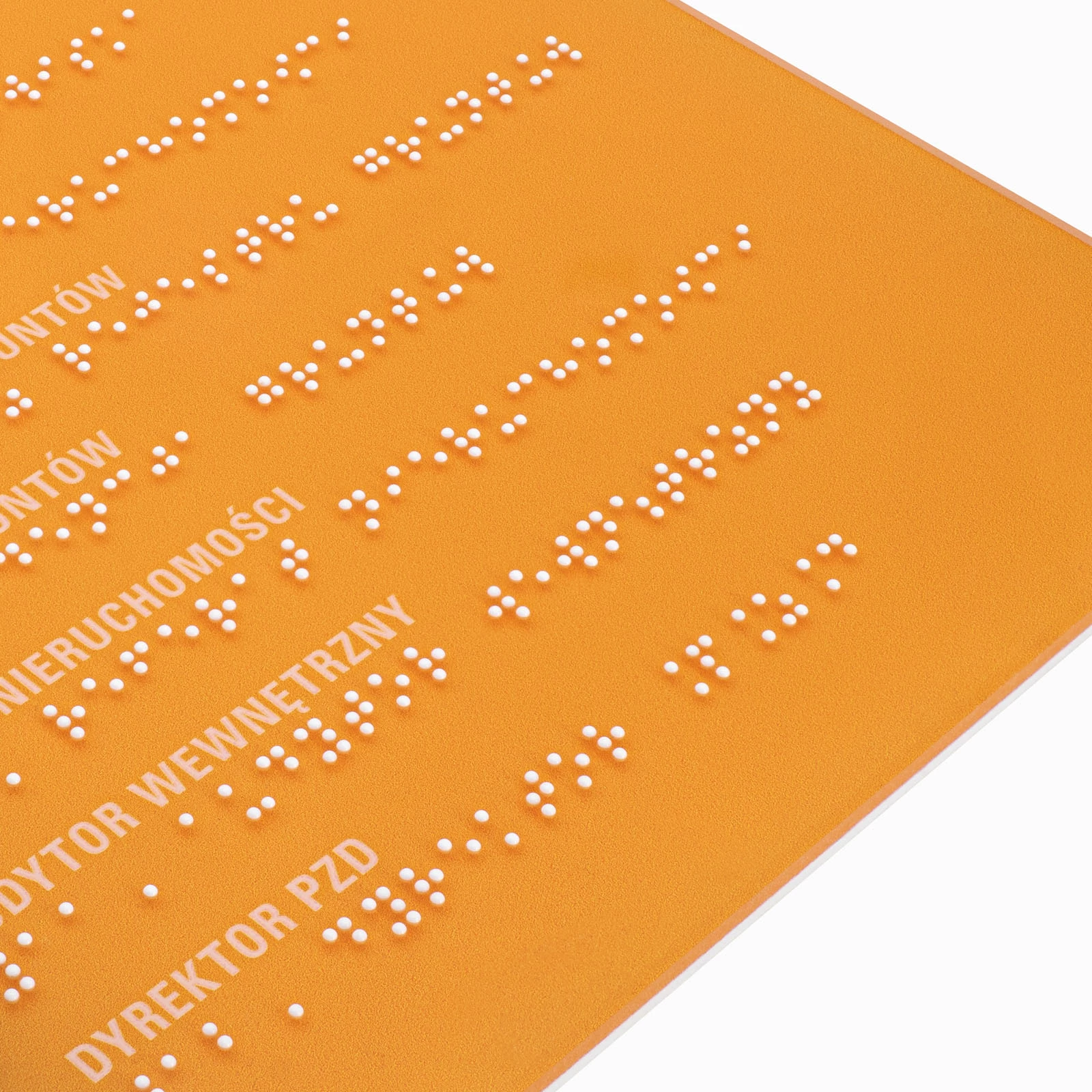

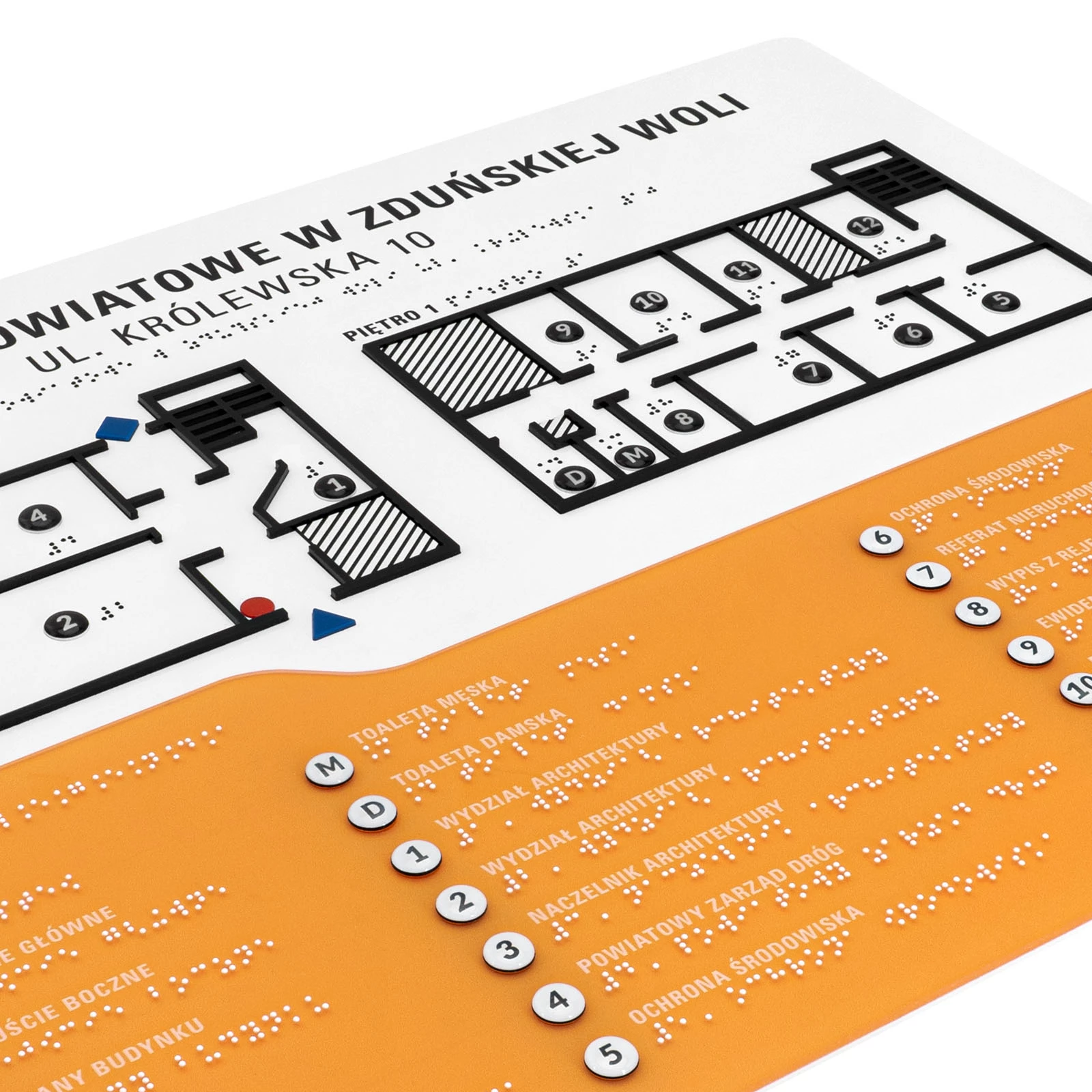

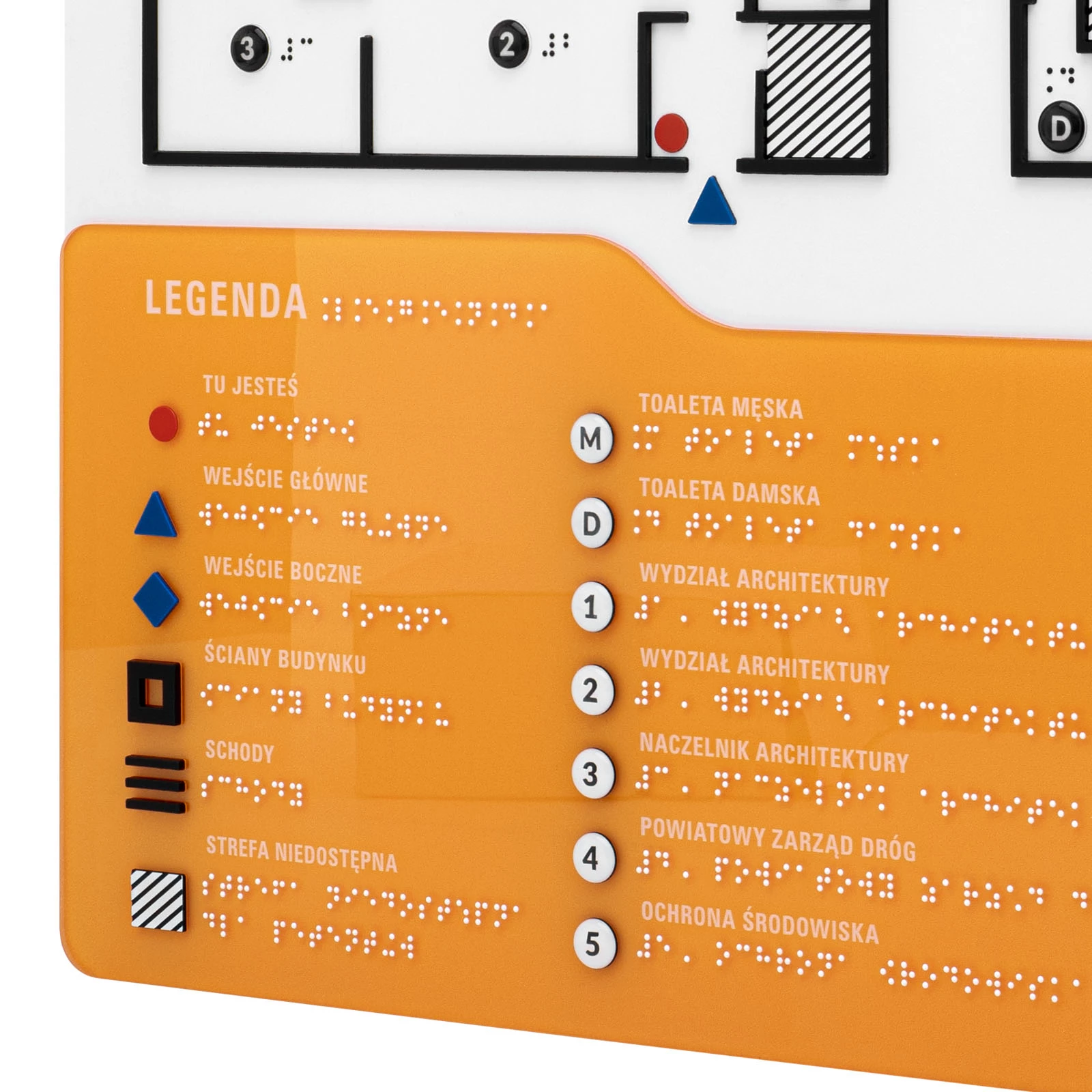

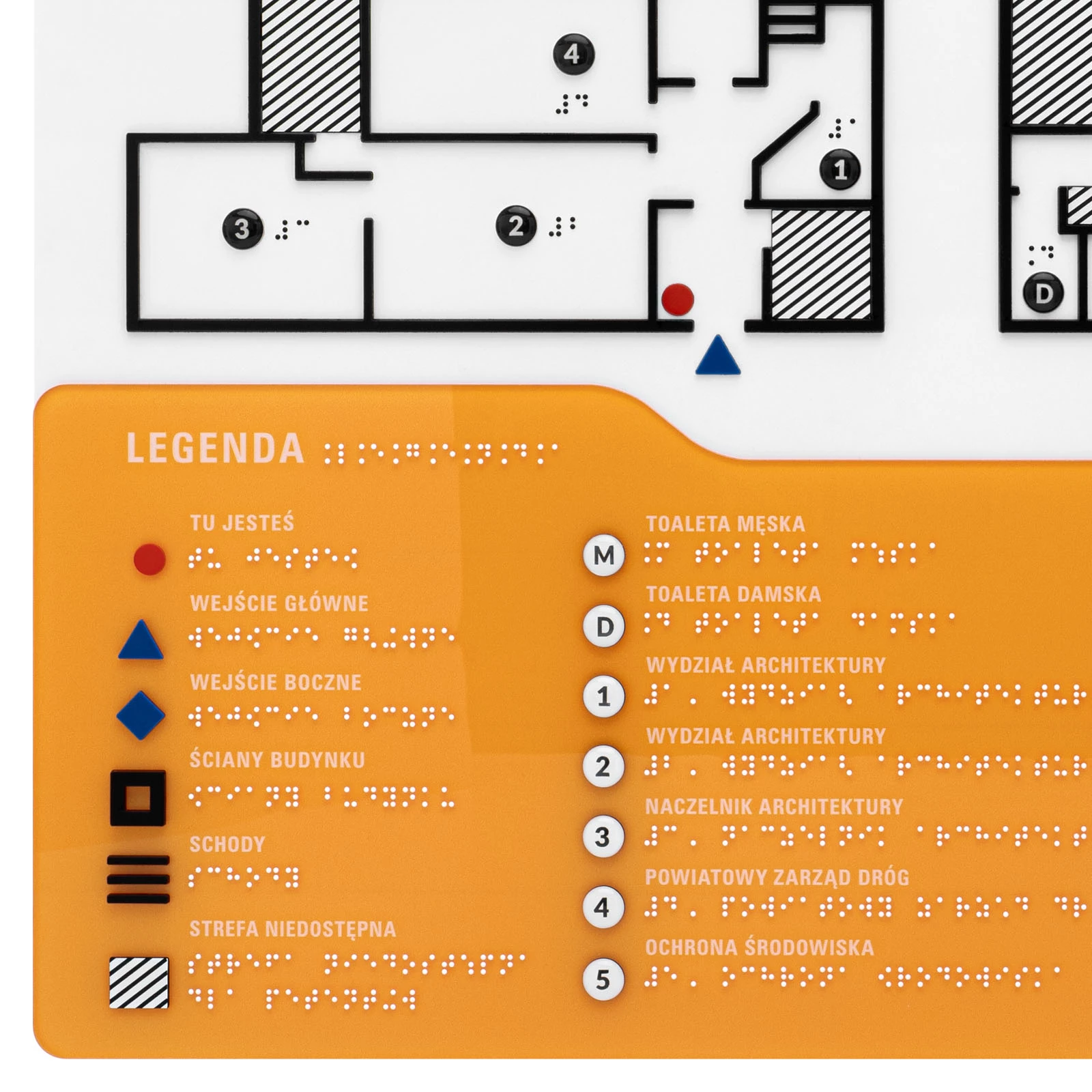

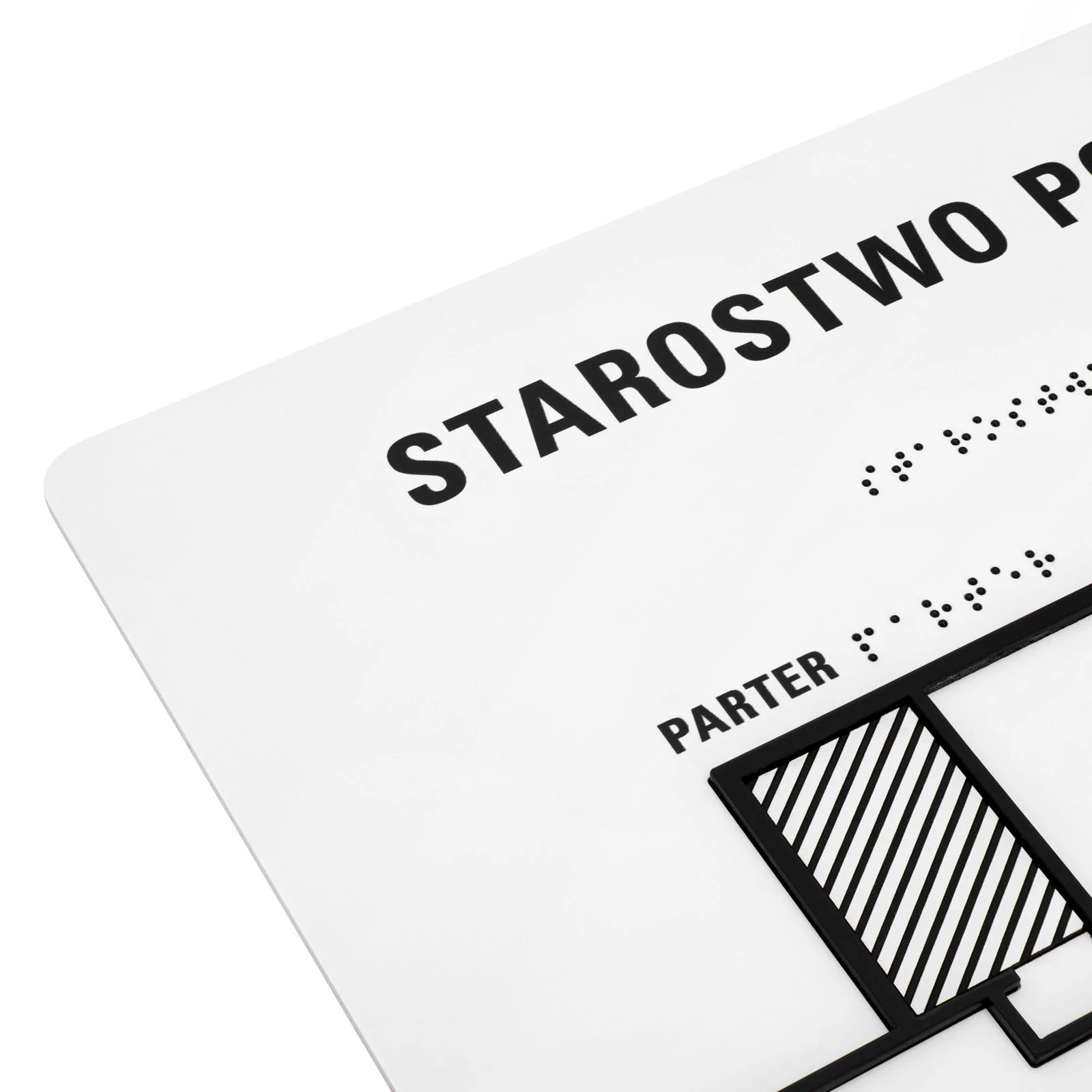

A tylographic plan with Braille writing is a comprehensive solution that makes orientation in space easier for blind and partially sighted people. Our team of specialists takes care of every detail, creating aesthetically pleasing and functional tylographic plans that are tailored to individual customer requirements. The base of our plan is 5 mm thick hard PVC in white. We produce a permanent UV print on the plan, which maintains the clarity and intensity of the colours thanks to precise printing technology. The elements visible on the plan are made of engraving laminate, ADA plastic and acrylic. The numerals in the circles are convex because they have been coated with resin (doming). The process of applying the resin darkens the white colour, resulting in an effect similar to a light grey. The plan has been described in detail using Braille. The colours used in the design are contrasting, improving legibility for the visually impaired. The Braille characters can be clearly felt under the fingertip, thanks to the use of professional licensed CNC-inserted Braille balls. In accordance with PZN recommendations, they are positioned at a height of 0.5 mm and have a base width of 1.5 mm. The whole is designed to be self-assembled.



The price presented applies to the board visible in the gallery. Please feel free to contact our sales department by email or phone for a detailed quote.



Dimensions:

- width: 550 mm

- height: 435 mm

- thickness of base: 5 mm
