Typhlographic Plan with Braille Script - Plexi and ADA - Size: 594x420mm (A2) - TAB387

Product description

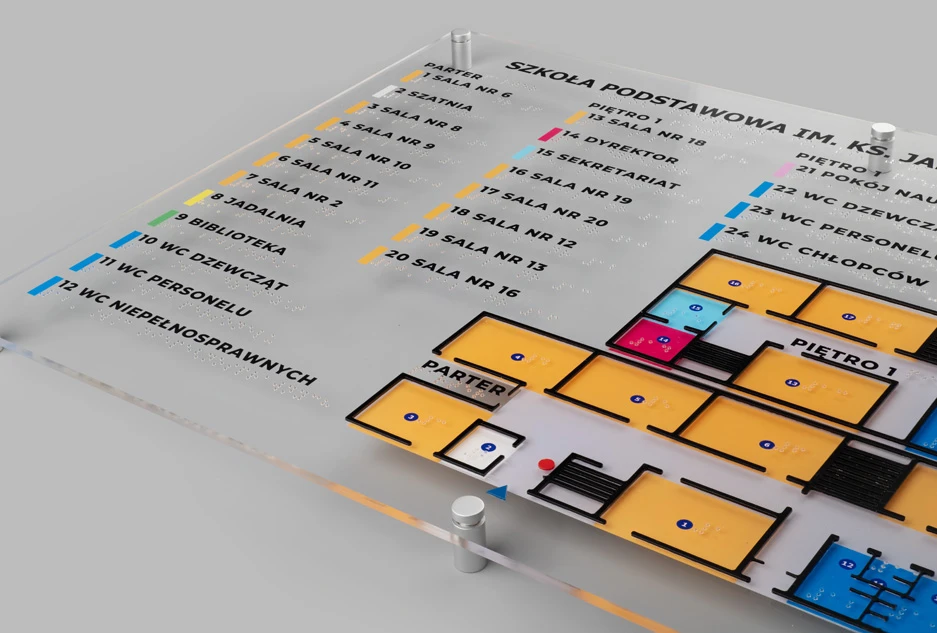

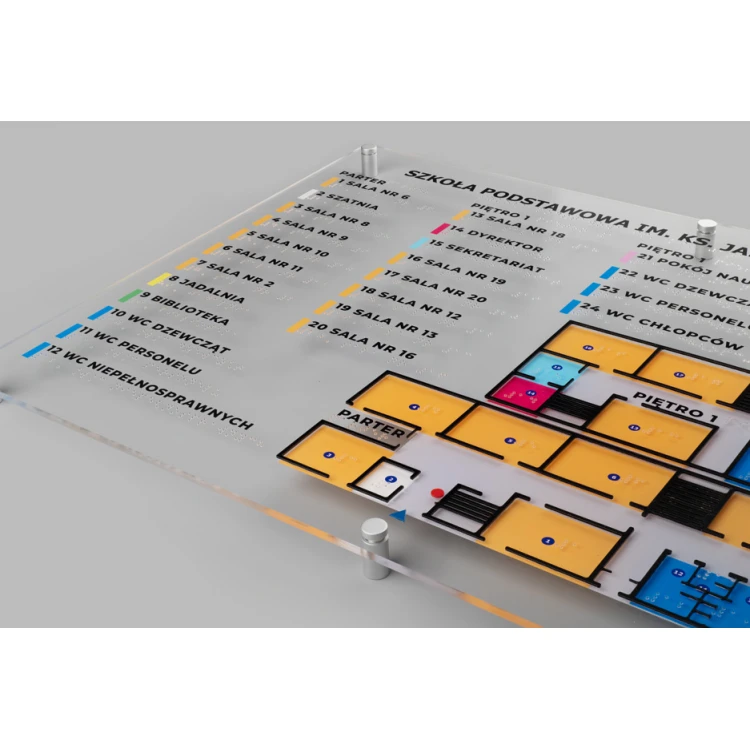

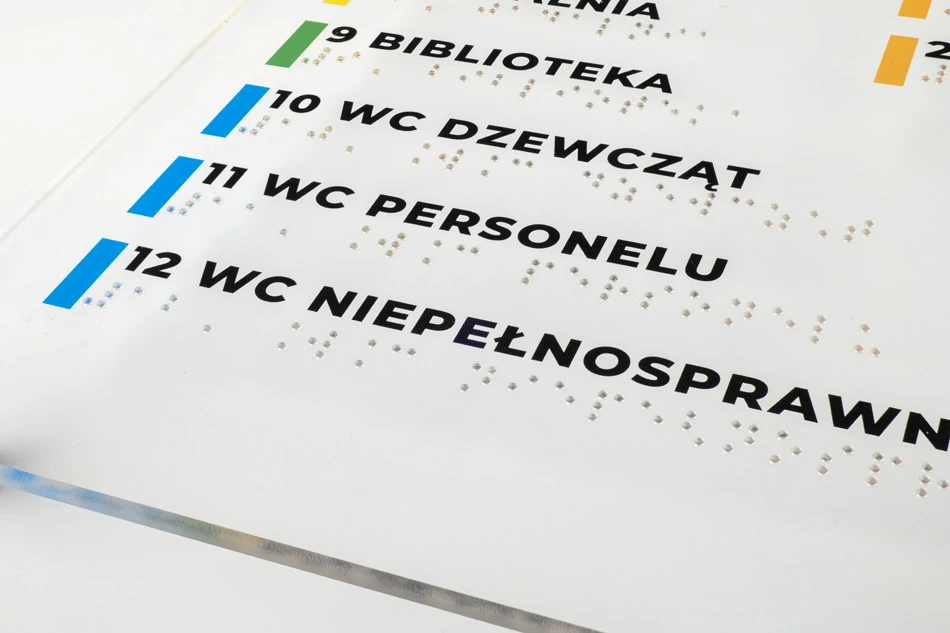

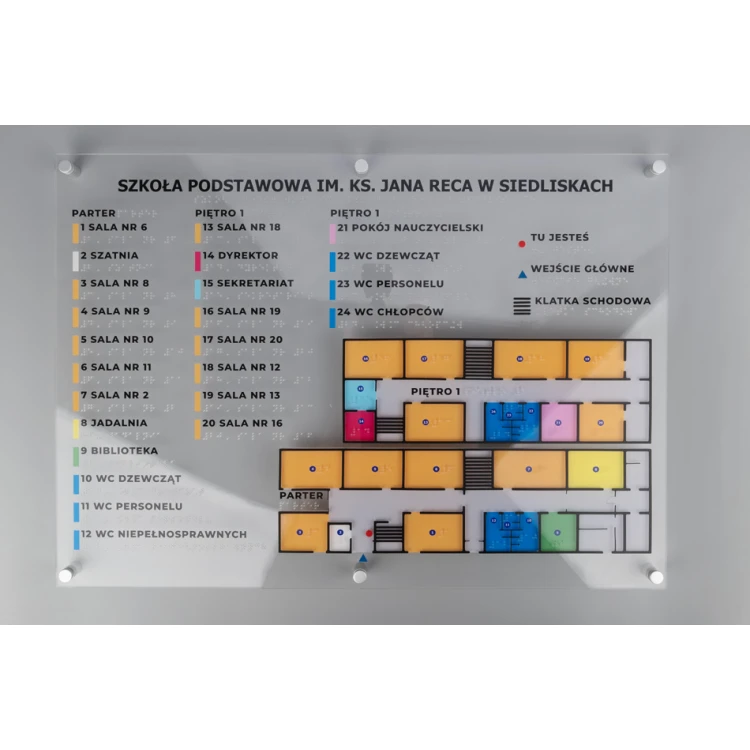

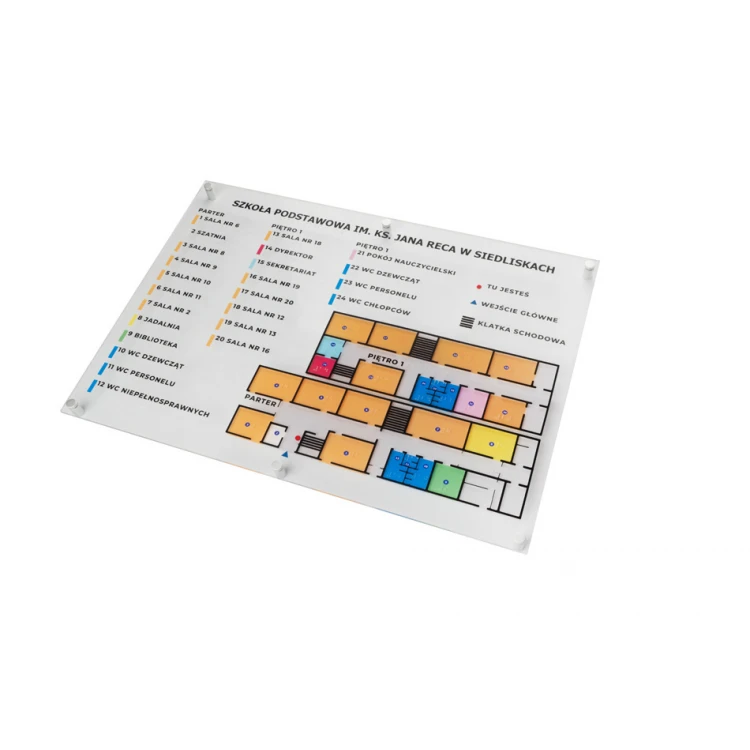

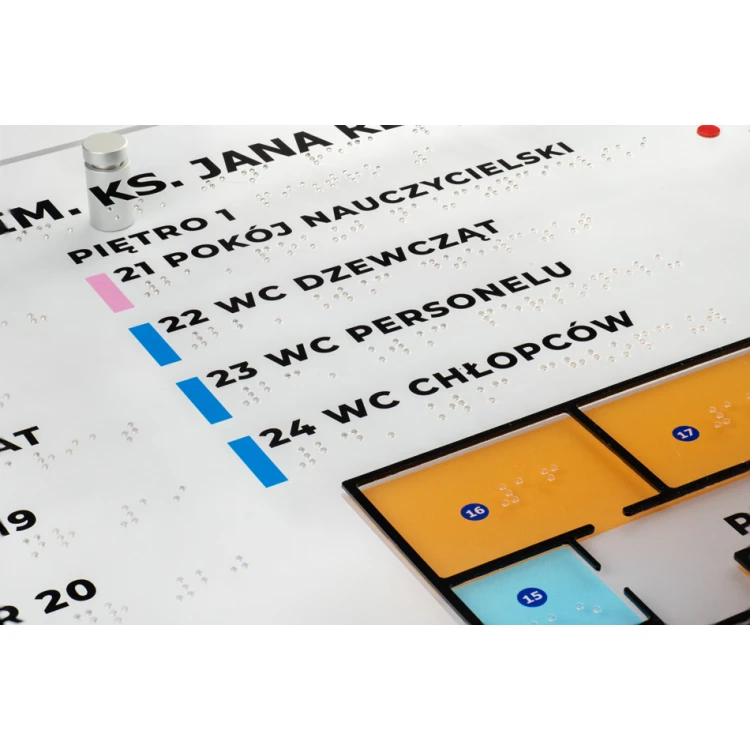

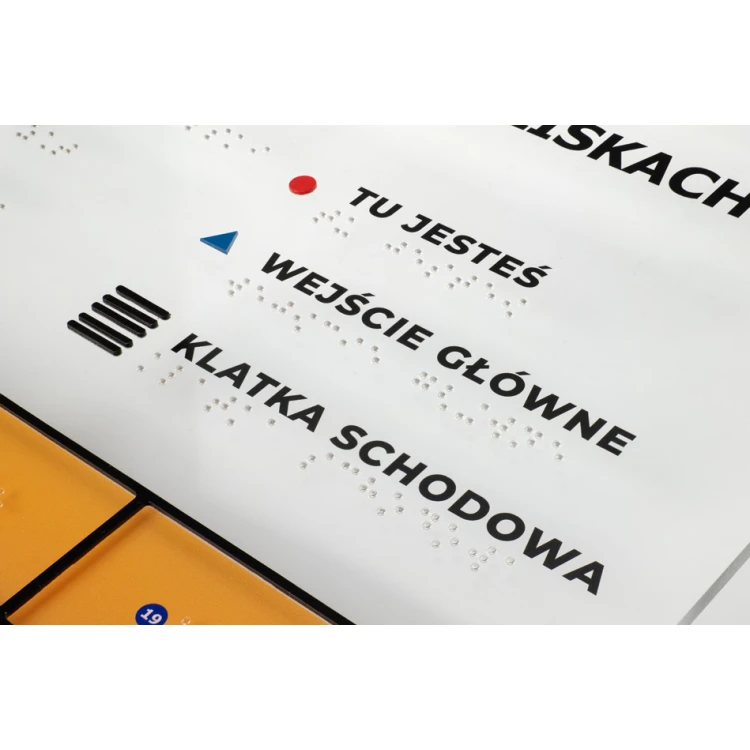

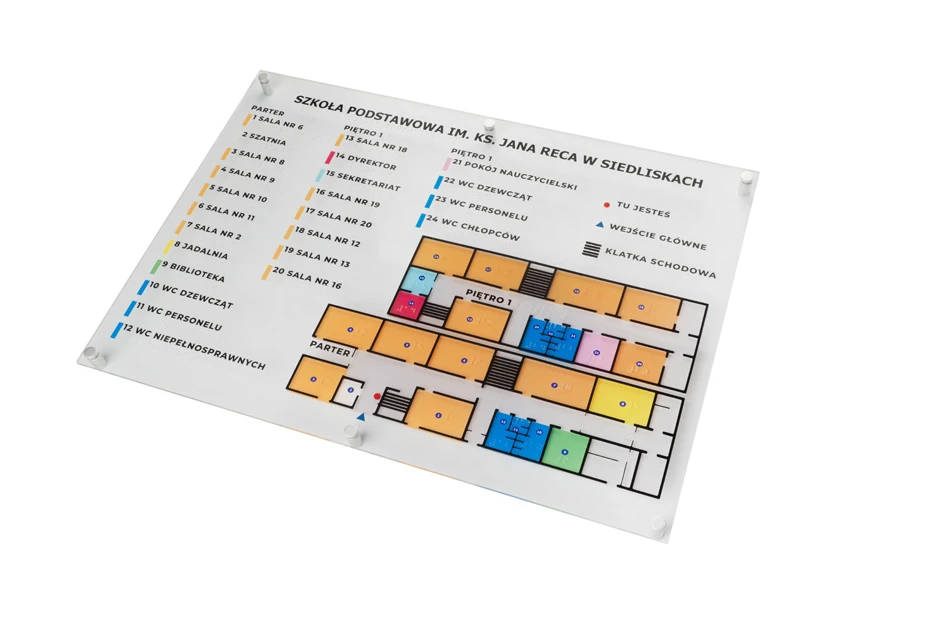

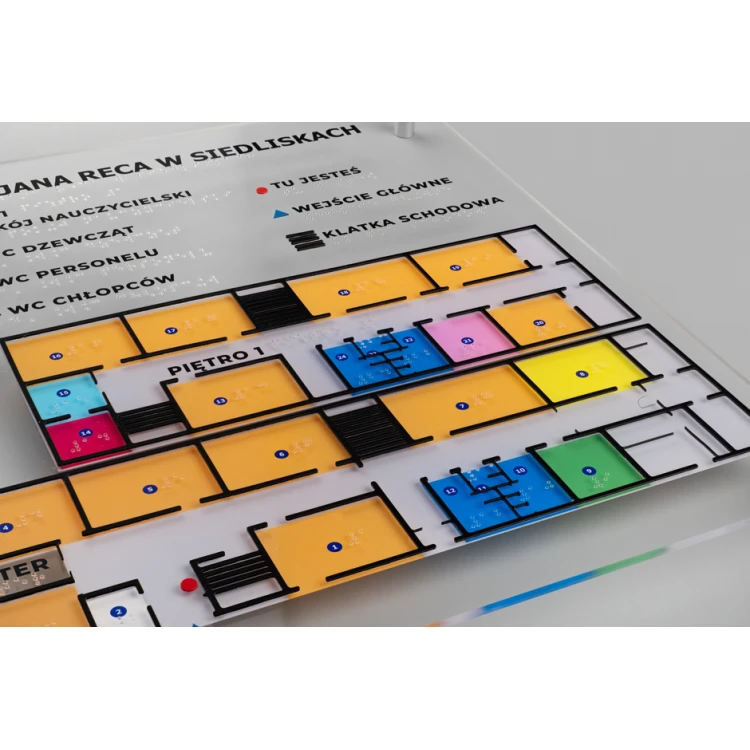

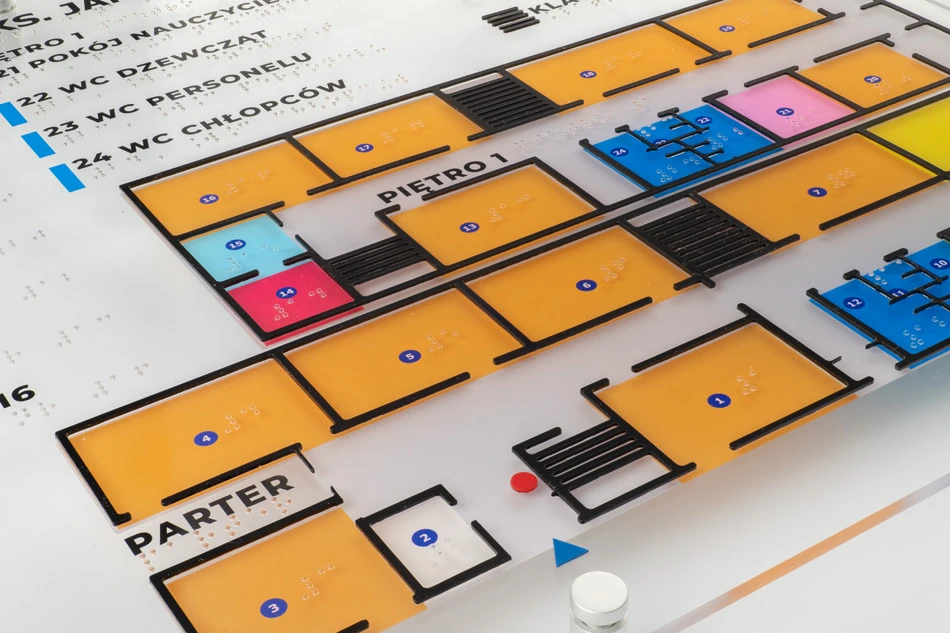

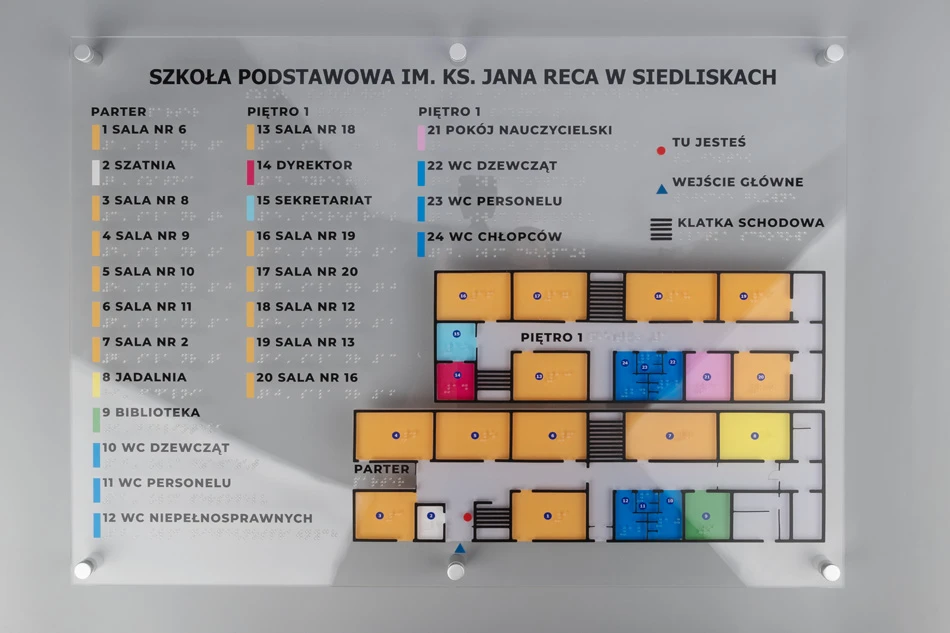

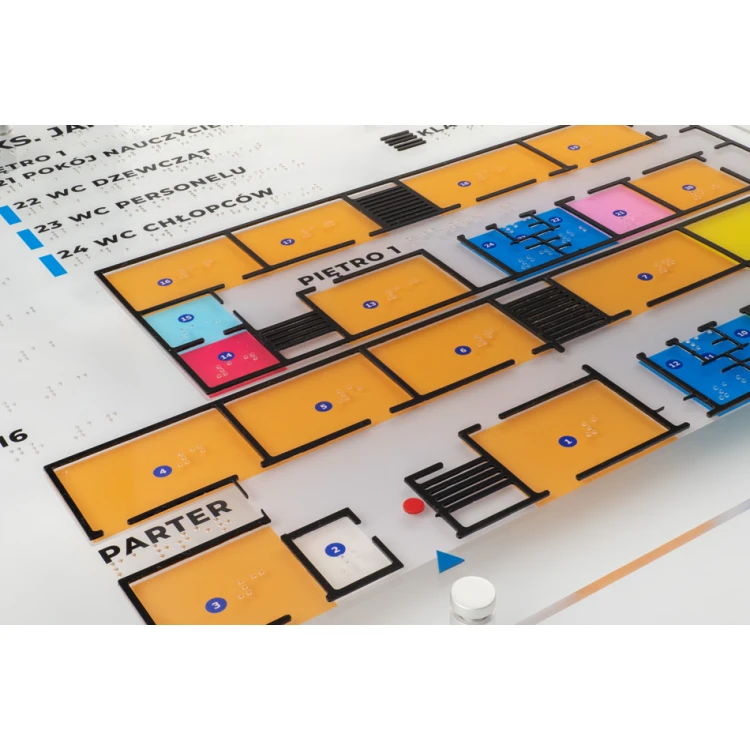

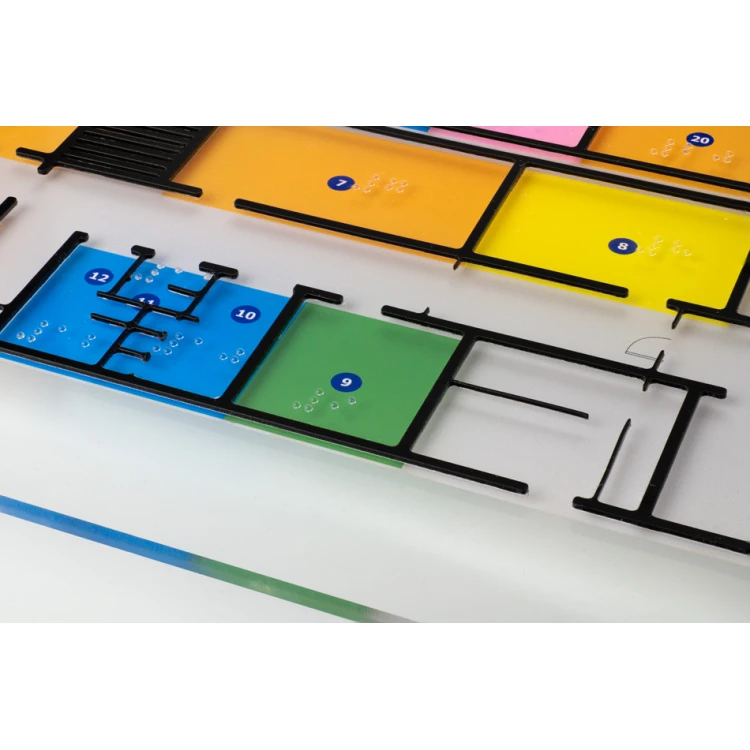

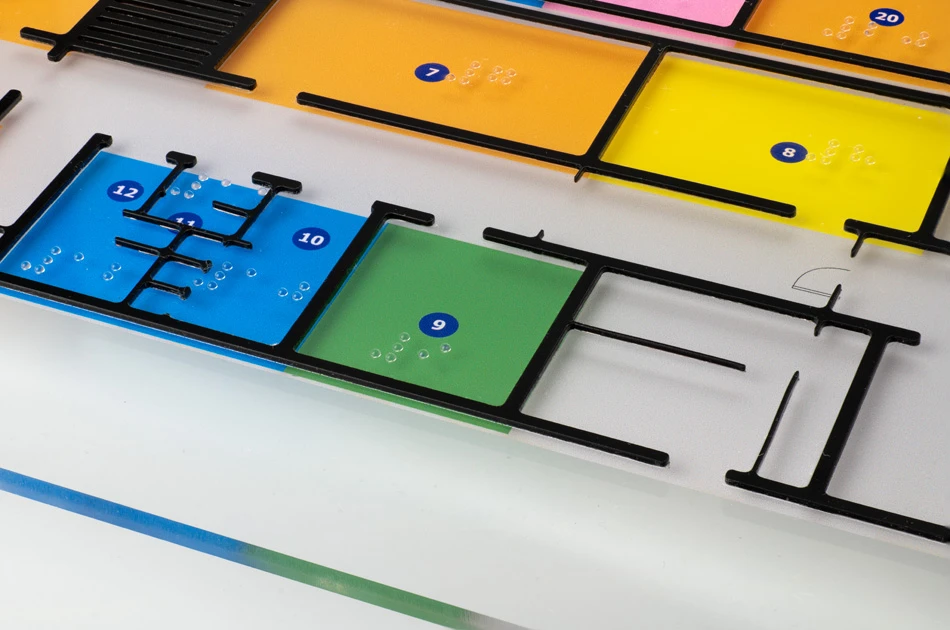

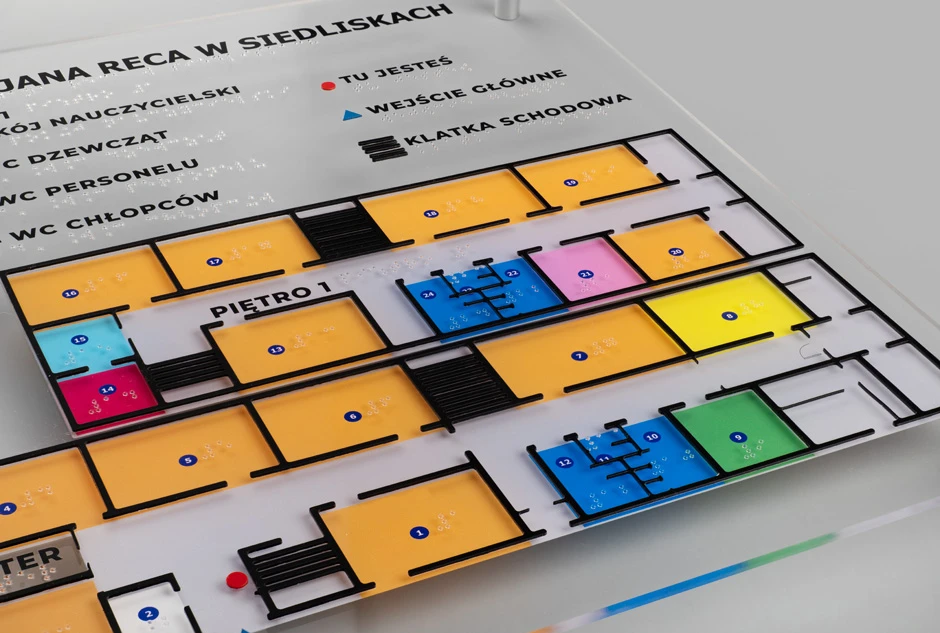

Large tyflographic board made of Plexiglas and ADA plastic. Tiflographic plans are especially useful for blind people to quickly orient themselves in an unfamiliar space. The presented board shows a complete plan of a single floor: the walls of the rooms and stairs are made of ADA 1mm recessed 0.2mm plastic, while the landmarks are made of acrylic. The plan is described in detail in Braille script. The colors used in the design are contrasting, which improves readability for the visually impaired. The UV printing used is applied from the back so the content is resistant to abrasion and damage. Braille characters can be clearly felt under the fingertip thanks to the use of professional licensed braille balls hammered in CNC technology. In accordance with PZN recommendations, they are placed at a height of 0.5mm and have a base width of 1.5mm. The whole is mounted to the wall on six aluminum spacers (optional).

Before implementation, we prepare a design (PDF file) and send for approval to the indicated e-mail address. At the design stage, you can contact the graphic designer at any time. After accepting the project, we proceed to production.

The presented price is for making the board visible in the gallery. Feel free to contact our sales department by email or phone to receive a detailed quote.

dimensions: 594x420mm (A2)
materials:
- transparent plexiglass, extruded 5mm
- ADA 1mm plastic in matte black
- transparent Braille beads punched using CNC technology

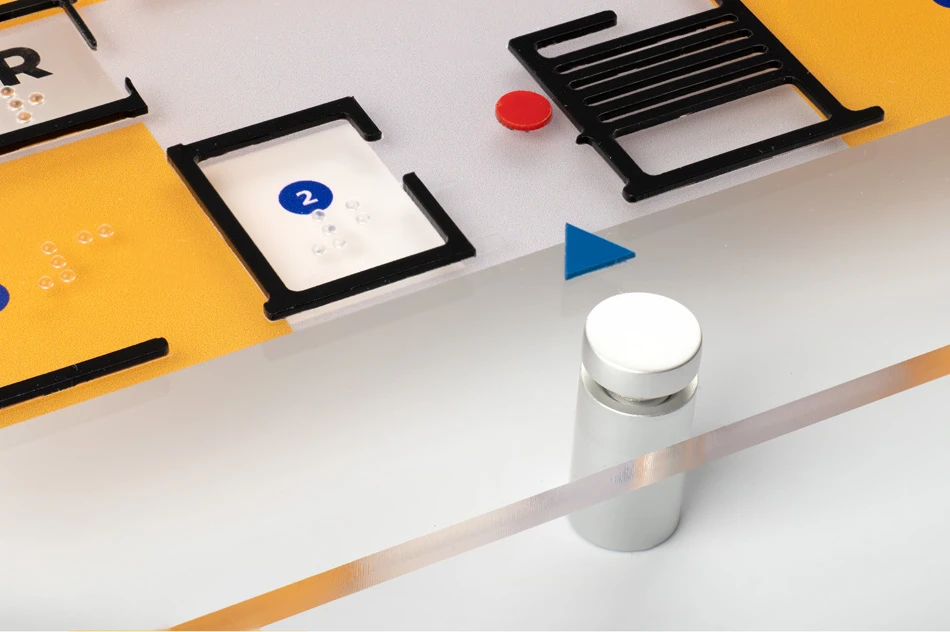

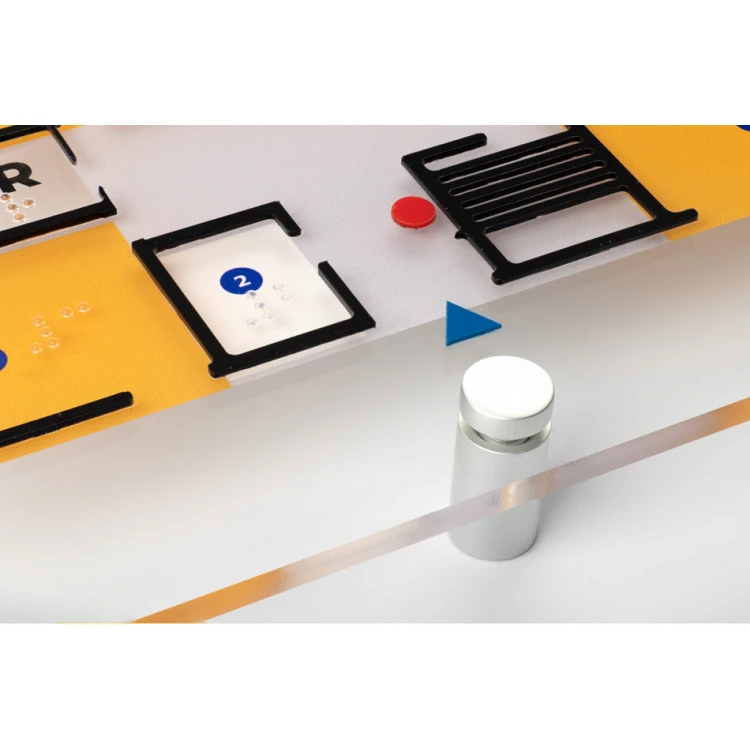

- 6 aluminum spacers with a diameter of 13mm (optional)

Delivery time from 7 to 14 working days counted from the moment of approval of the project, which we send in the form of a pdf file.

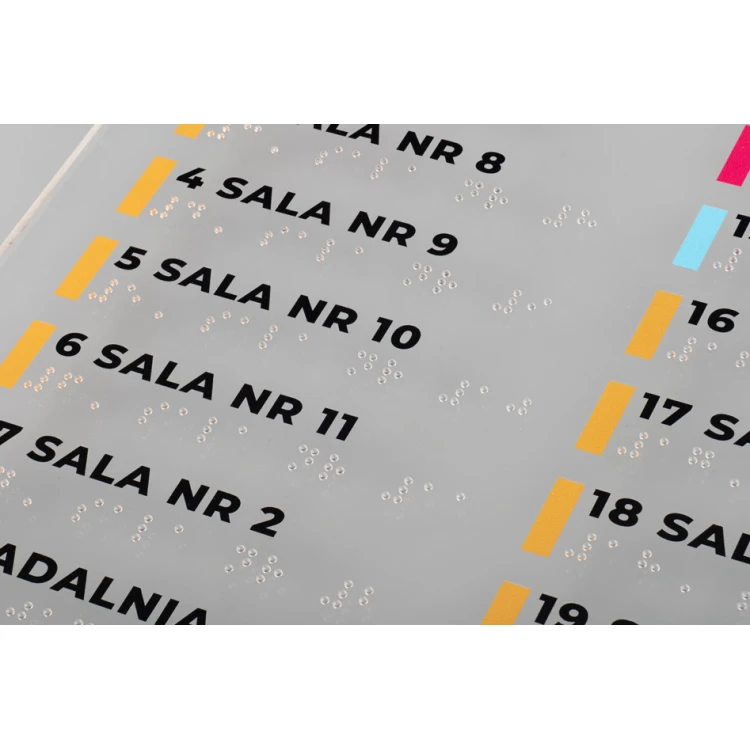

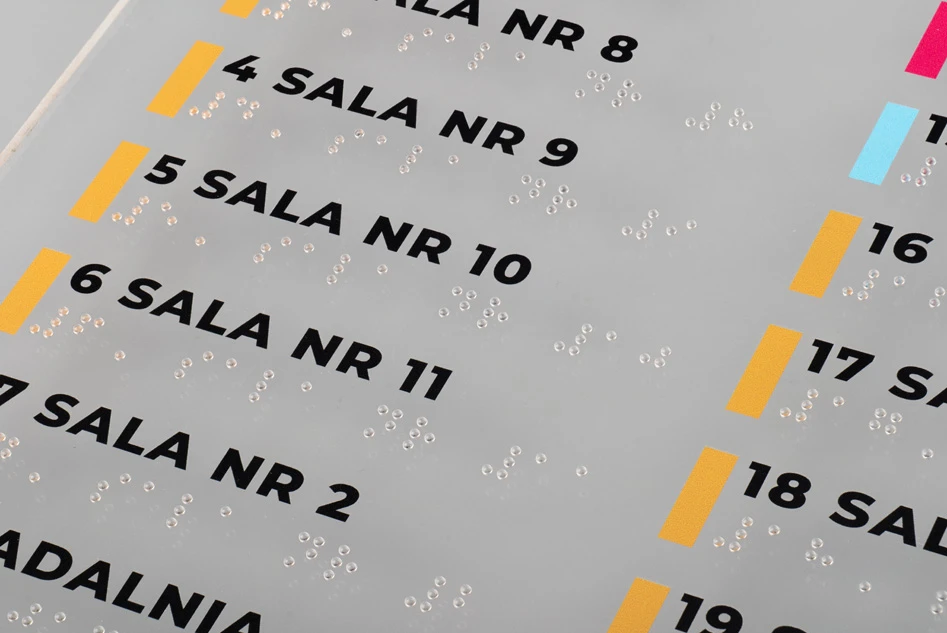

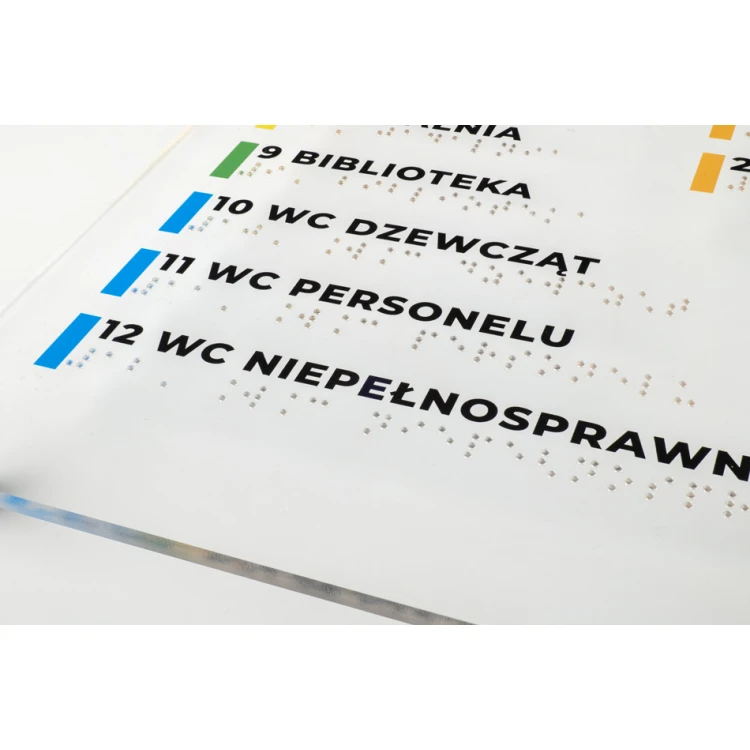

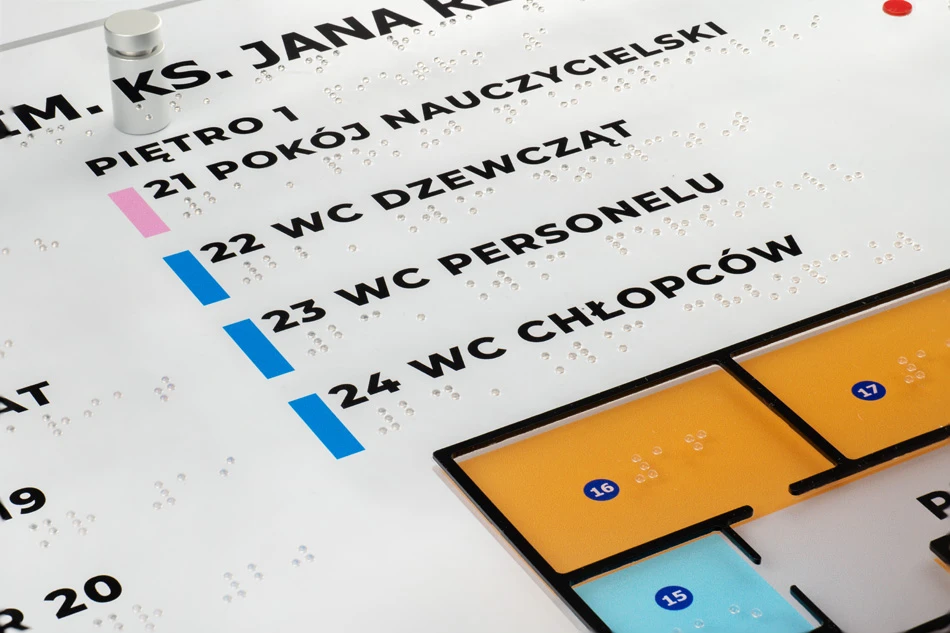

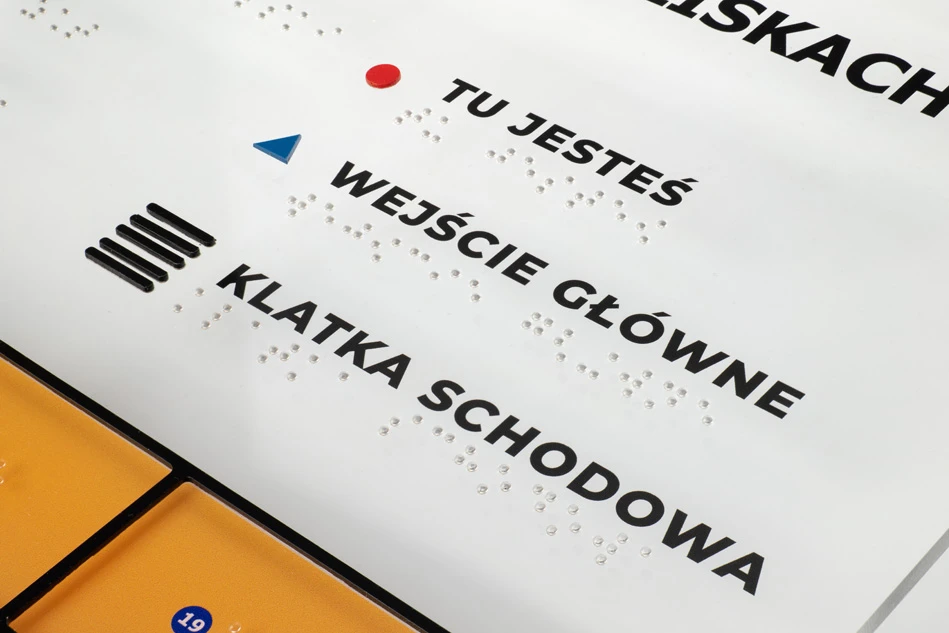

GALLERY SHOWS SELECTED PHOTOS FROM THE IMPLEMENTATION OF THE ORDER

The boards are made on the basis of the submitted building plans, evacuation plans in vector format (ai, eps, cdr, pdf files). On their basis we make an individual quote.

We will be happy to answer your questions by email or phone
