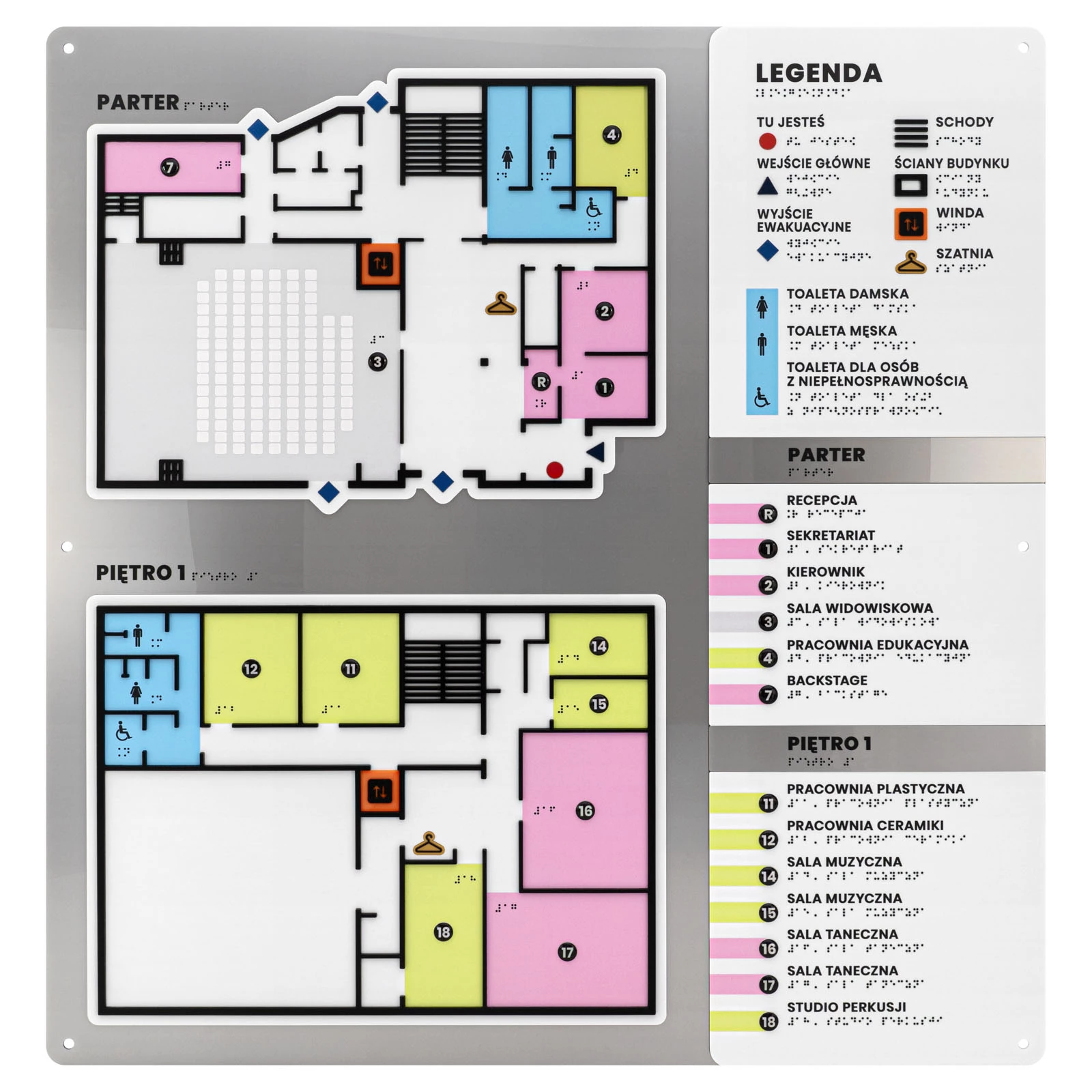

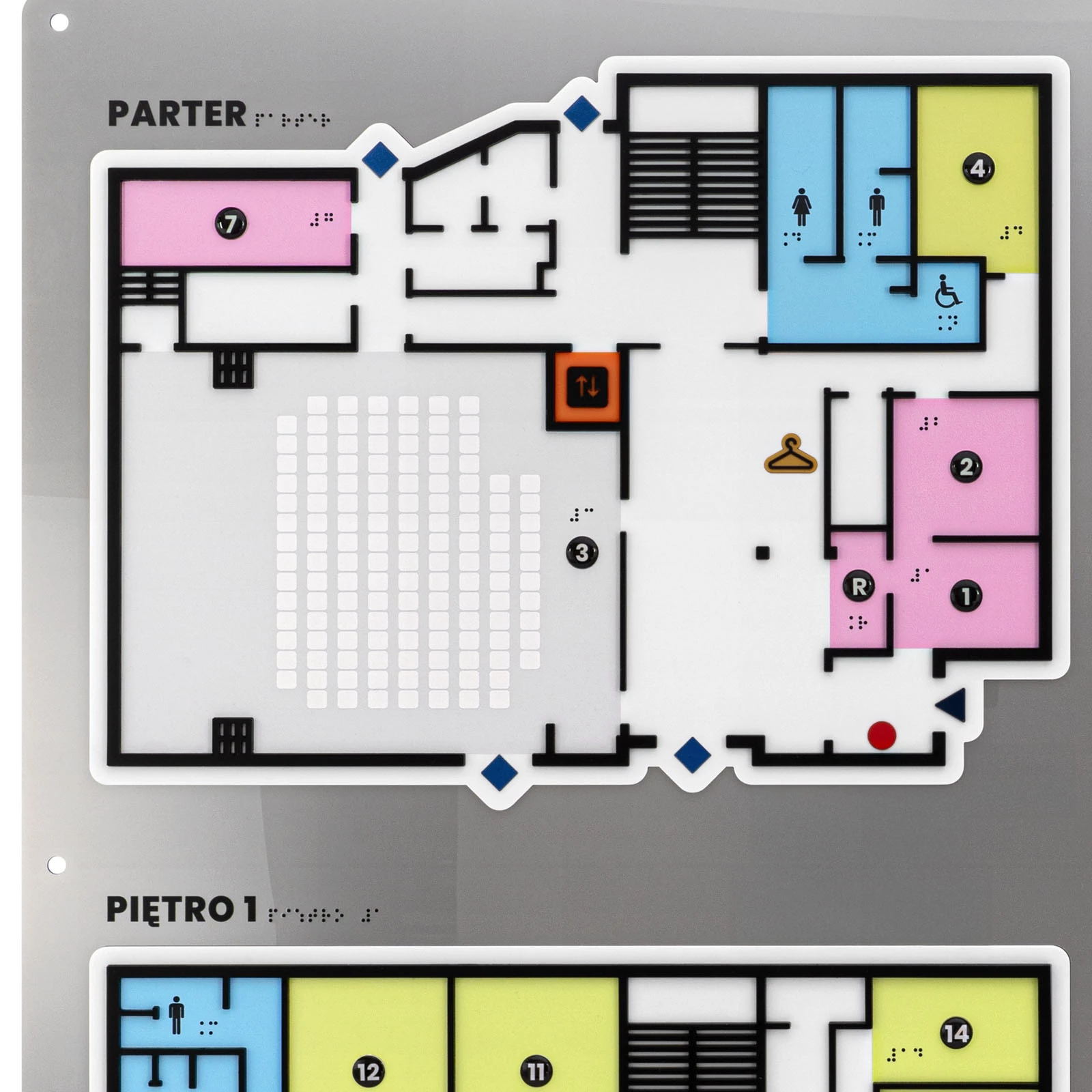

Braille plan with ADA material, 3D doming, laminate and acrylic - Dimension 750x785 mm - TAB695

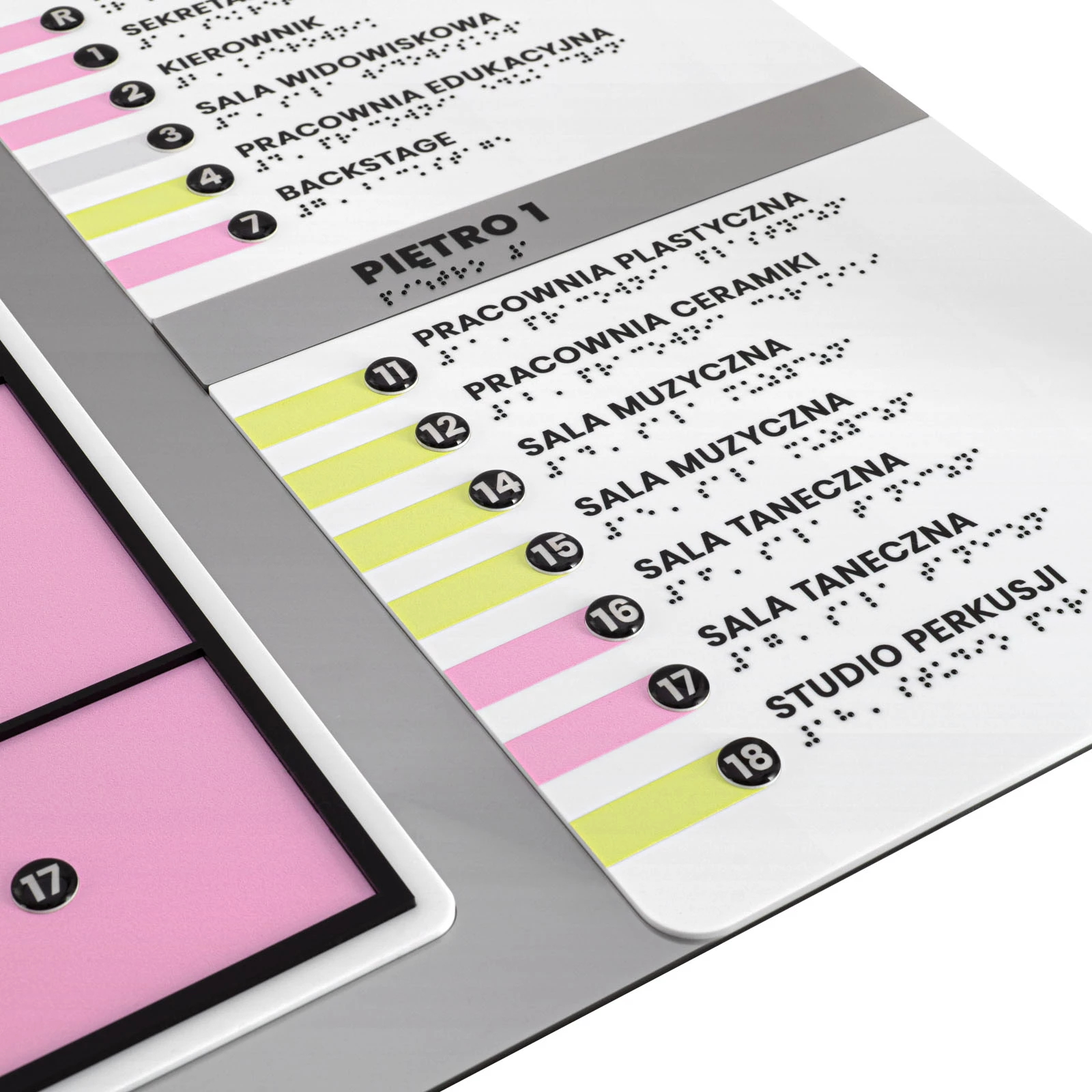

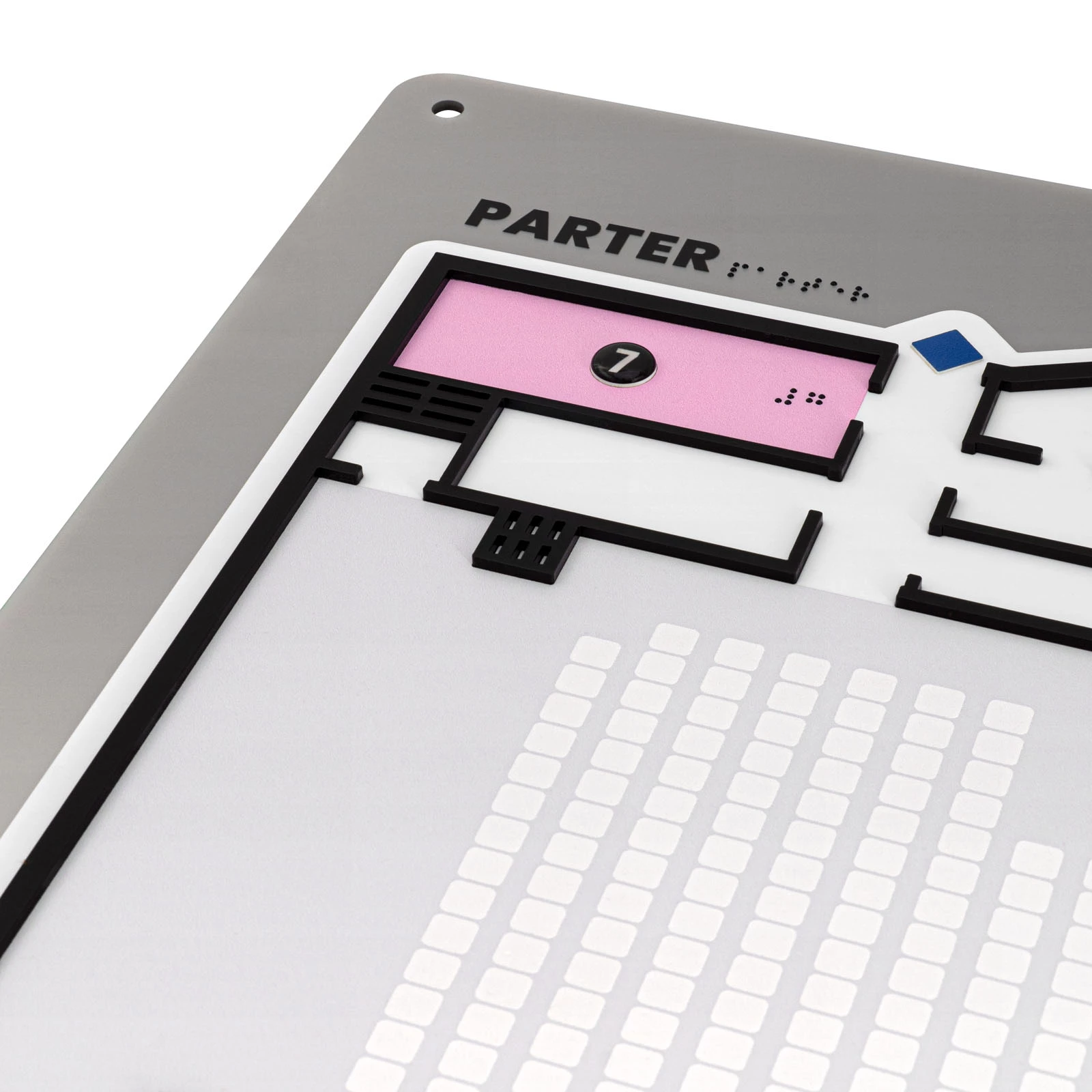

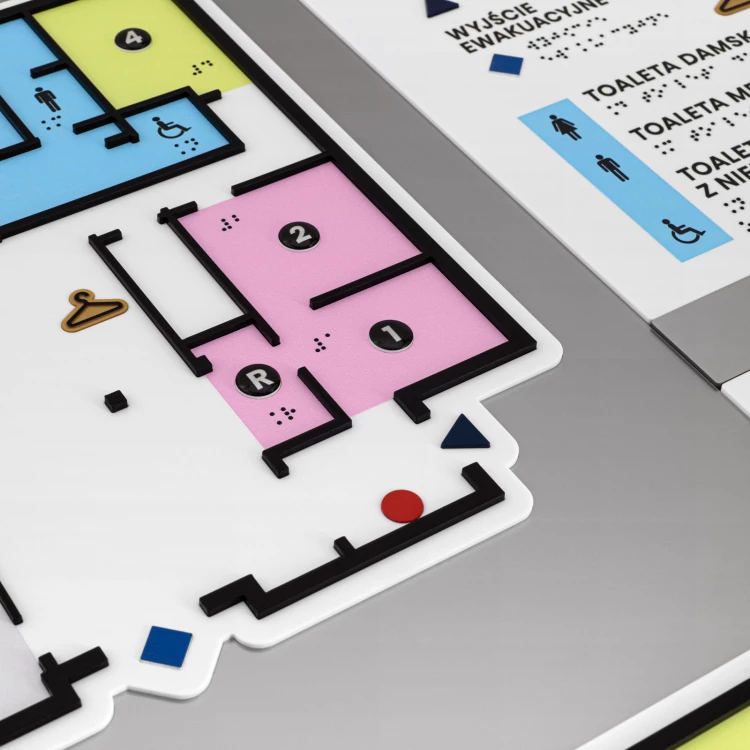

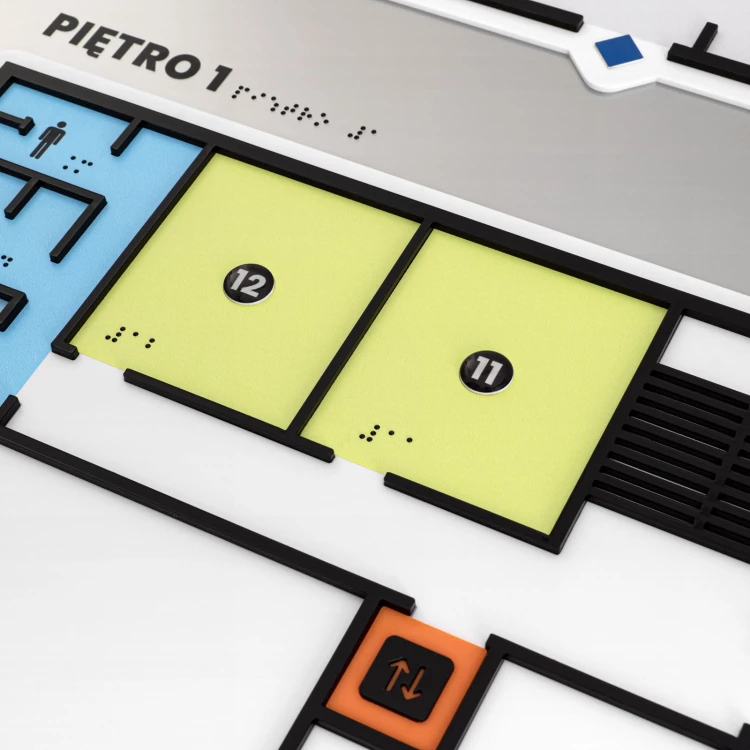

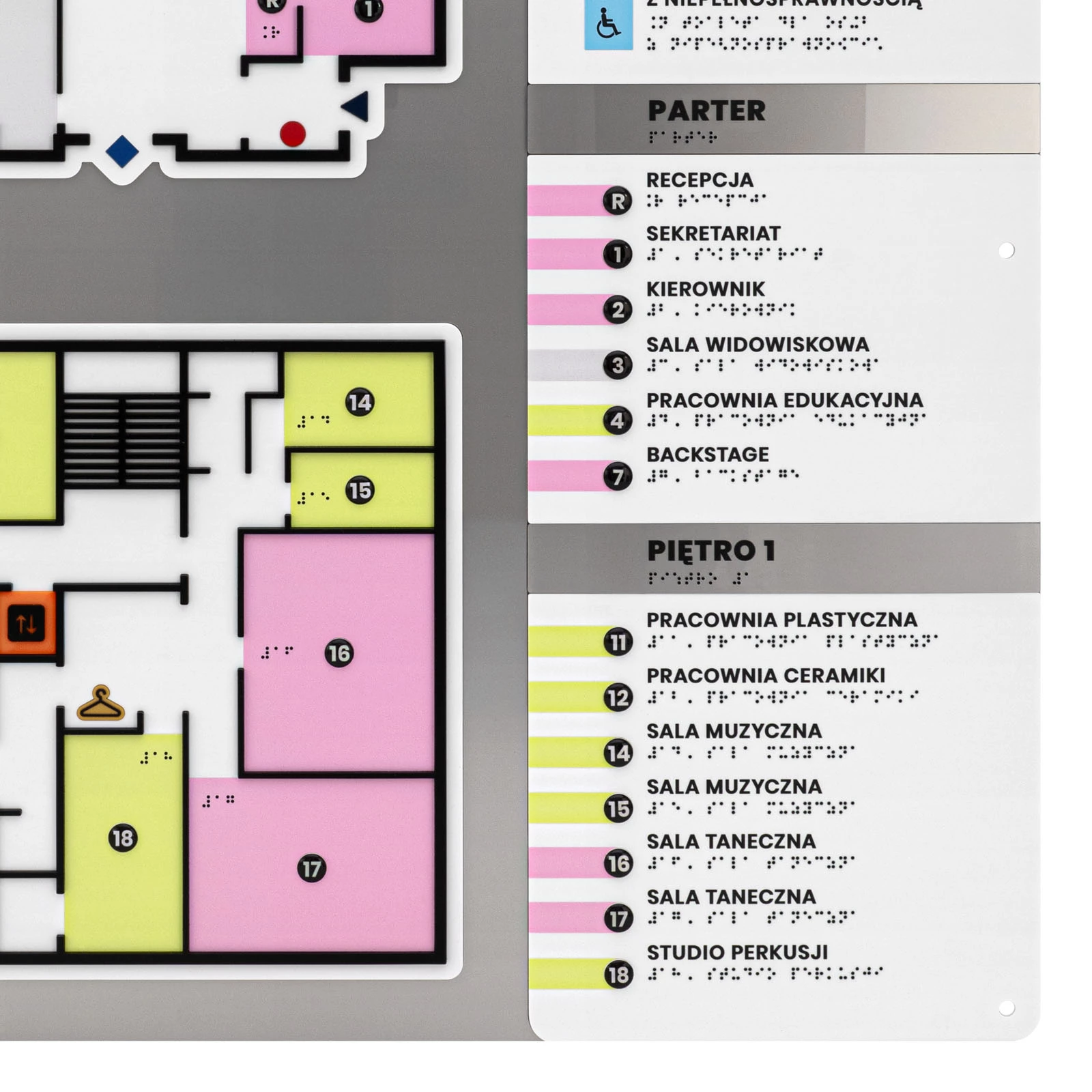

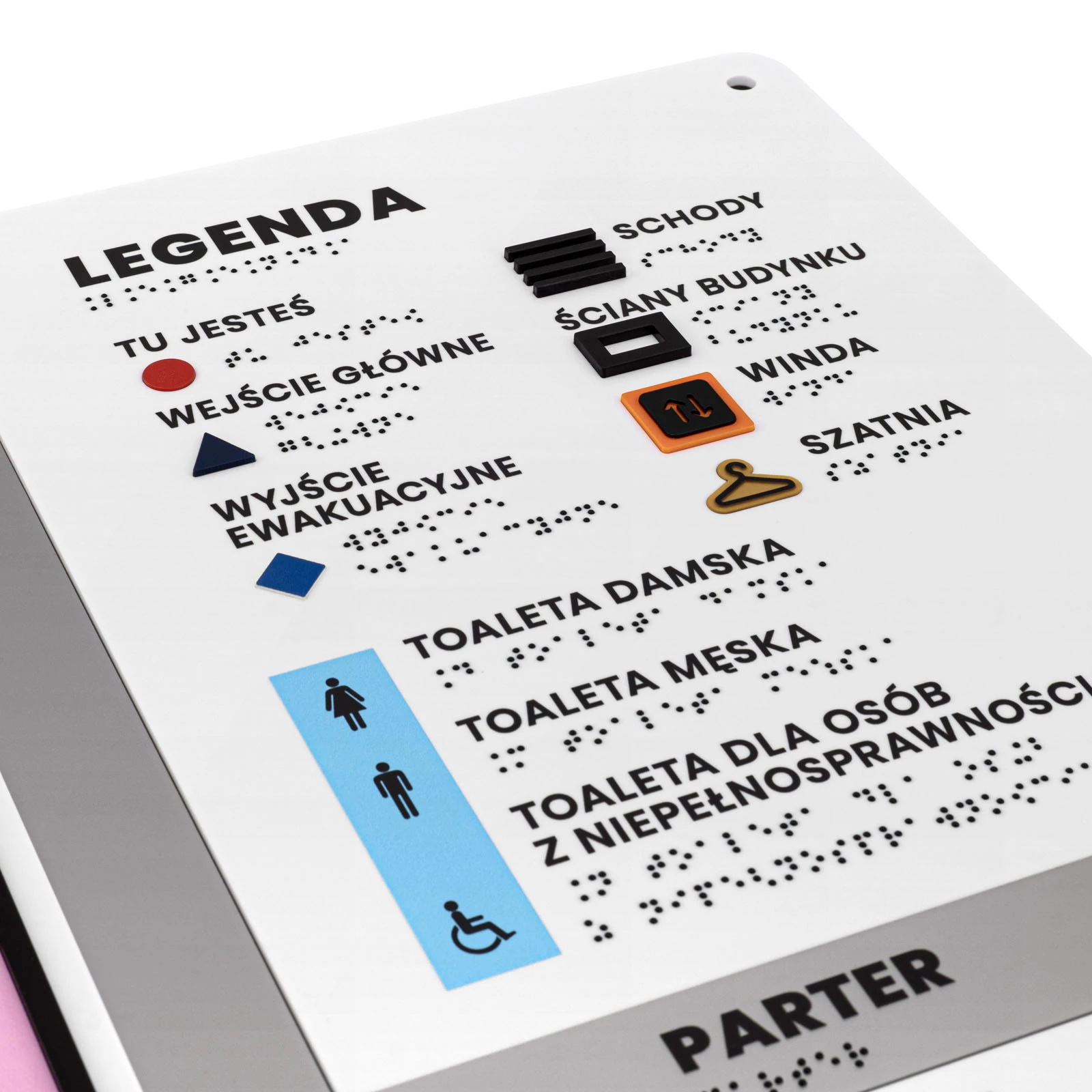

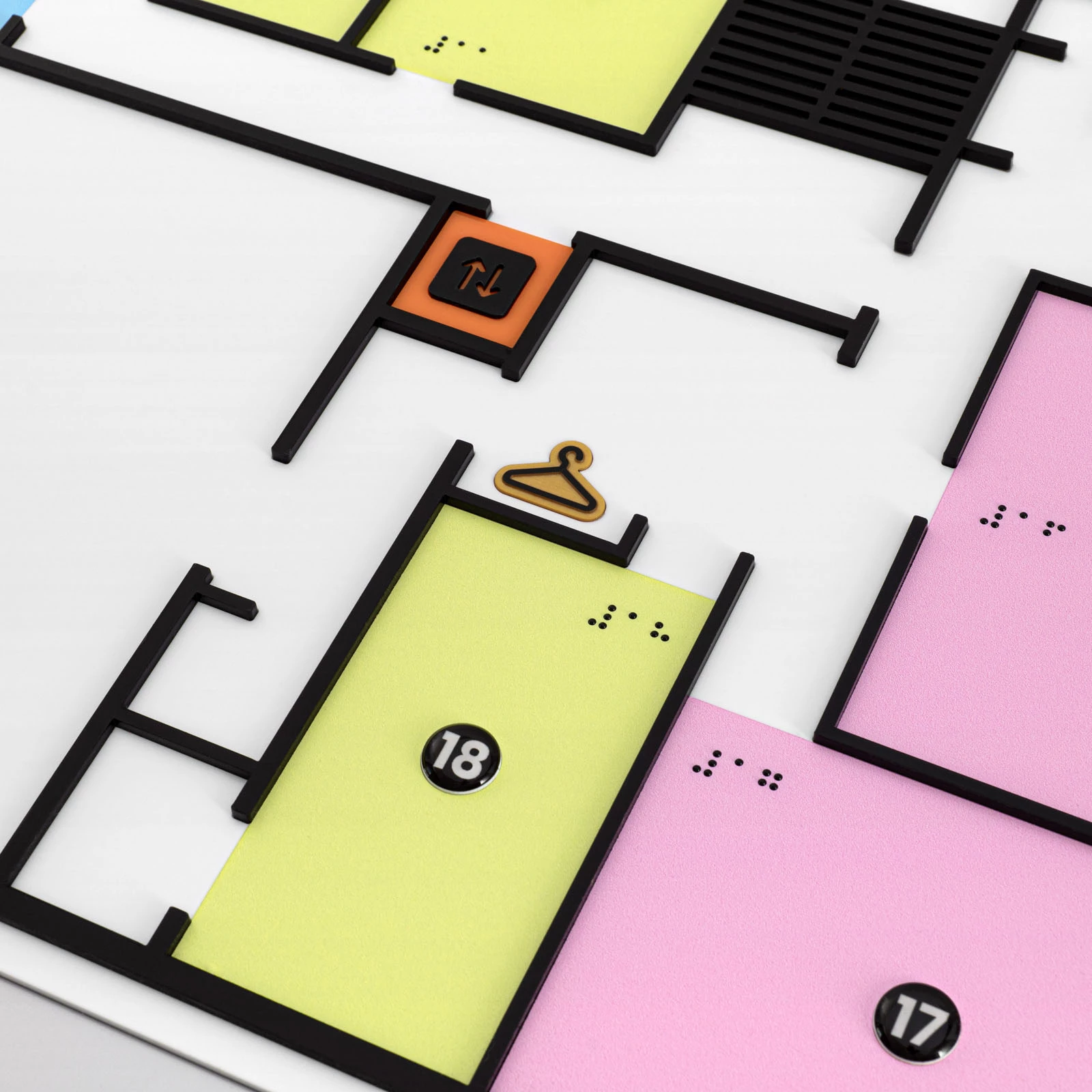

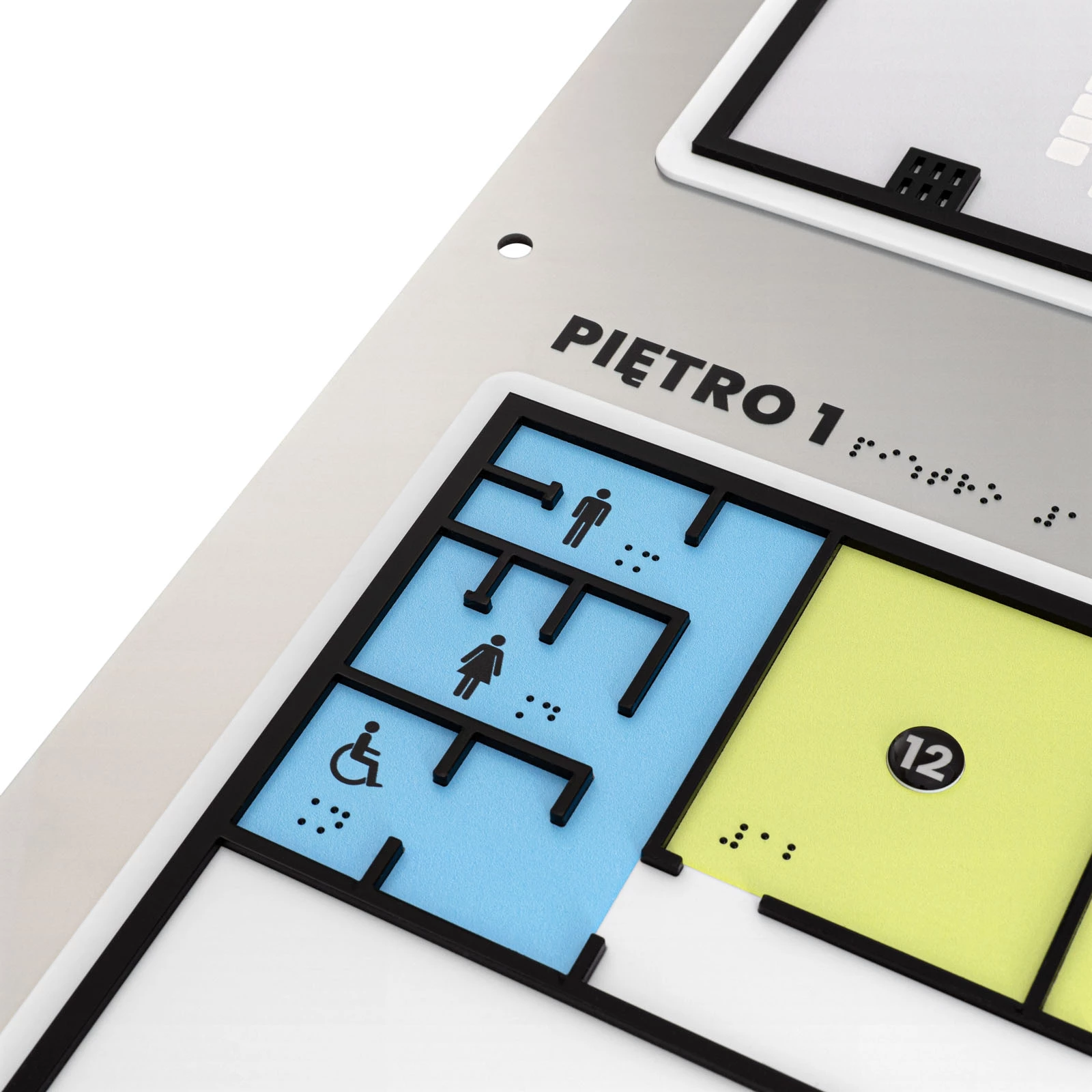

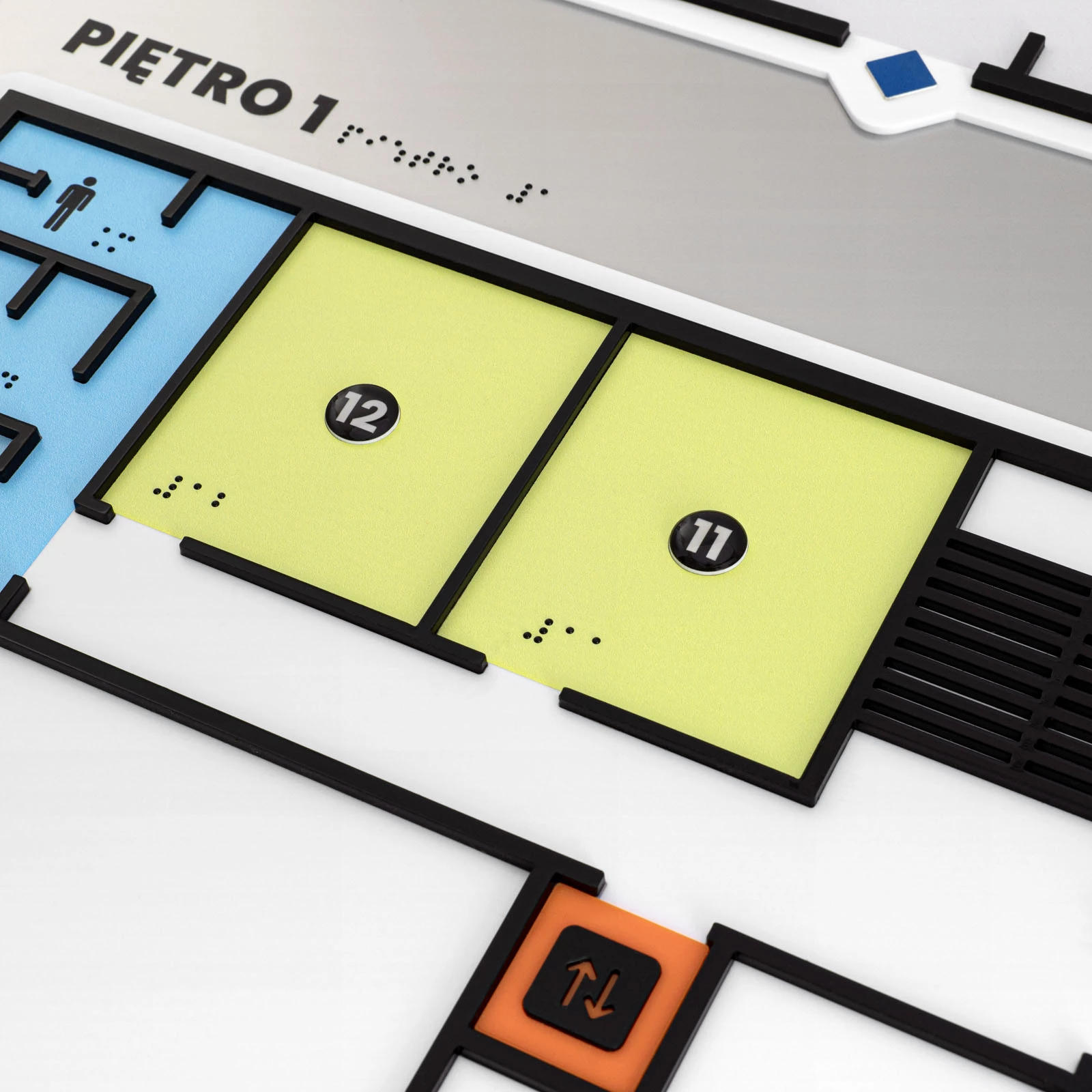

A tylographic plan with Braille writing is a comprehensive solution that makes orientation in space easier for blind and partially sighted people. Our team of specialists takes care of every detail, creating aesthetically pleasing and functional tylographic plans that are tailored to individual customer requirements. The base of our plan is 3 mm thick ADA plastic in white. Above this is 3 mm acrylic in pearl silver. We produce a permanent UV print on the plan, which retains its clarity and colour intensity thanks to precise printing technology. The elements visible on the plan are made of engraving laminate, ADA plastic and acrylic. The plan was described in detail using Braille. The colours used in the design are contrasting, which improves legibility for the visually impaired. The braille characters can be clearly felt under the fingertip, thanks to the use of professional licensed CNC-inserted braille balls. In accordance with PZN recommendations, they are positioned at a height of 0.5 mm and have a base width of 1.5 mm. The whole is designed to be self-assembled.





Dimensions:

- width: 750 mm

- height: 785 mm

- thickness of base: 3 mm
