Typhlographic Plan with Braille Script and Interchangeable Element - size: 1000x650mm - TAB519

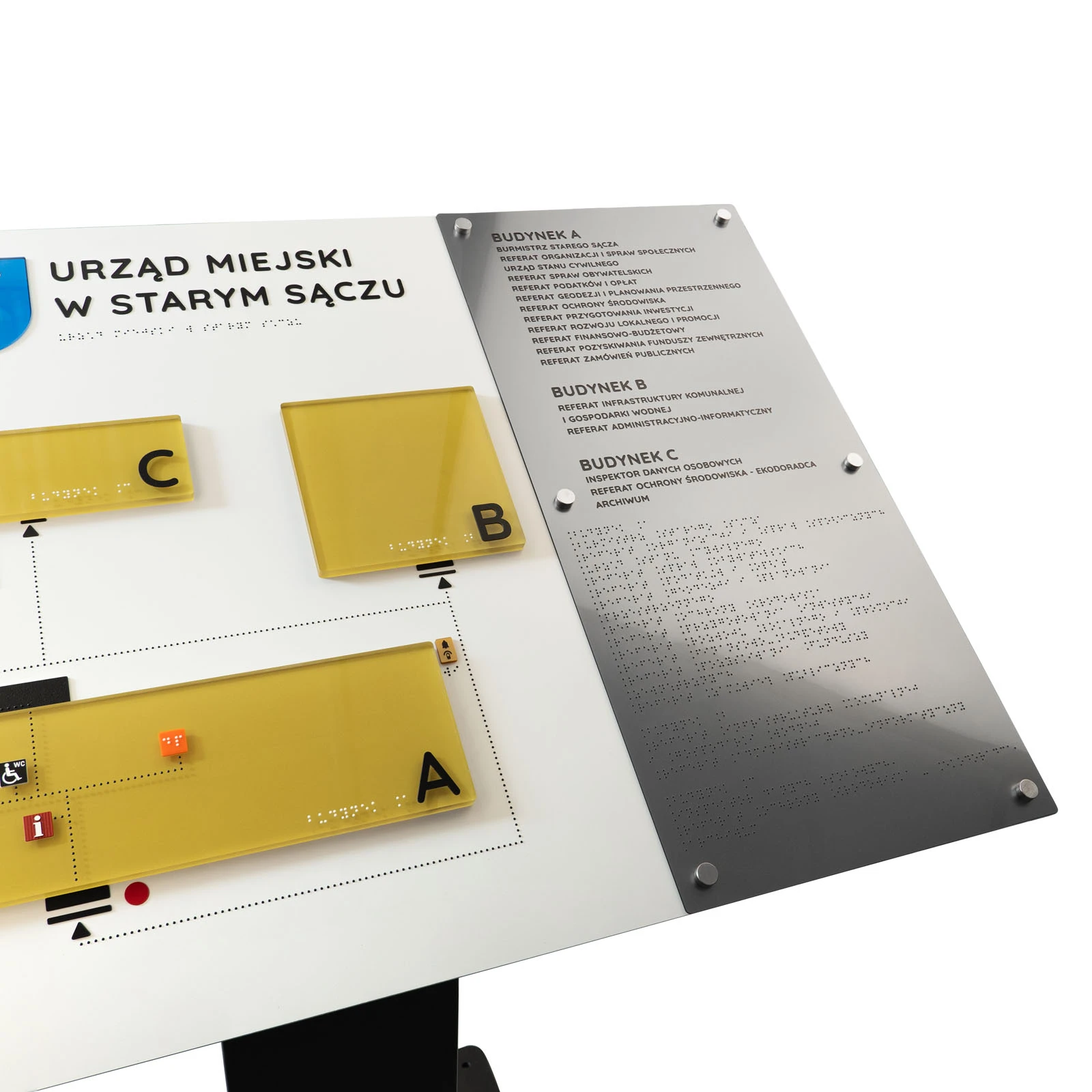

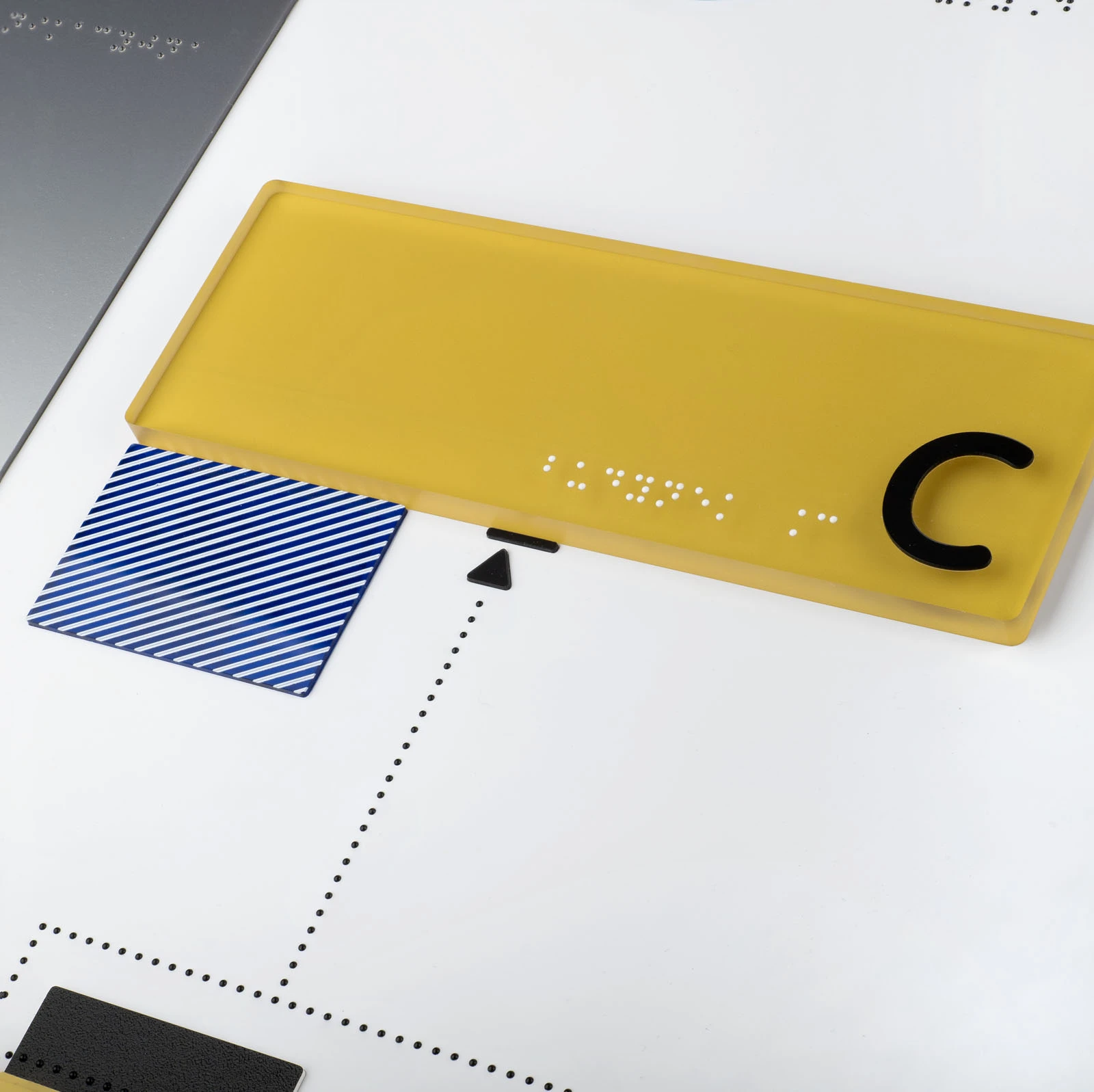

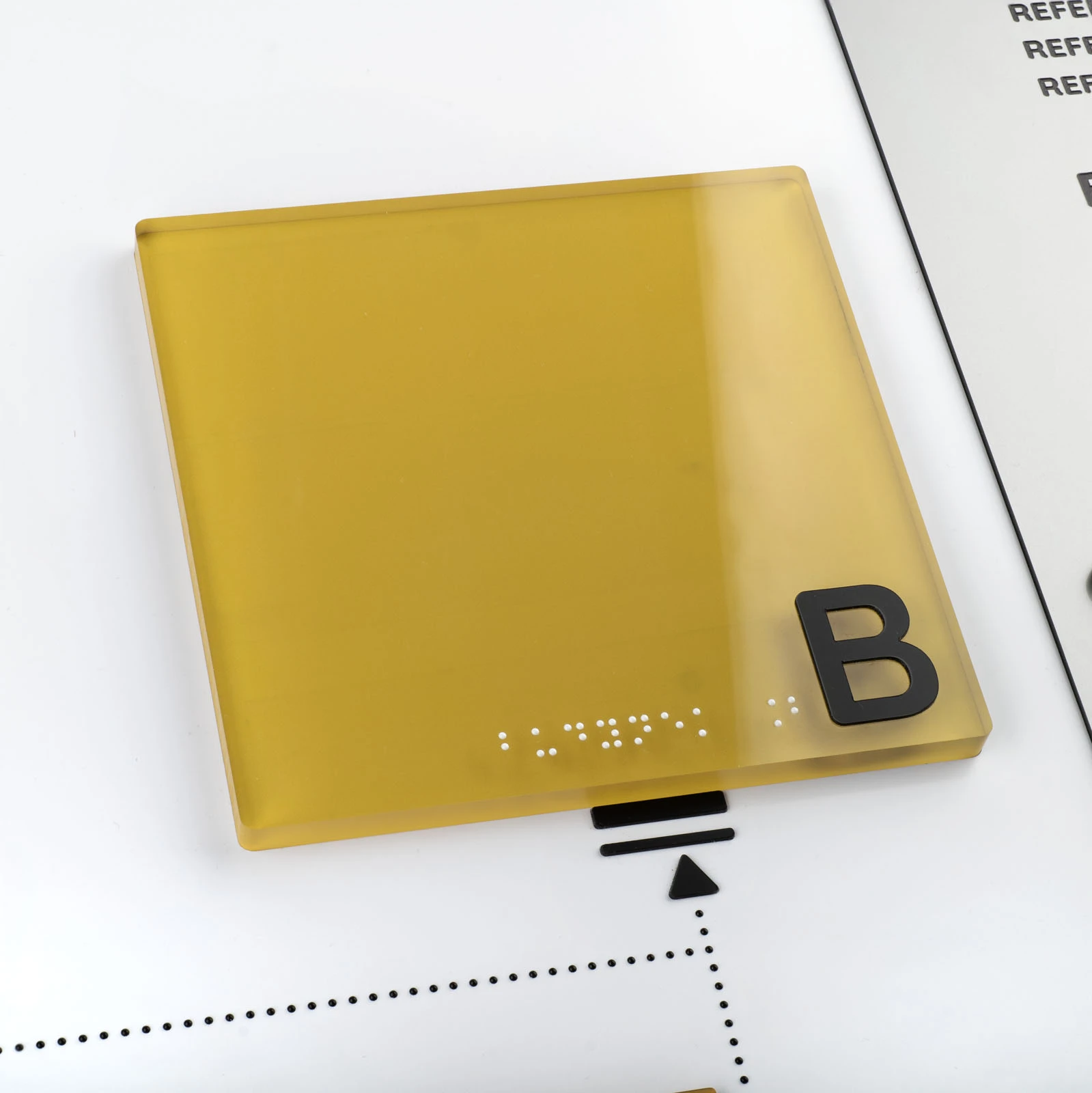

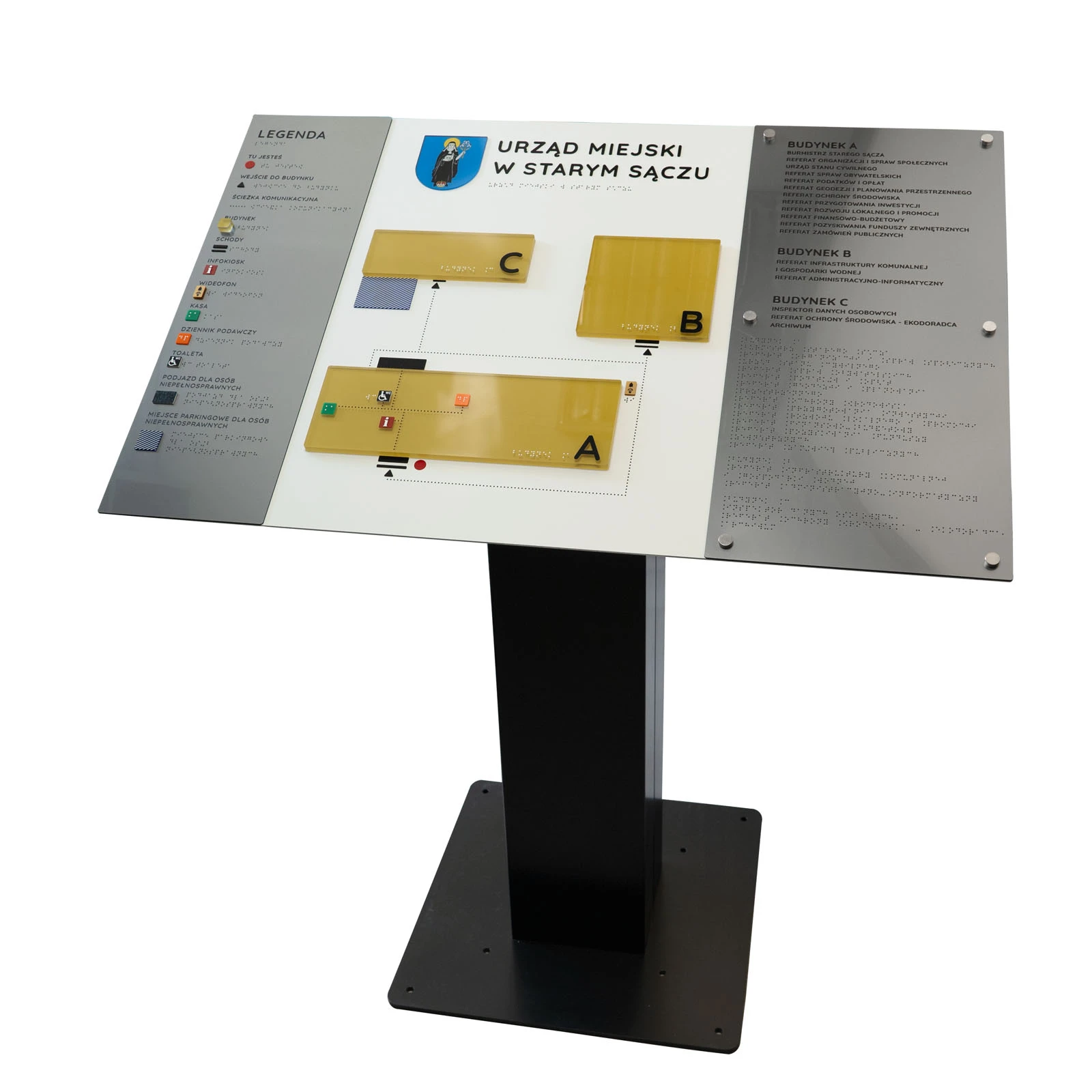

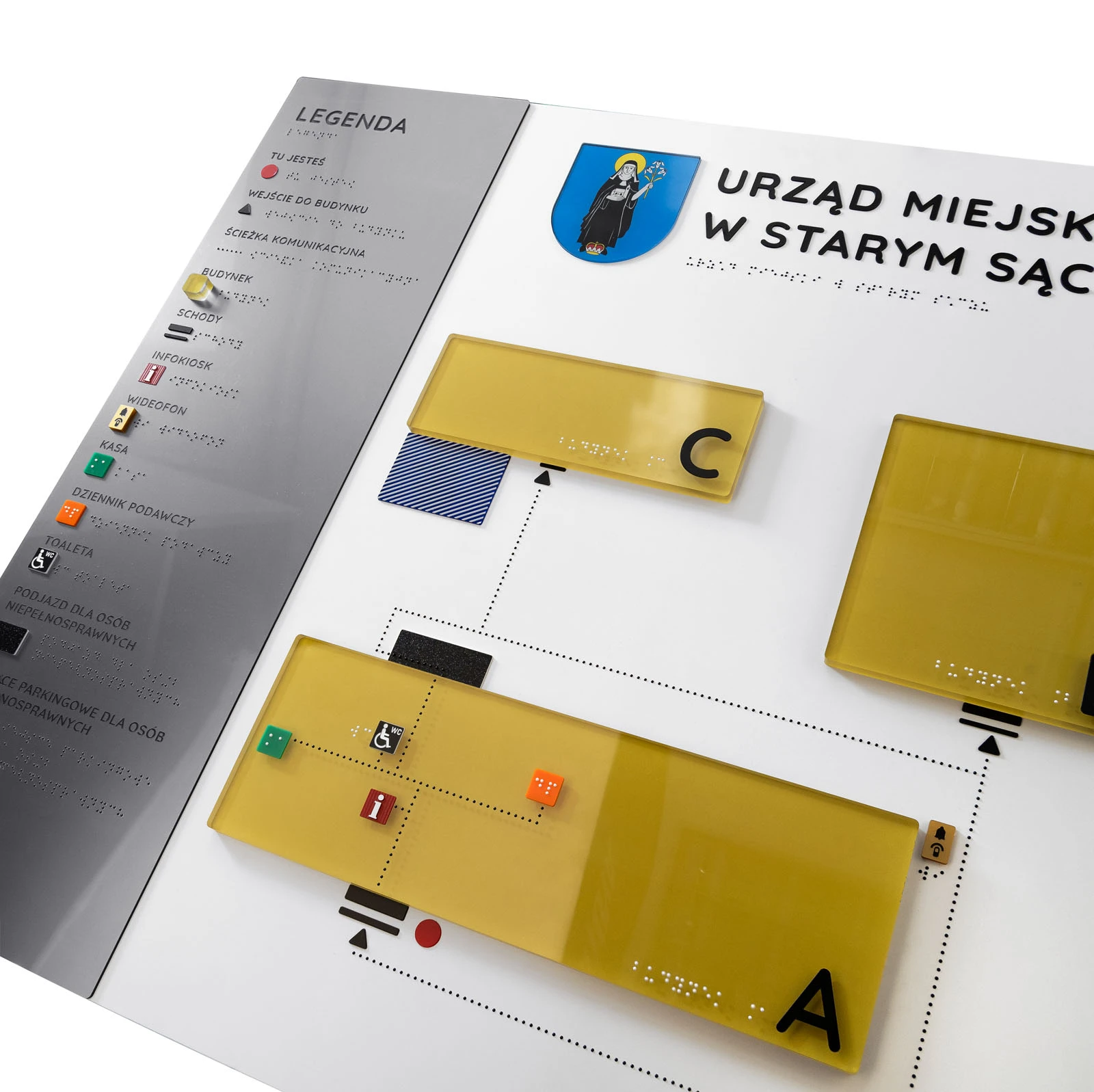

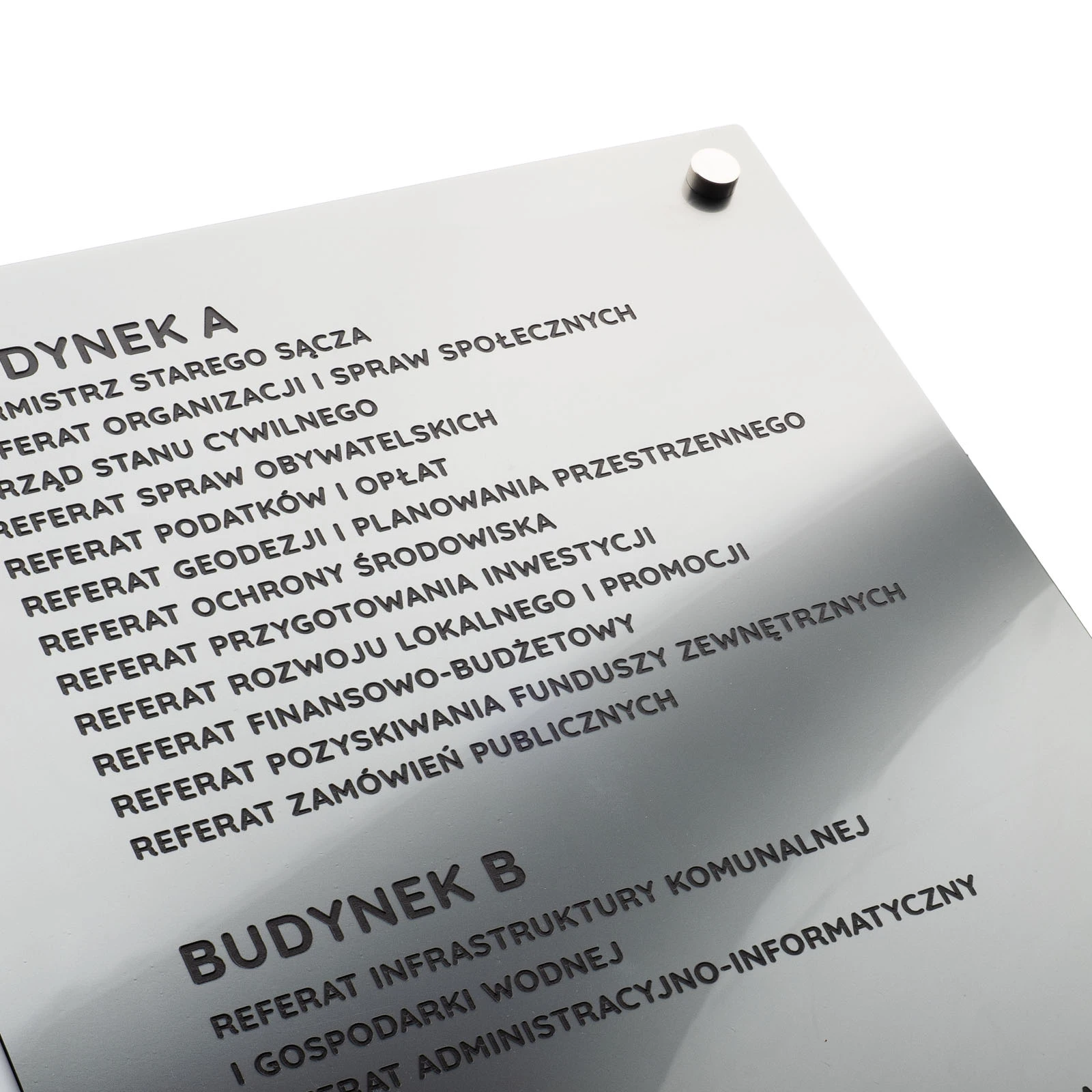

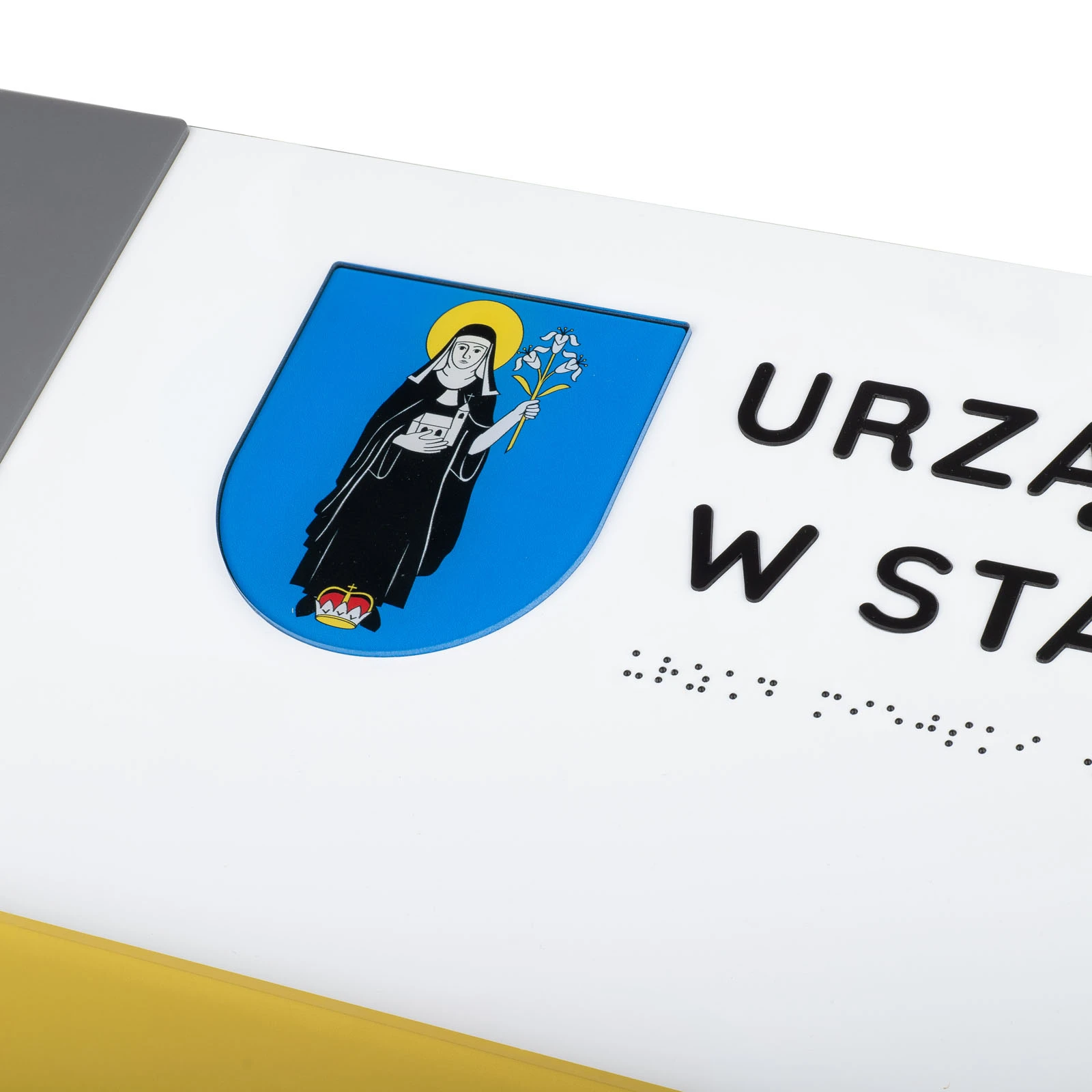

Large tiflographic board made of hard PVC plastic. Tiflographic plans are especially useful for blind people to quickly orient themselves in an unfamiliar space. The presented board shows a plan of the municipal office, including buildings and facilities for the disabled. Two boards of silver laminate are mounted on a PVC base - the right, descriptive board can be replaced if the designation of the premises changes. The left one carries the legend and the markings are made of colored acrylic, ADA plastic, engraving laminate and textures laminate. The main buildings are made of 1cm high UV-printed polycarbonate. The circulation paths are marked with Braille balls. Each element on the board is described in Braille. Braille signs can be clearly felt under the fingertip thanks to the use of professional licensed braille balls hammered using CNC technology. In accordance with PZN recommendations, they are placed at a height of 0.5mm and have a base width of 1.5mm. The plaque is mounted on a steel pedestal in white or black, which is included in the product.



Before implementation, we prepare a design (PDF file) and send it for approval to the indicated e-mail address. At the design stage, you can contact the graphic designer at any time. After accepting the project we proceed to production.



Presented price is for making the board visible in the gallery. You are welcome to contact our sales department by e-mail or phone in order to receive a detailed quote.



dimensions: 1000x650mm

materials:

- board base: PVC hard 3mm with white overprint

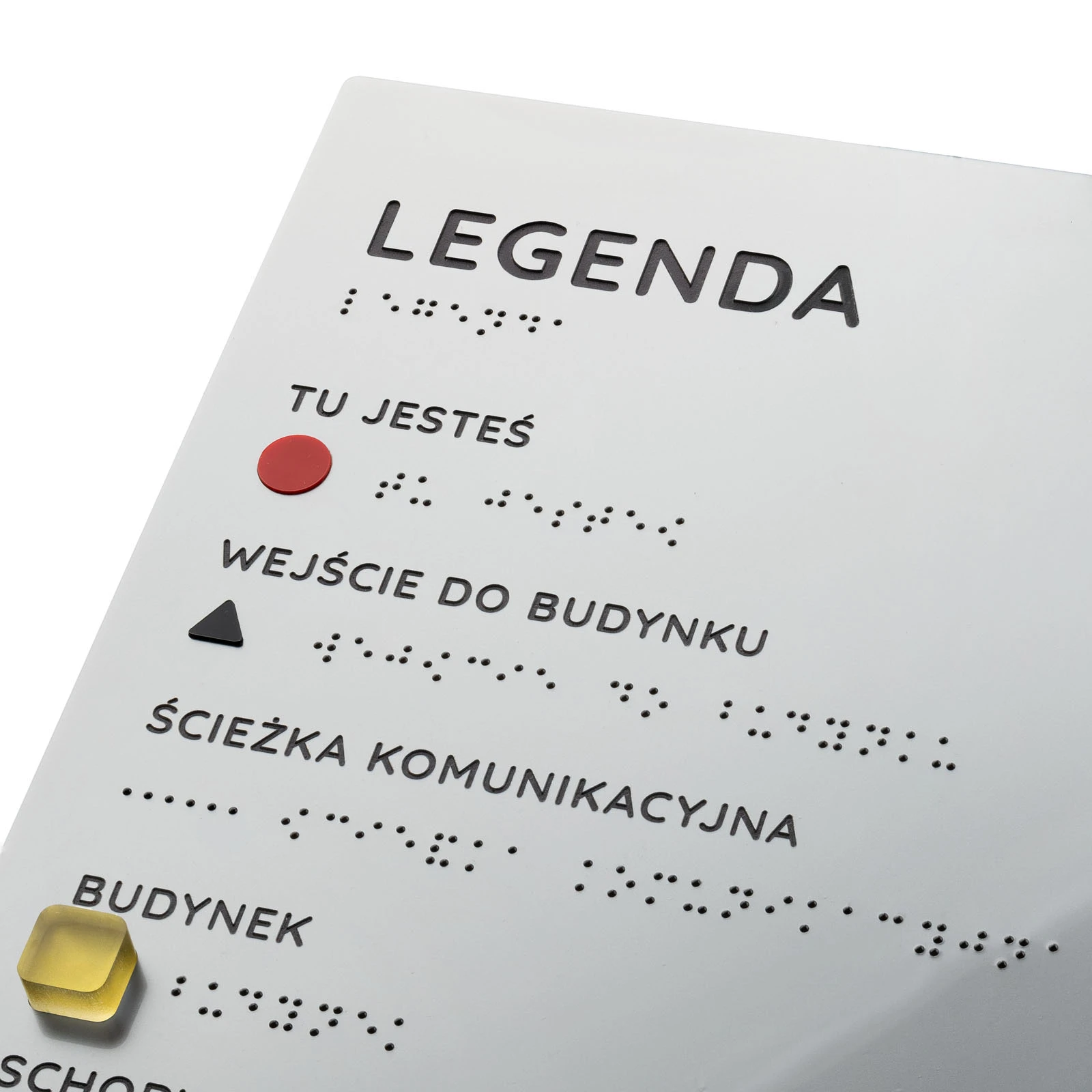

- legend silver acrylic 3mm with engraving and filling with UV paints

- landmark "here you are" - red ADA plastic 1mm recessed 0.2mm deep

- main buildings - polycarbonate 1cm with UV printing

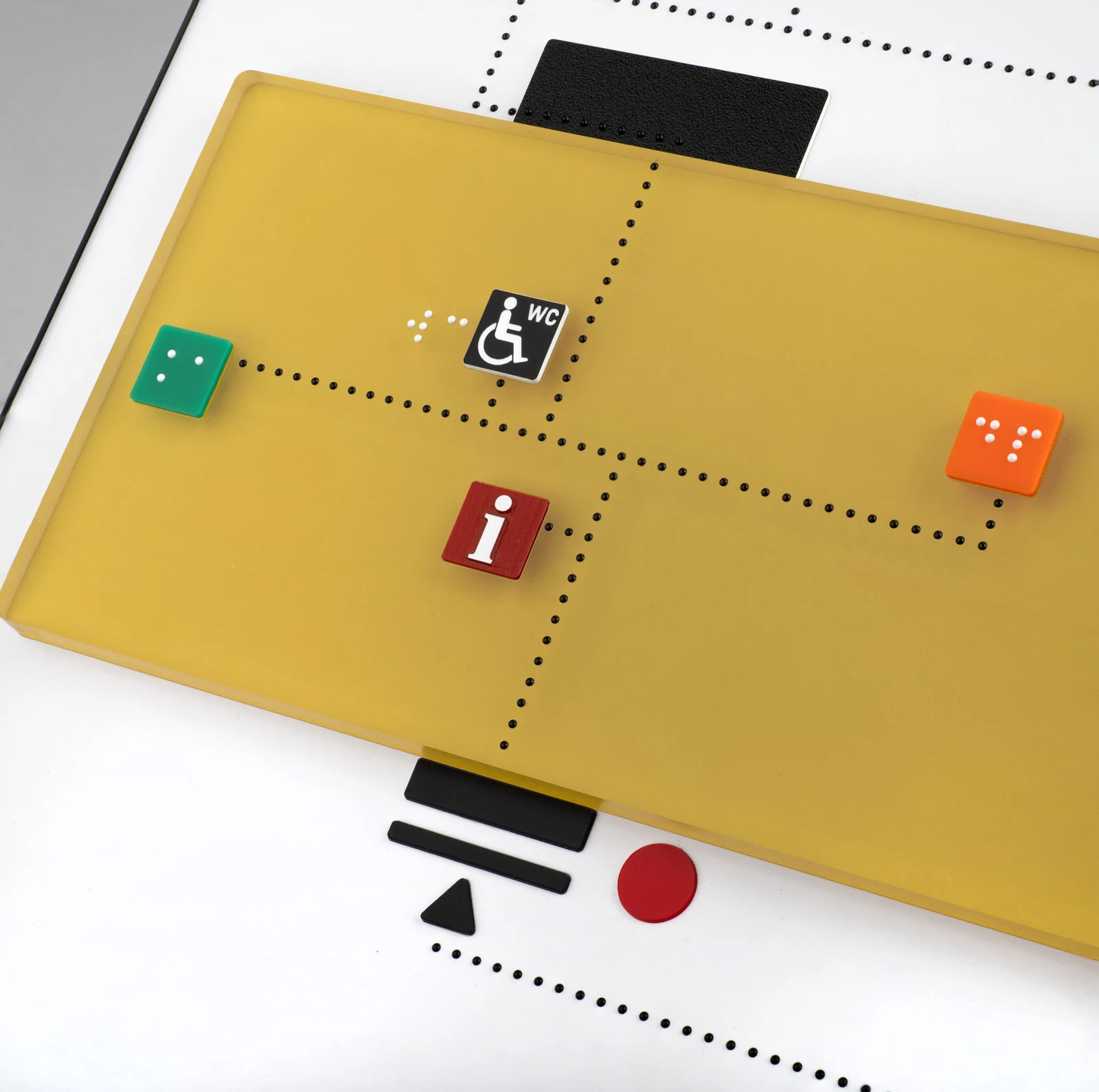

- cash register, infeed log, videophone - acrylic green, orange, gold 3mm

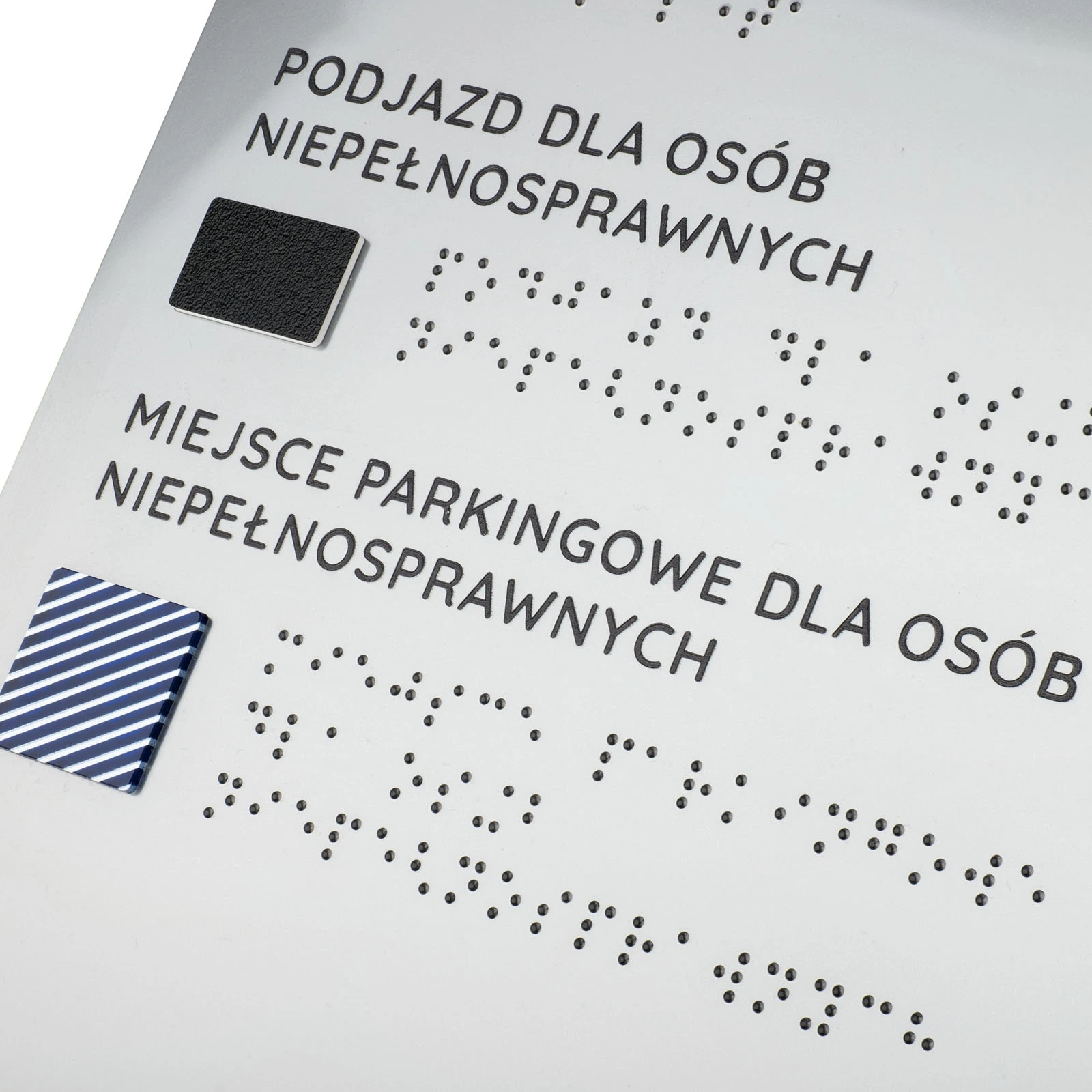

- ramp for the disabled - laminate textures 1.6mm

- parking space for the disabled - navy blue acrylic 3mm with milling

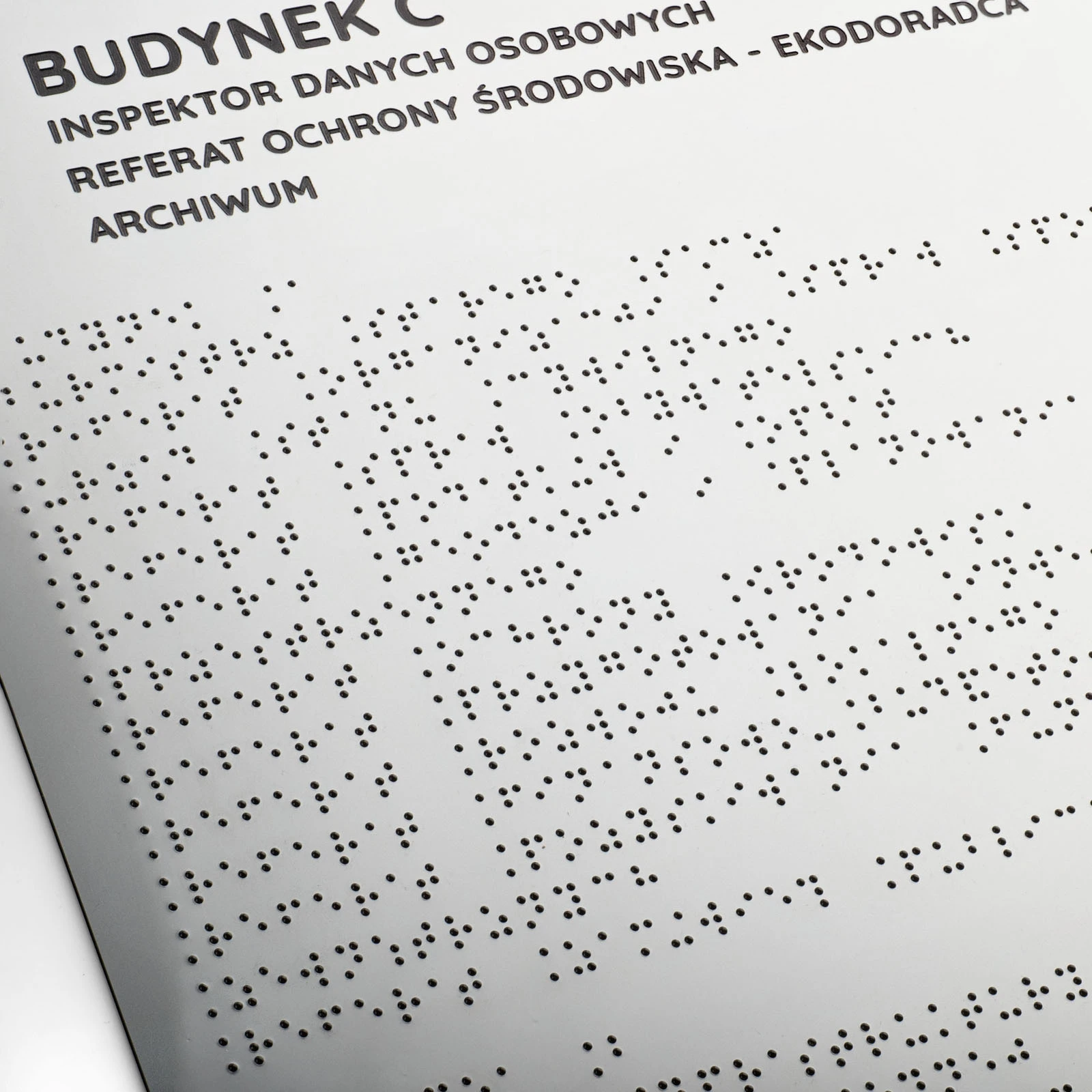

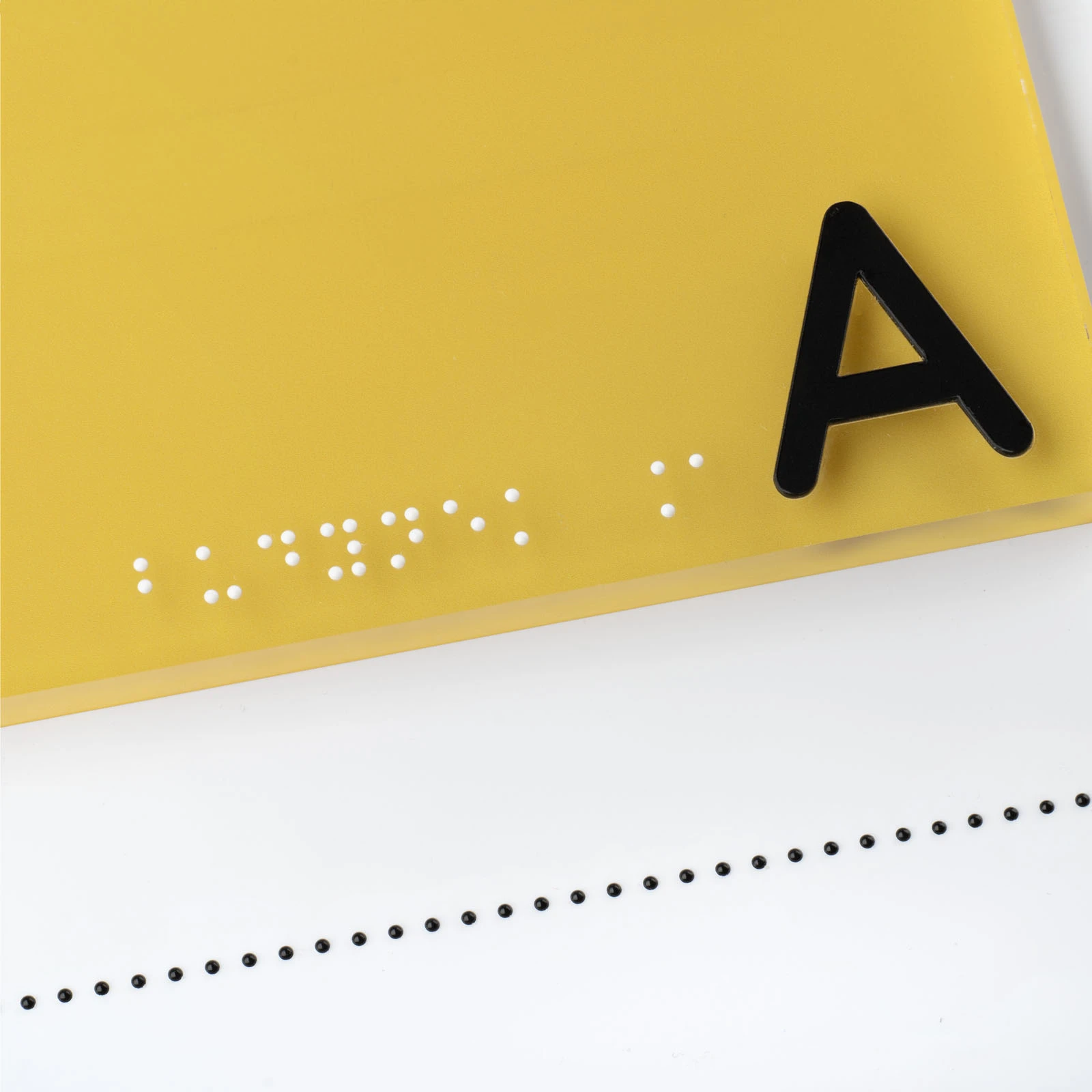

- white and black Braille balls scored with CNC technology

- 6 13mm steel spacers for replacement acrylic plaque



Lead time of the order from 7 to 14 working days counted from the moment of approval of the project, which we send in the form of a pdf file.



GALLERY SHOWS SELECTED PHOTOS FROM ORDER REALIZATION



Boards are made on the basis of submitted evacuation plans in vector format (ai, eps, cdr, pdf files). On their basis we make an individual quote.



We will be happy to answer your questions by email or telephone
