Braille tile plan - ADA plastic, laminate and acrylic - Dimension 850x650mm - TAB589

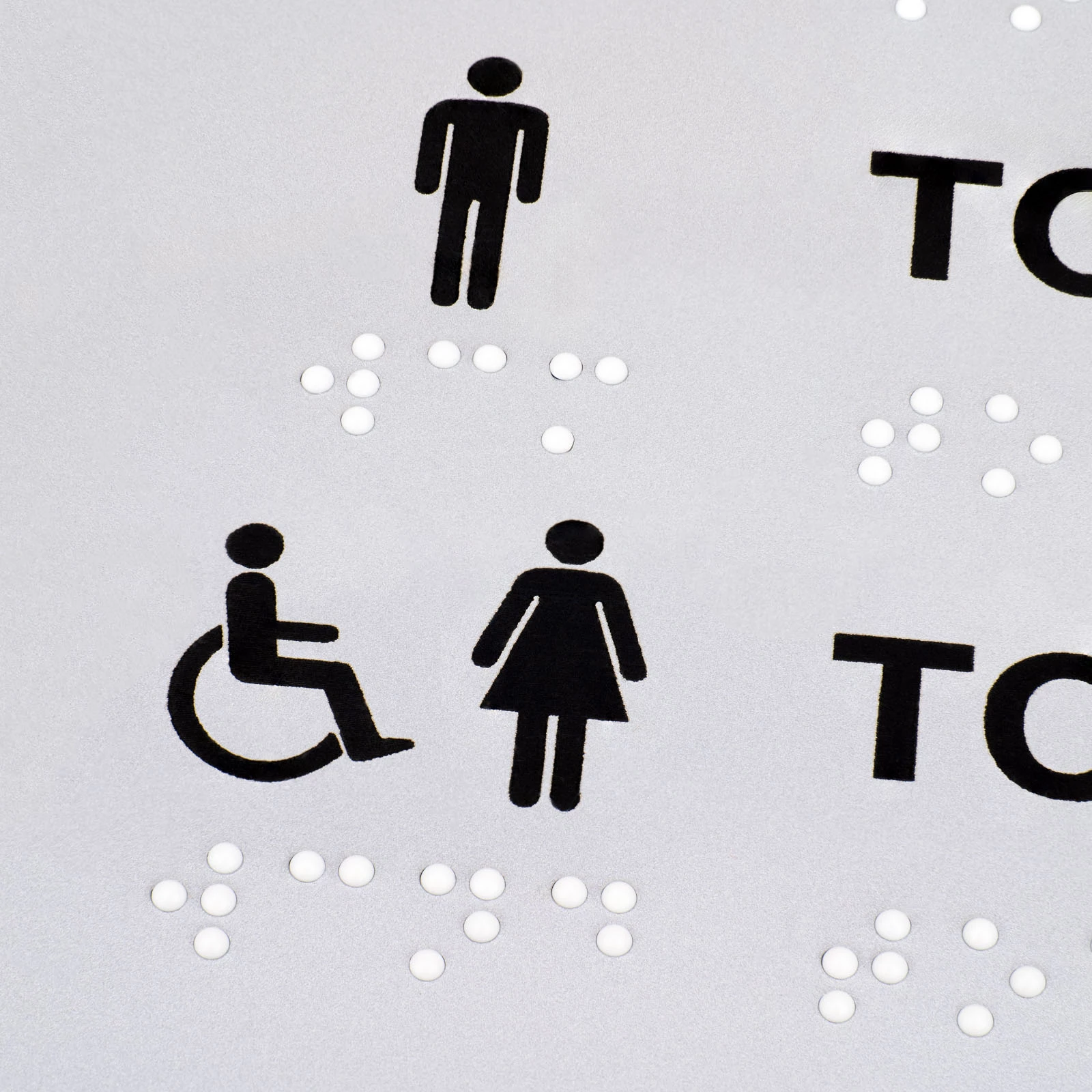

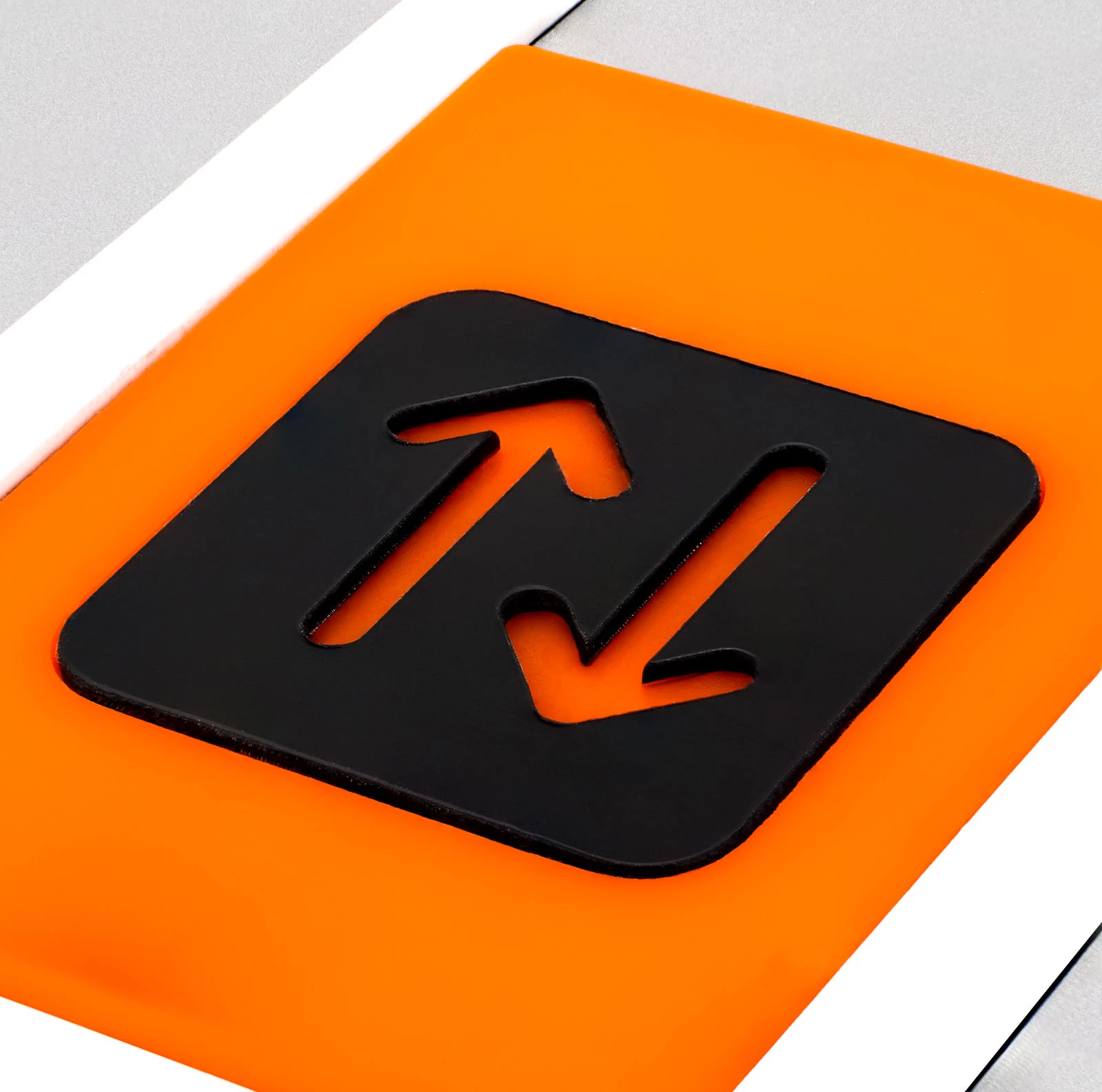

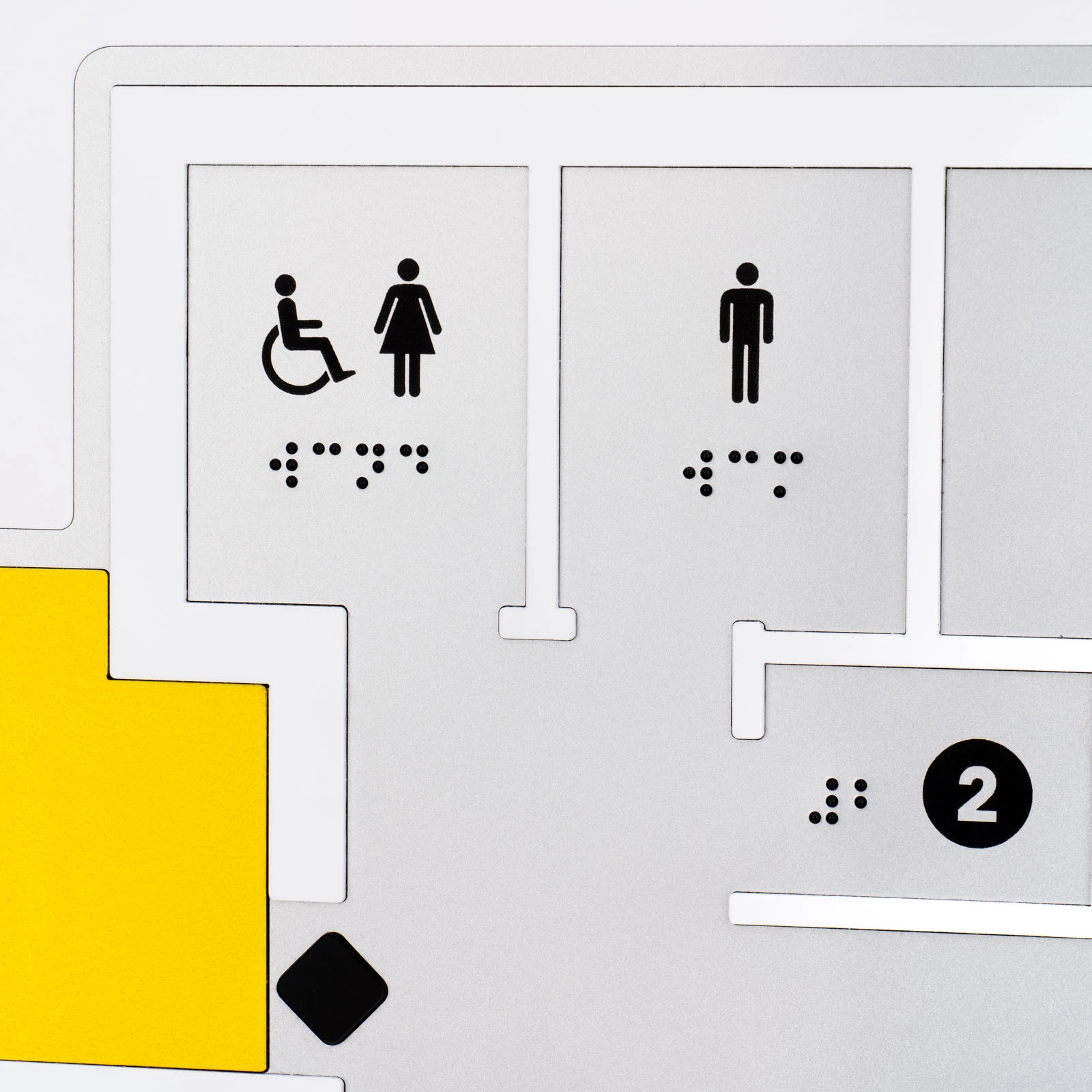

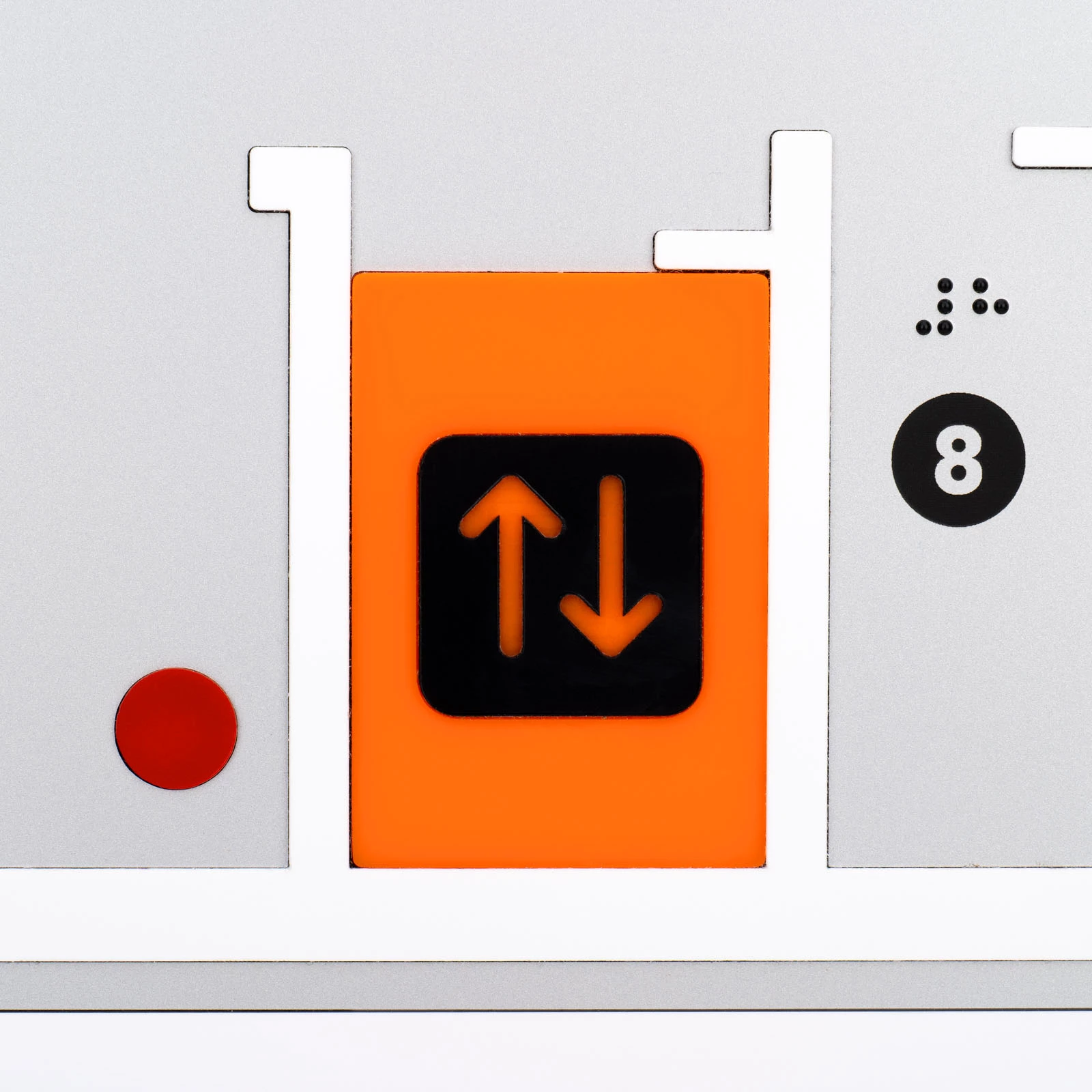

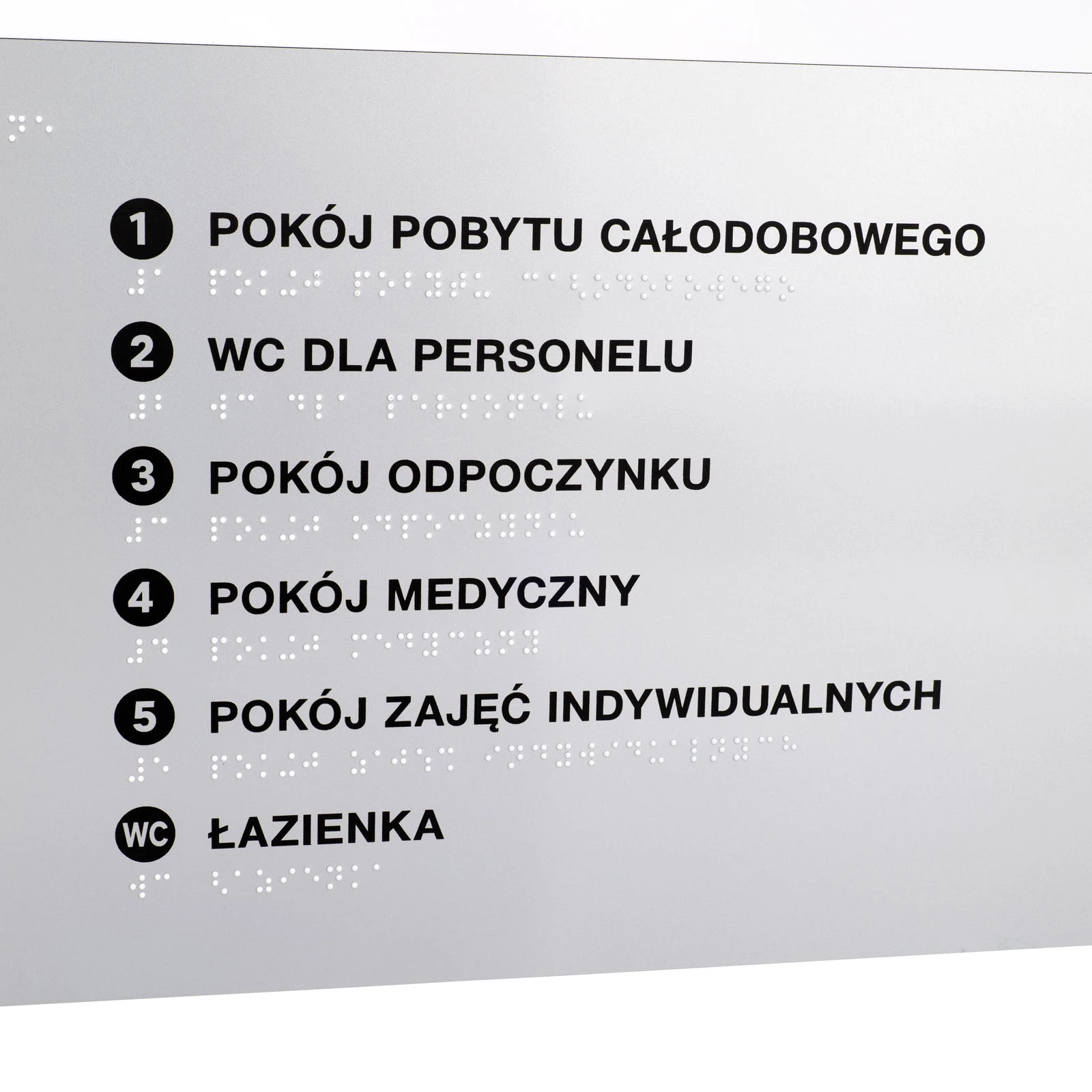

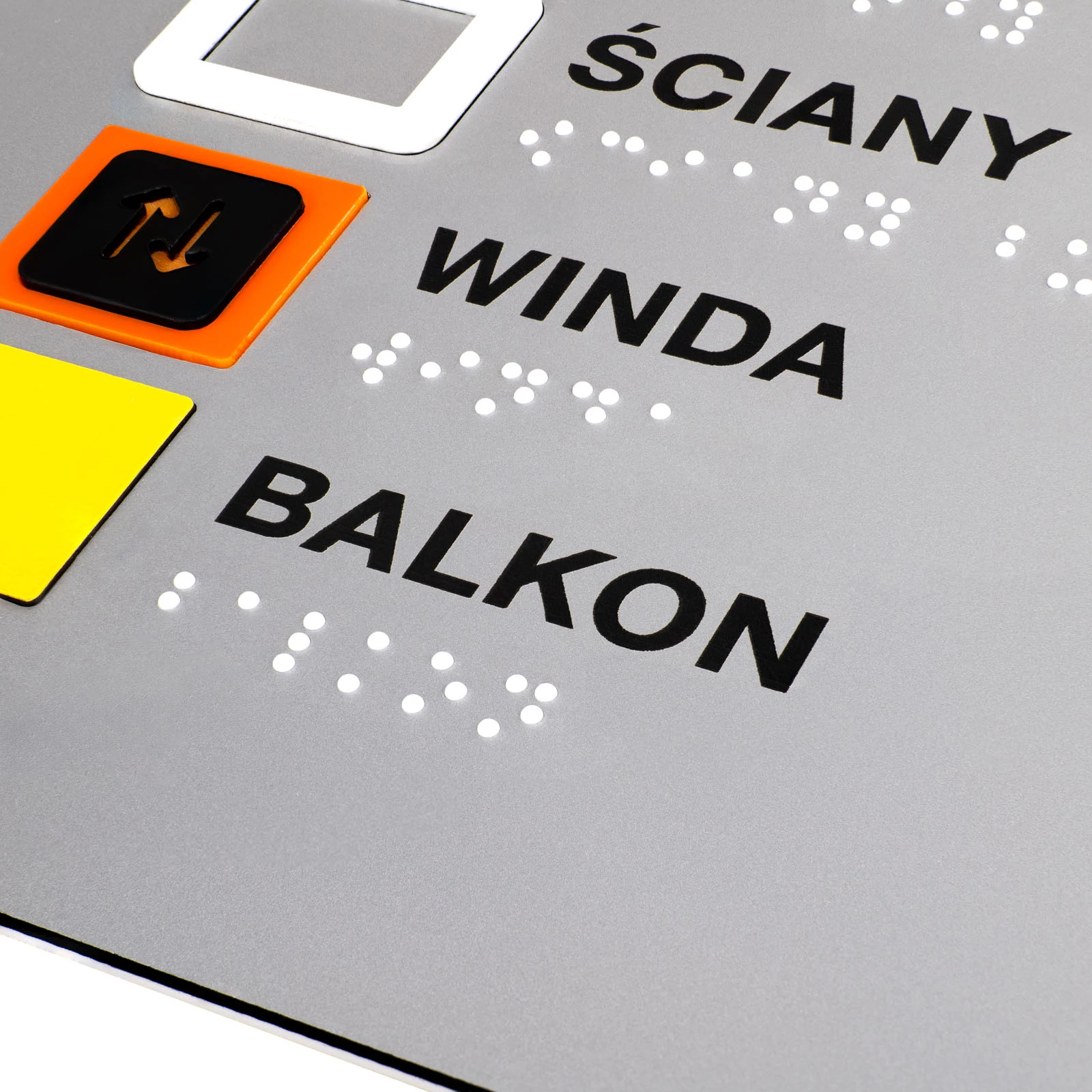

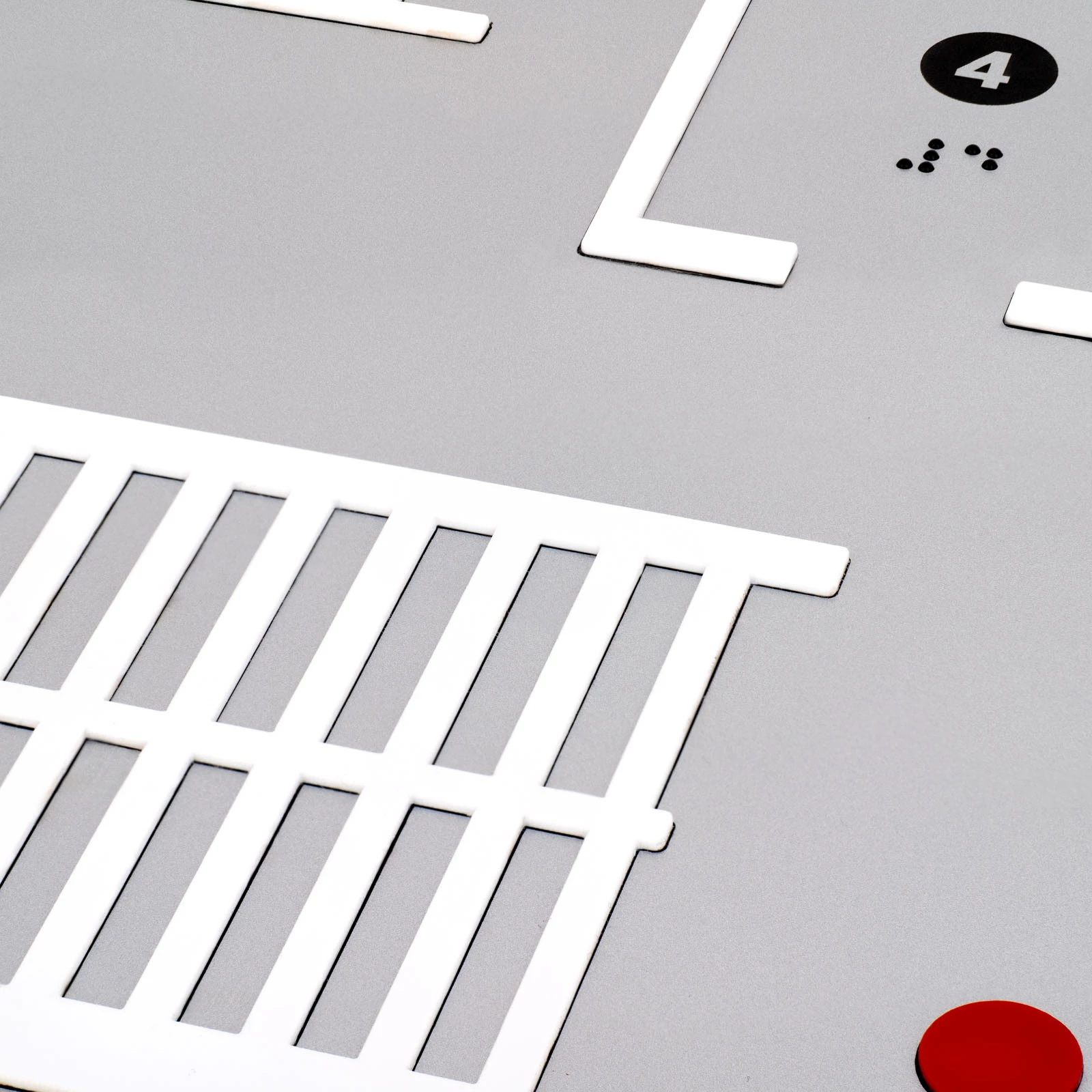

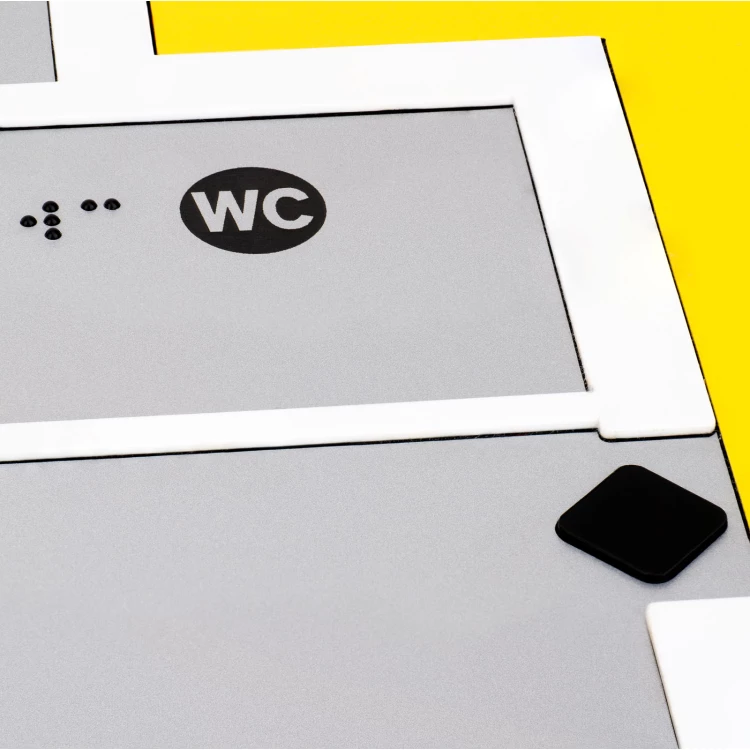

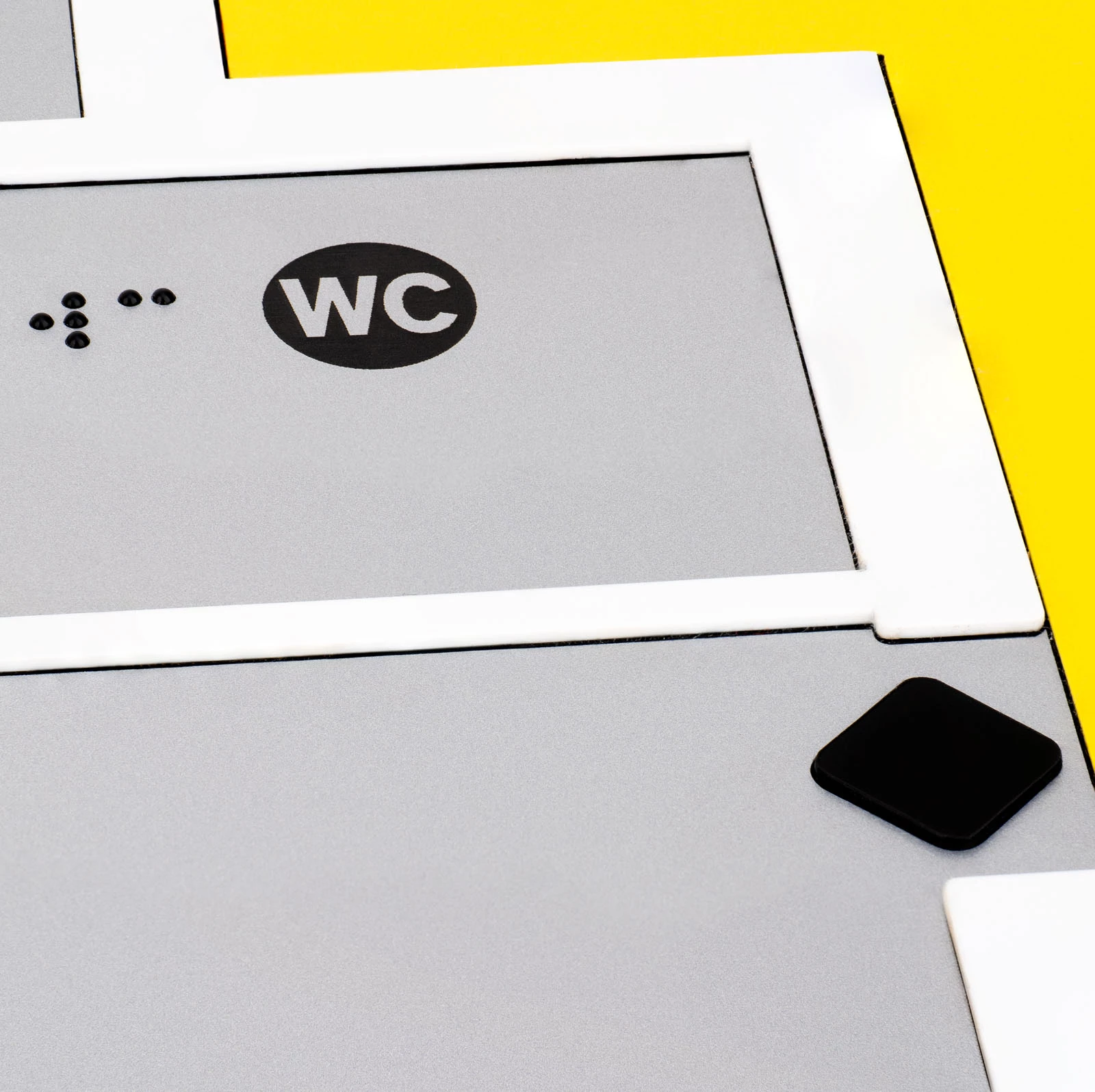

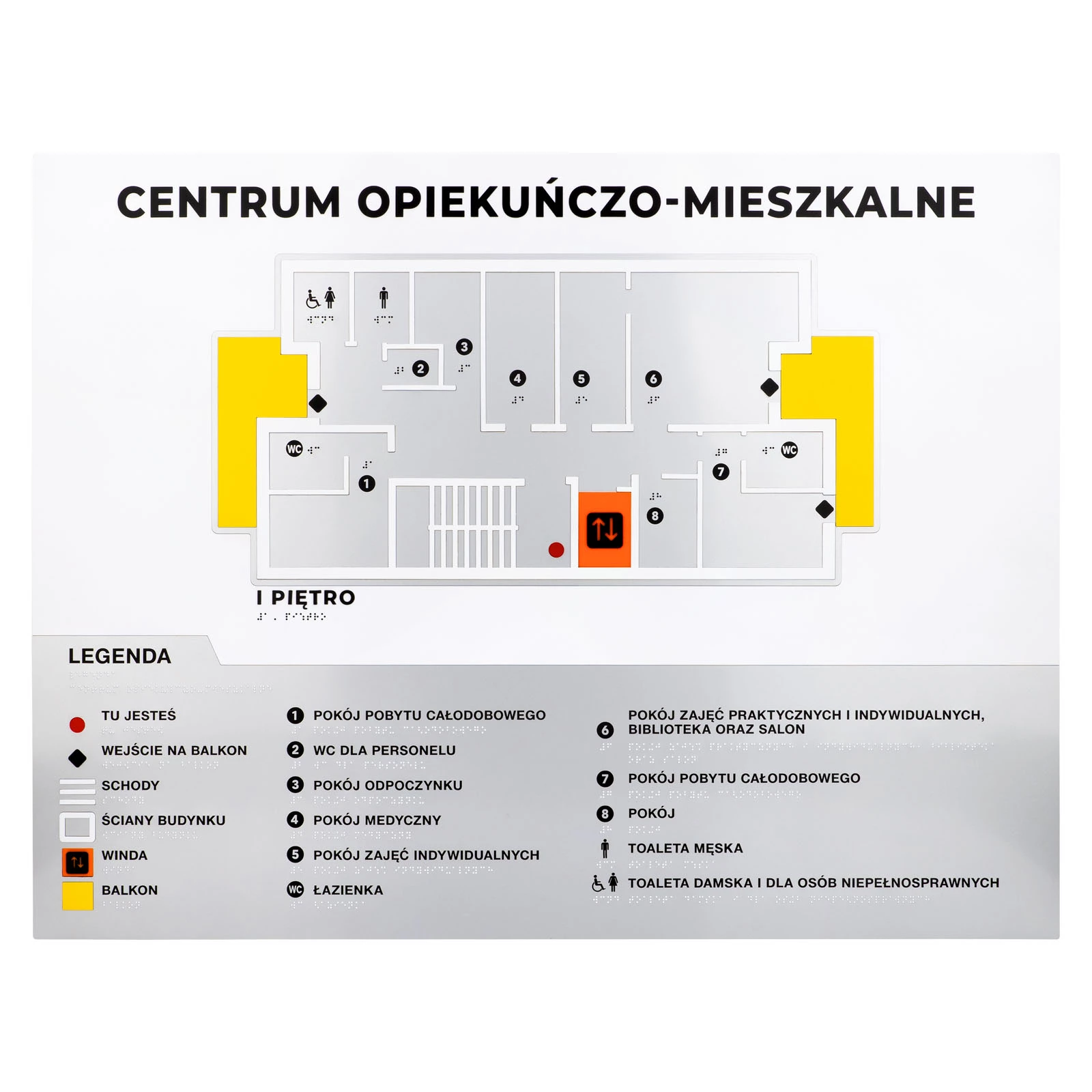

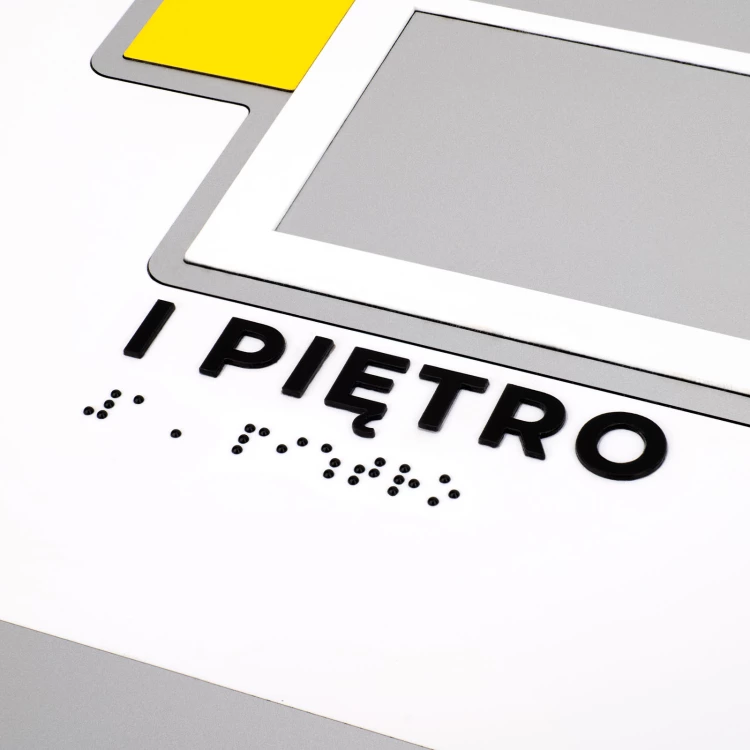

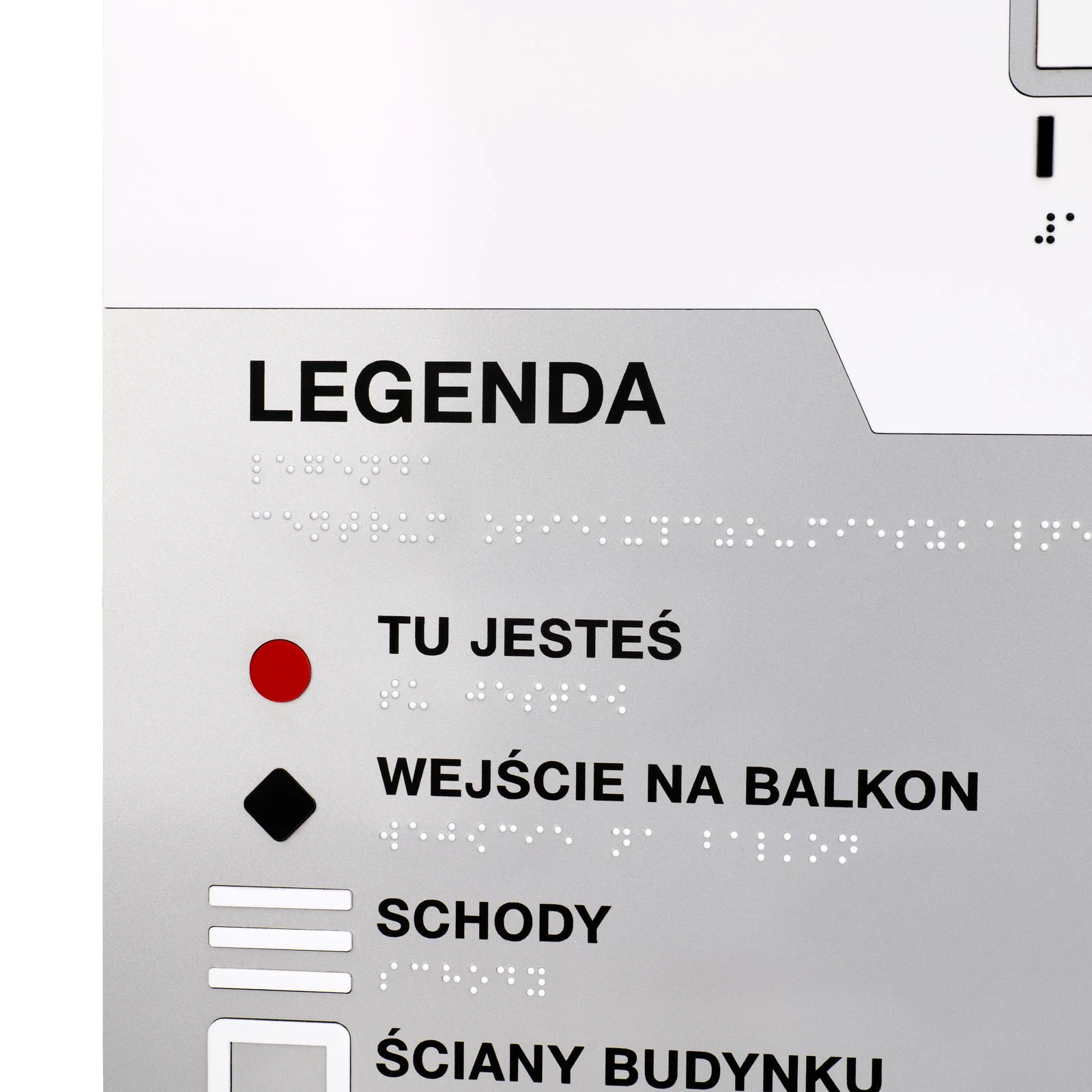

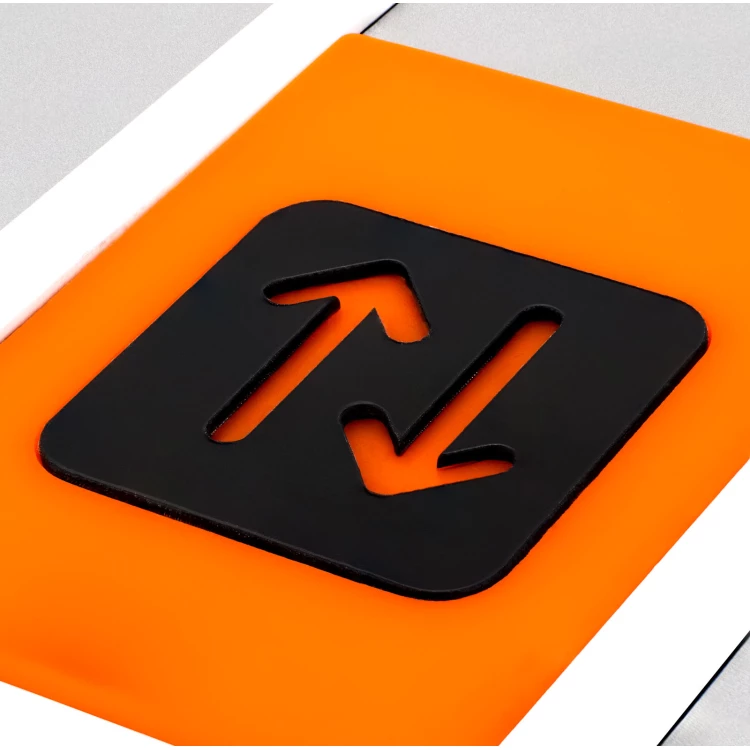

A typhographic plan with Braille applied provides a comprehensive solution for free movement in space. Each tyflographic plan is customised to the individual needs and preferences of the client. The base of the plan is 5 mm thick white PVC with a 3 mm thick laminate in silver. The walls of the rooms, together with the contents of the legend, are made of ADA plastic in white and black. The plan also includes acrylic in orange (lift) and textures laminate in yellow (balcony). The plan has been described in detail using Braille. The colours used in the design are contrasting, improving legibility for the visually impaired. Braille characters can be clearly felt under the finger thanks to the use of professional licensed Braille balls hammered in using CNC technology. In accordance with PZN recommendations, they are positioned at a height of 0.5 mm and have a base width of 1.5 mm. The whole is designed for self-assembly.



Before realisation, we prepare the design (PDF file) and send it for approval to the indicated e-mail address. You can contact the graphic designer at any time during the design phase. Once the project is approved, we begin production.



The presented price concerns the board visible in the gallery. Feel free to contact our sales department by email or phone for a detailed quote.



Dimensions:

- width: 850 mm

- height: 650 mm

- thickness: 5 mm
