Typhlographic map of the landscape park with Braille script - size: 1100x700mm - TAB515

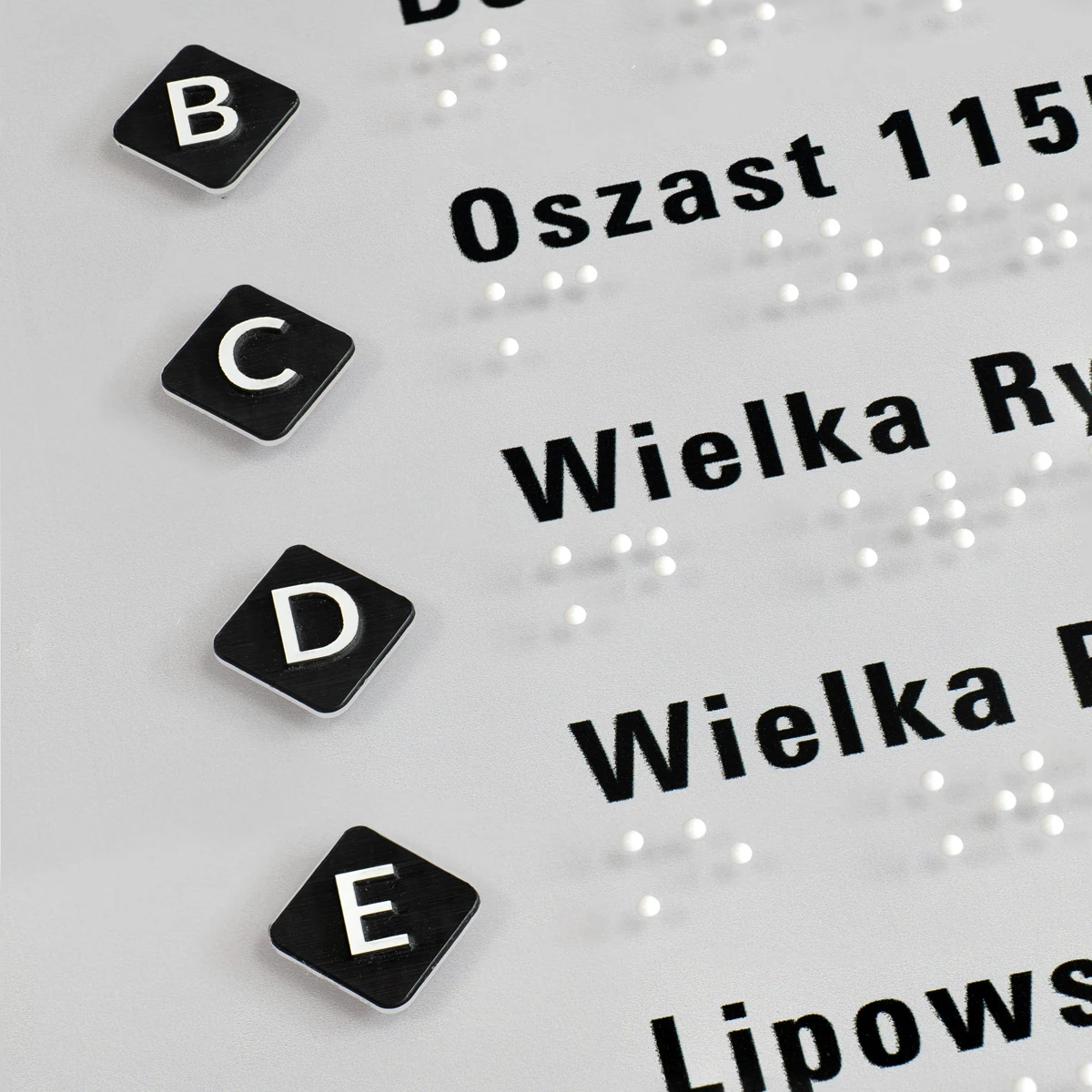

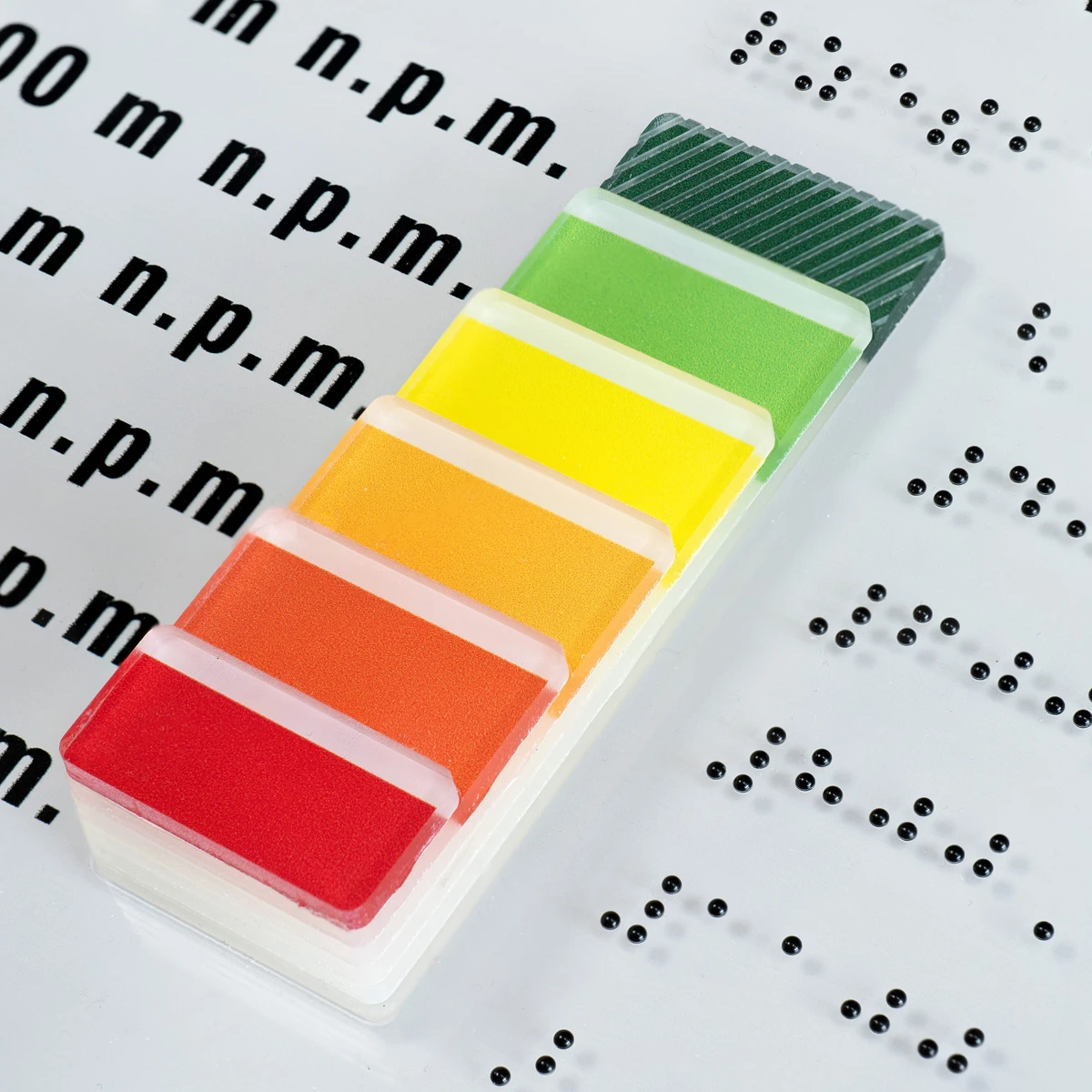

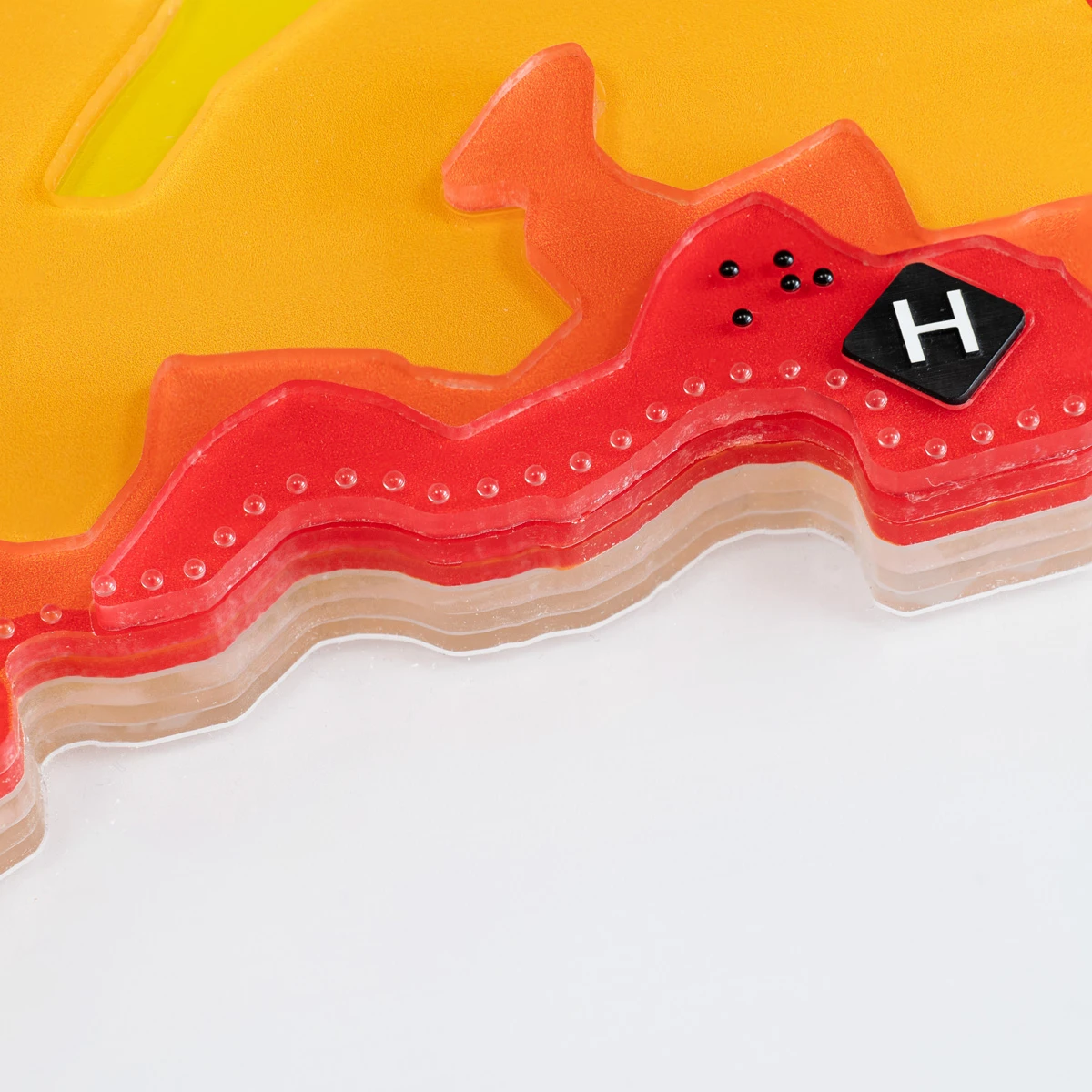

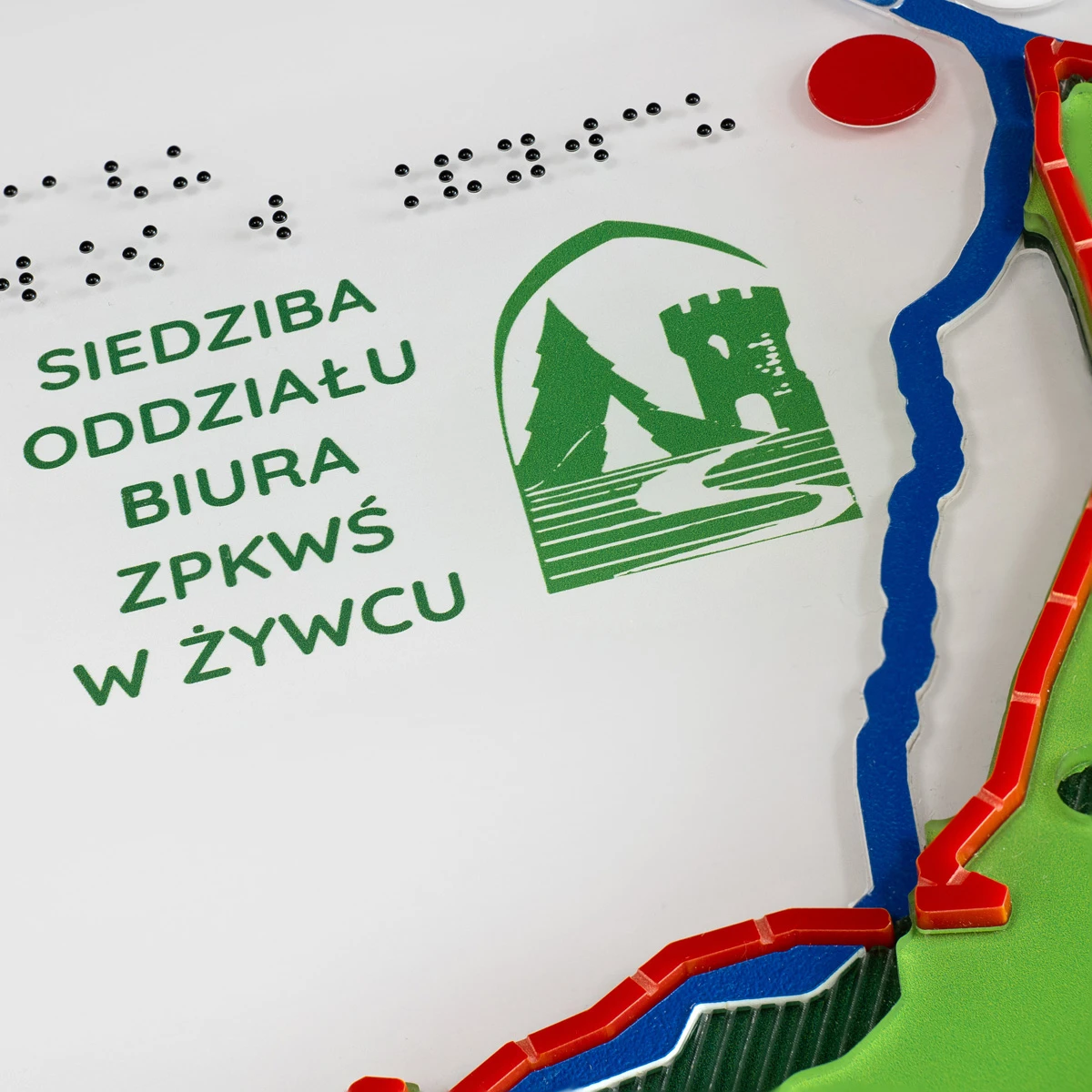

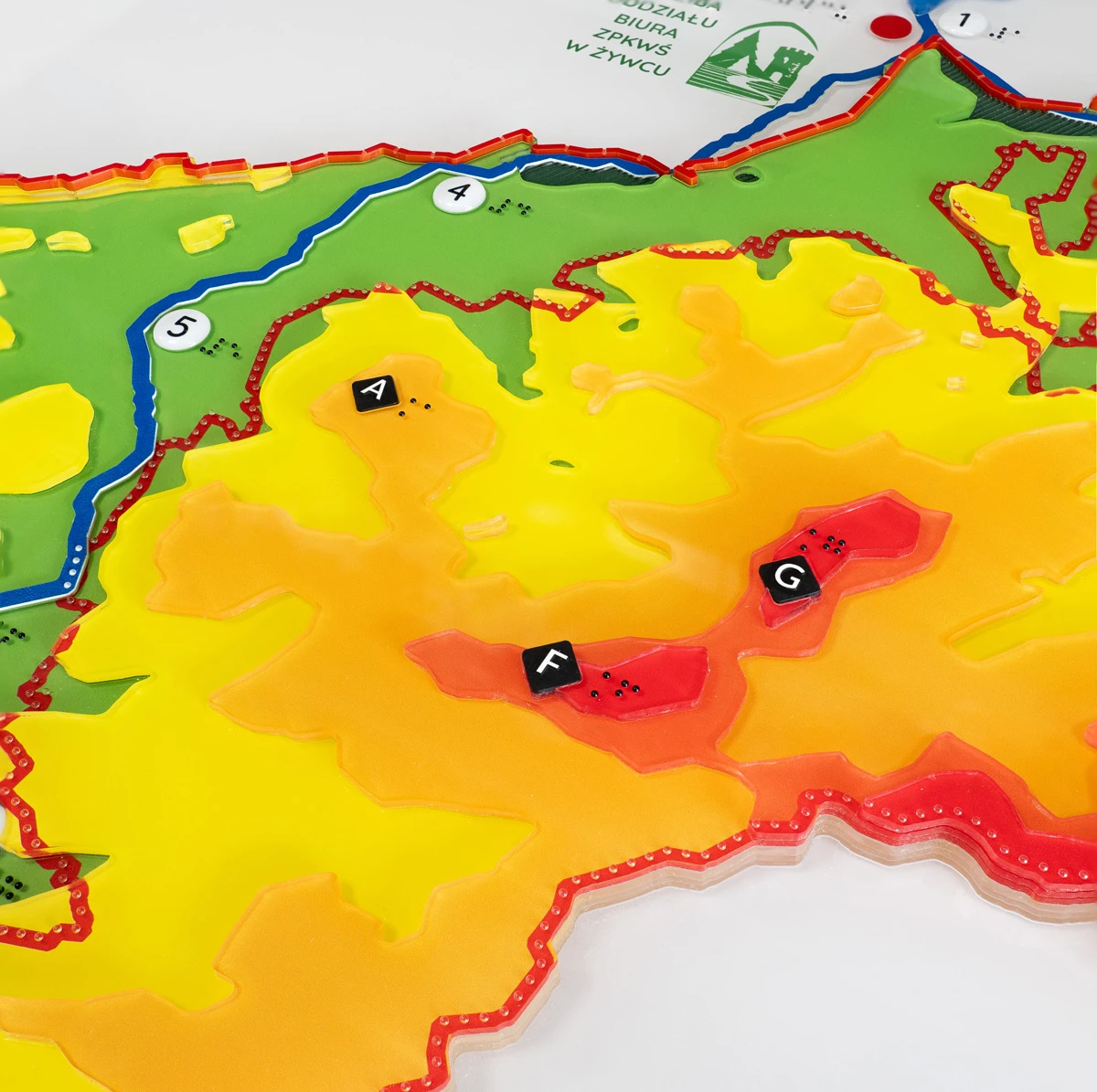

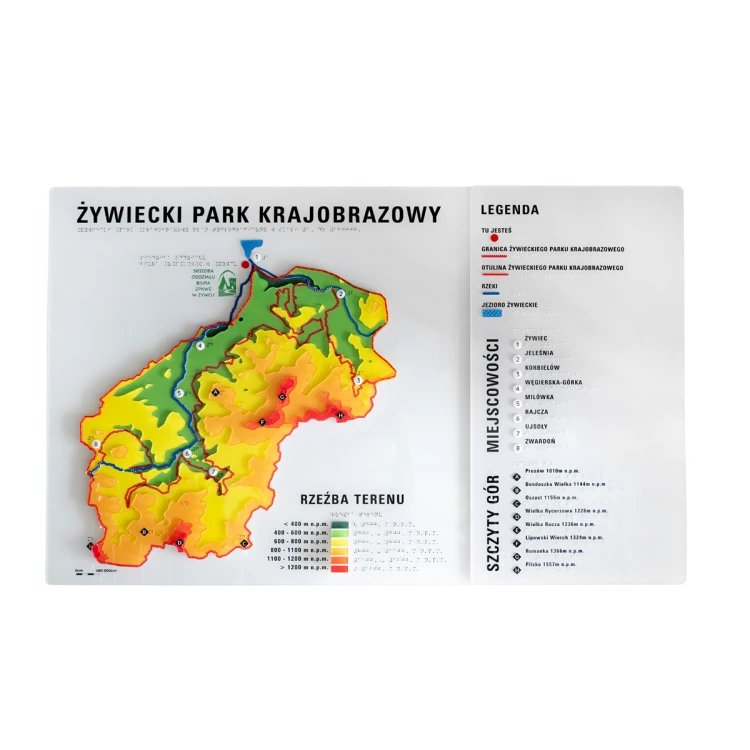

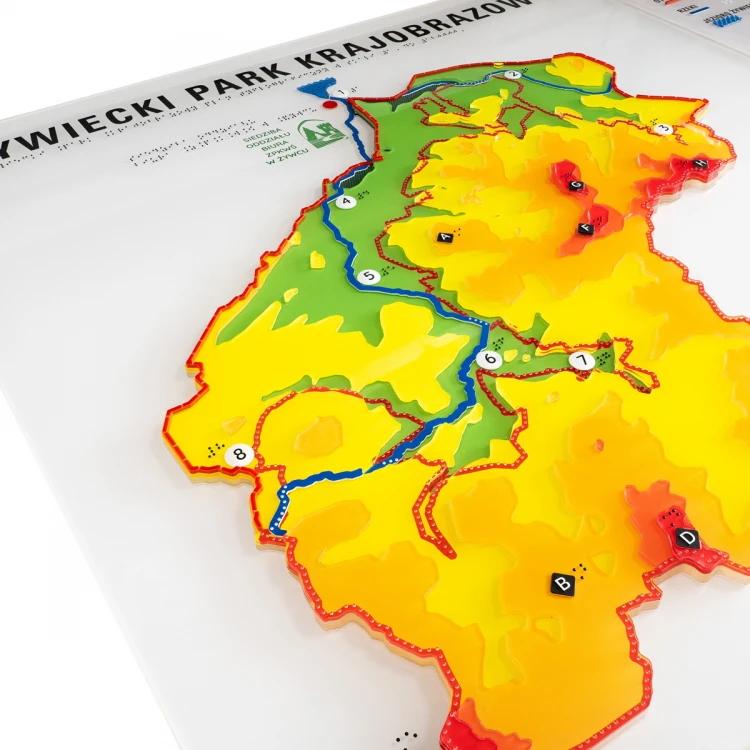

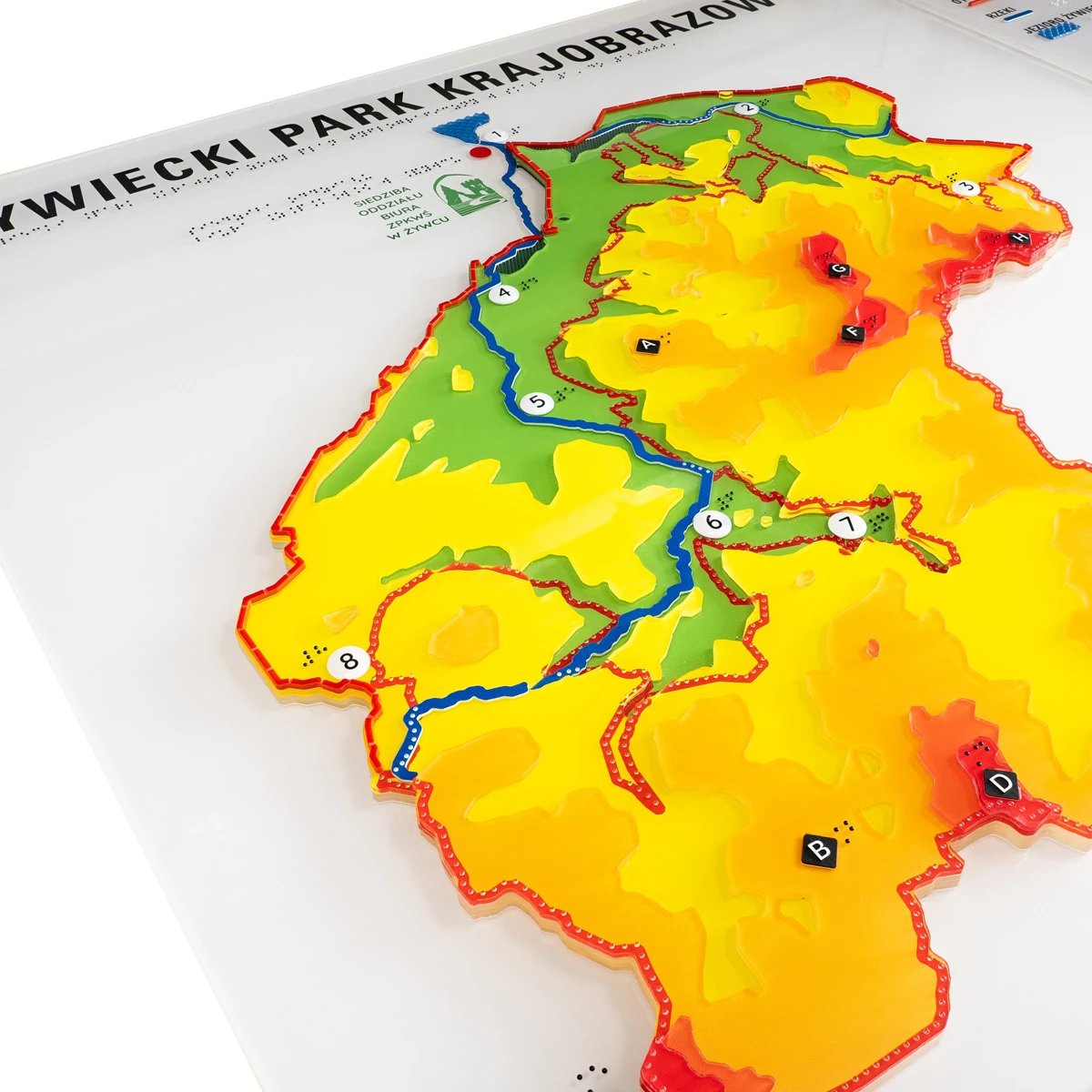

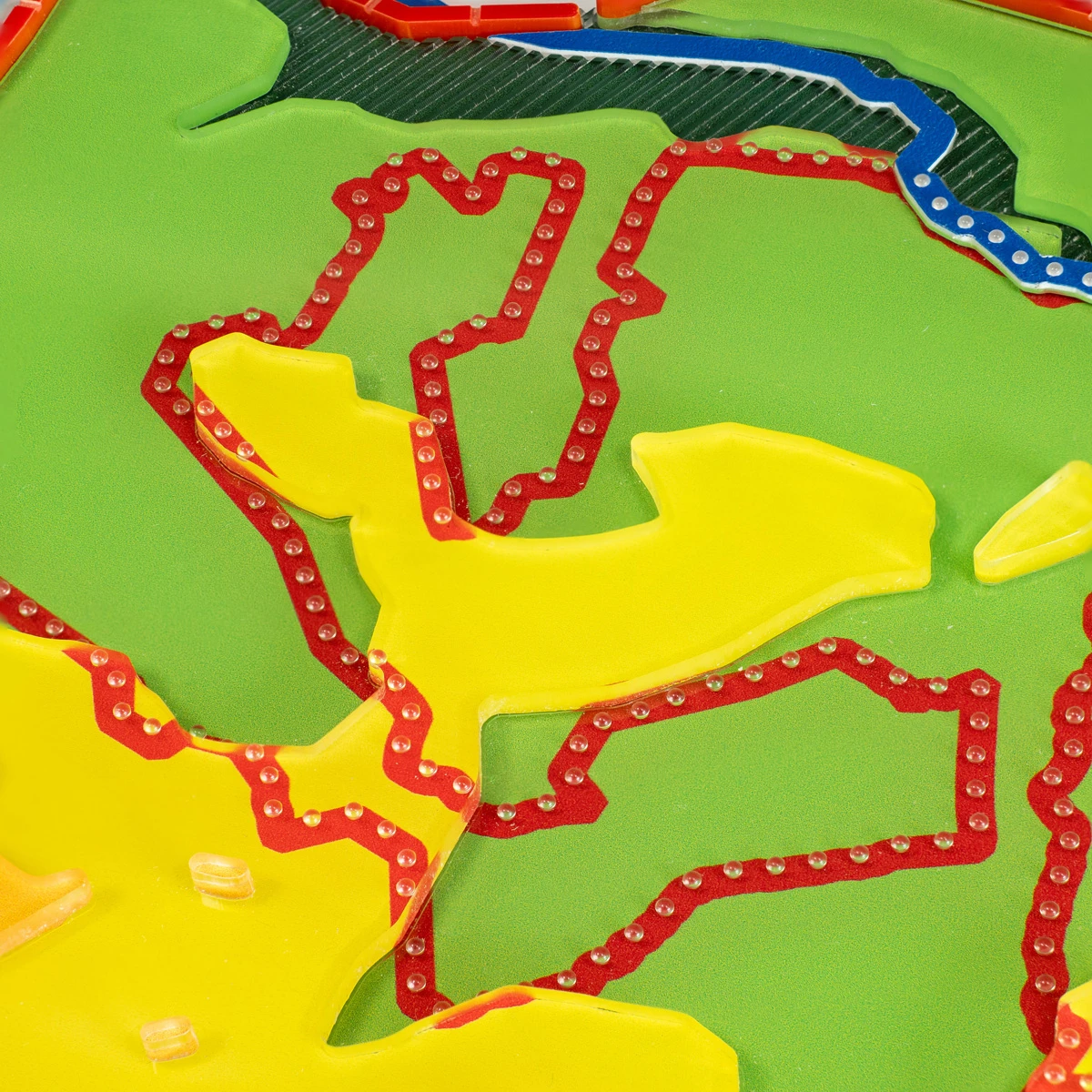

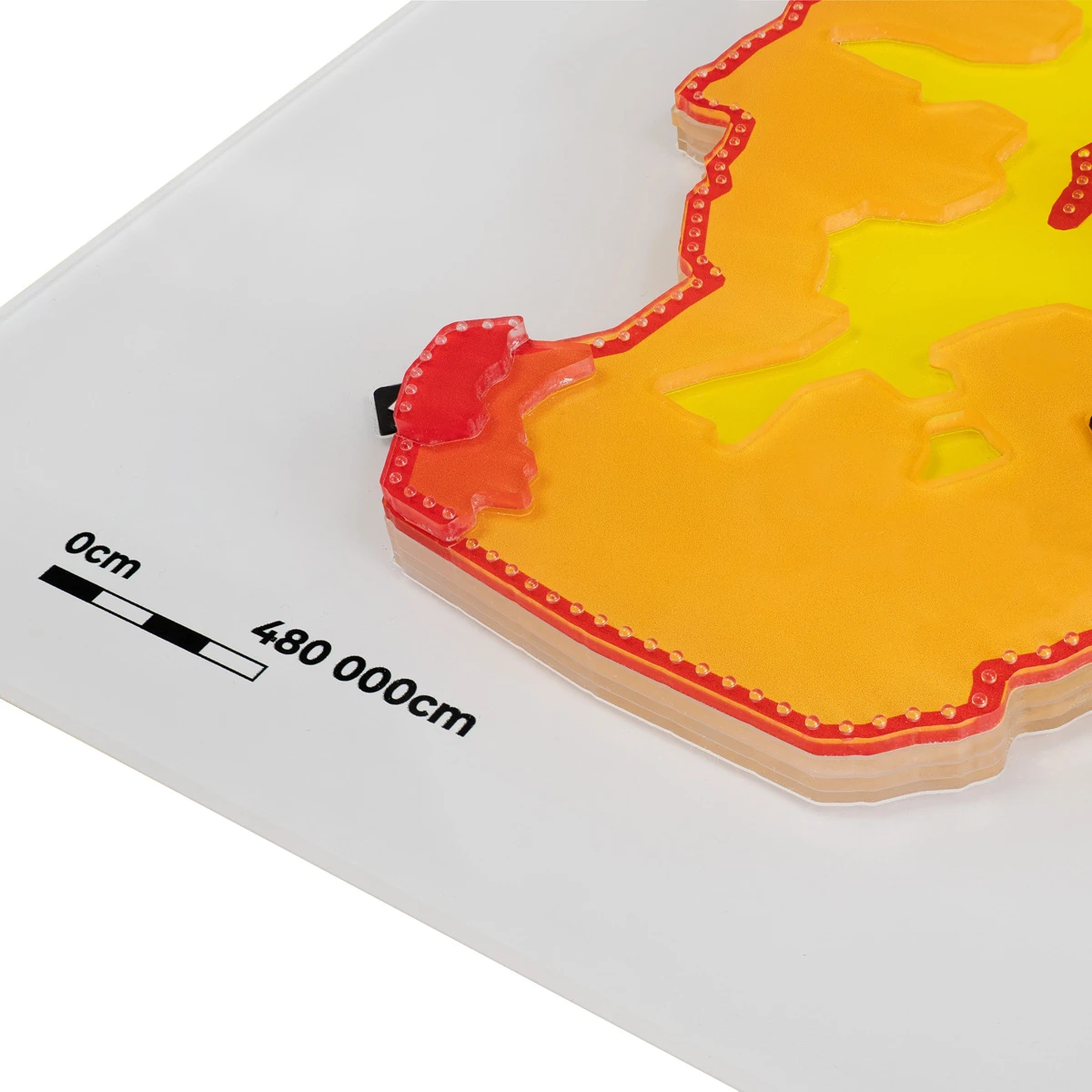

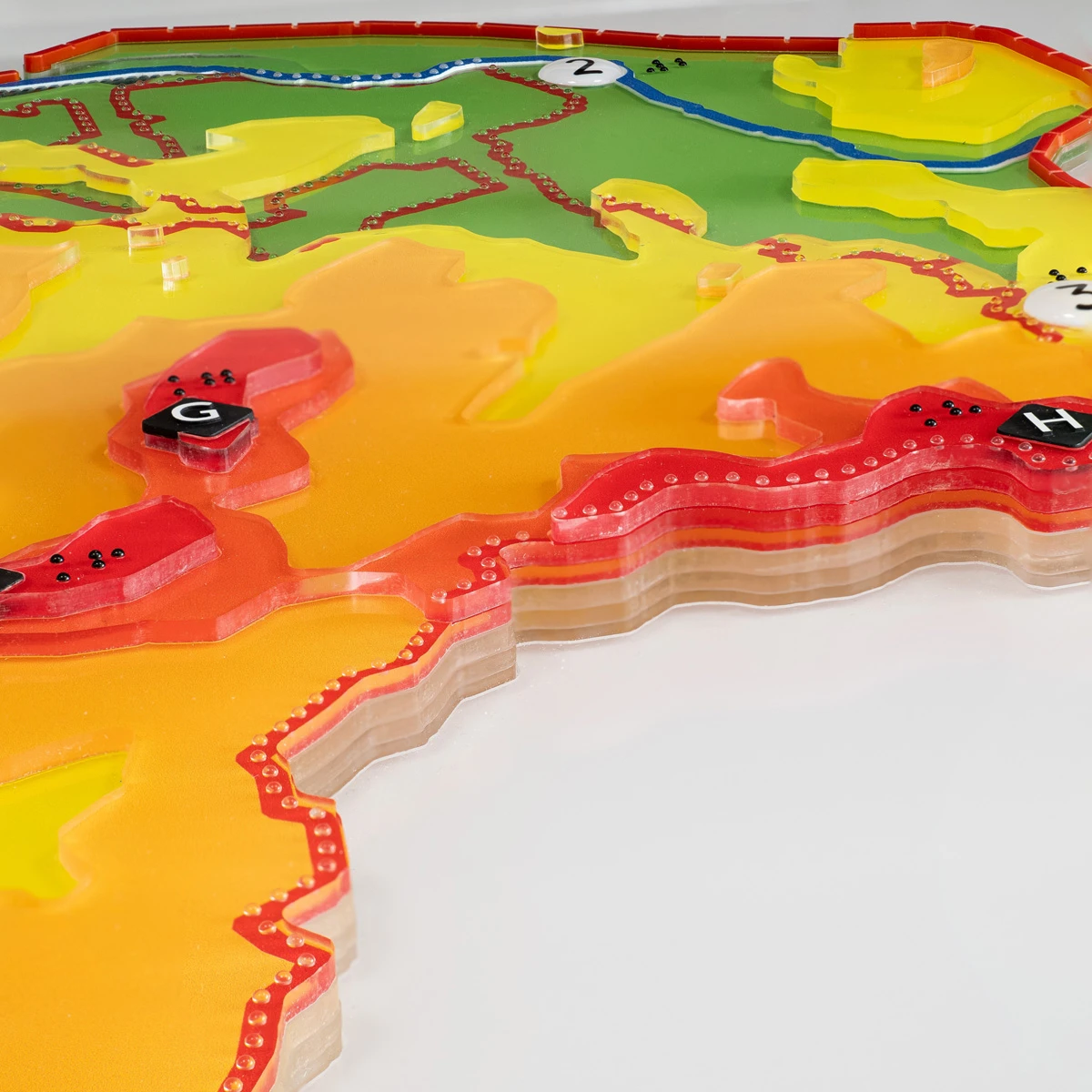

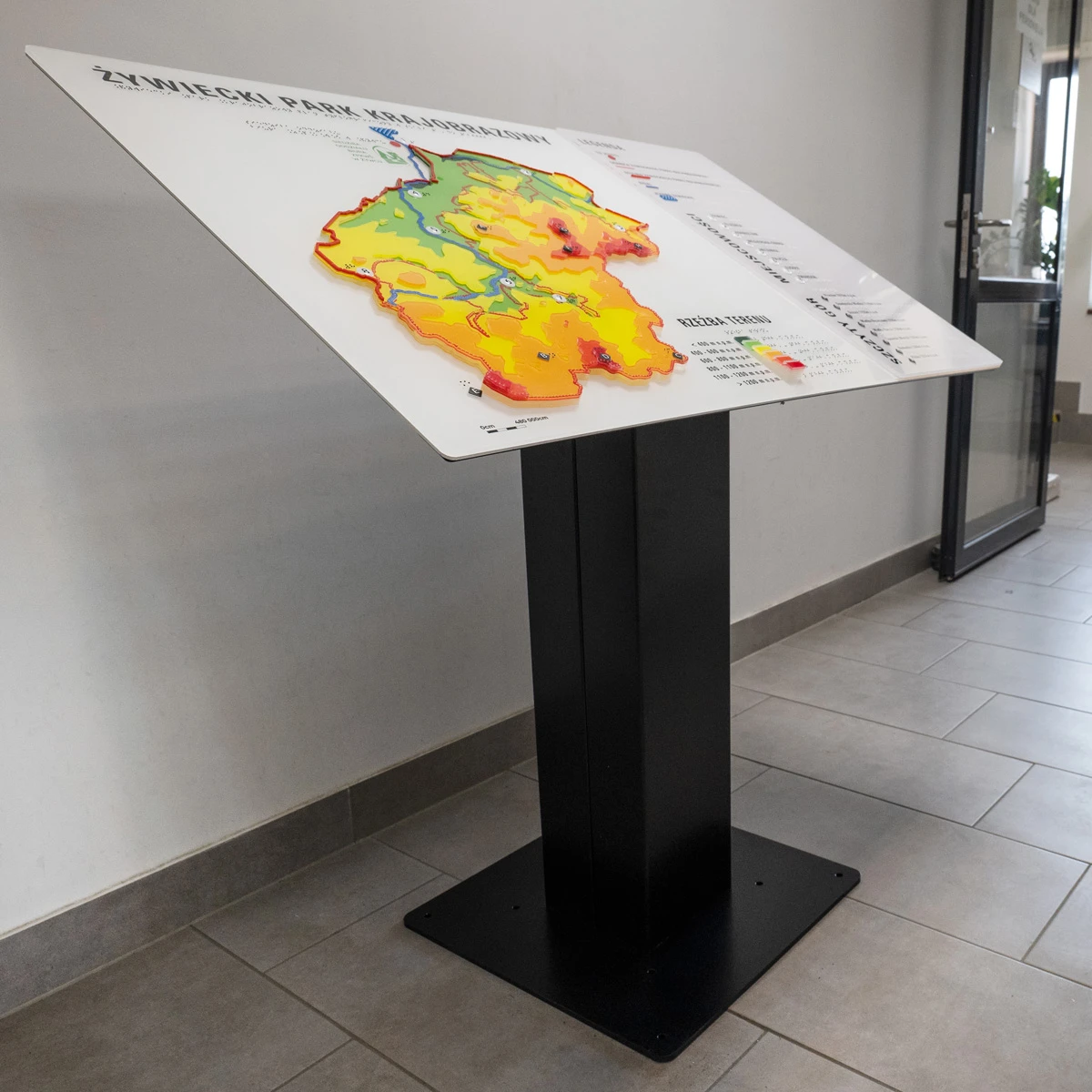

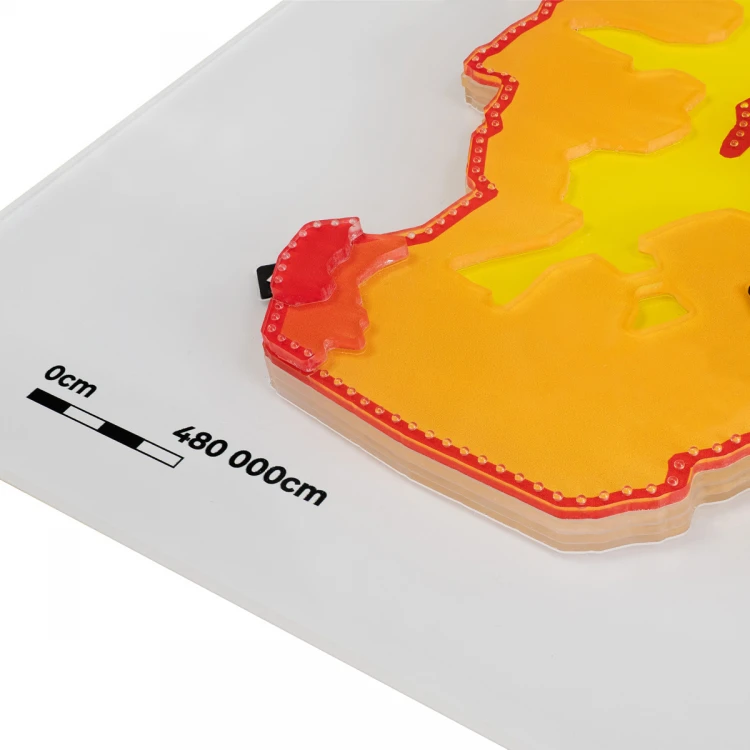

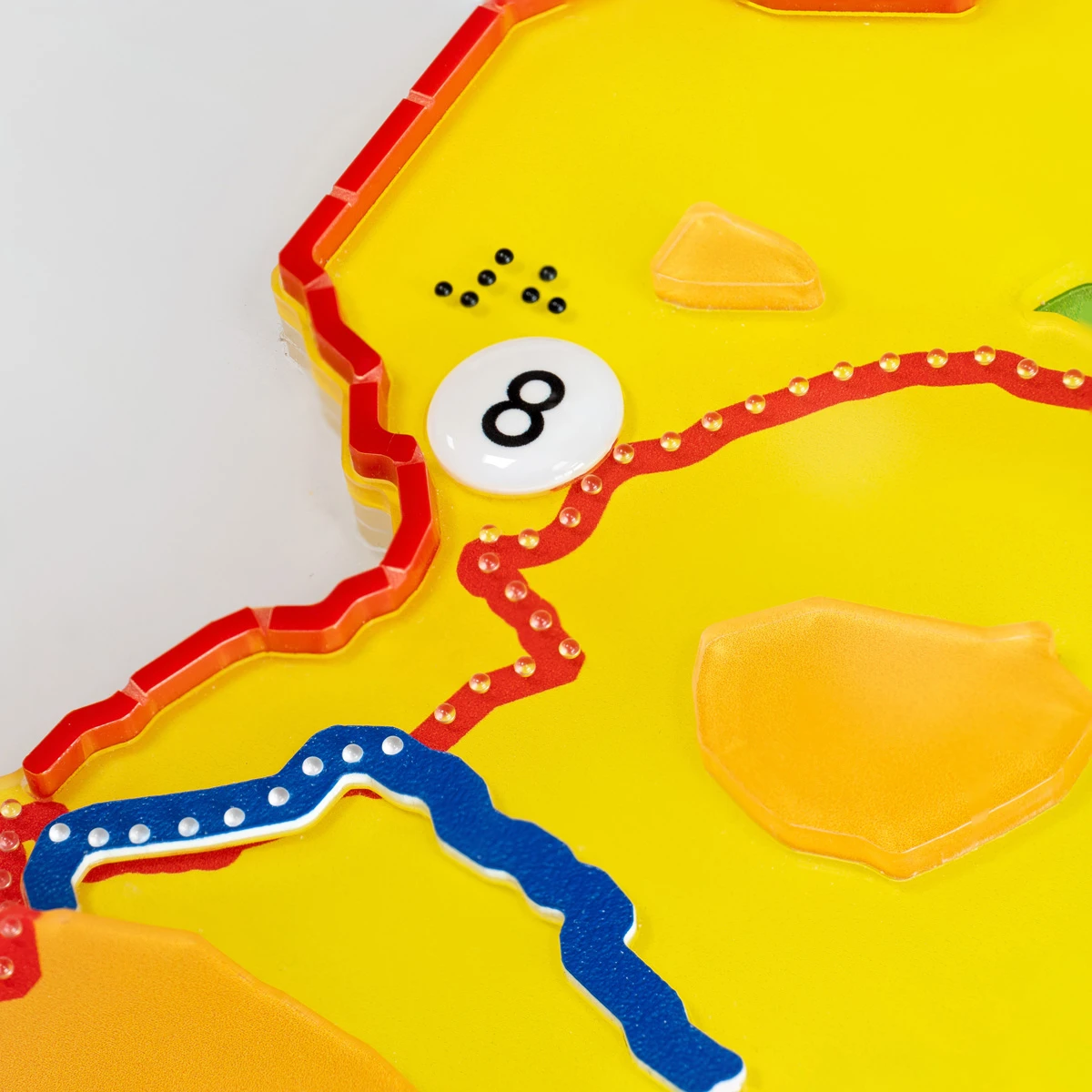

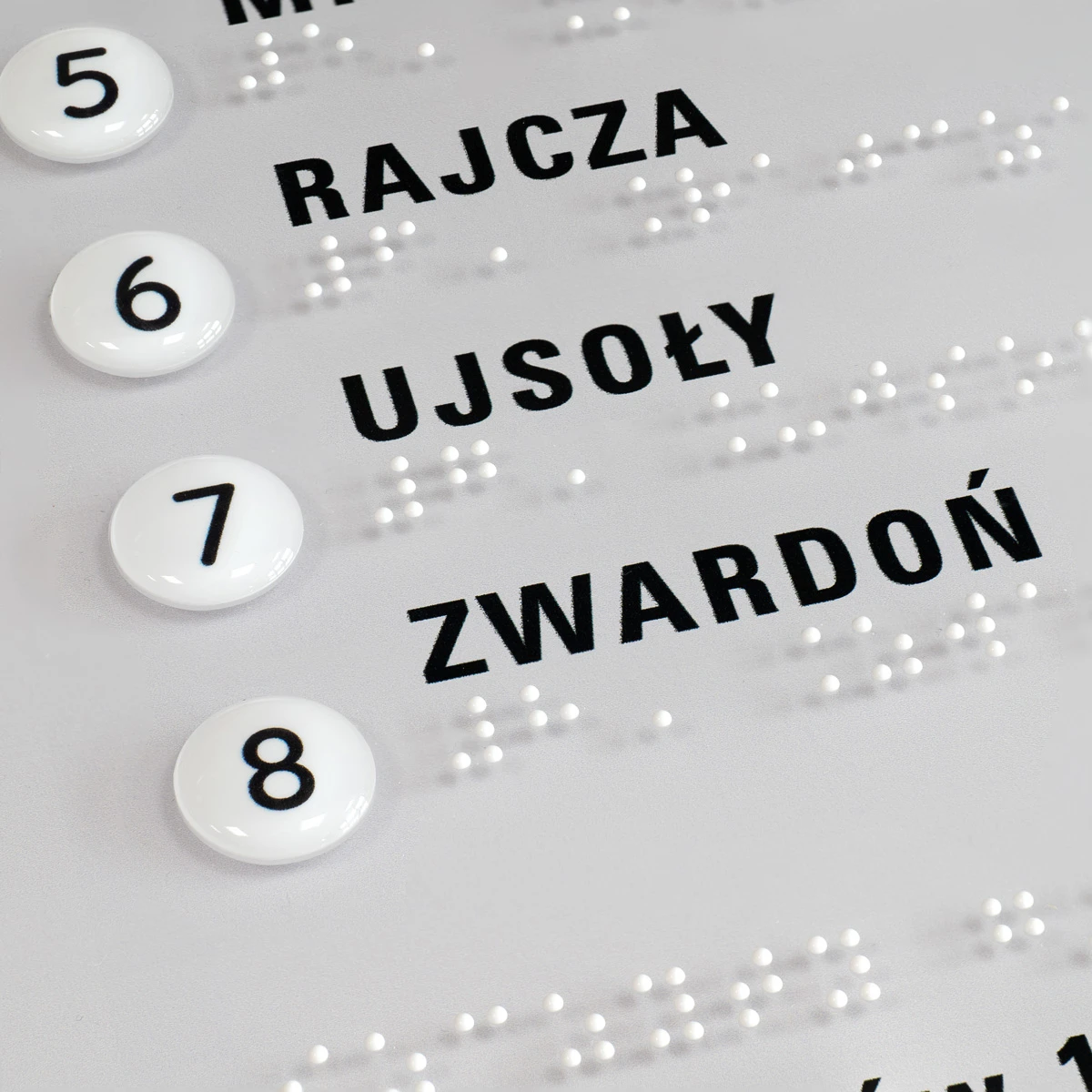

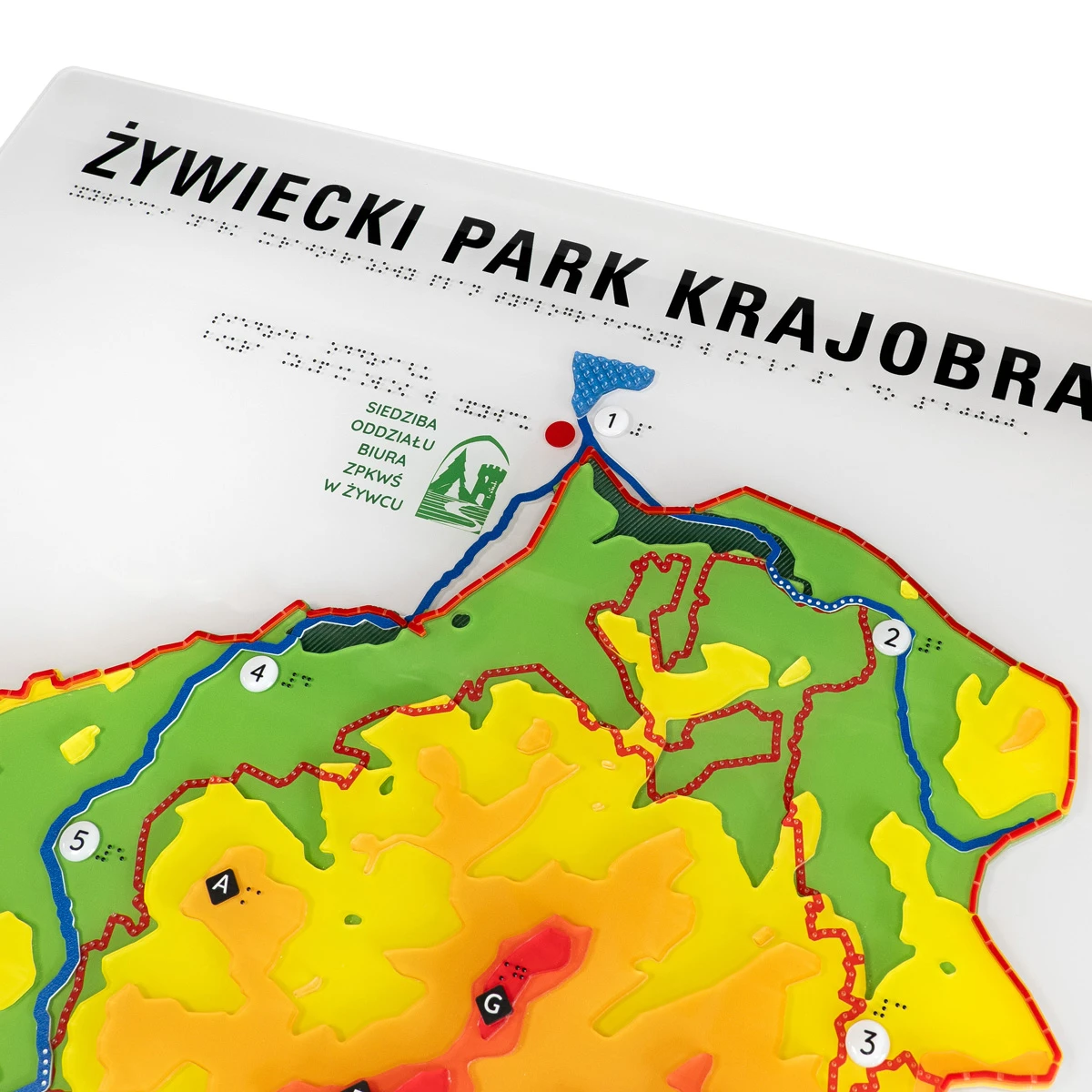

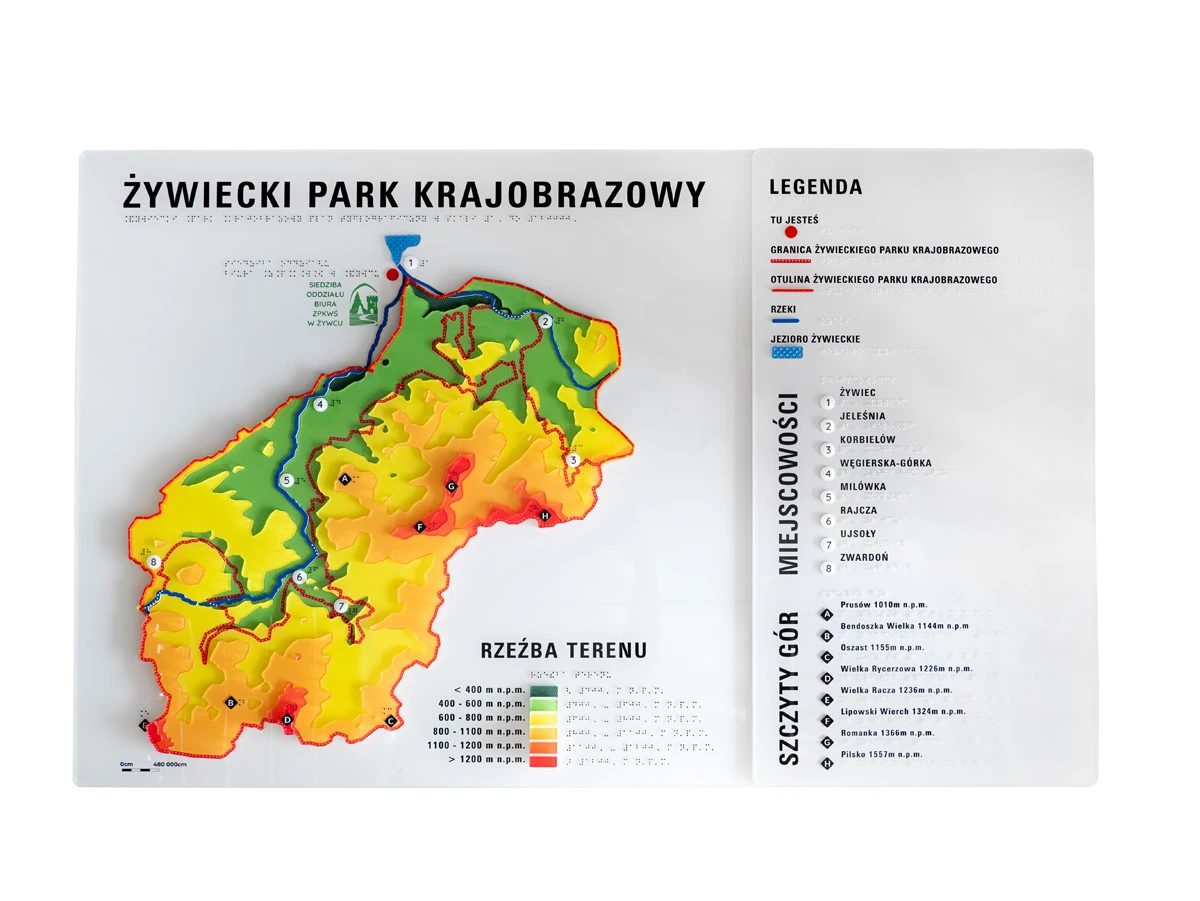

A large tiflographic board of a landscape park including topography of the area and boundaries. Tiflographic Plans are especially useful for blind people to quickly orient themselves in an unfamiliar space. The presented board shows a detailed topographic plan of the park and is mounted on a special metal desktop also available from us. Das Gehäuse ist mit einem Durchmesser von 5 mm in der Mitte des Raumes angebracht. On it, layers of colored acrylic faithfully depicting the topography of the terrain are successively mounted. Identical layered highlighting is also included in the legend. The park boundaries are marked in red supplemented with dense beads, the park's lagging area is milled acrylic, while the rivers are marked with rough textures in blue. Localities are highlighted with raised buttons and mountain peaks with black rhombuses with raised letters. All these elements are described in detail in Braille. Braille characters can be clearly felt under the fingertip thanks to the use of professional licensed braille balls hammered using CNC technology. Die In accordance with PZN recommendations, they are placed at 0.5mm high and have a base width of 1.5mm.



Das Projekt (im PDF-Format) und der Antrag werden per E-Mail an die angegebene Adresse geschickt. You can contact the graphic designer at any time during the design stage. After acceptance of the project we proceed to production.



The presented price is for the implementation of the board visible in the gallery. Feel free to contact our sales department by email or phone to receive a detailed quote.



dimensions: 1100x700mm

materials:

- base of the board: 5mm clear cast acrylic with UV overprint

- mountain bands: 3mm cast acrylic with UV color printing

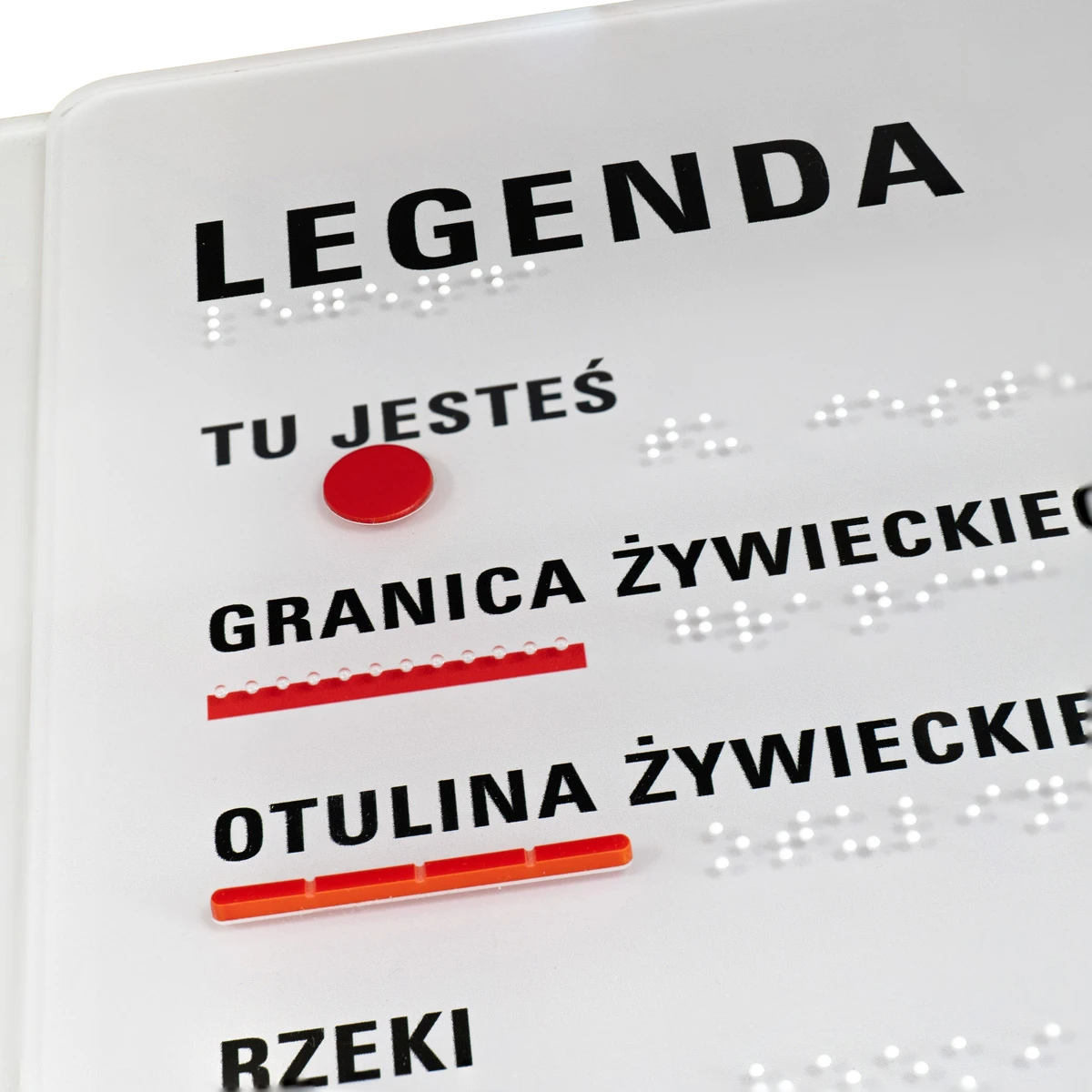

- landmark "here you are" - red ADA plastic 1mm recessed 0.2mm deep

- park boundaries - braille balls

- park lagging - red acrylic milled, extends above the base for 2mm

- river: blue engraving laminate textures 1.6mm

- curved numbering: HIPS 1mm with 3D doming

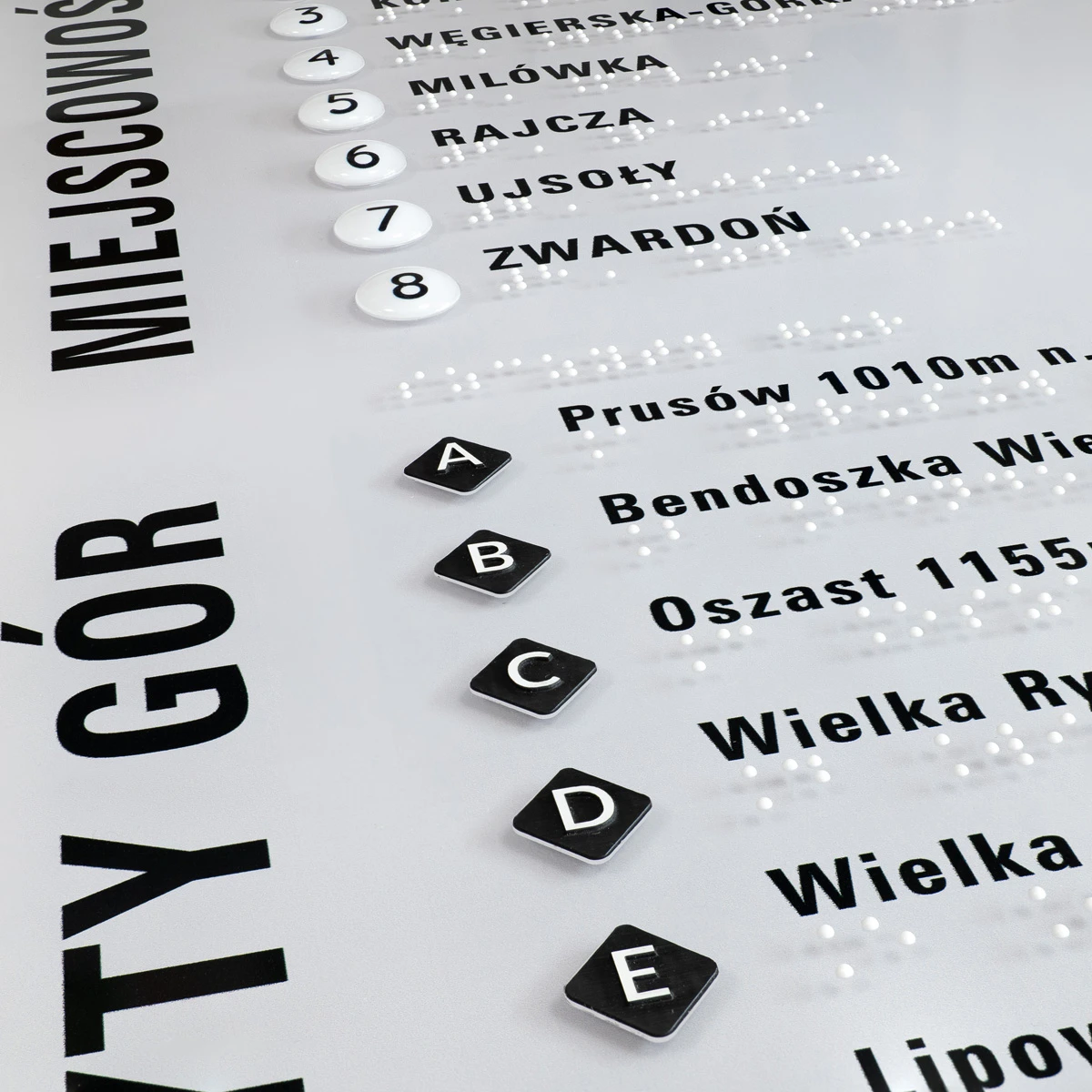

- white and black Braille beads scored with CNC technology



Lead time from 21 to 30 working days counted from the moment of approval of the project, which we send in the form of a pdf file.
