Tactile map with Braille script - plexi and ADA - dimensions: 880x630mm - TAB533

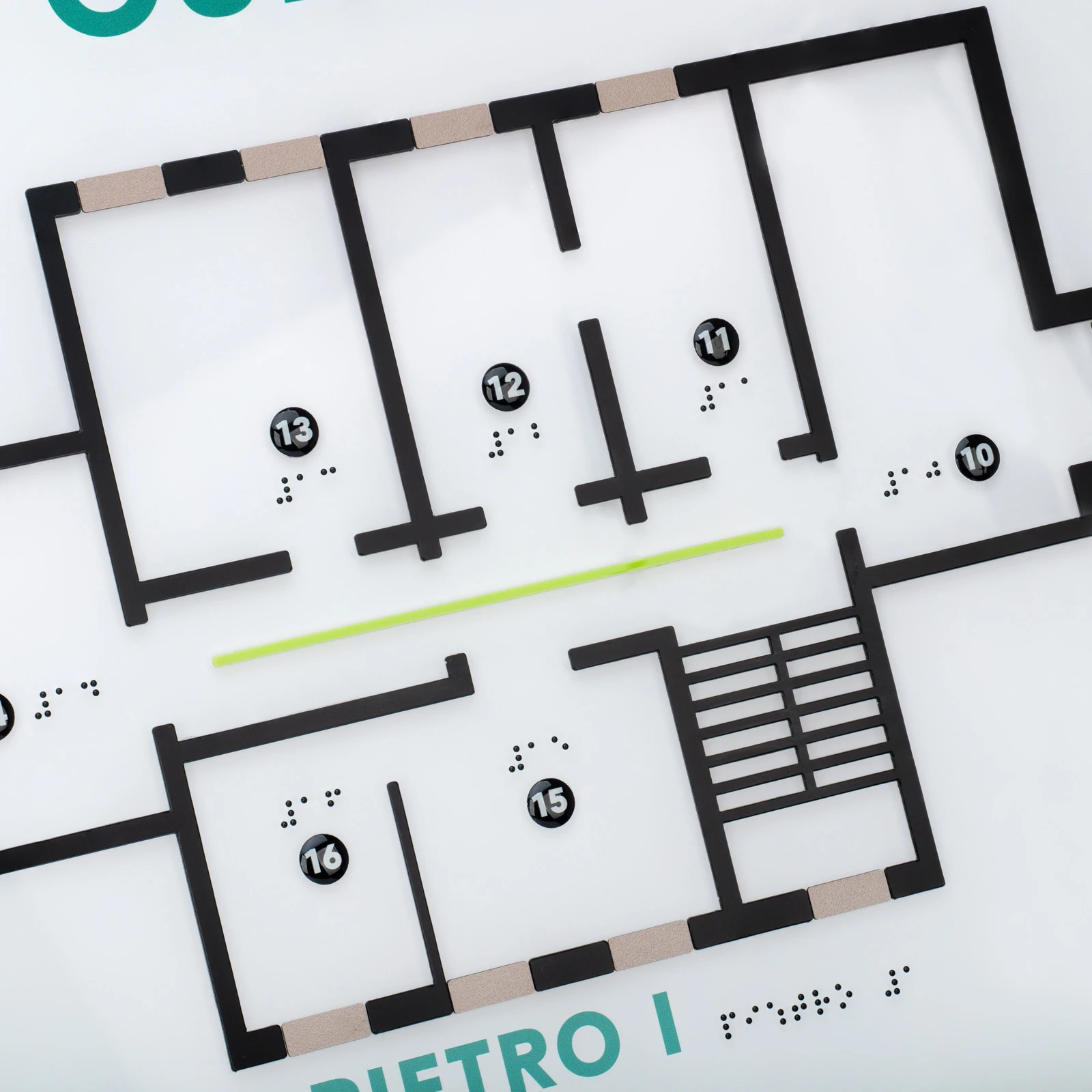

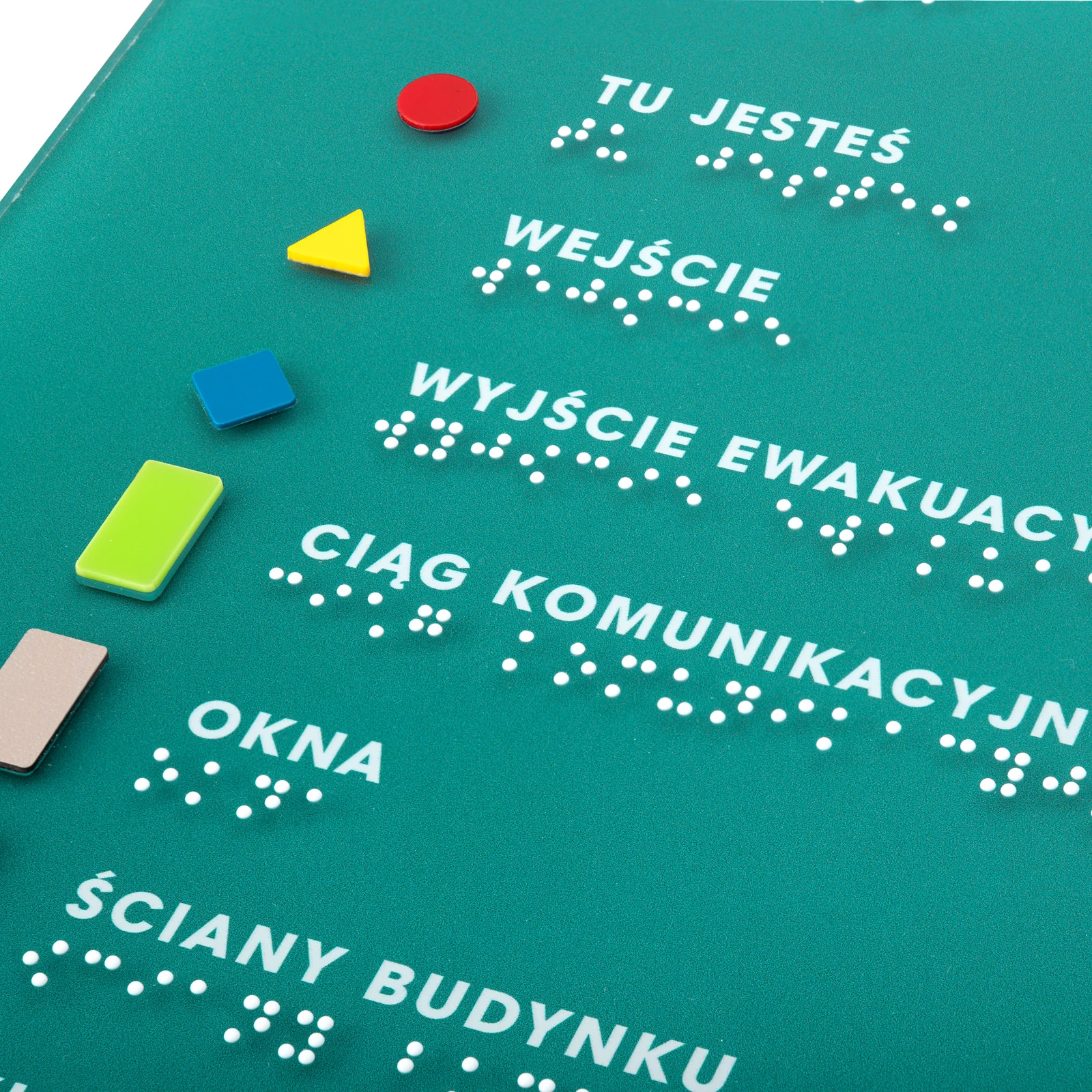

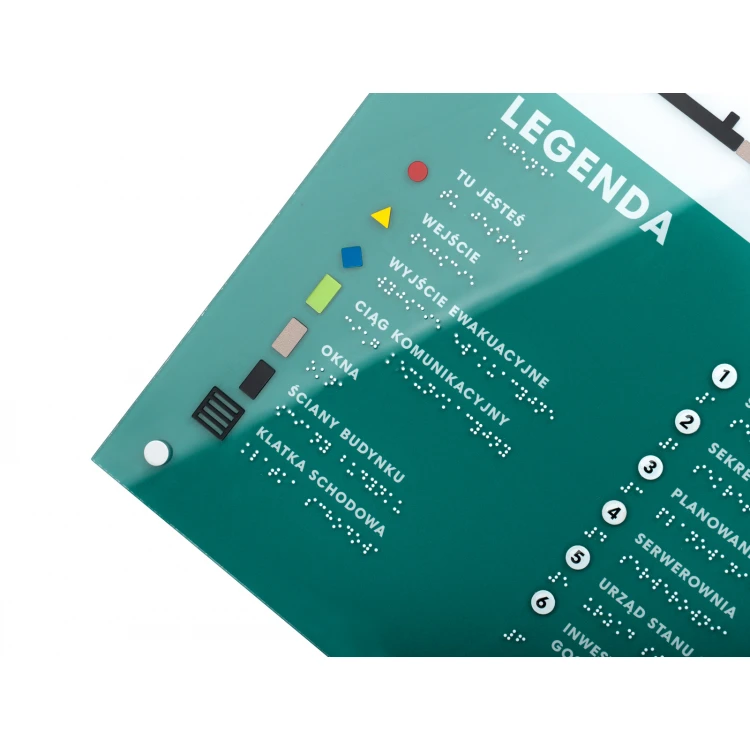

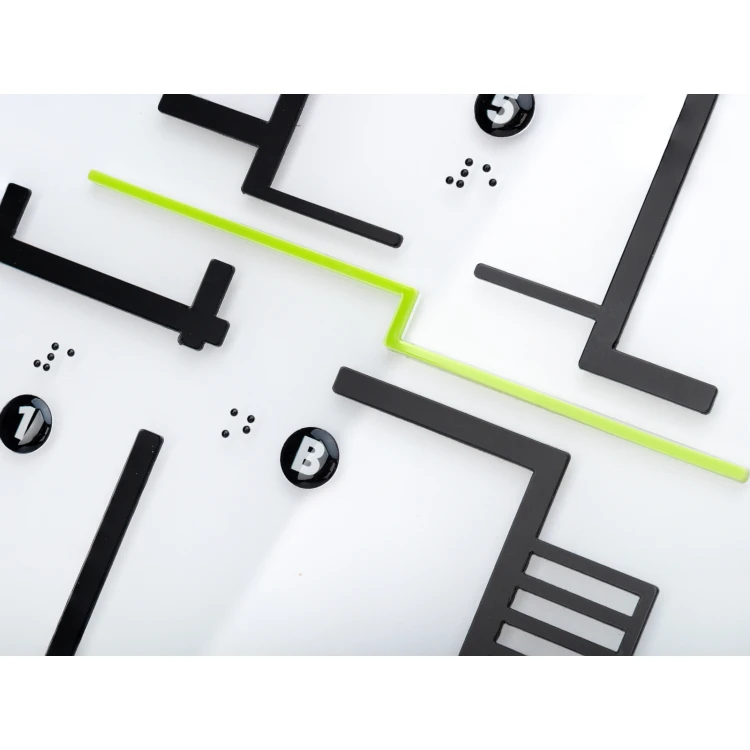

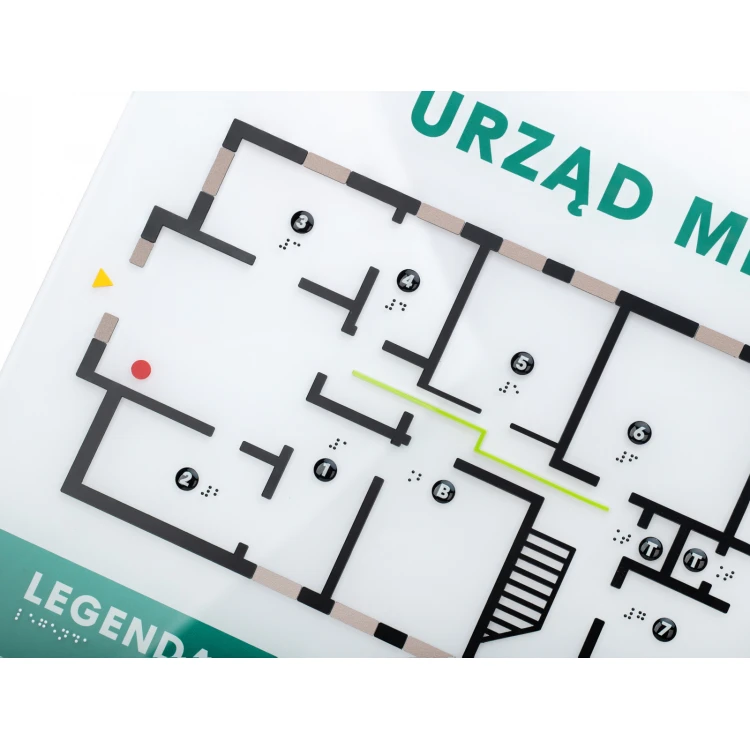

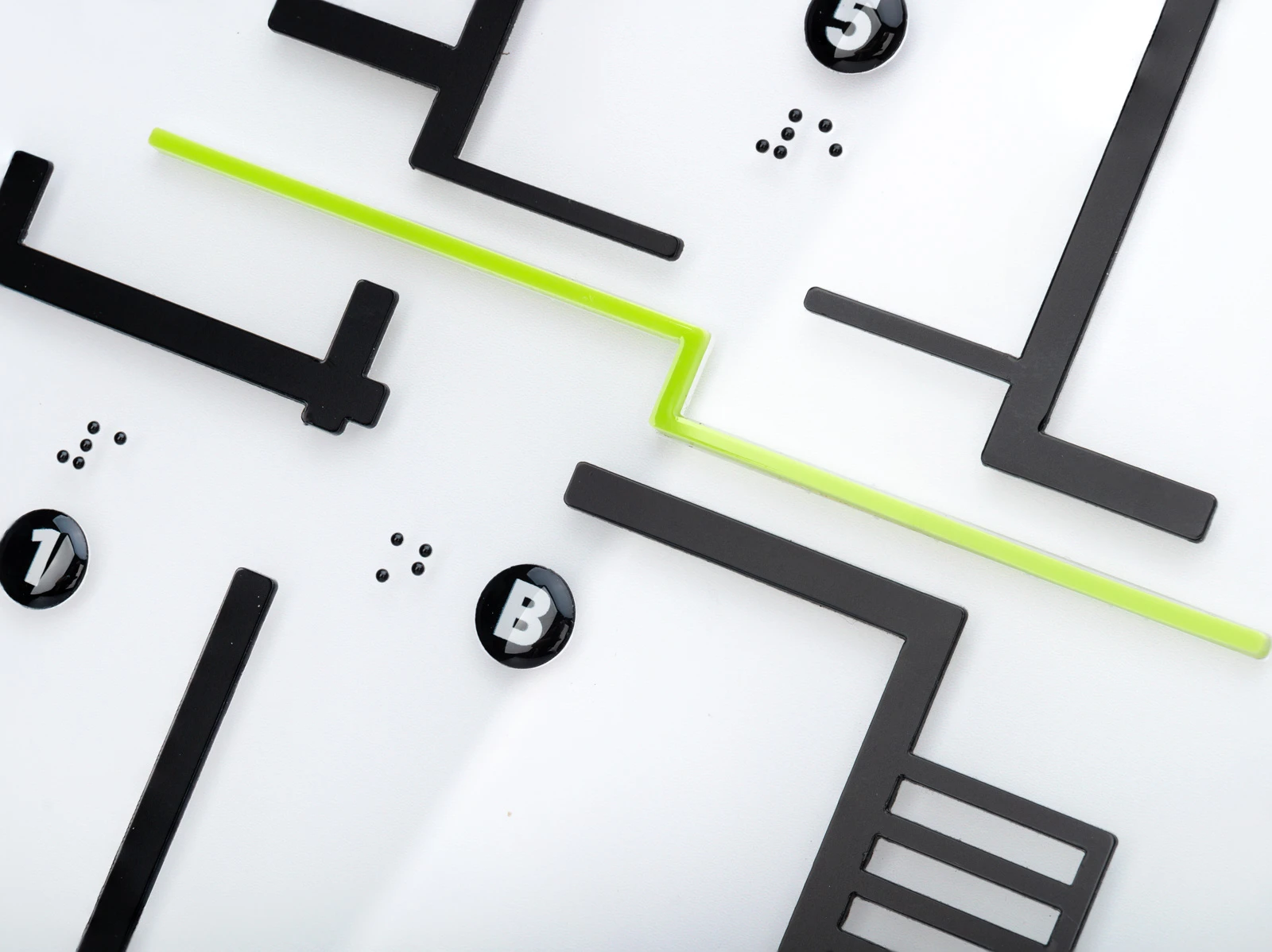

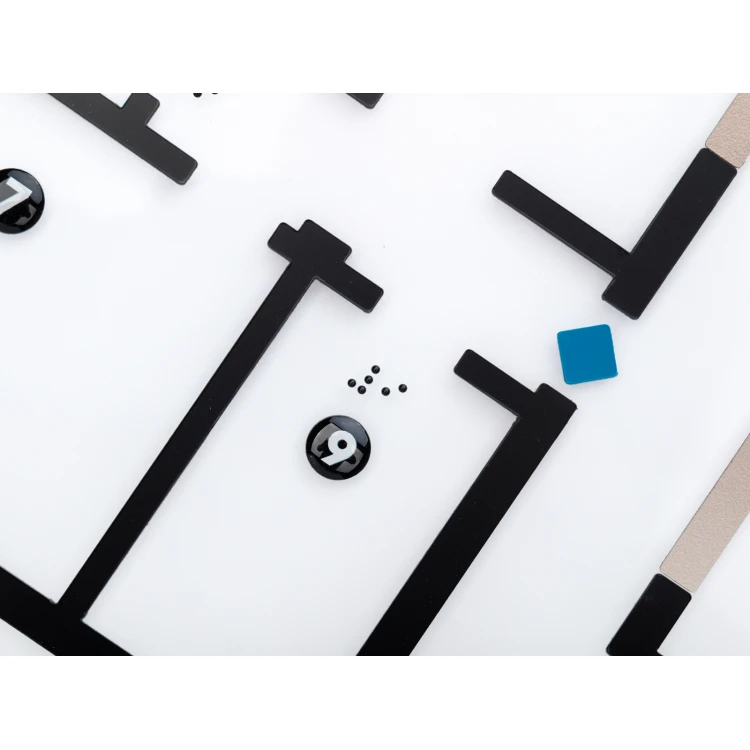

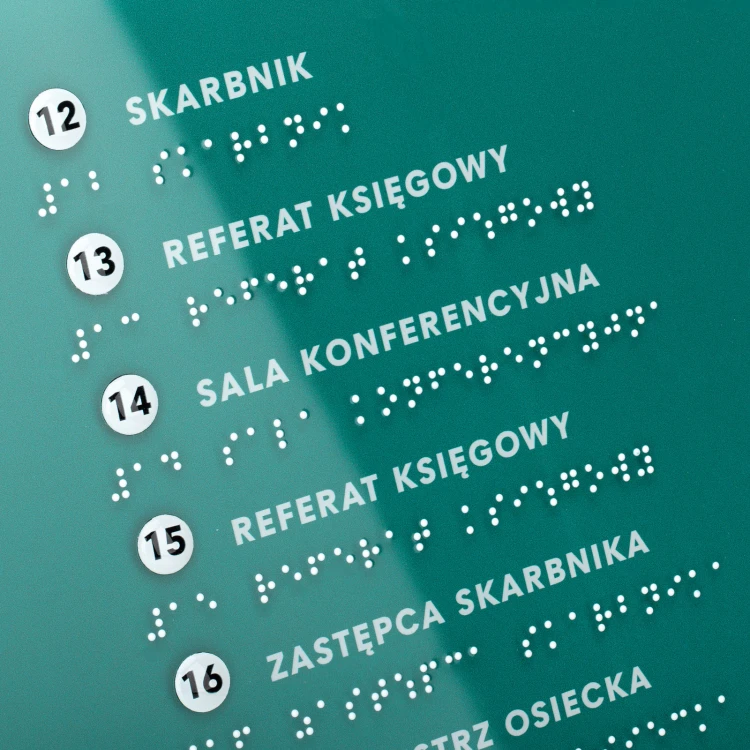

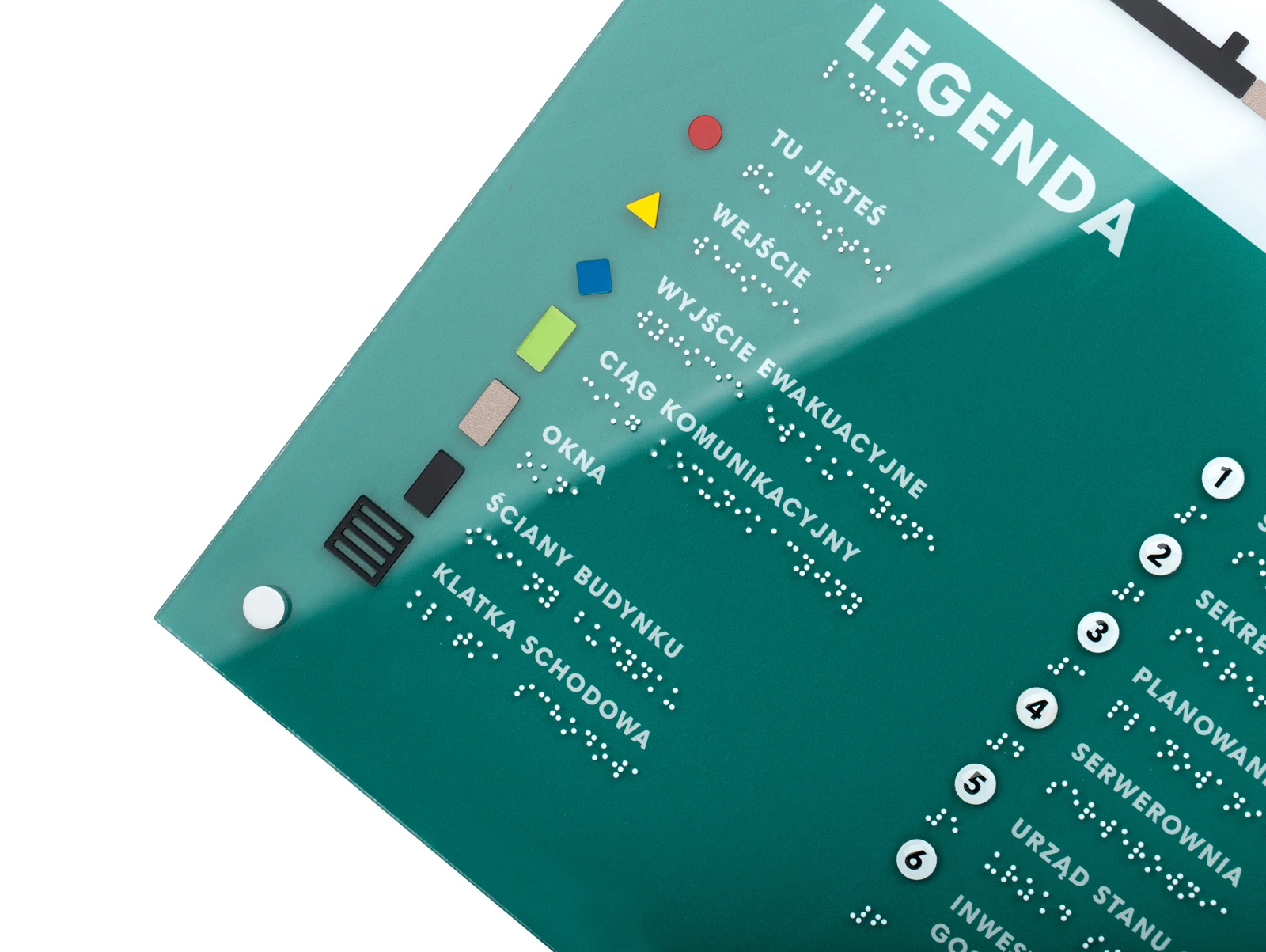

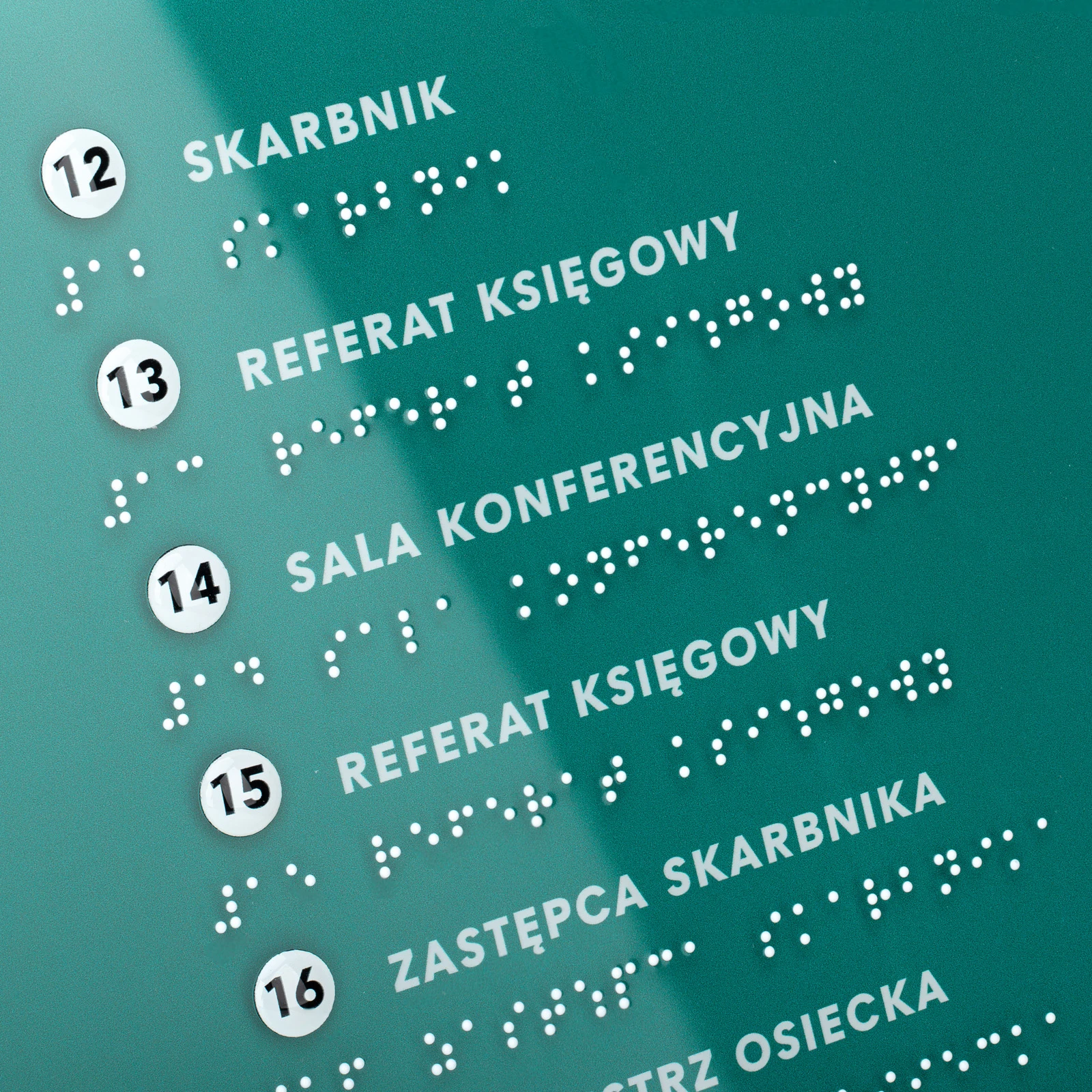

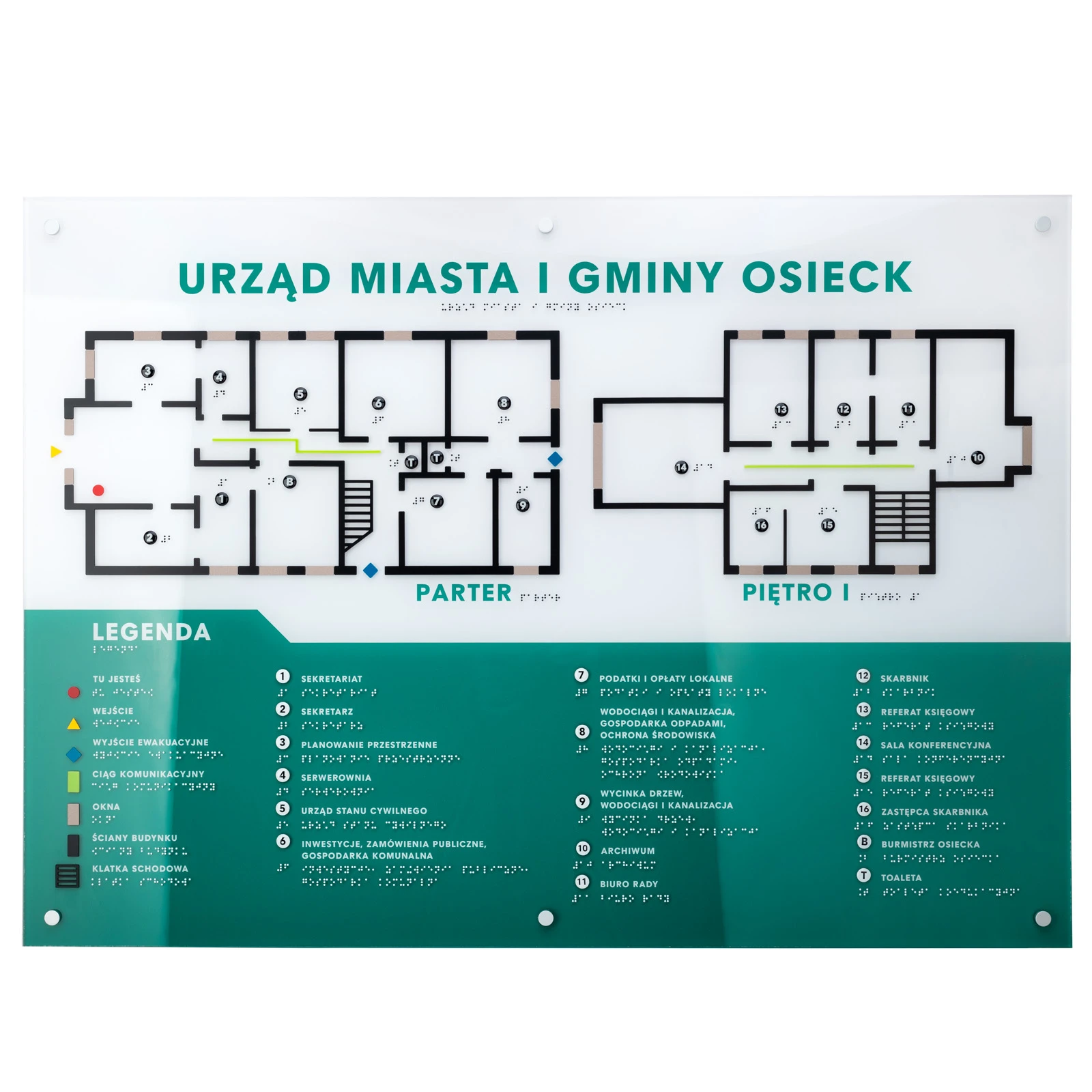

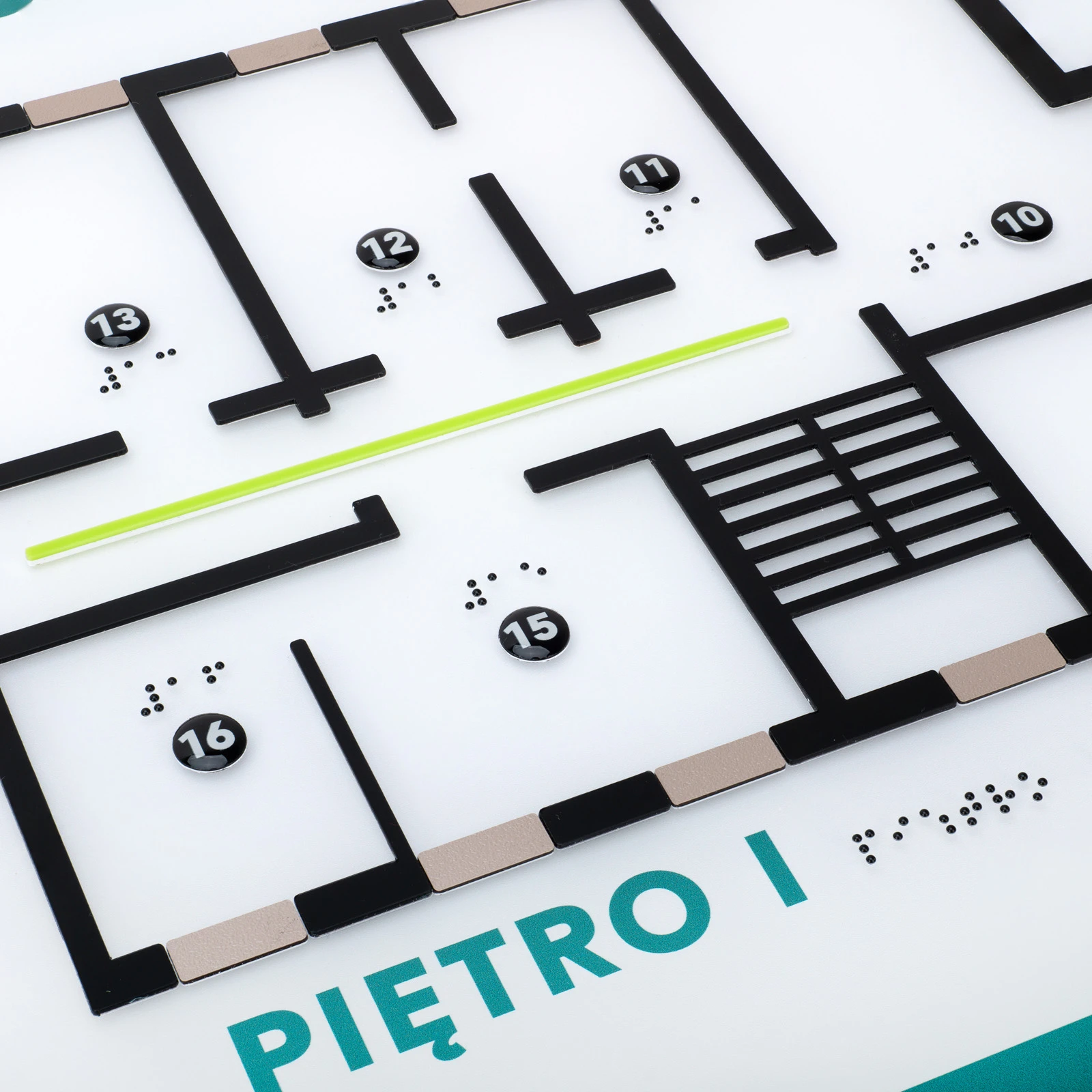

A large tiffographic board made of Plexiglas and ADA plastic. Tiflographic plans are especially useful for blind people to quickly orient themselves in an unfamiliar space. The presented board shows a complete plan of the city office: the walls of the rooms, stairs and landmarks are made of ADA plastic and acrylic. Windows are marked with rough textures laminate. The plan is detailed in Braille script. The colors used in the design are contrasting, which improves readability for the visually impaired. The UV print used is applied from the back so the content is resistant to abrasion and damage. Braille characters can be clearly felt under the fingertip thanks to the use of professional licensed braille balls hammered in CNC technology. In accordance with PZN recommendations, they are placed at a height of 0.5mm and have a base width of 1.5mm. The whole is mounted to the wall on six spacers made of silver-colored aluminum (optional).



Before implementation, we prepare a design (PDF file) and send it for approval to the indicated e-mail address. At the design stage, you can contact the graphic designer at any time. After accepting the project we proceed to production.



The presented price is for the execution of the board visible in the gallery. Feel free to contact our sales department by email or phone to receive a detailed quote.



dimensions: 880x630mm

materials:

- transparent plexiglass, extruded 5mm with printing on the back side

- ADA 1mm plastic in black, red, blue, yellow - recessed to a depth of 0.2mm

- laminate textures 3mm in cappucino color - windows

- light green acrylic 3mm - traffic line

- black and white Braille beads scored using CNC technology

- 6 aluminum spacers with a diameter of 13mm (option)



Deadline for completion of the order from 7 to 14 working days counted from the moment of approval of the project, which we send in the form of a pdf file.



GALLERY SHOWS SELECTED PHOTOS FROM ORDER REALIZATION



Boards are made on the basis of submitted building plans, evacuation plans in vector format (ai, eps, cdr, pdf files). On their basis we make an individual quote.



We will be happy to answer your questions by email or phone
