Tactile Map with Braille Script - Plexi and ADA - Size: 615x400mm - TAB484

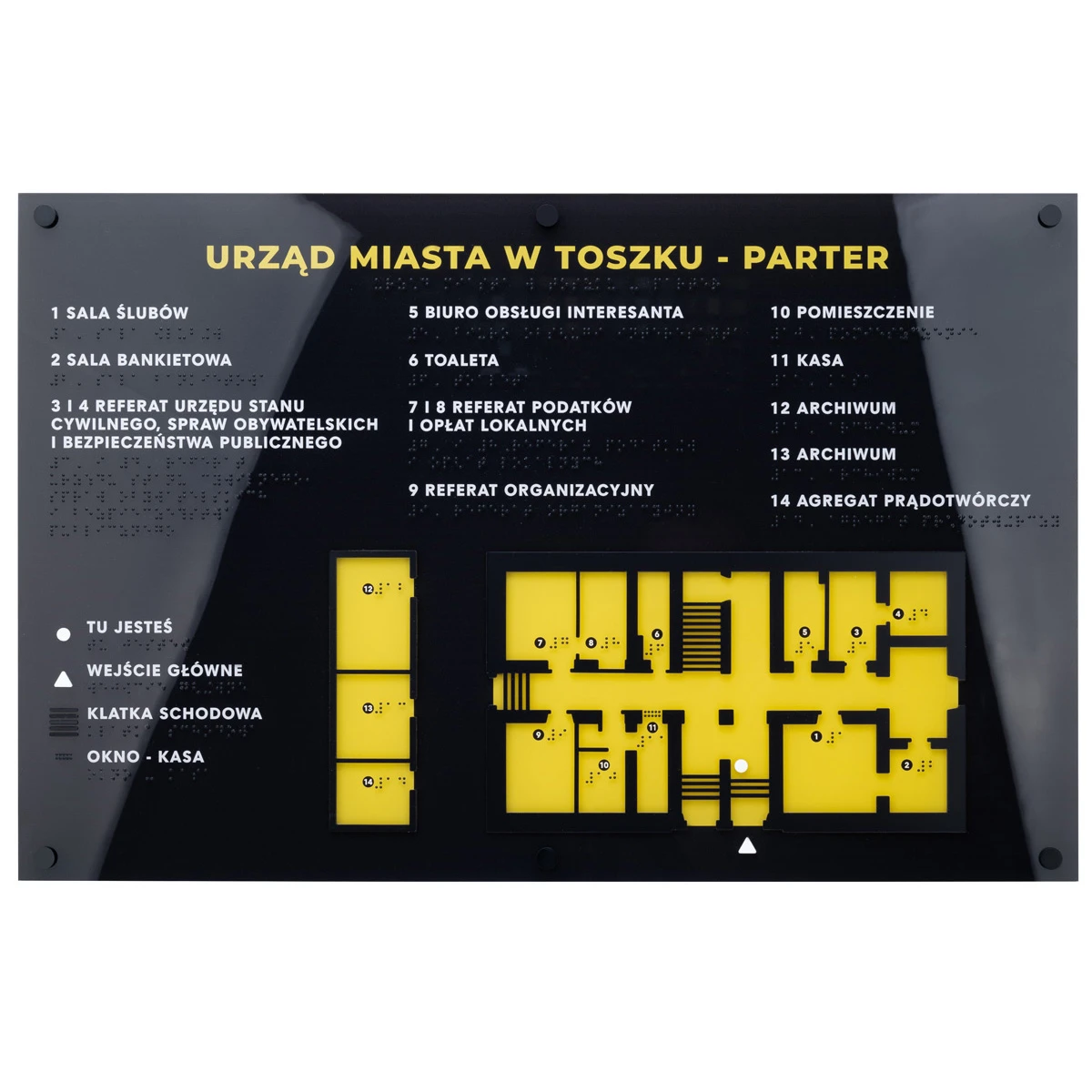

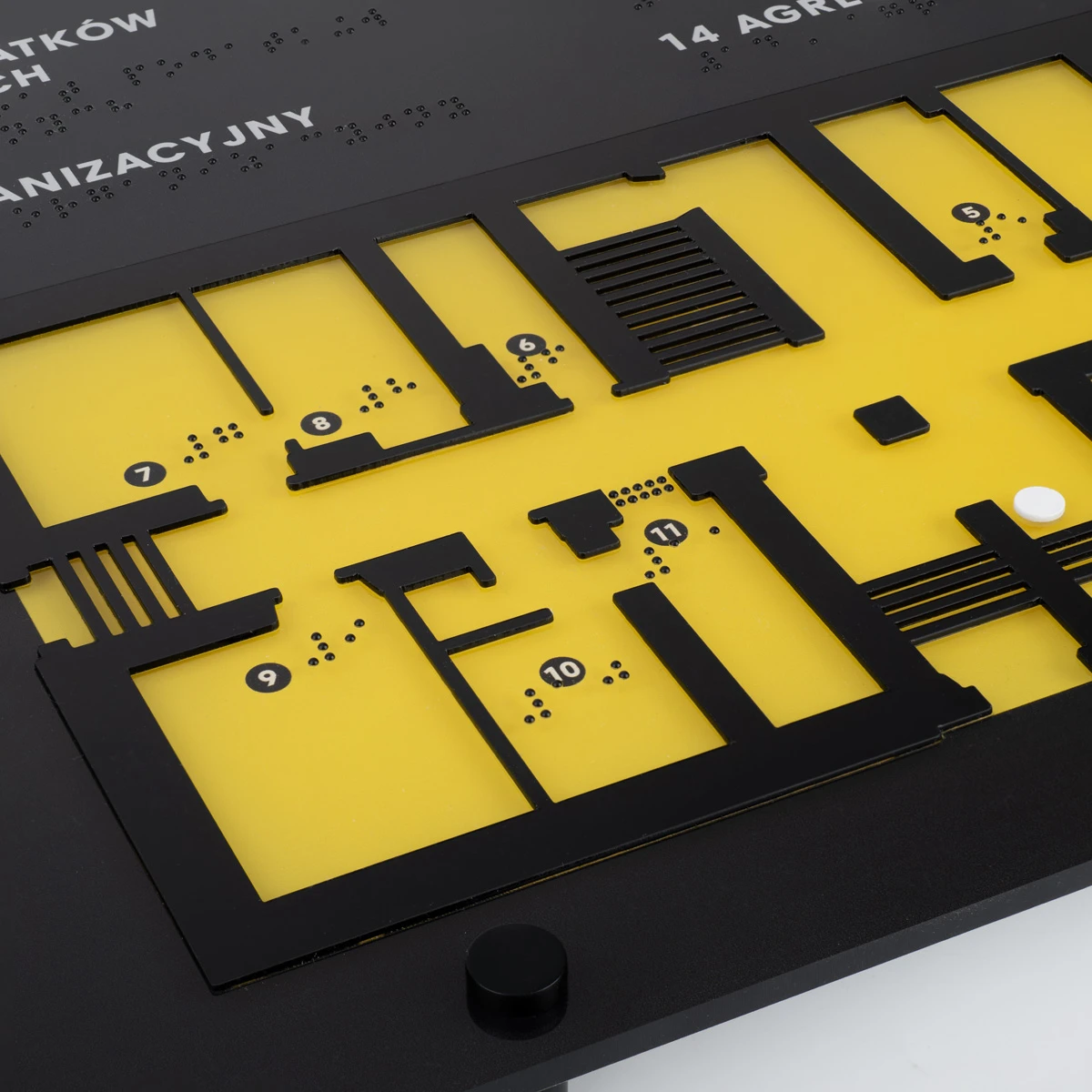

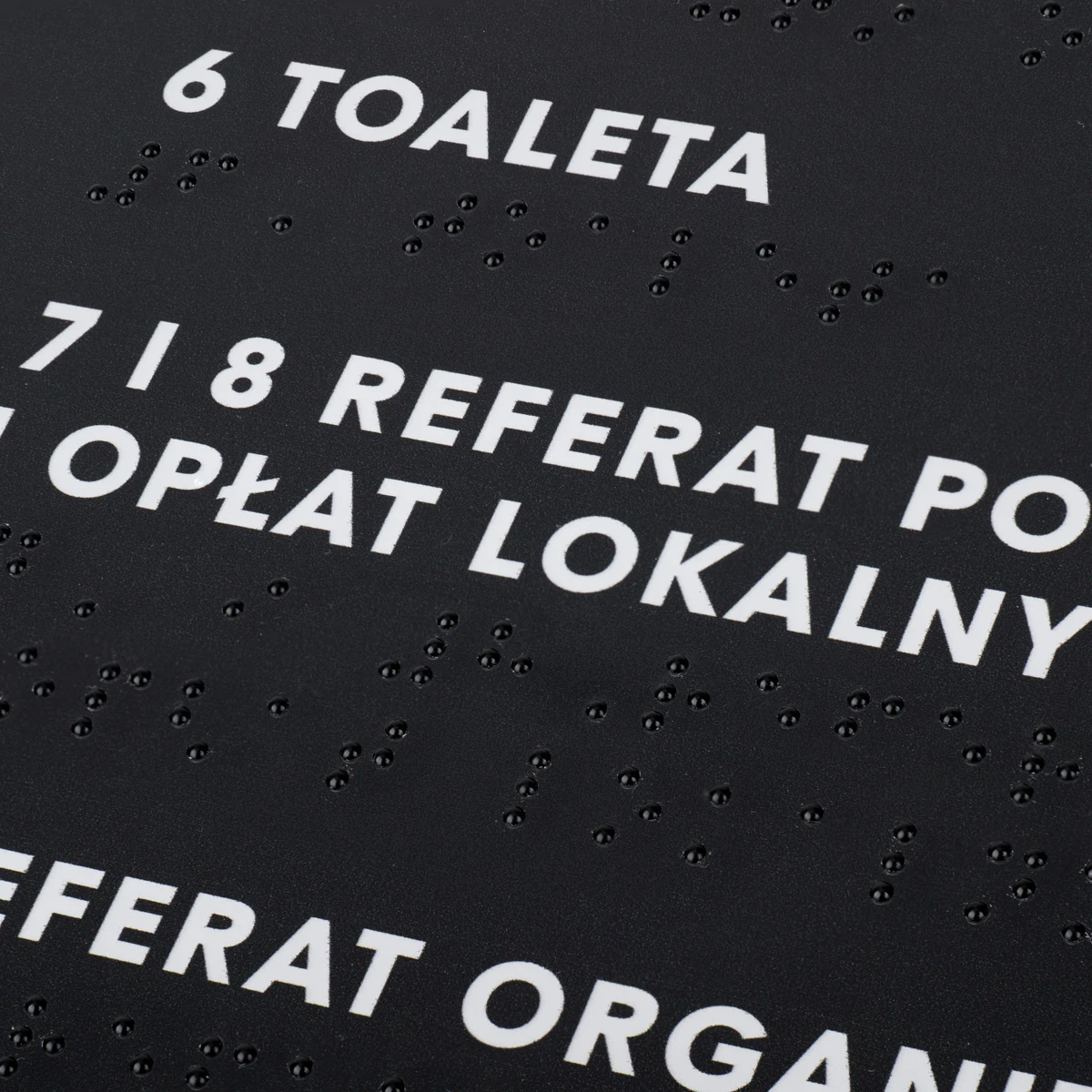

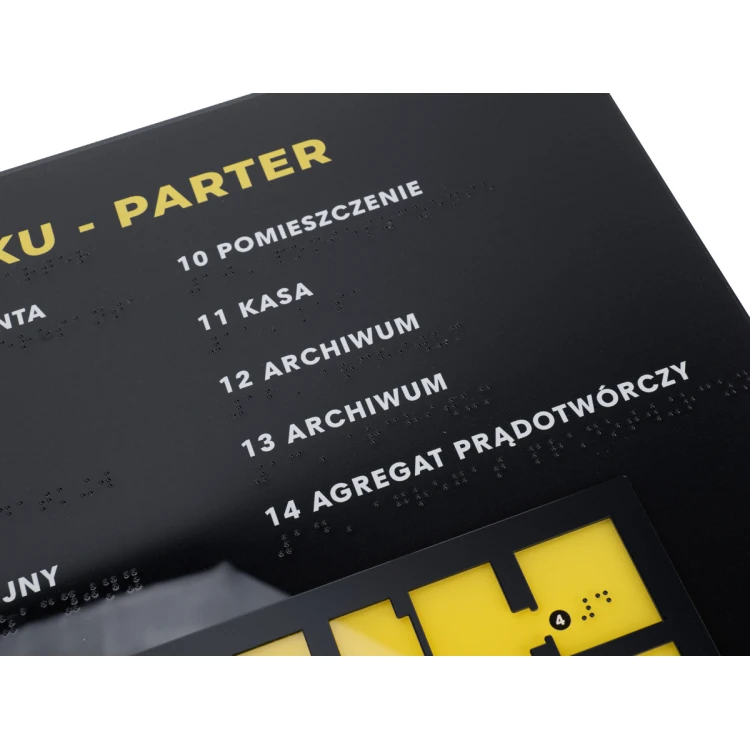

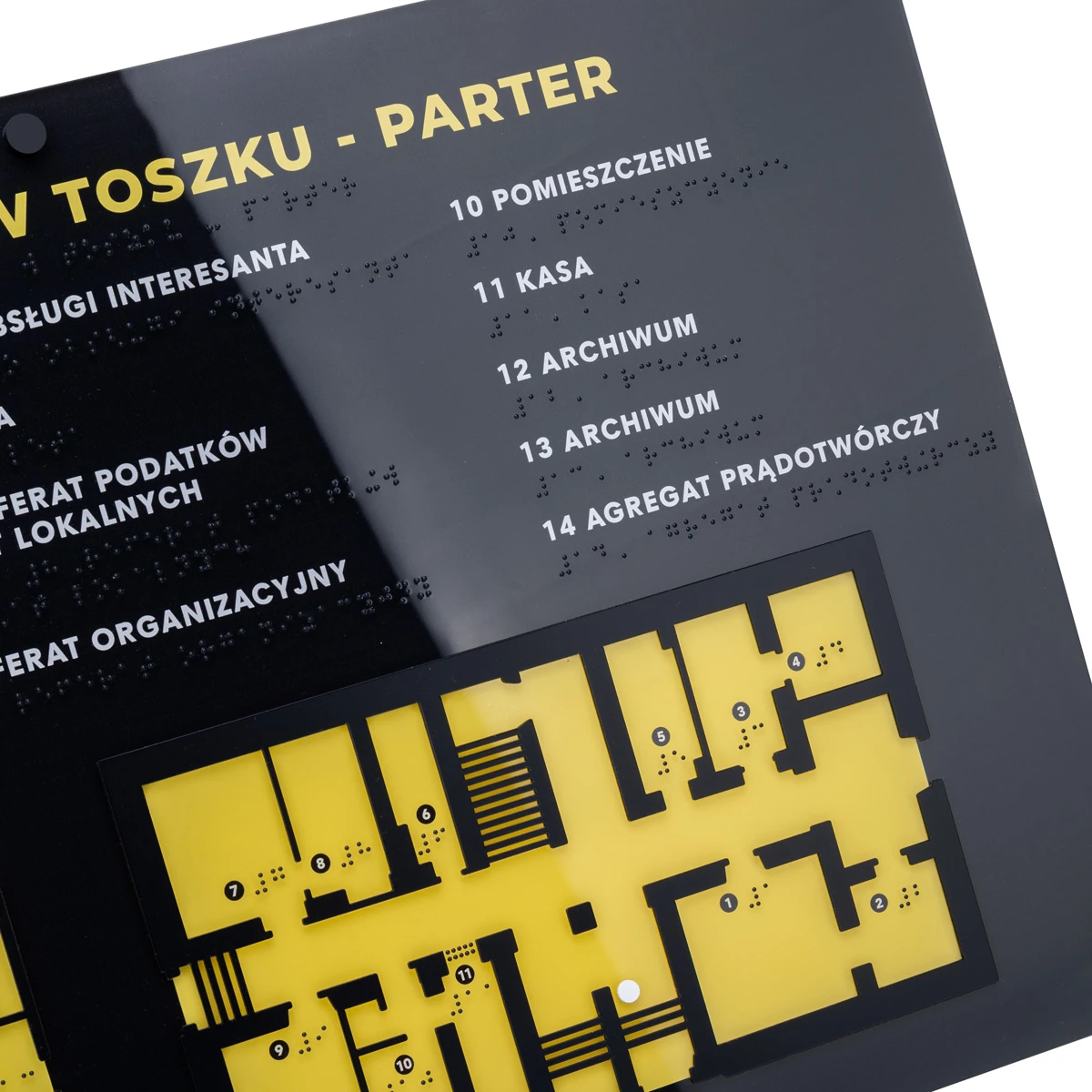

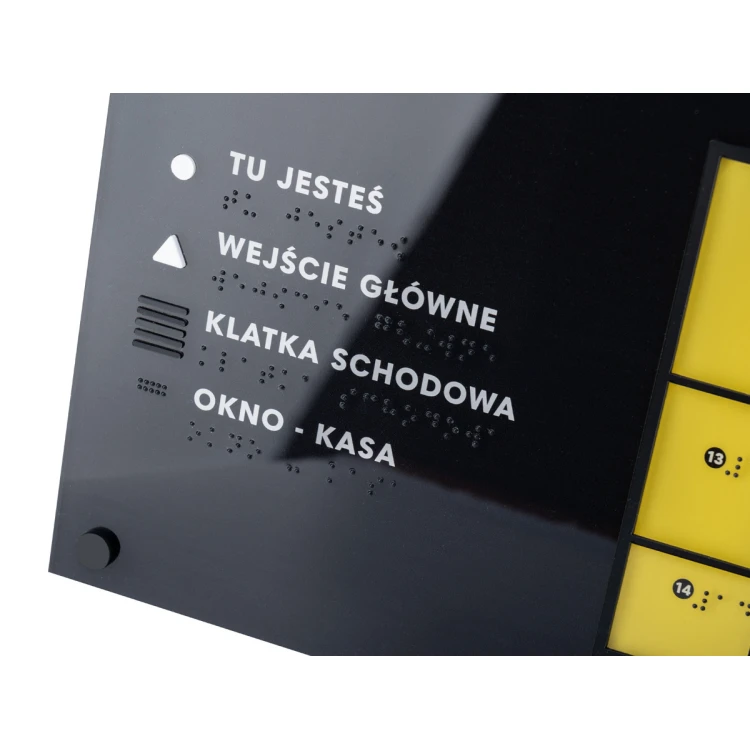

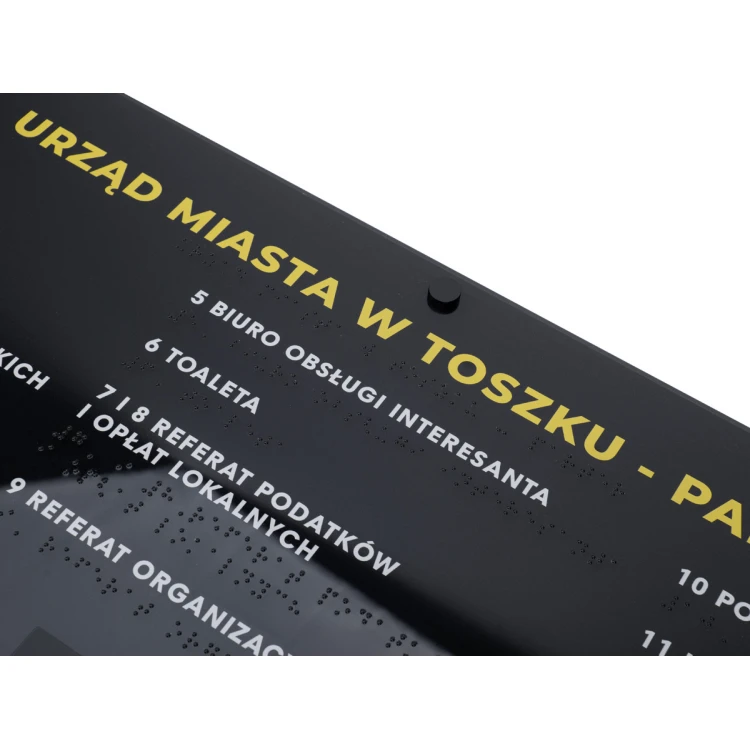

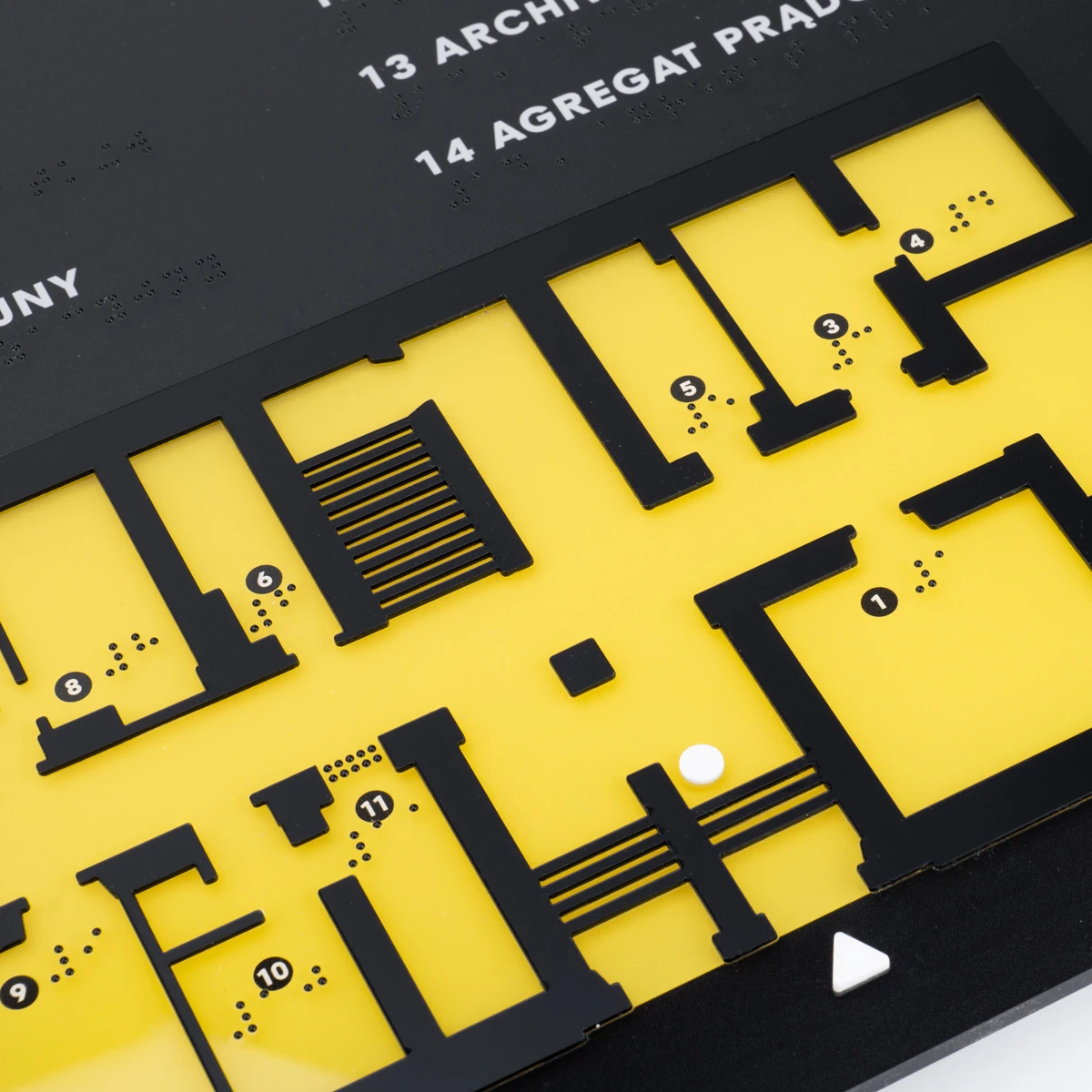

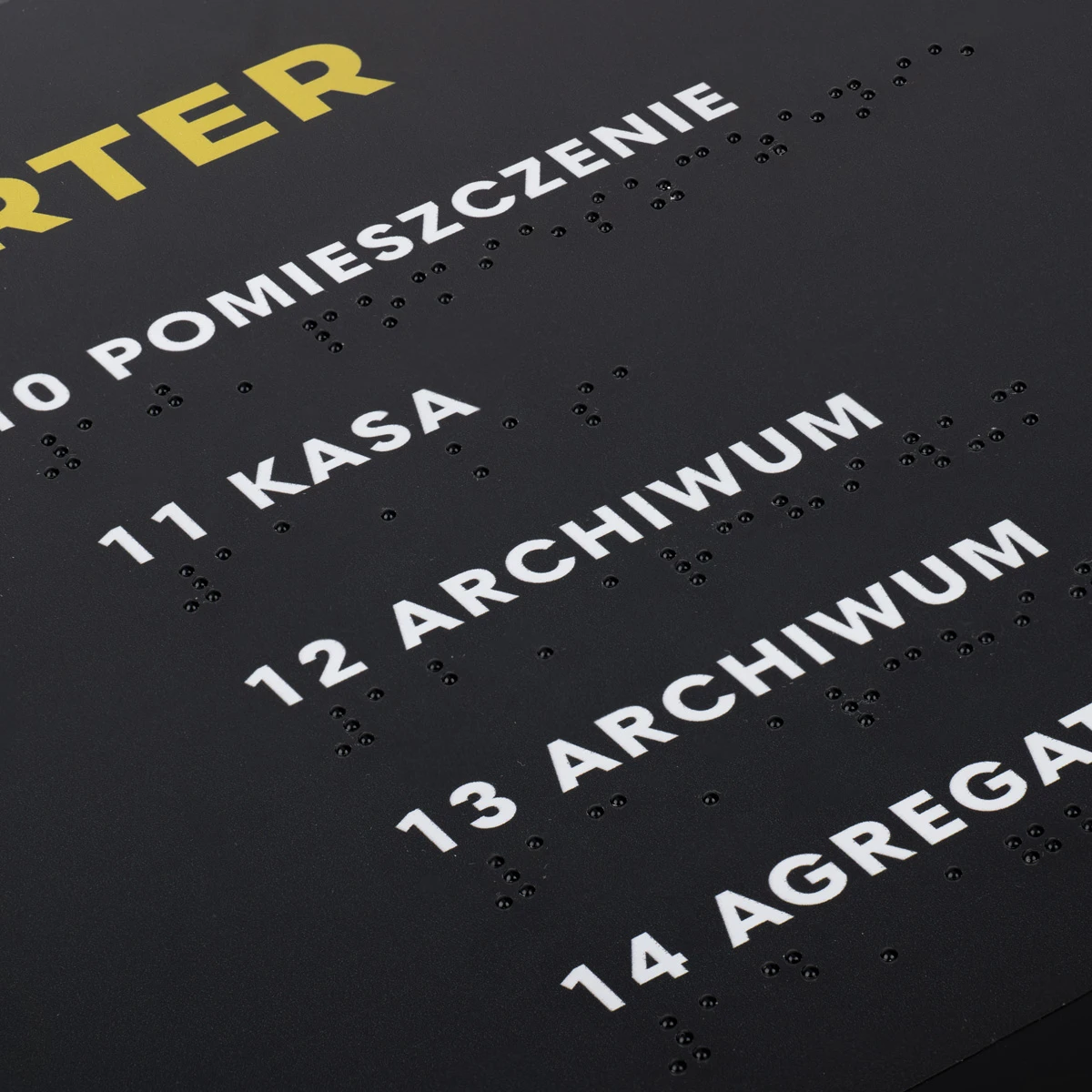

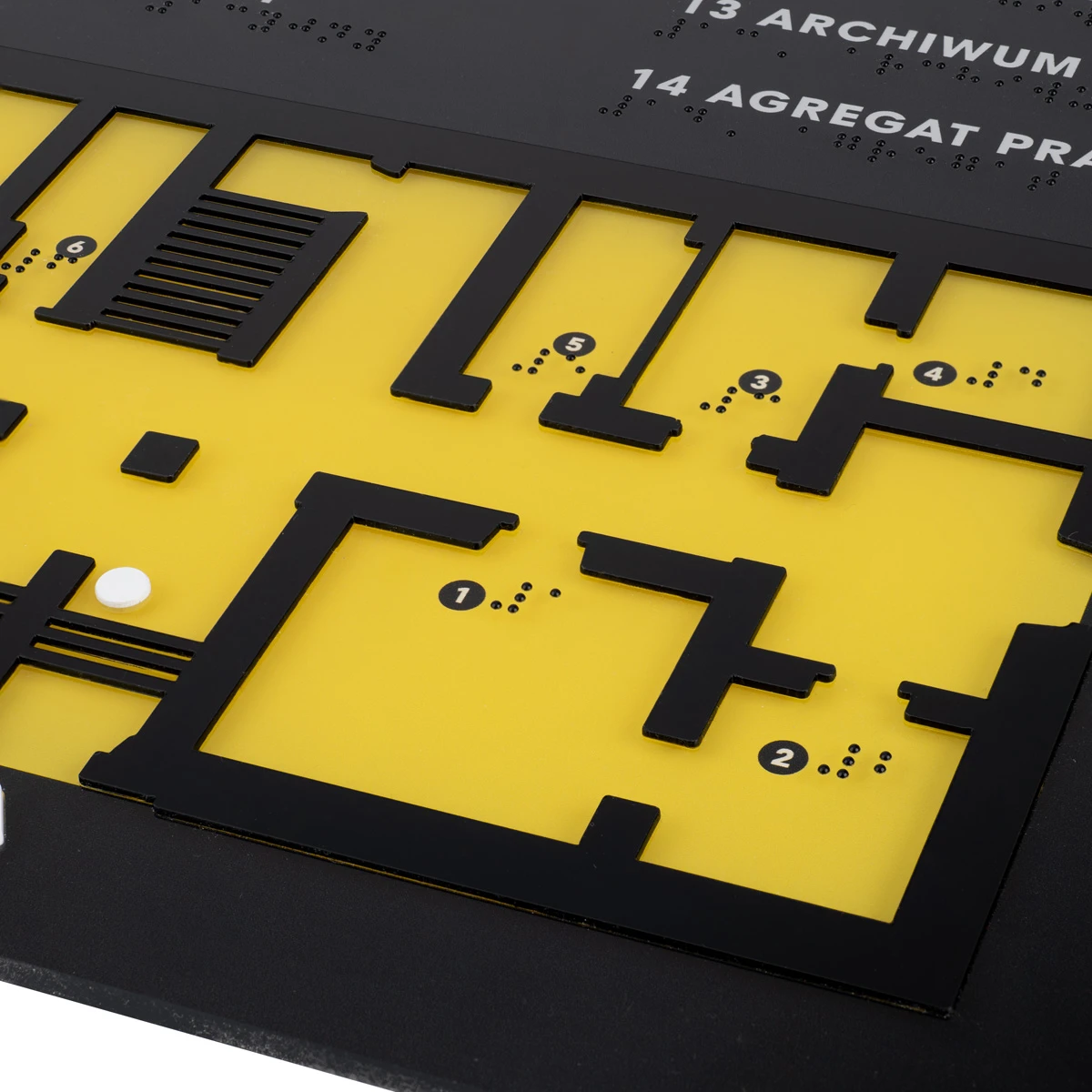

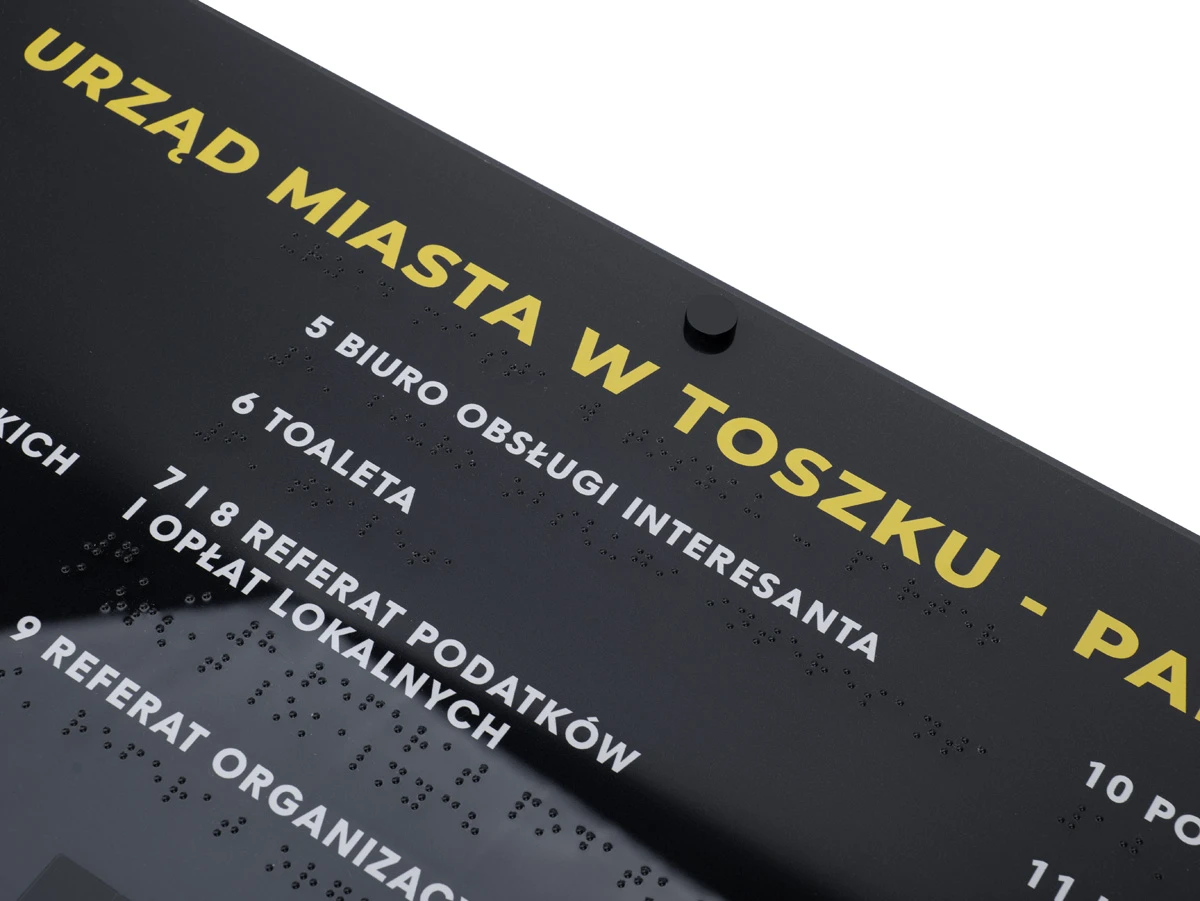

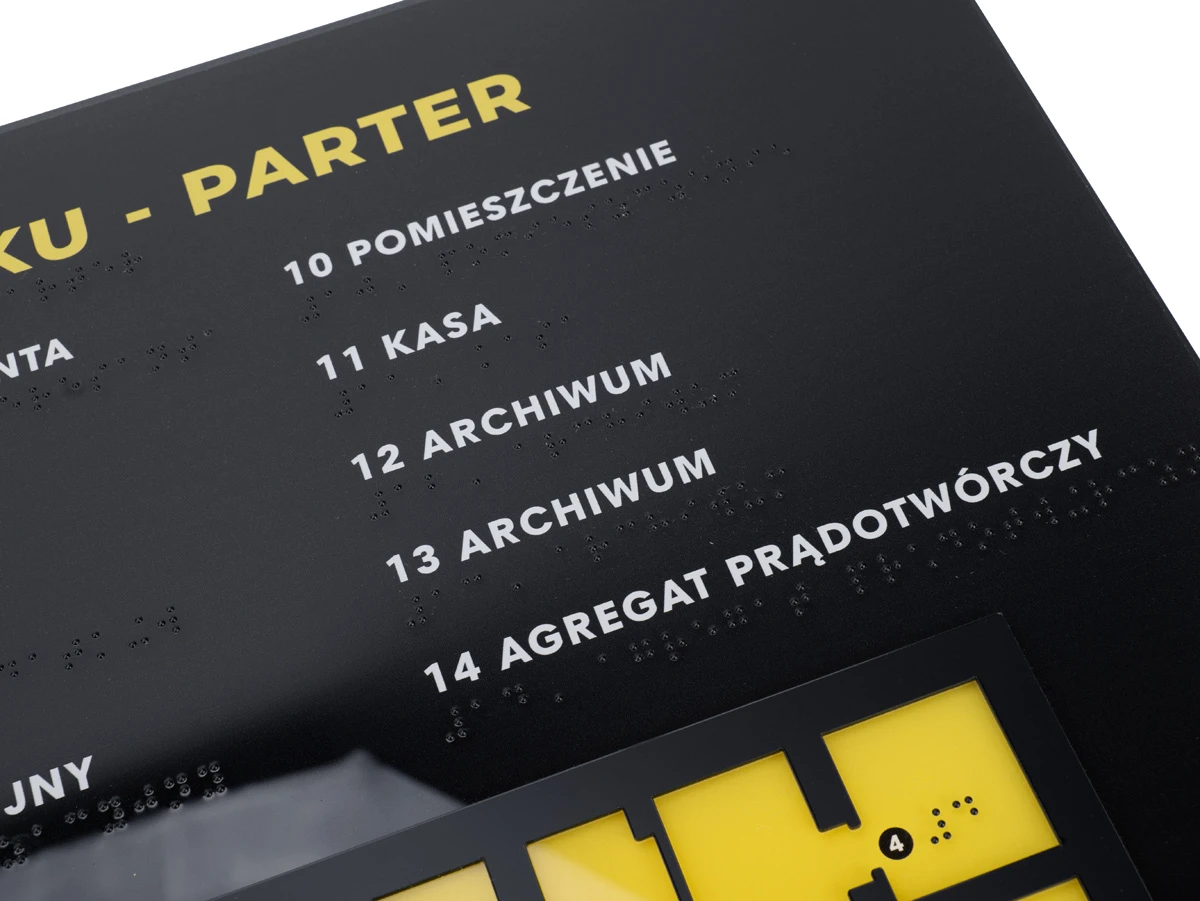

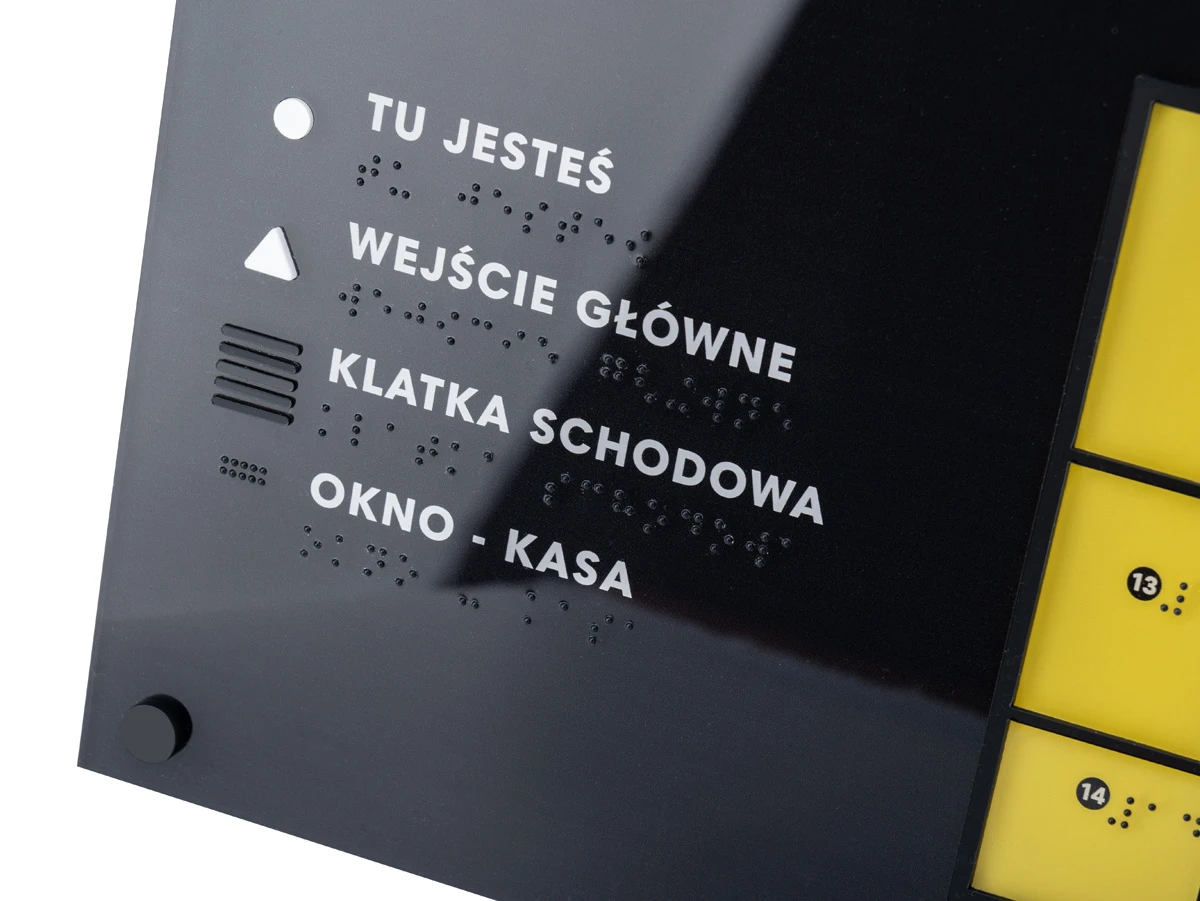

Large tyflographic board made of Plexiglas and ADA plastic . Tiflographic plans are especially useful for blind people to quickly orient themselves in an unfamiliar space. The presented board shows a complete plan of a single floor: the walls of the rooms, stairs and landmarks are made of ADA plastic and white acrylic. The plan is described in detail in Braille script. The colors used in the design are contrasting, which improves readability for the visually impaired. The UV printing used is applied from the back so the content is resistant to abrasion and damage. Braille characters can be clearly felt under the fingertip thanks to the use of professional licensed braille balls hammered in CNC technology. In accordance with PZN recommendations, they are placed at a height of 0.5mm and have a base width of 1.5mm. The whole is mounted to the wall on six distances made of aluminum in black (optional).



Before implementation, we prepare a design (PDF file) and send it for approval to the indicated e-mail address. At the design stage, you can contact the graphic designer at any time. After accepting the project we proceed to production.





dimensions: 615x400mm

- transparent, extruded plexiglass 5mm with dark gray and yellow printing on the back side

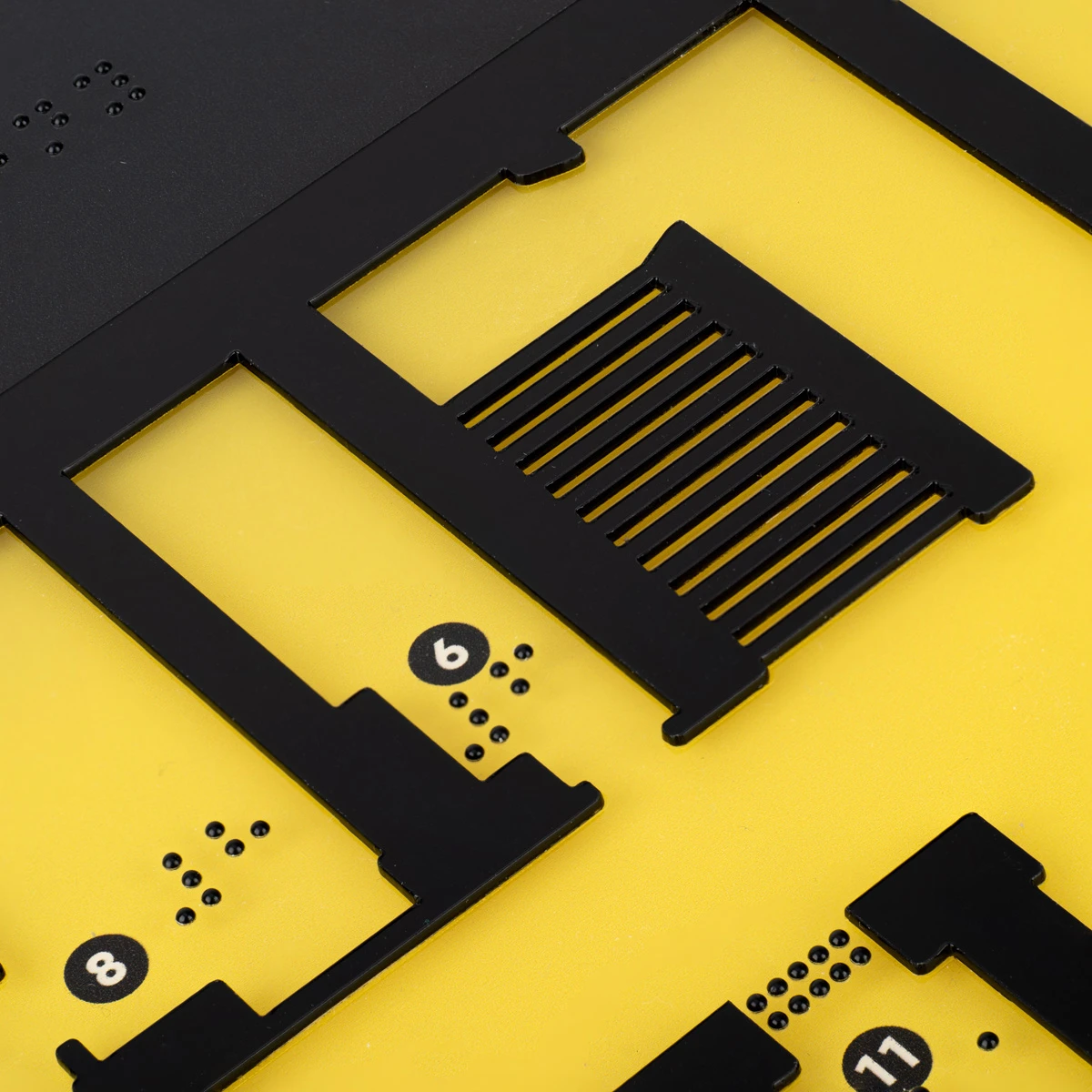

- ADA plastic 1mm in black (matte) recessed 0.2mm deep - stairs and walls

- white acrylic 3mm recessed to a depth of 2mm - landmarks

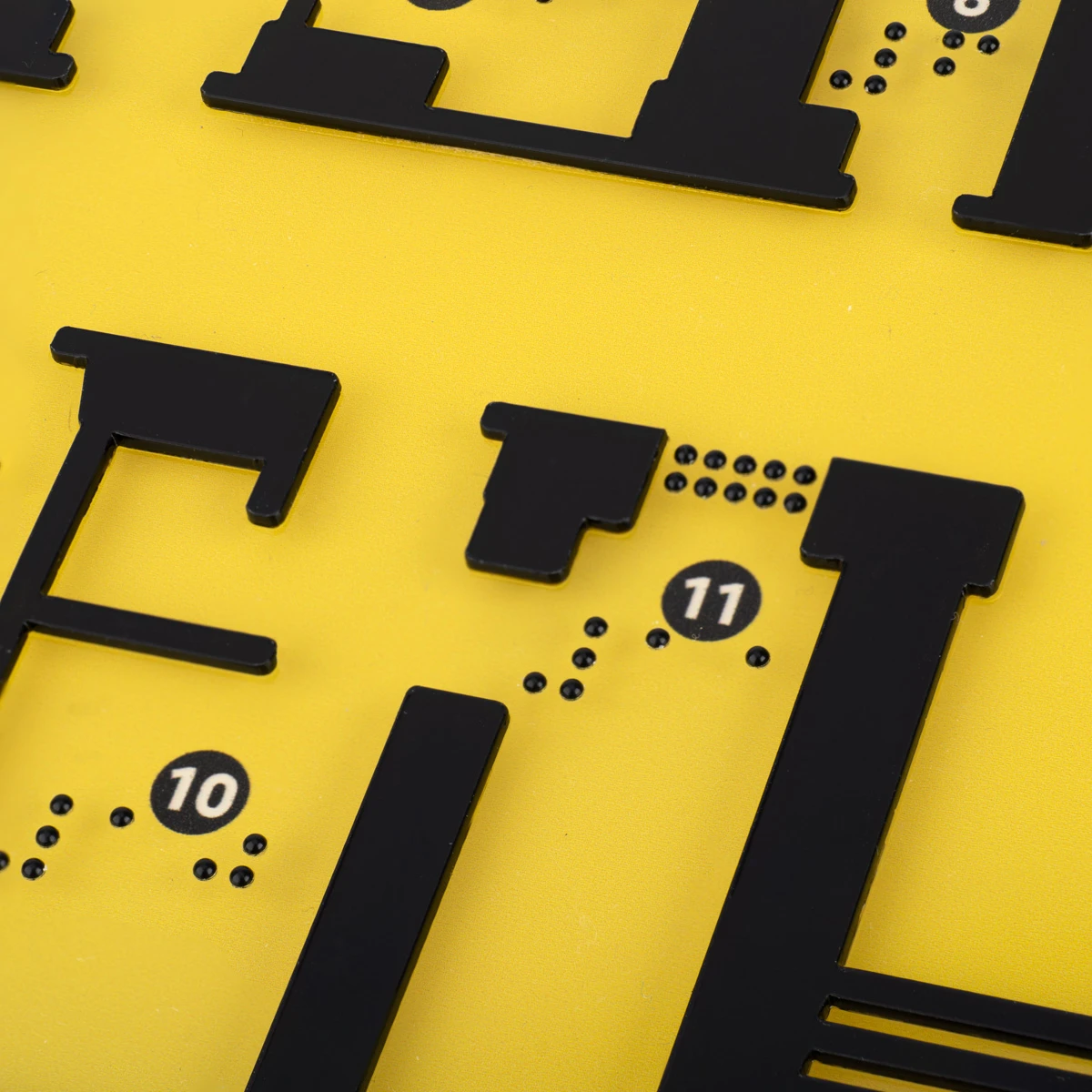

- black Braille beads scored using CNC technology

- 6 aluminum spacers with a diameter of 13mm (optional)



Deadline for completion of the order from 7 to 14 working days counted from the moment of approval of the project, which we send in the form of a pdf file.







We will be happy to answer your questions by email or phone
