Braille tile plan - ADA plastic, laminate and acrylic - Dimension 297x210mm - TAB587

Braille tile plan - ADA plastic, laminate and acrylic - Dimension 297x210mm - TAB587

Price: 775,28 EUR/ pc

DELIVERY TIME: 7 to 14 days production time depending on the volume ordered, the complexity of the project and the time taken to prepare and approve designs.
Express engraving in 3 days the fastest in the world
Call and learn more 888 999 002

Product description

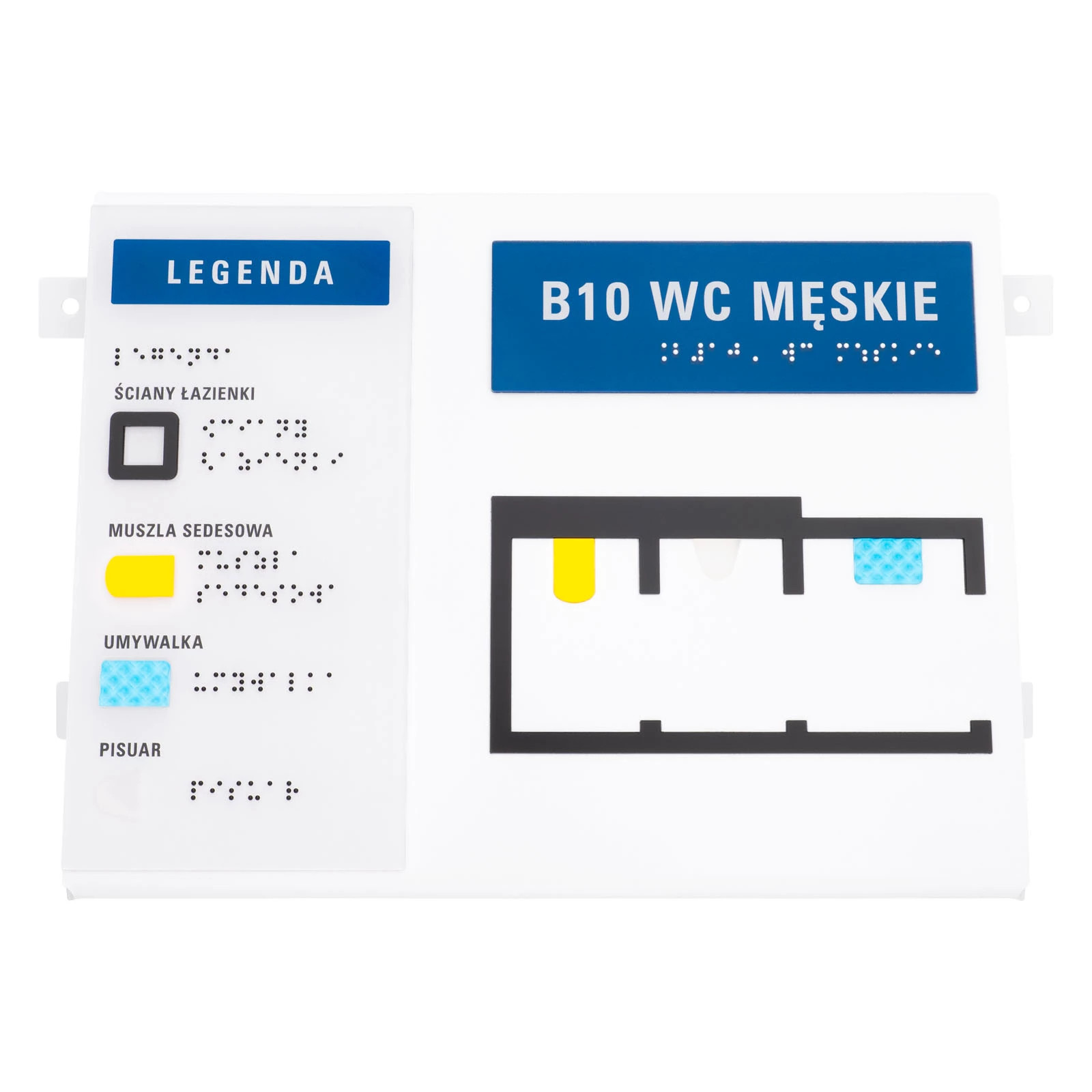

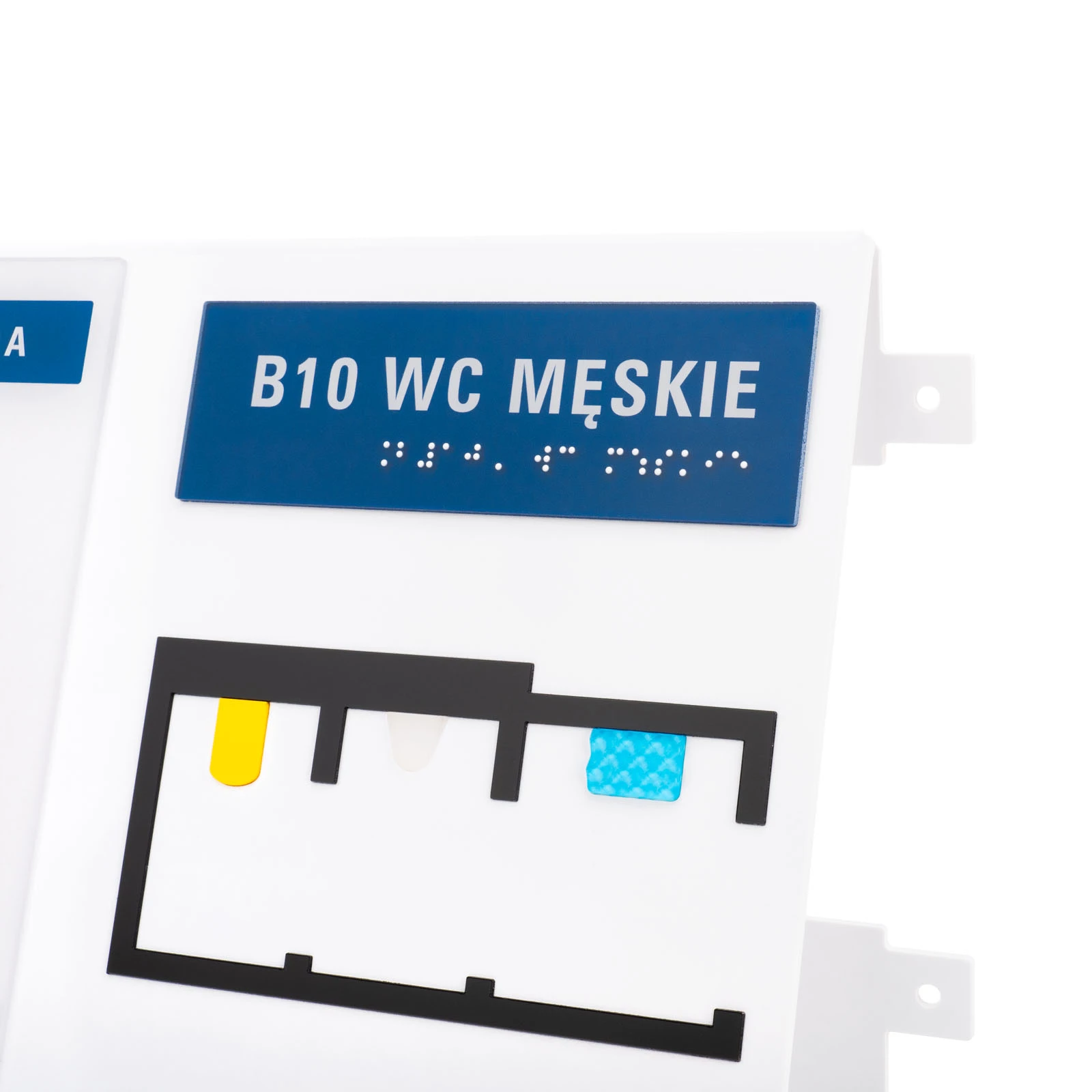

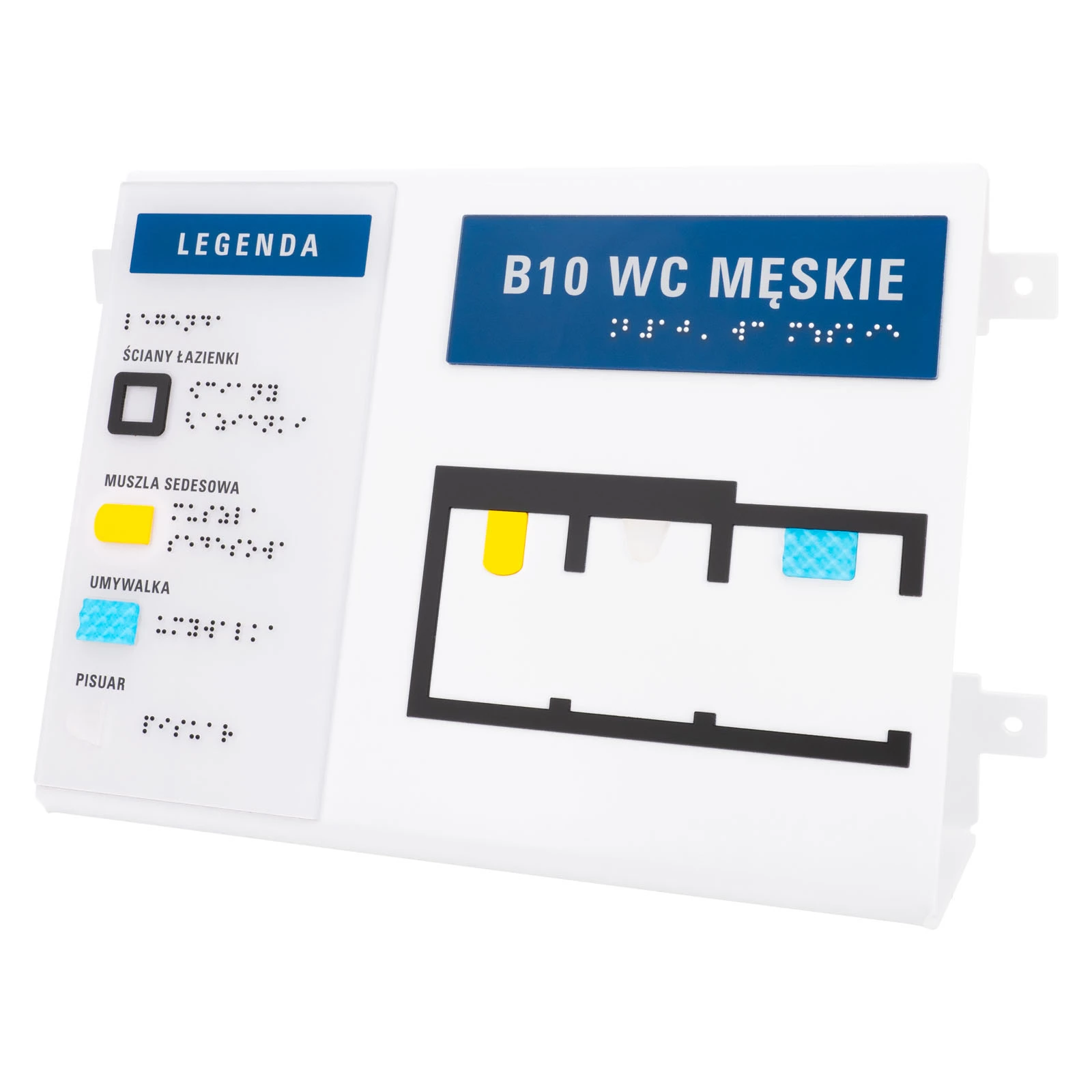

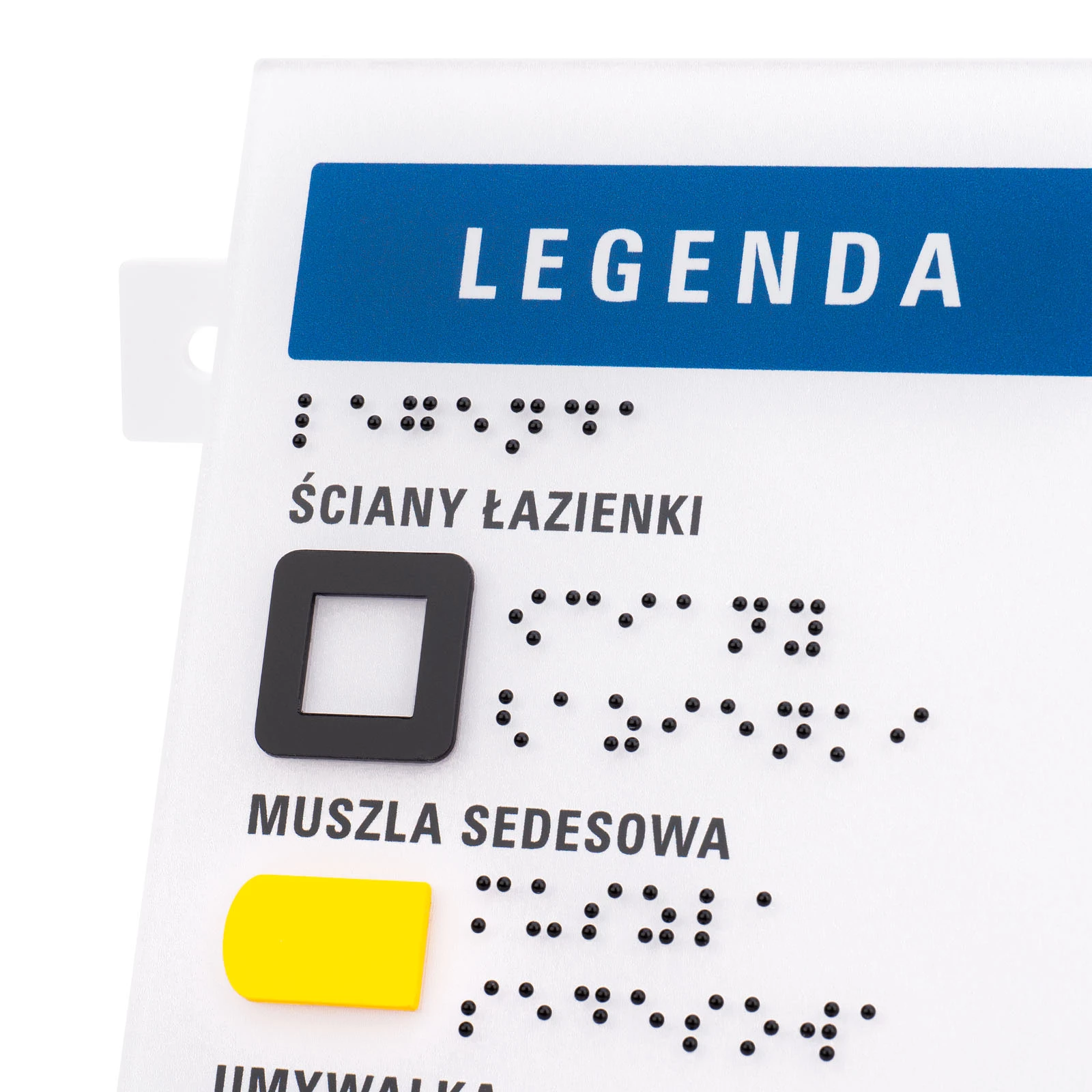

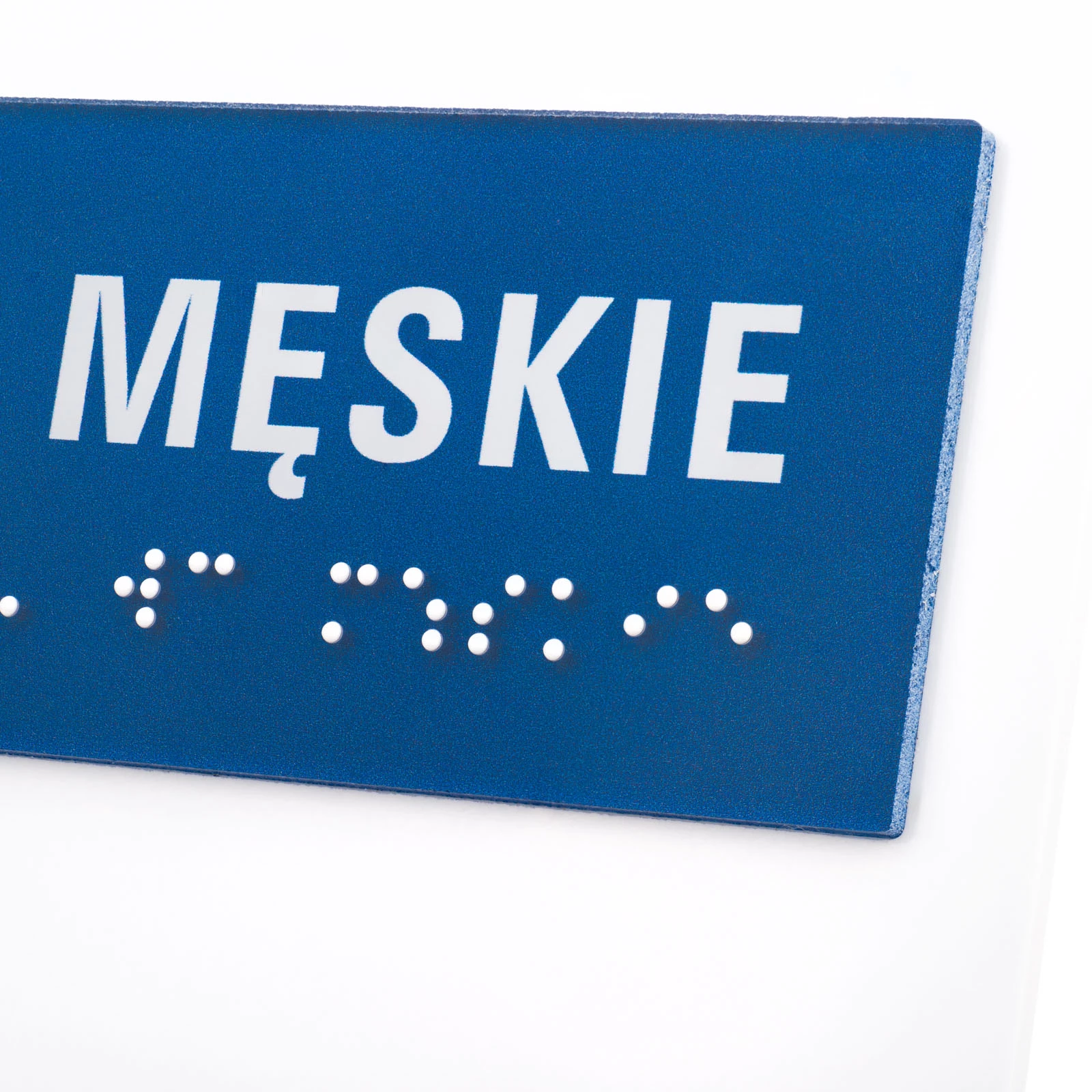

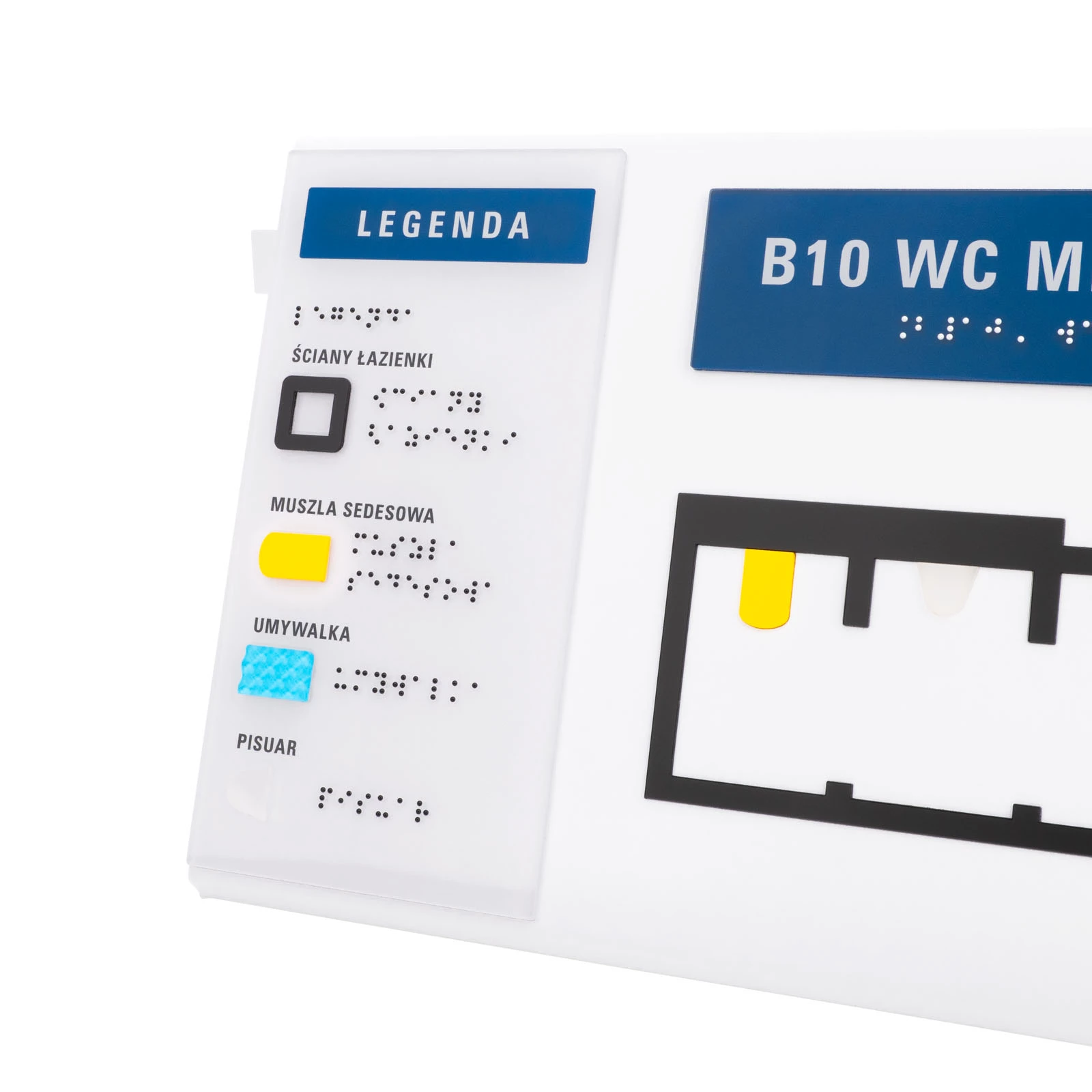

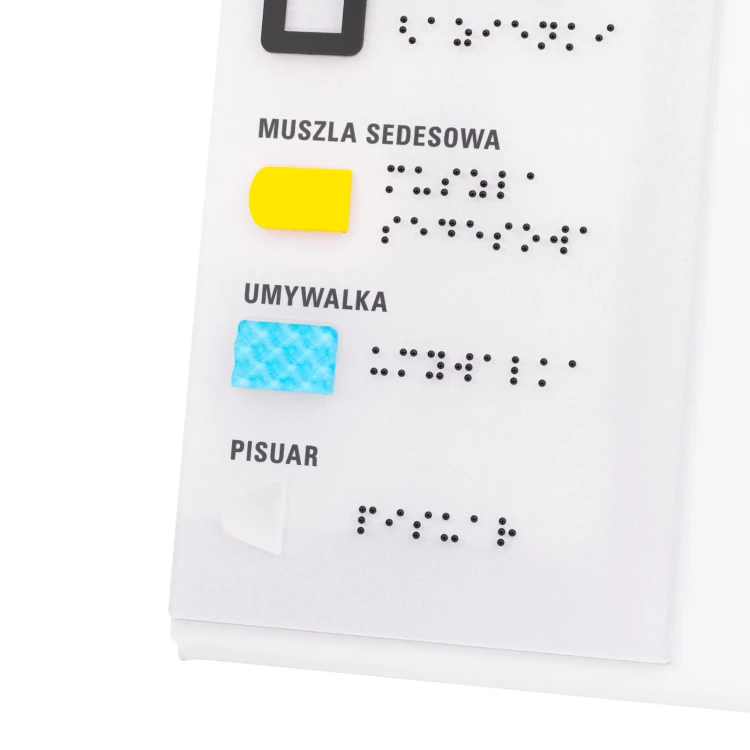

A typhographic plan with Braille applied provides a comprehensive solution for free movement in space. Each tyflographic plan is customised to the individual needs and preferences of the client. The base of the plan is white PVC, 3 mm thick and approximately 80 mm deep. The base of the legend is 3 mm thick grey acrylic with ADA, laminate and acrylic elements. The plan is described in detail using Braille. The colours used in the design are contrasting, improving legibility for the visually impaired. Braille characters can be clearly felt under the finger thanks to the use of professional licensed Braille balls hammered in using CNC technology. In accordance with PZN recommendations, they are positioned at a height of 0.5 mm and have a base width of 1.5 mm. The whole is designed for self-assembly.

Before realisation, we prepare the design (PDF file) and send it for approval to the indicated e-mail address. You can contact the graphic designer at any time during the design phase. Once the project is approved, we begin production.

The presented price concerns the board visible in the gallery. Please feel free to contact our sales department by email or phone for a detailed quote.

Dimensions:

- width: 297 mm

- height: 210 mm

- depth: ≈ 80 mm

Materials:

- white 3 mm PVC with a depth of approx. 80 mm

- acrylic grey 3 mm (base of legend)

- ADA plastic 1 mm black (walls)

- ADA plastic 1 mm yellow (toilet bowl)

- Transparent acrylic 2.8 mm with blue print (wash basin)

- Transparent acrylic 1.6 mm with grey print (urinal)

- laminate blue 1.6 mm

Braille ball colours: black and white

Order realization time from 7 to 14 working days counted from the moment of accepting the project, which we send as a pdf file.

We produce the signs on the basis of submitted building plans, evacuation plans in vector format (ai, eps, cdr, pdf files). We produce an individual quotation based on these.

We will be happy to answer your questions by email or telephone
