Braille plan with Braille - Hard PVC, ADA plastic and acrylic - Dimension 475x320 mm - TAB666

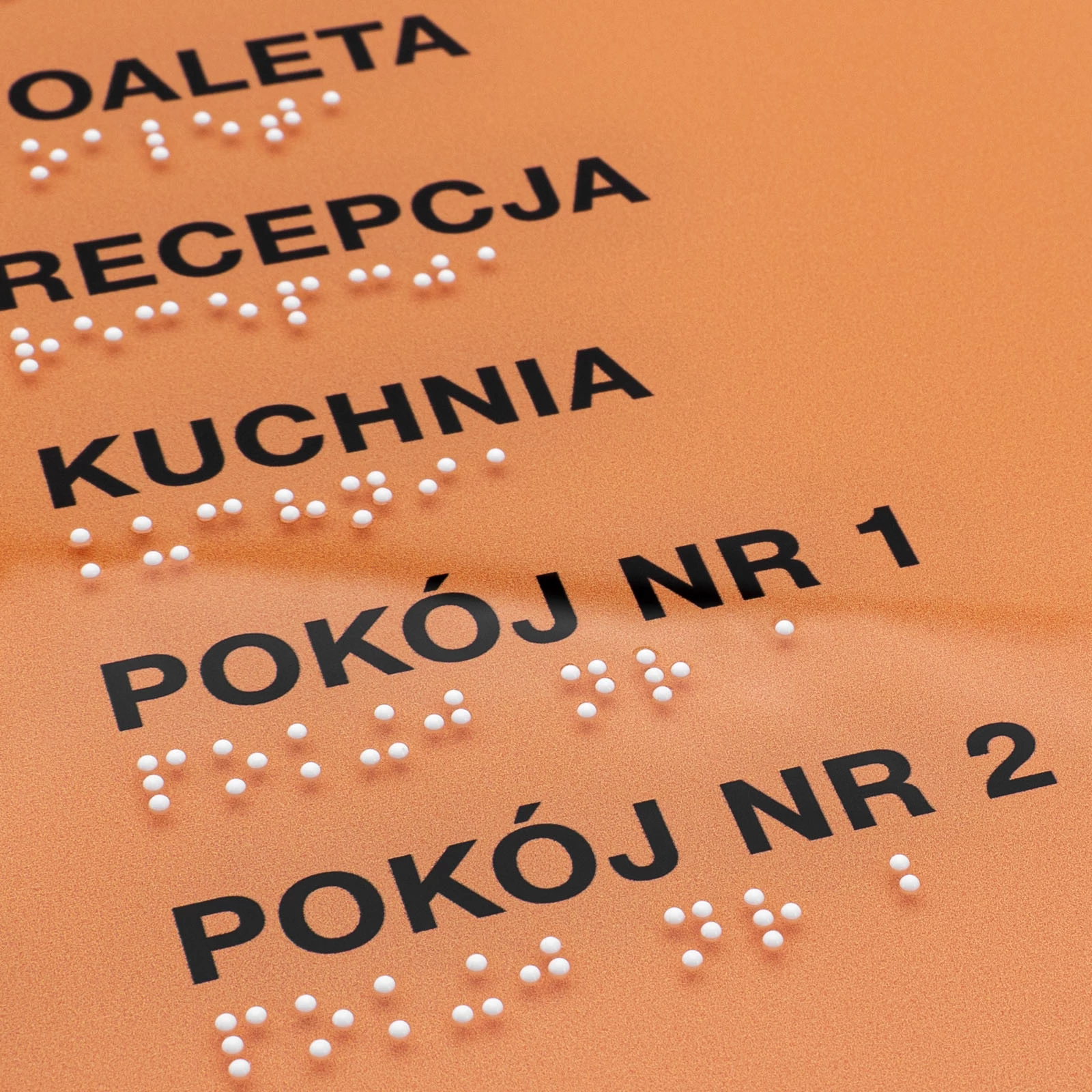

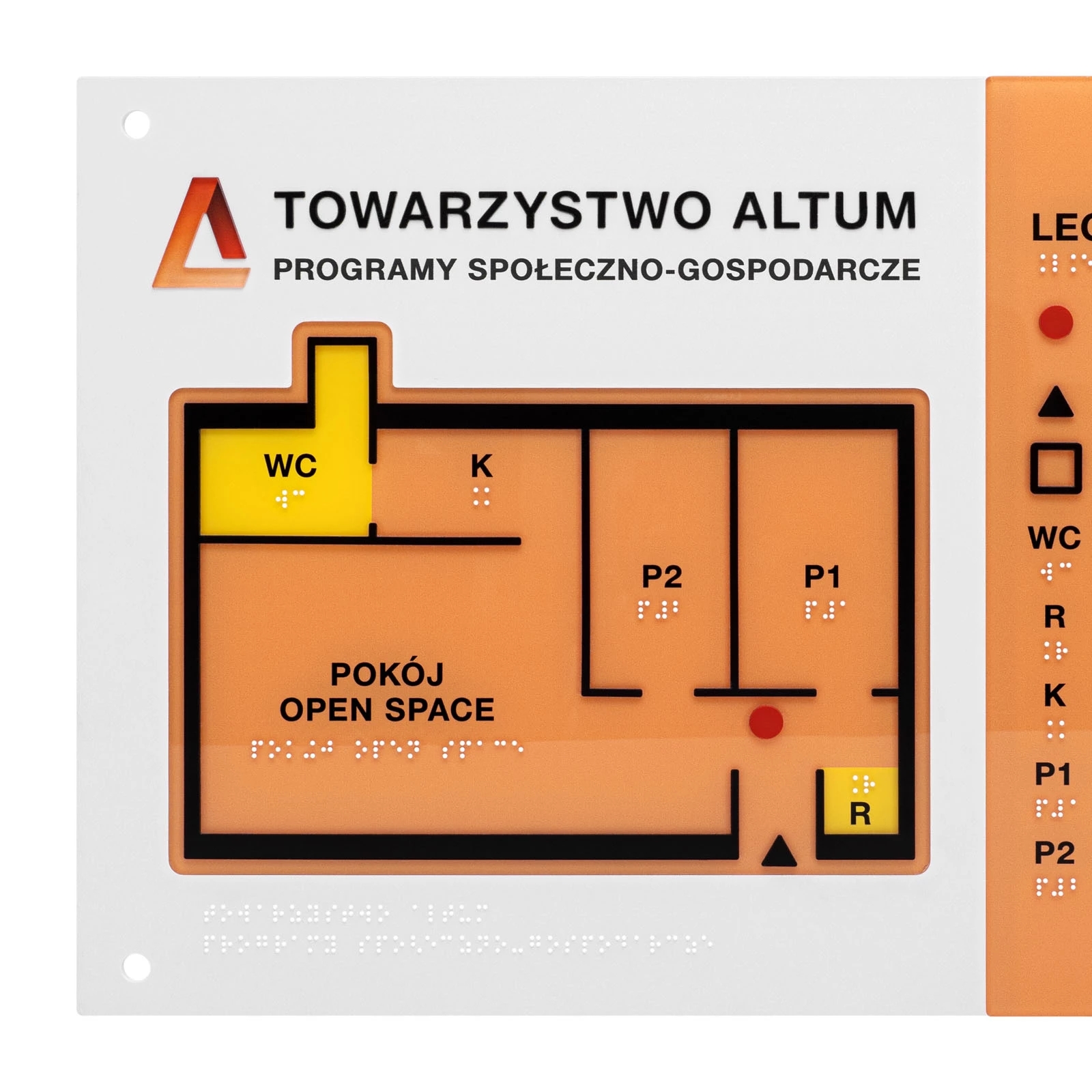

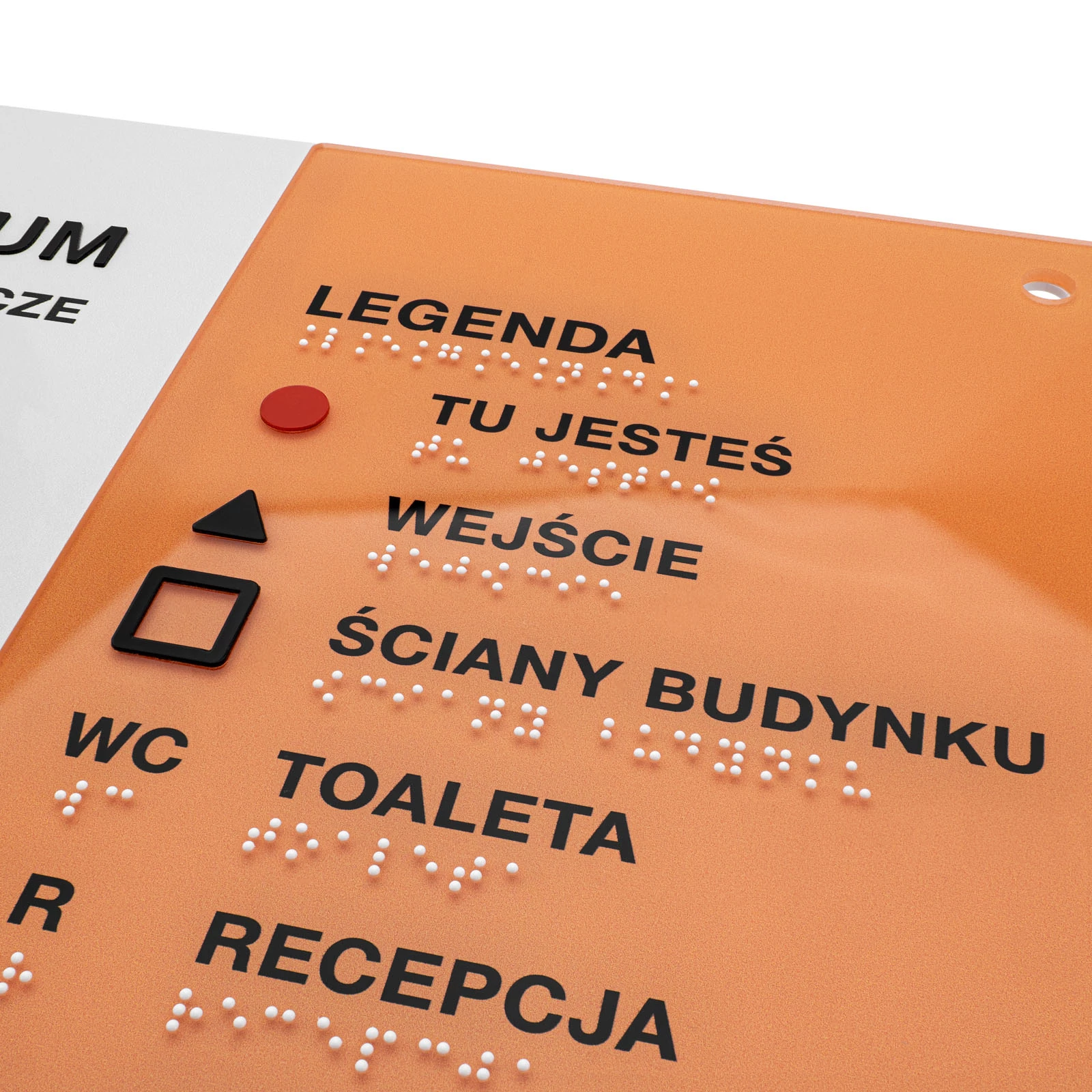

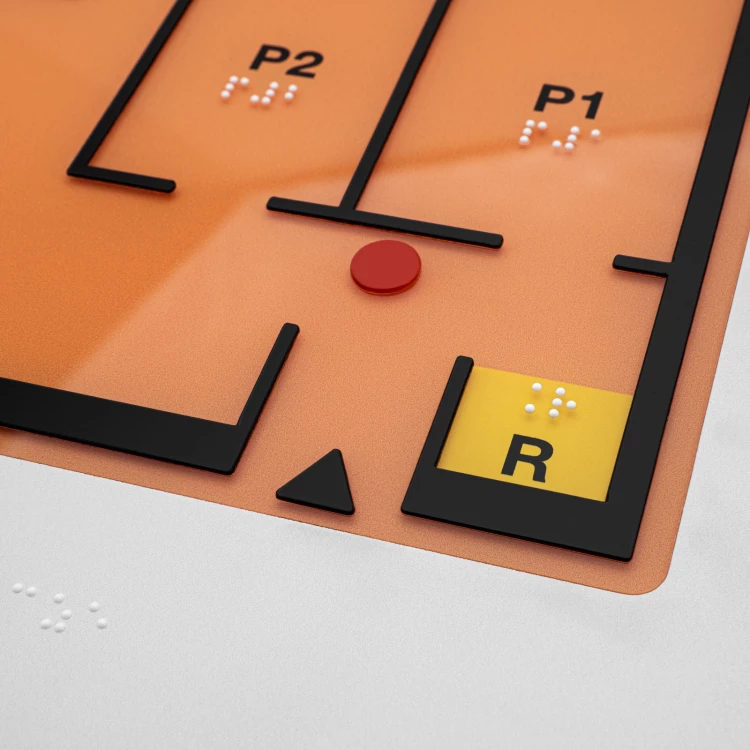

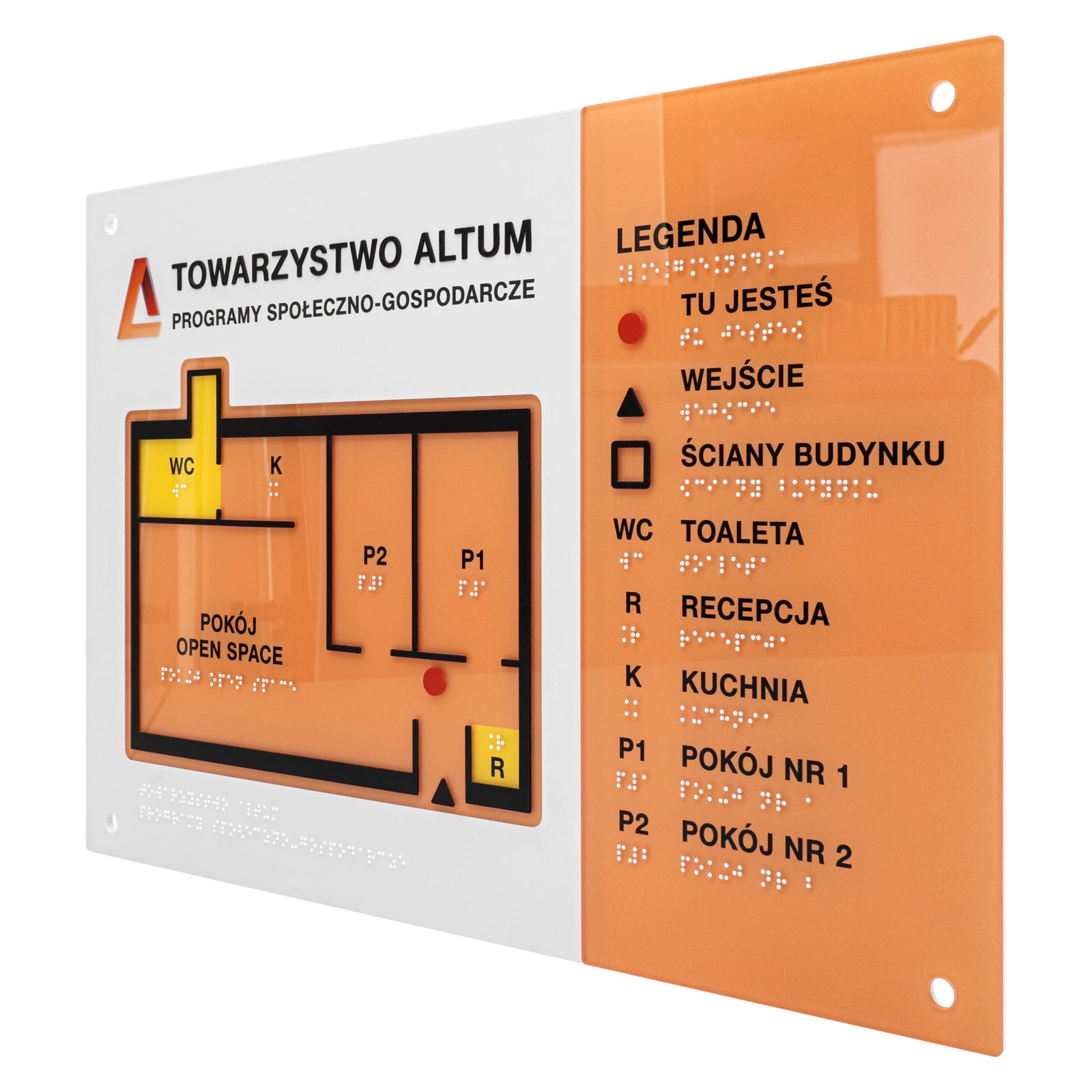

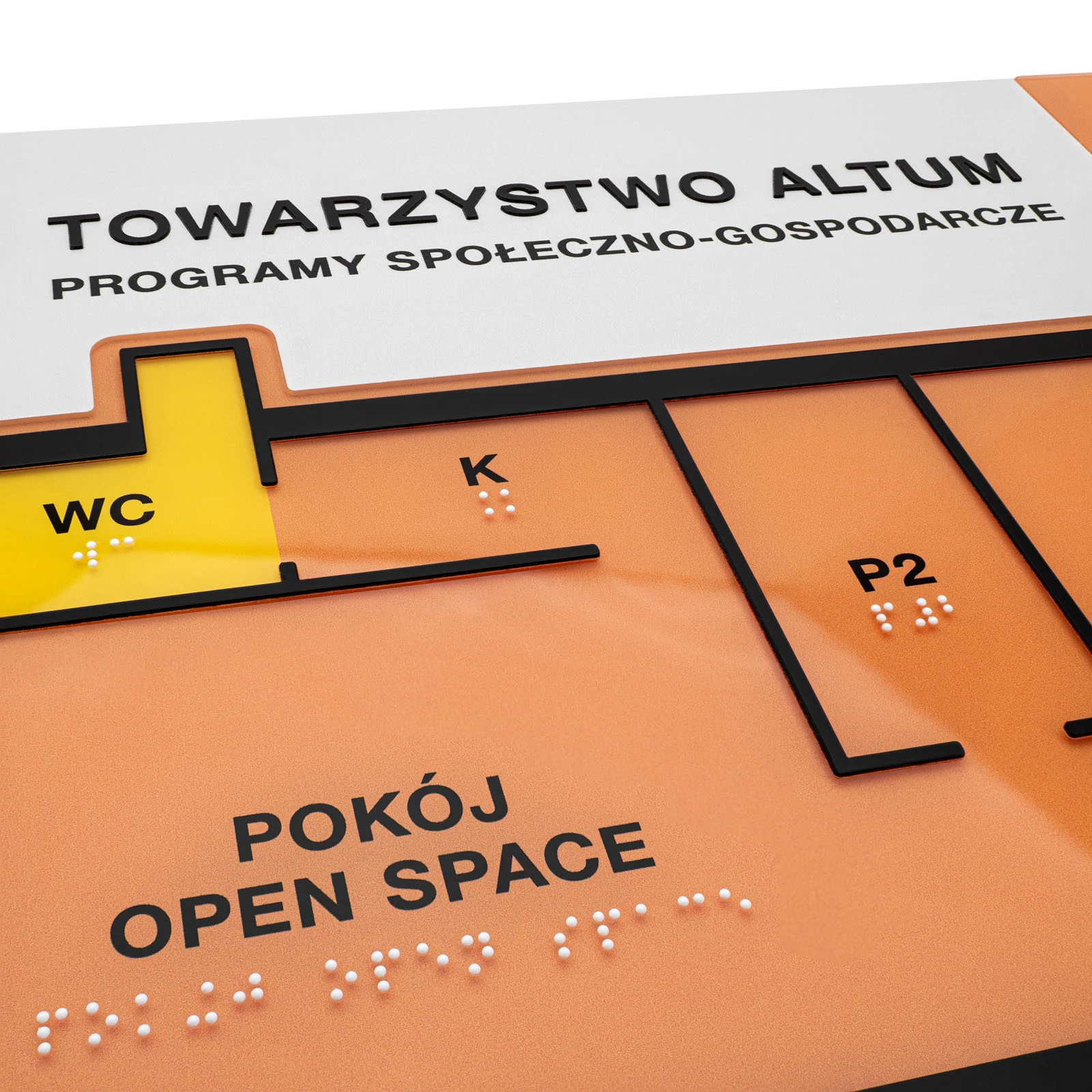

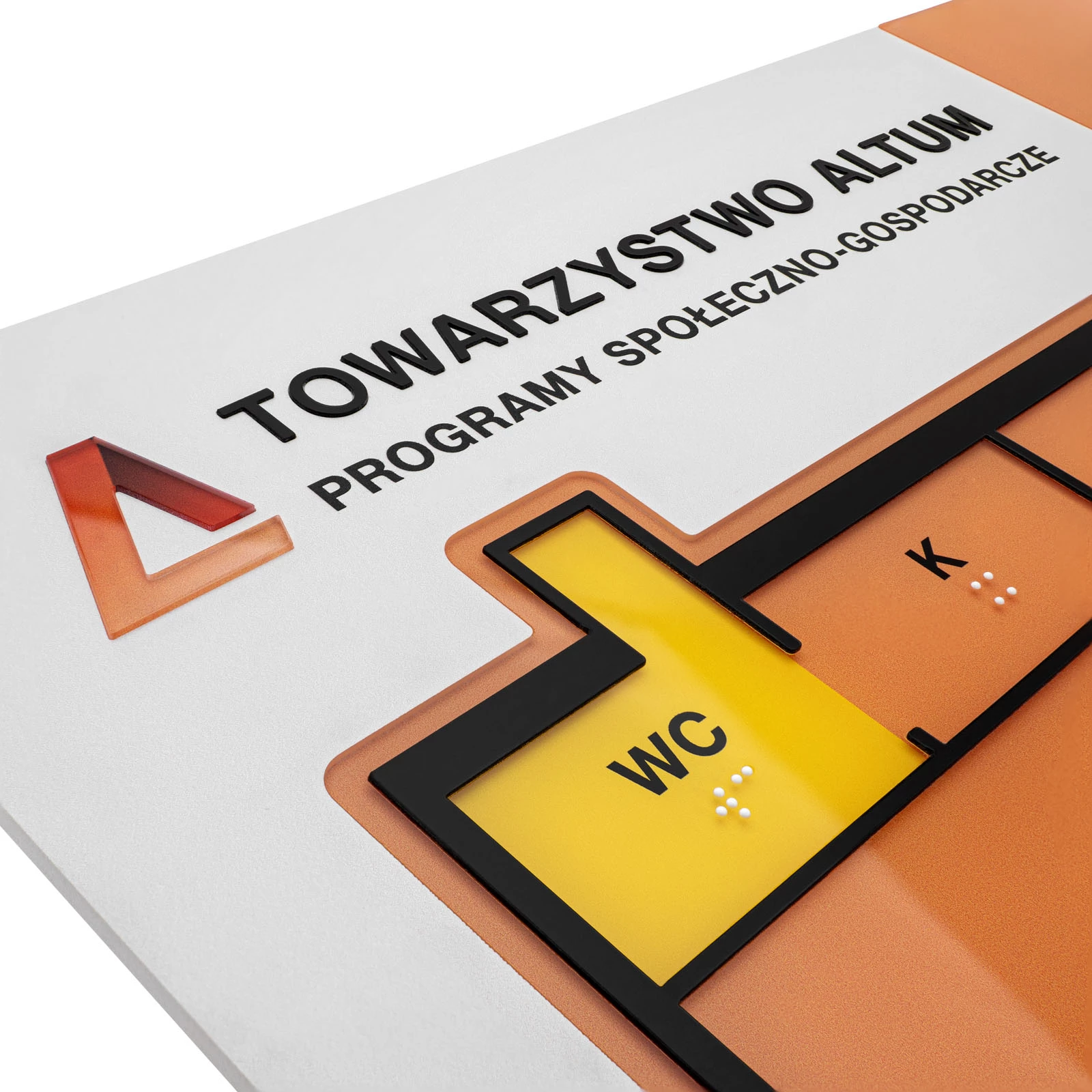

A tylographic plan with Braille writing is a comprehensive solution that makes orientation in space easier for blind and partially sighted people. Our team of specialists takes care of every detail, creating aesthetically pleasing and functional tylographic plans that are tailored to individual customer requirements. The base of our plan is 5 mm thick hard PVC in white. The rooms are printed on the same material using UV printing. We produce a permanent UV print on the plan, which retains the clarity and intensity of the colours thanks to precise printing technology. The toilet and reception area were marked in yellow. The walls of the rooms and the raised letters on the plan are made of black ADA plastic. The logo visible in the upper left corner of the plan is made of transparent acrylic. The plan is described in detail using Braille. The colours used in the design are contrasting, which improves readability for the visually impaired. The braille characters can be clearly felt under the fingertip, thanks to the use of professional licensed CNC-impressed braille balls. In accordance with PZN recommendations, they are positioned at a height of 0.5 mm and have a base width of 1.5 mm. The whole is designed to be self-assembled.

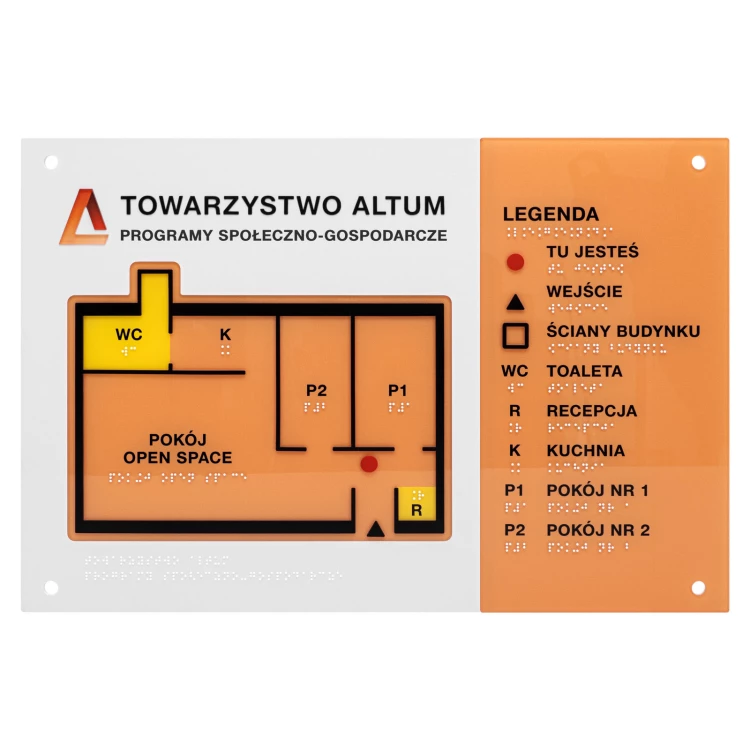

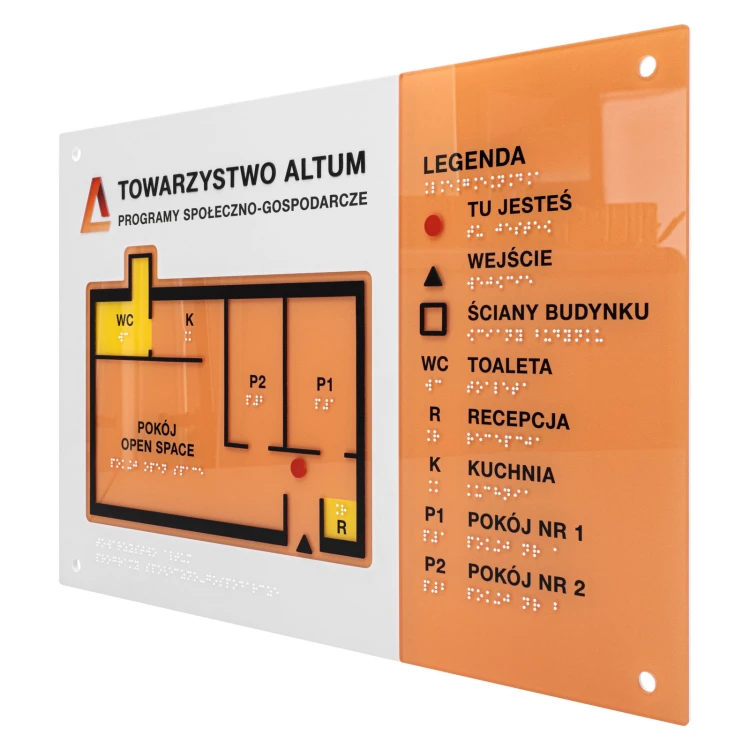

The price presented applies to the board visible in the gallery. Please feel free to contact our sales department by email or phone for a detailed quote.



Dimensions:

- width: 475 mm

- height: 320 mm

- thickness: 5 mm
