Braille plan with Braille - PVC hard, ADA plastic, laminate and acrylic - Dimensions 770x320 mm - TAB668

Product description

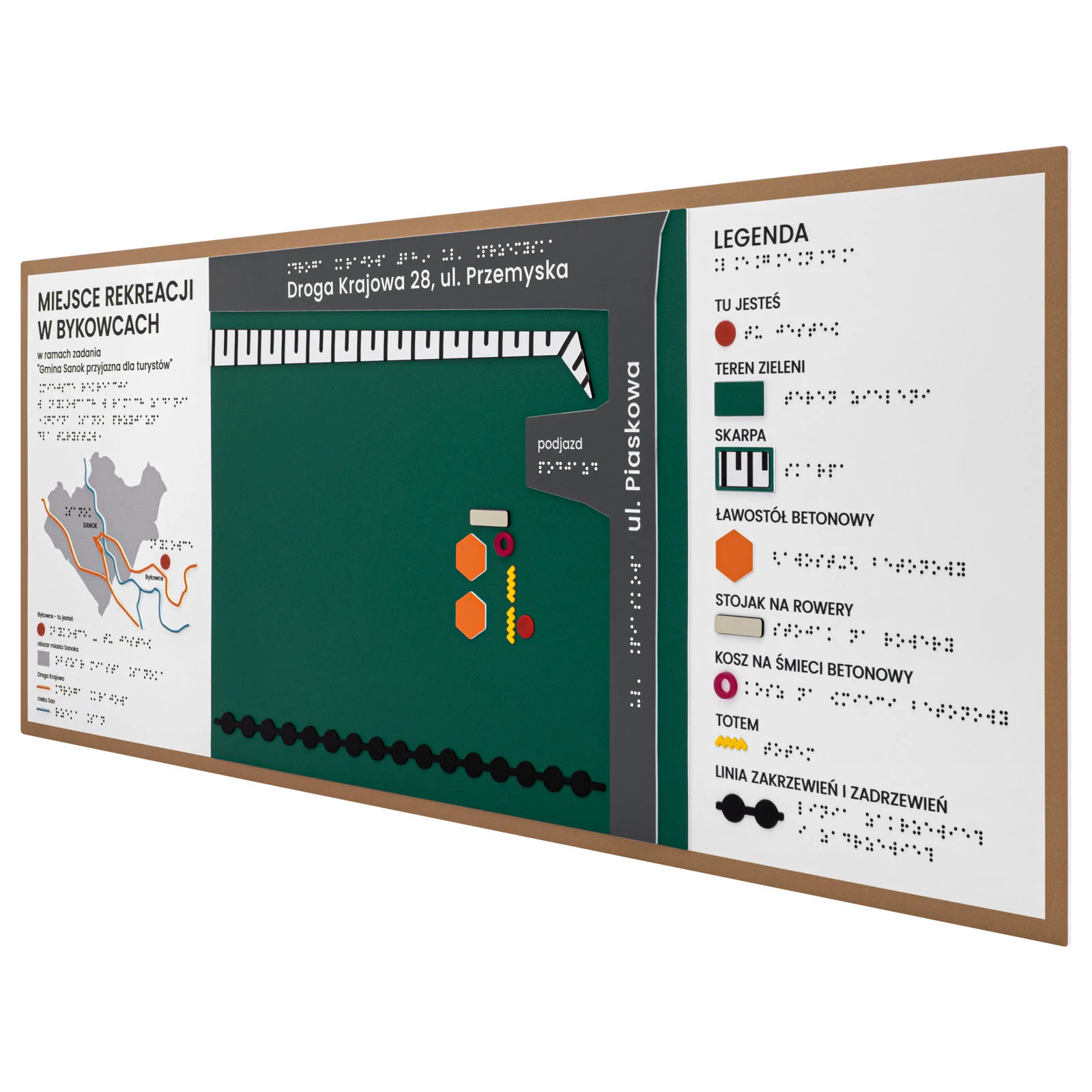

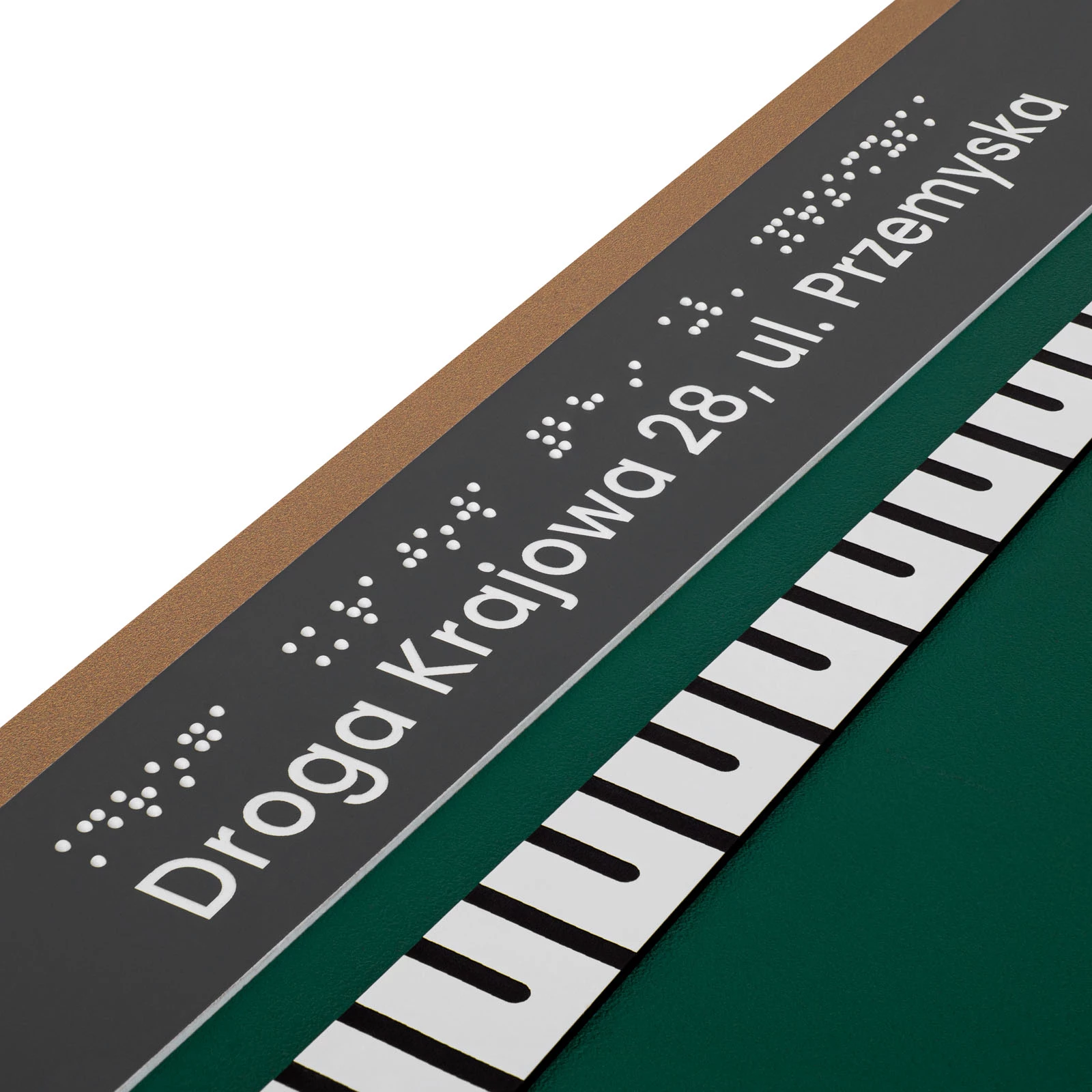

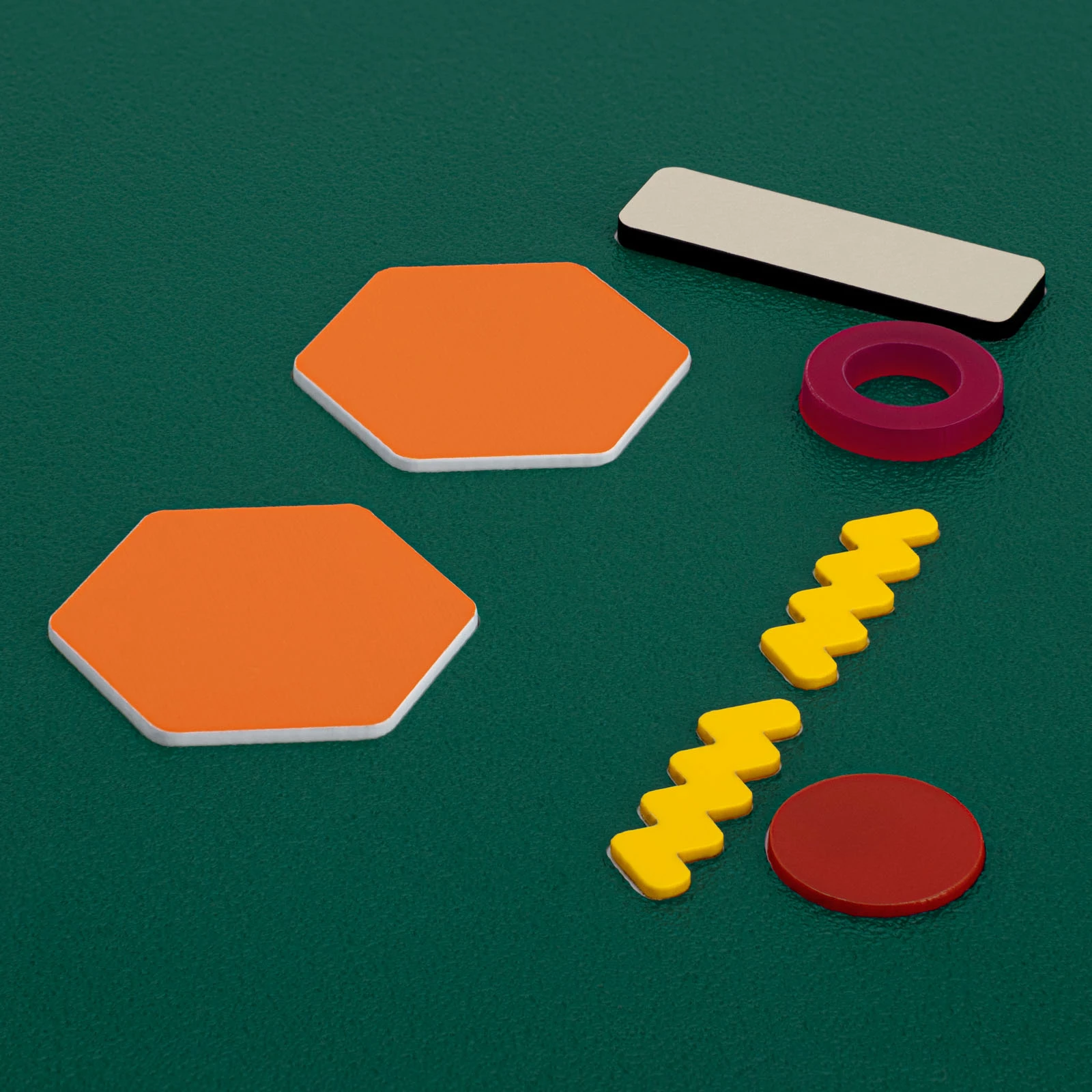

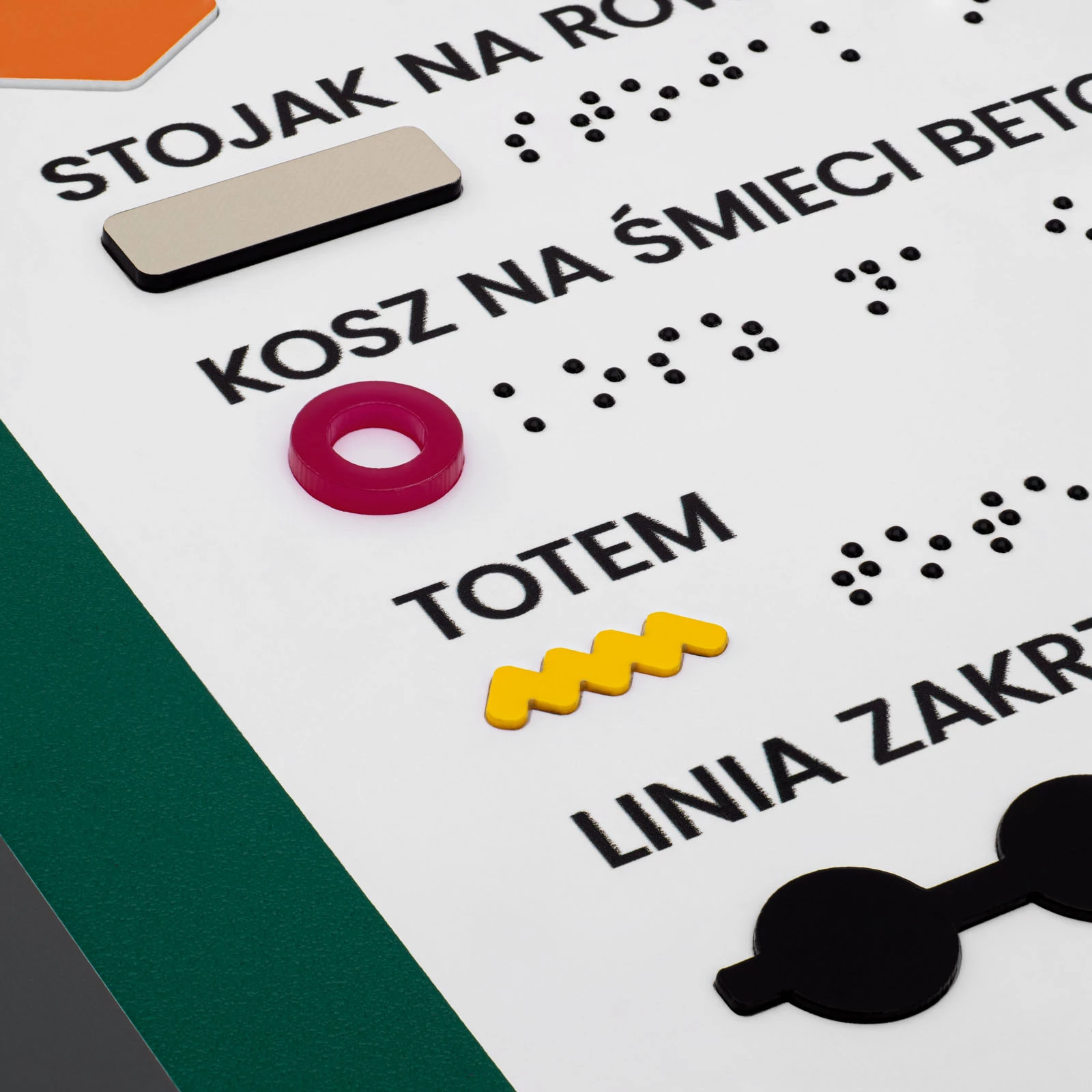

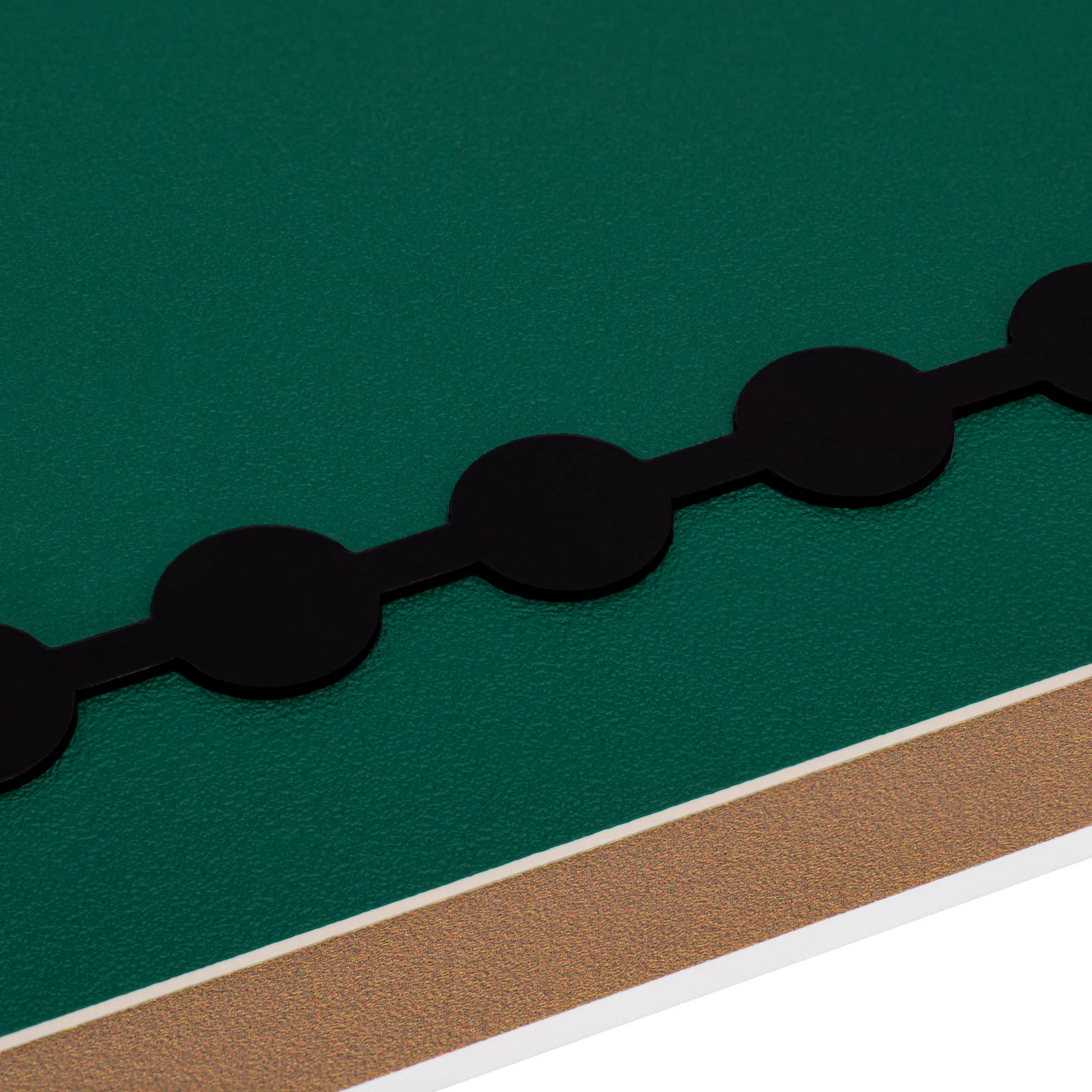

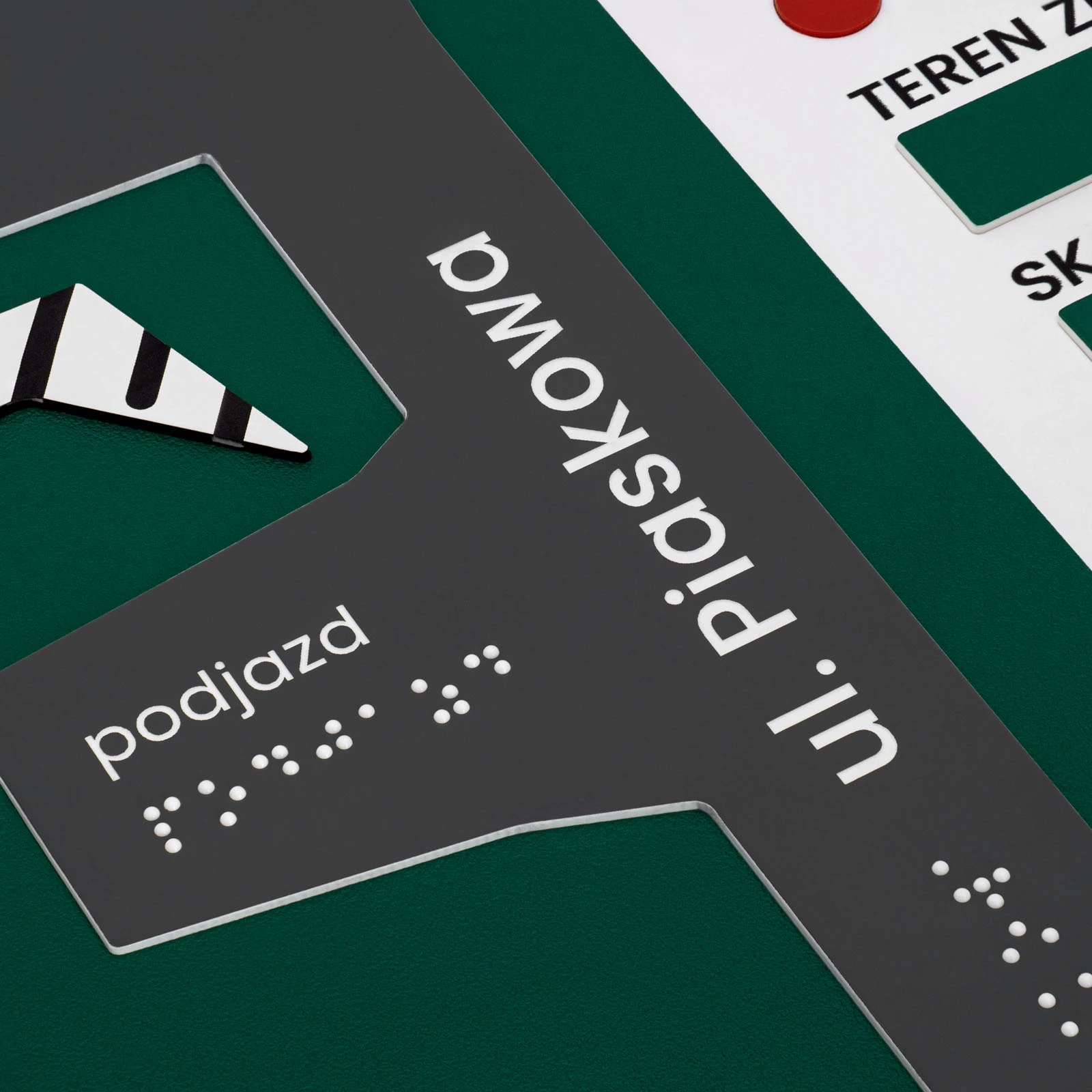

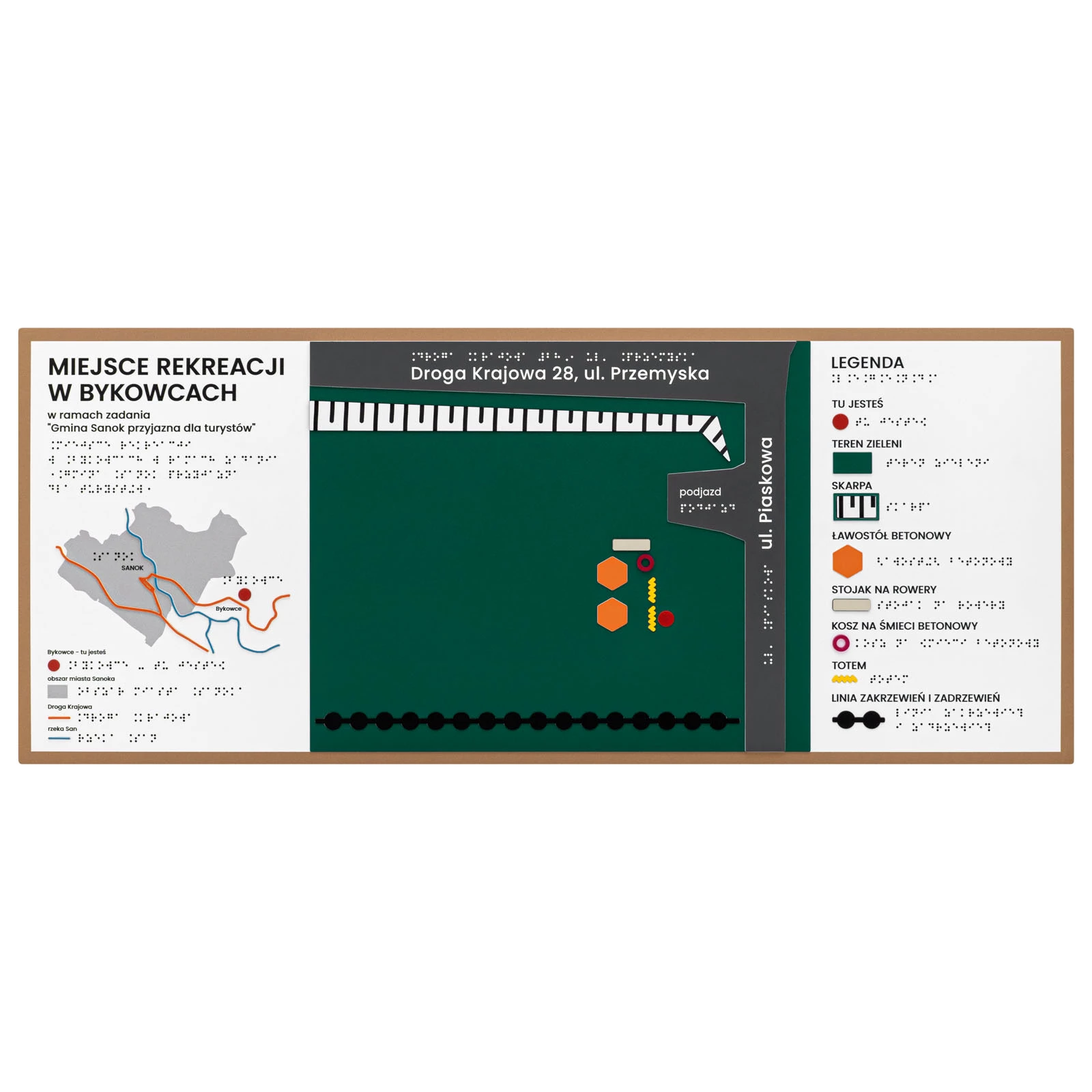

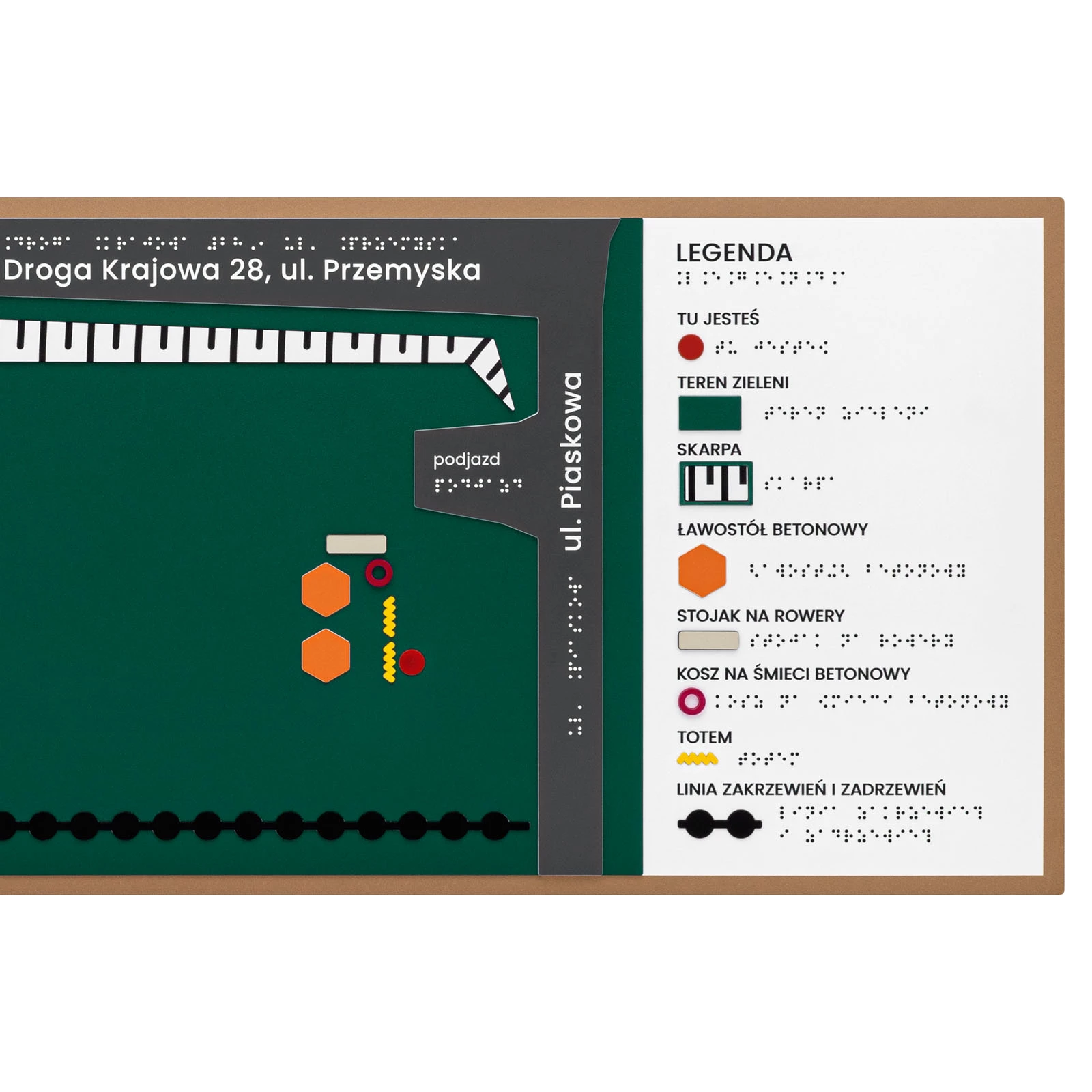

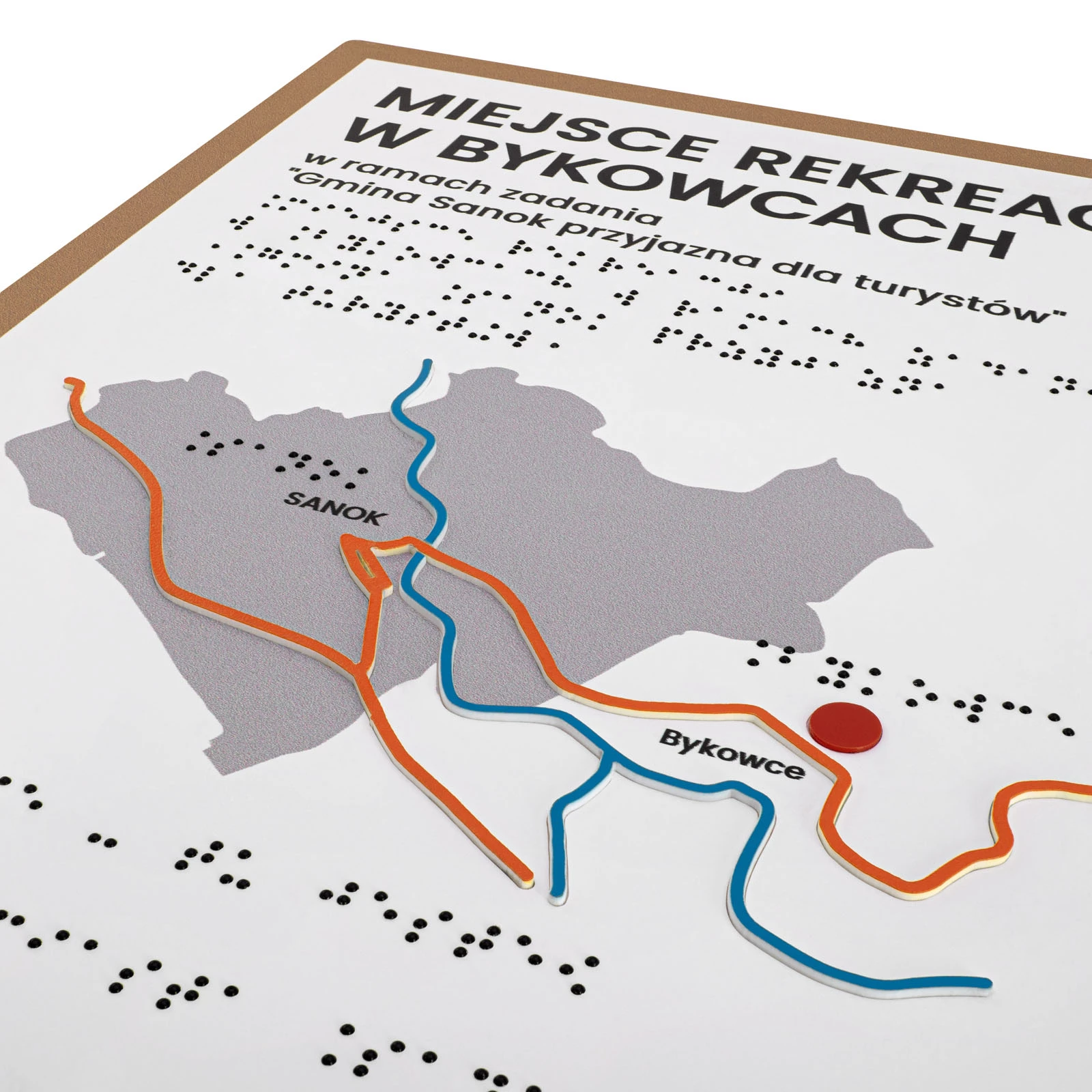

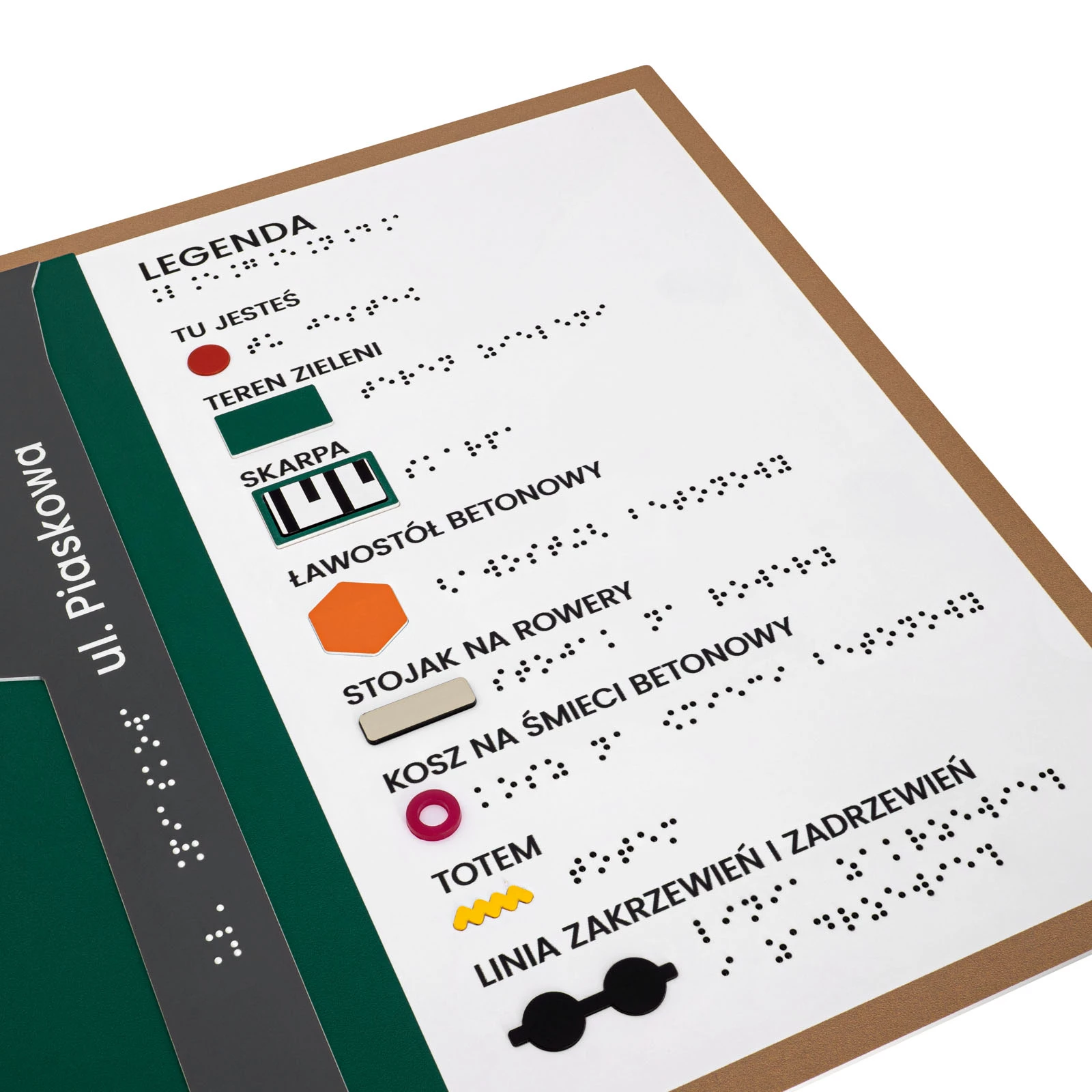

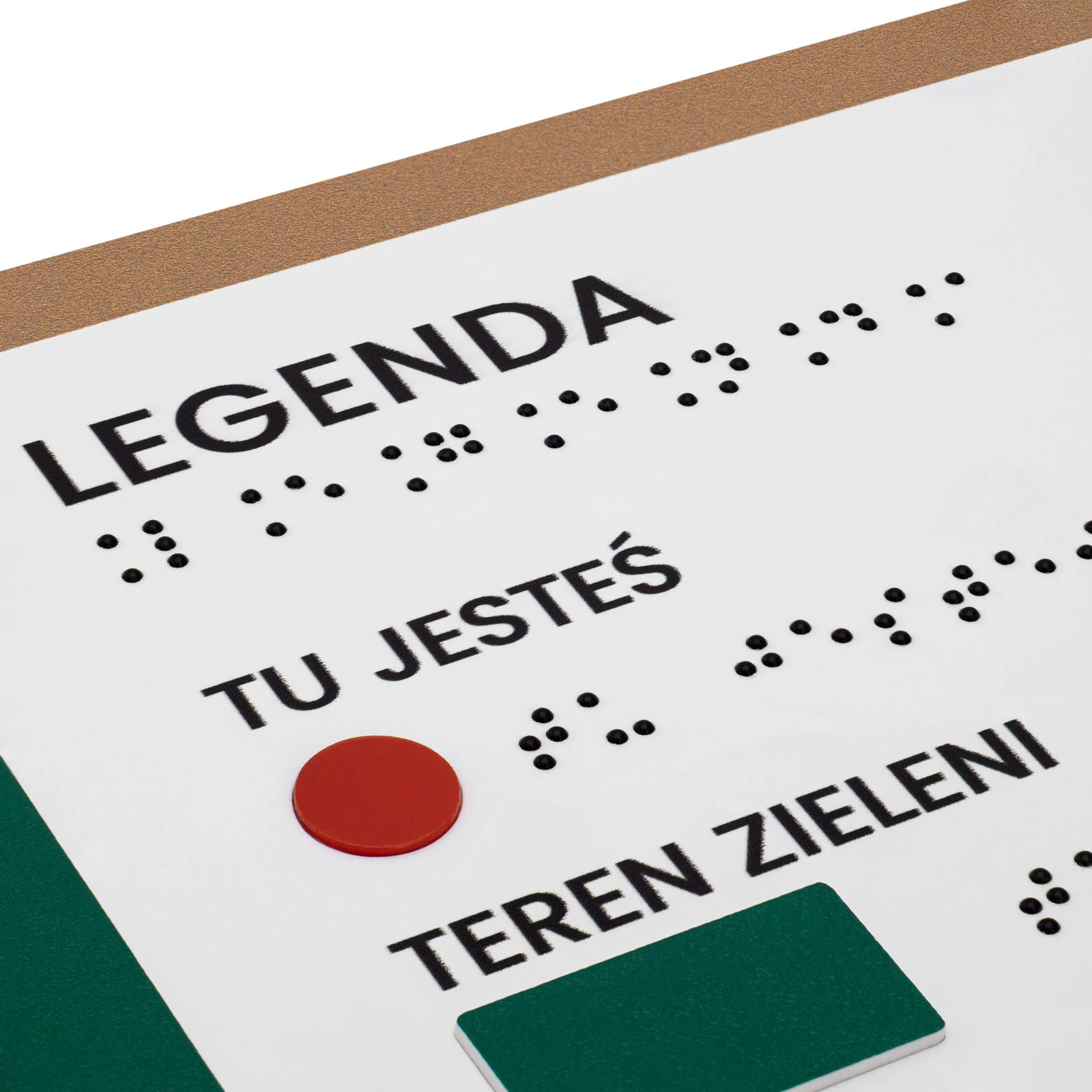

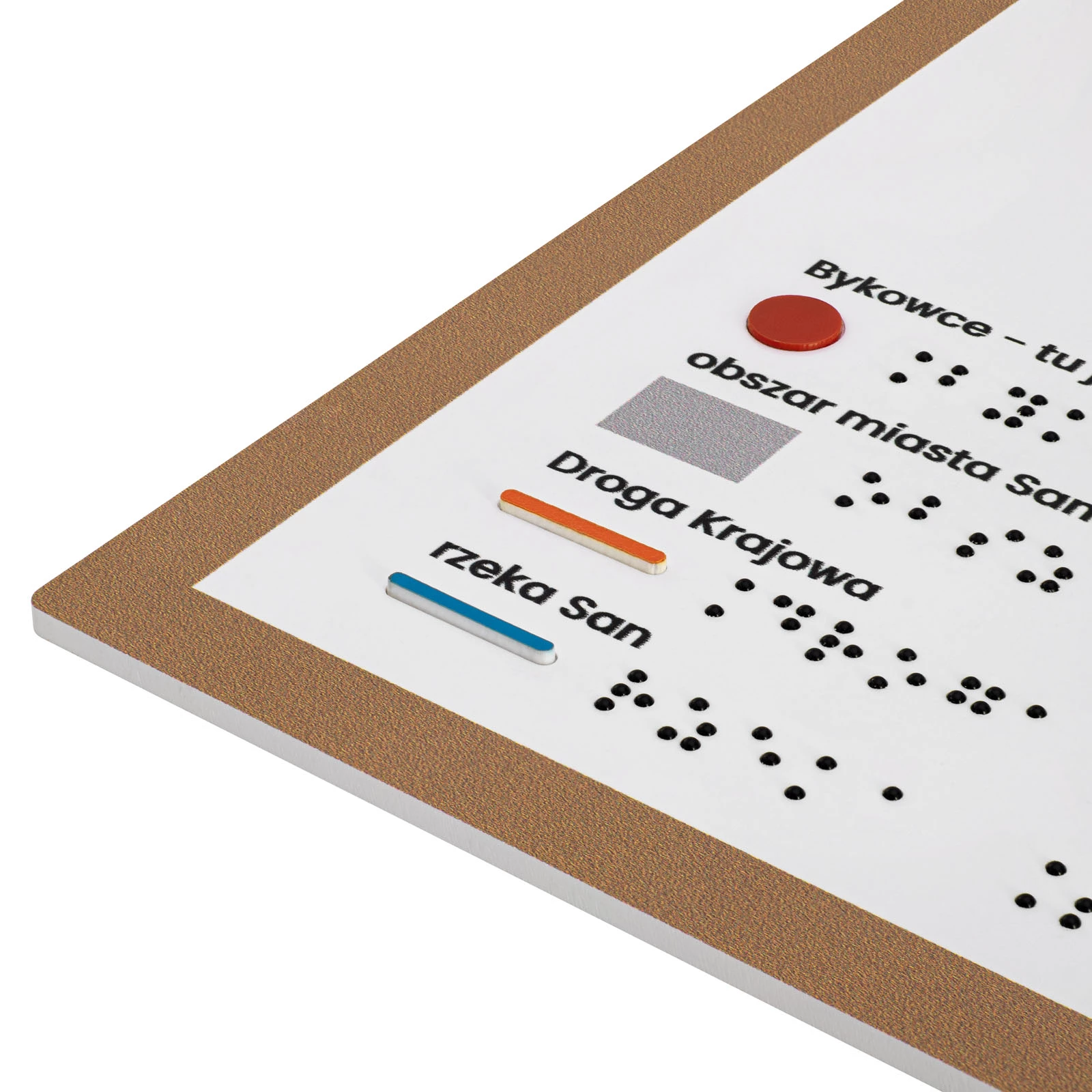

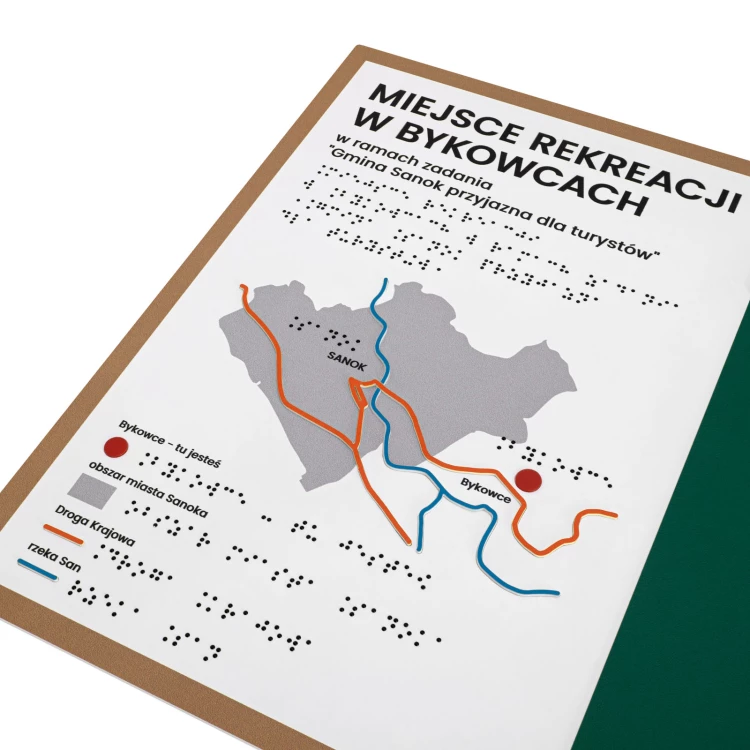

A tylographic plan with Braille writing is a comprehensive solution that makes orientation in space easier for blind and partially sighted people. Our team of specialists takes care of every detail, creating aesthetically pleasing and functional tylographic plans that are tailored to individual customer requirements. The base of our plan is 5 mm thick hard PVC in white. The frame is printed on the PVC using UV printing. We produce a permanent UV print on the plan, which retains the clarity and intensity of the colours thanks to precise printing technology. The visible elements on the plan are made of laminate, ADA plastic and acrylic. The green area has been marked using 1.6 mm thick textures laminate in dark green. The totem markings, your position and the shrubbery and tree line have been marked with the same material in the colours shown on the plan. The bike stand and bench were made of cream-coloured engraved laminate. The national road and the San River on the left side of the plan have also been marked with laminates. The central part of the plan features acrylic in grey. Dark pink acrylic was used to mark the waste bin. The plan is described in detail using Braille. The colours used in the design are high-contrast, improving legibility for the visually impaired. The Braille characters can be clearly felt under the fingertip, thanks to the use of professional licensed CNC-inserted braille balls. In accordance with PZN recommendations, they are positioned at a height of 0.5 mm and have a base width of 1.5 mm. The overall design is
