Braille plan with tile writing - ADA material, 3D doming, laminate and acrylic - Dimension 480x380 mm - TAB665

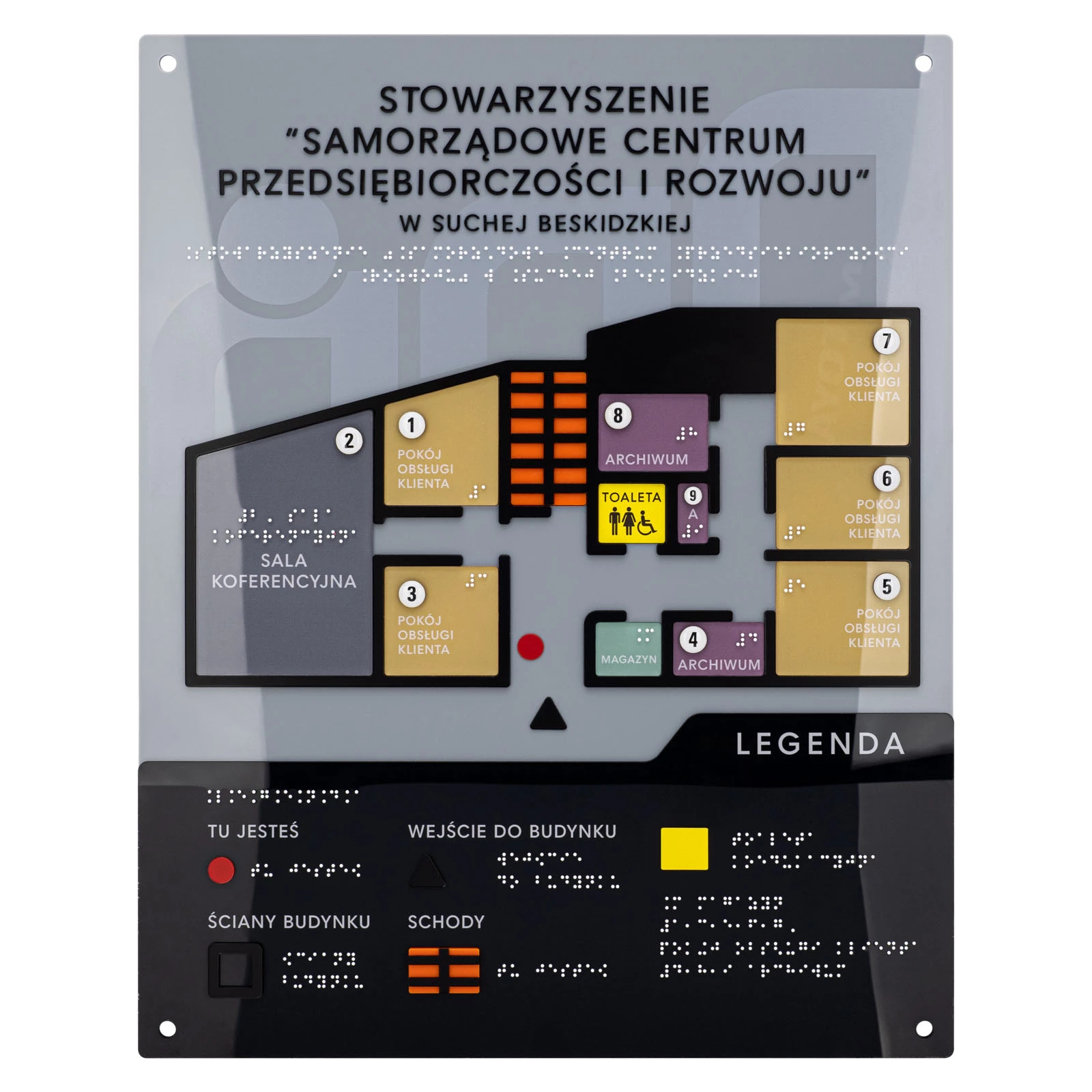

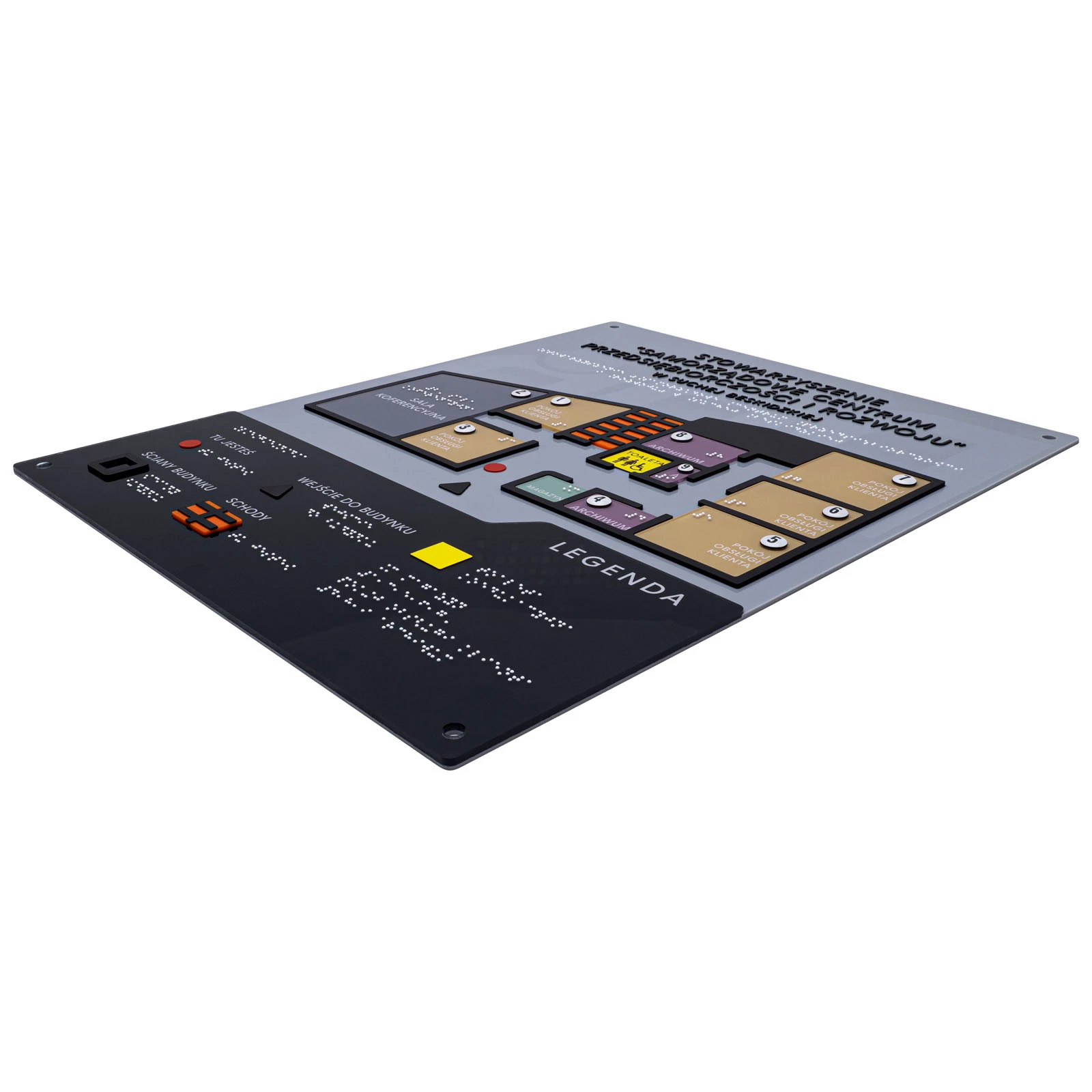

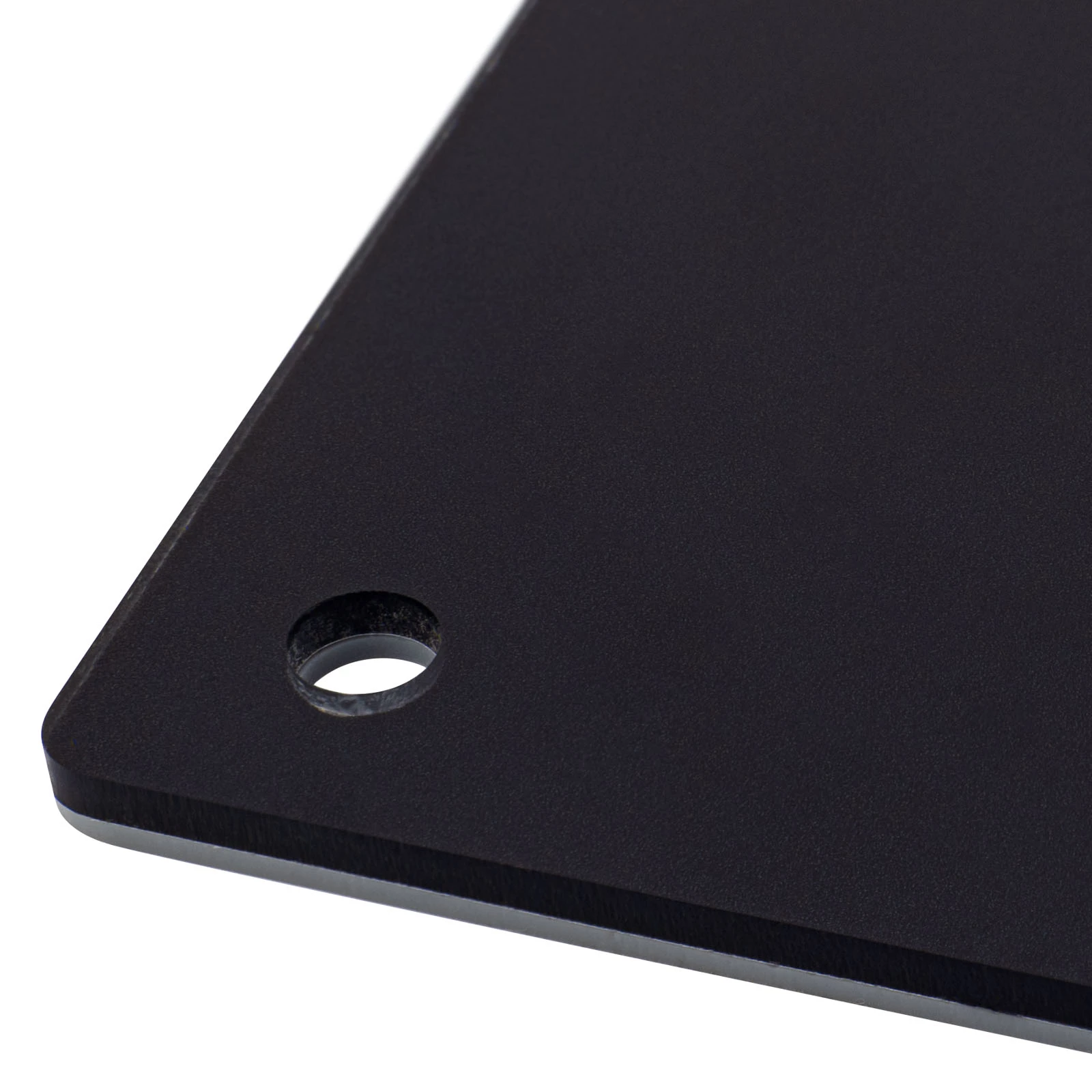

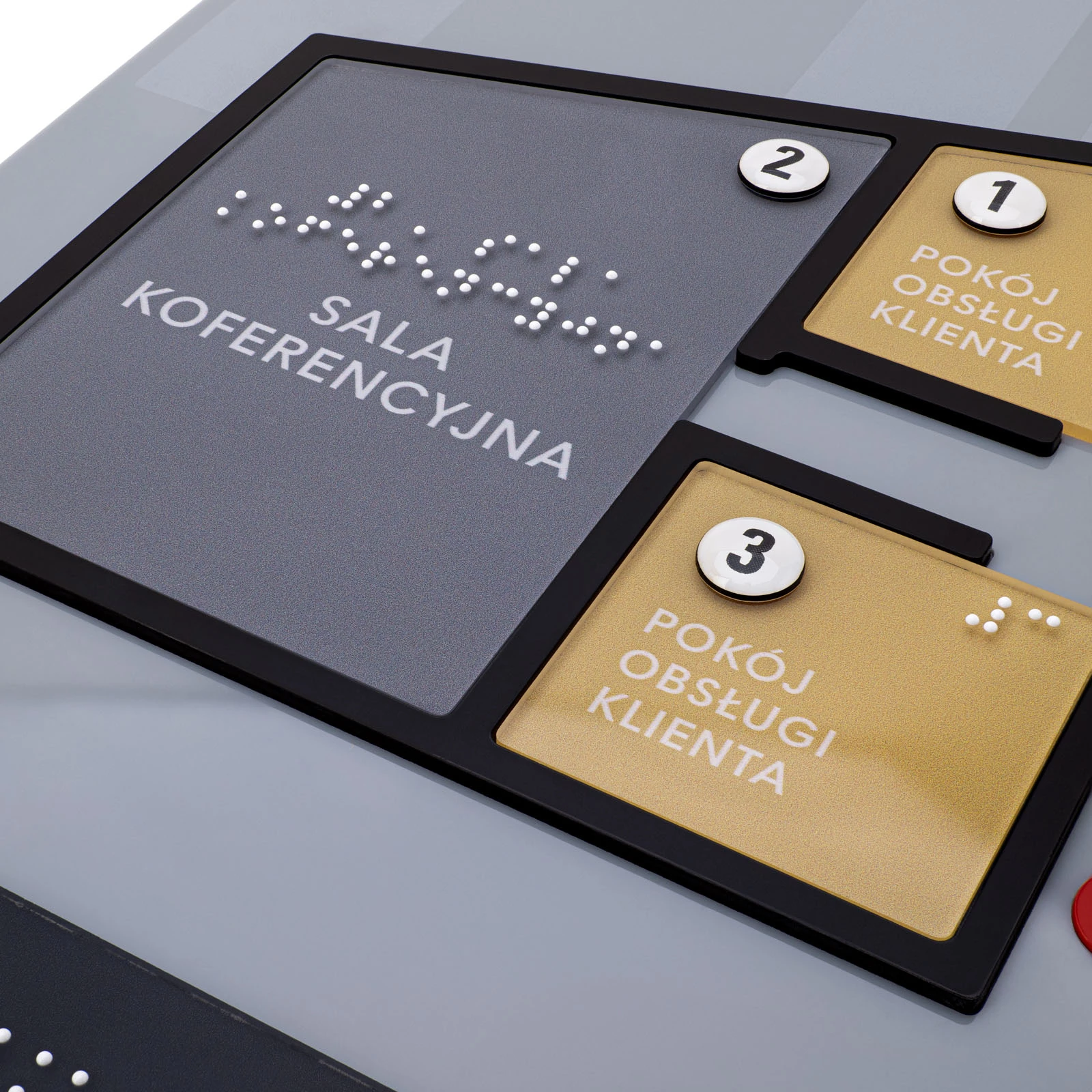

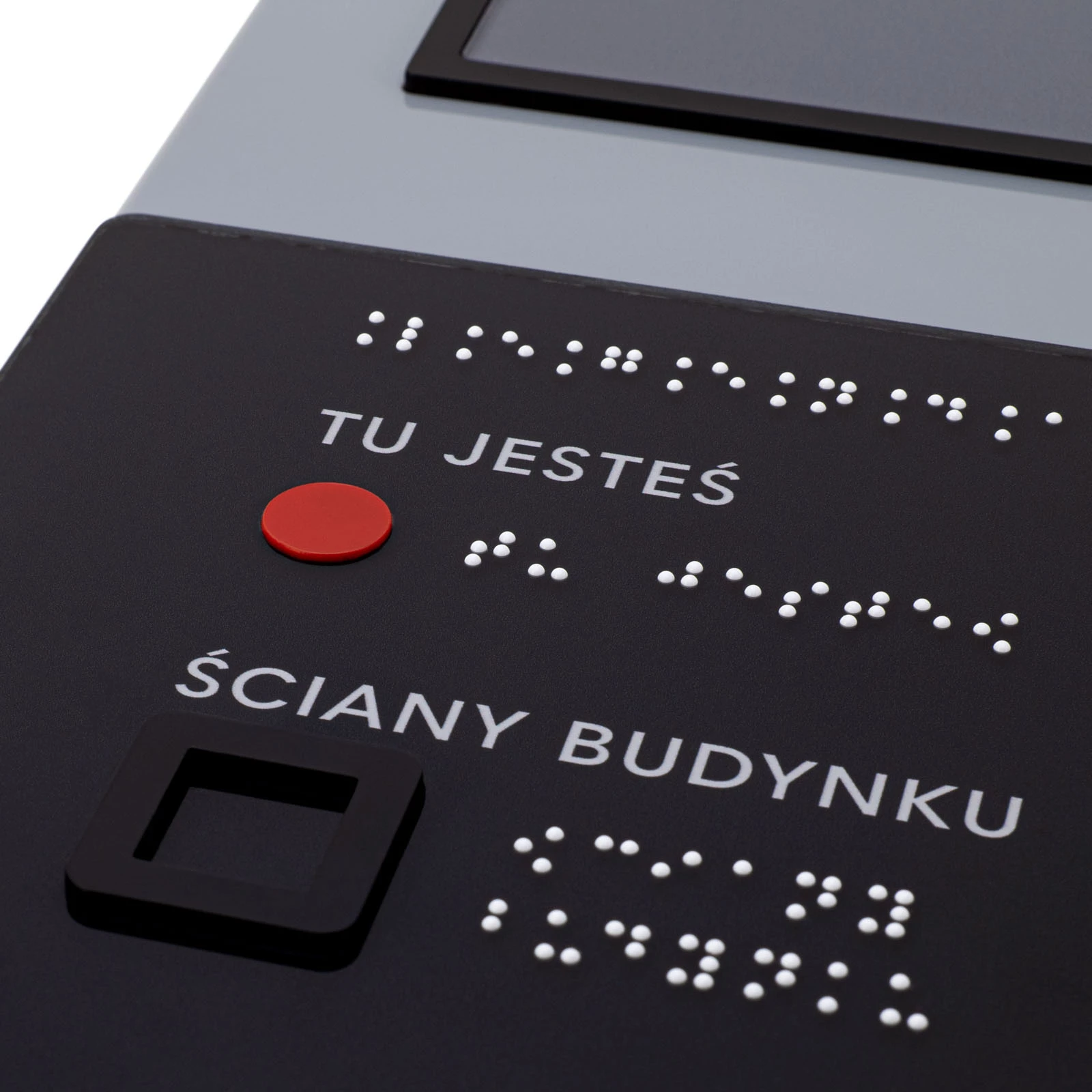

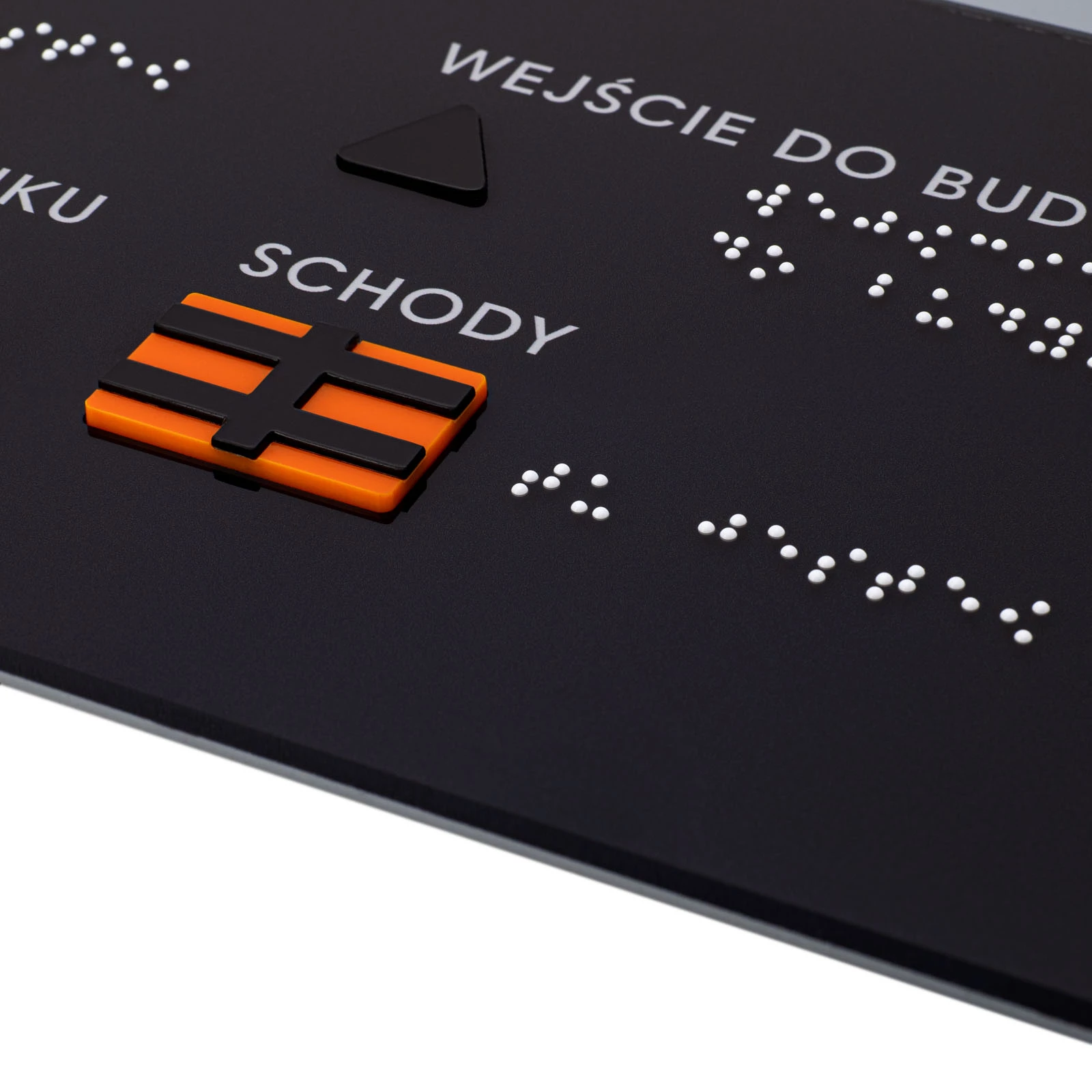

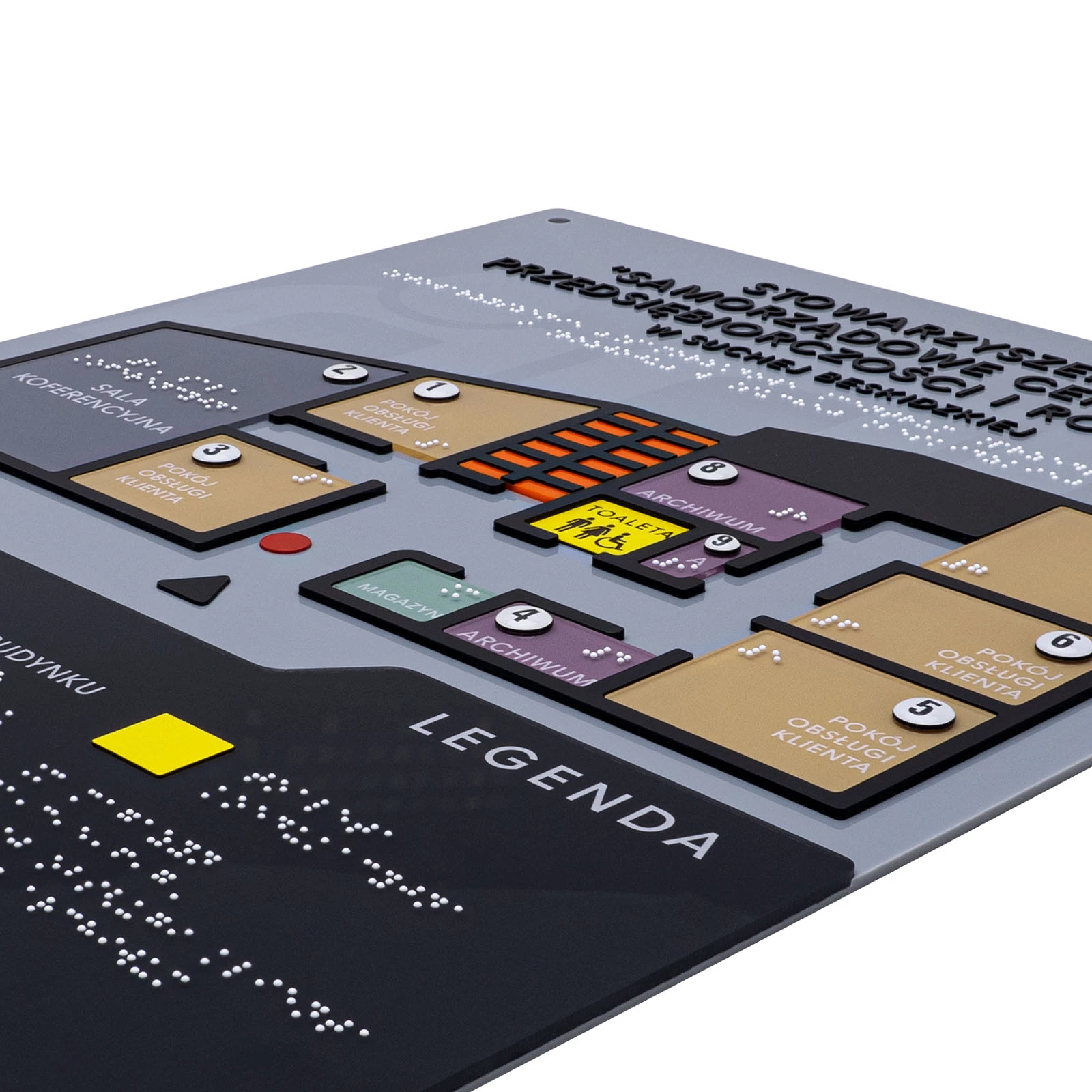

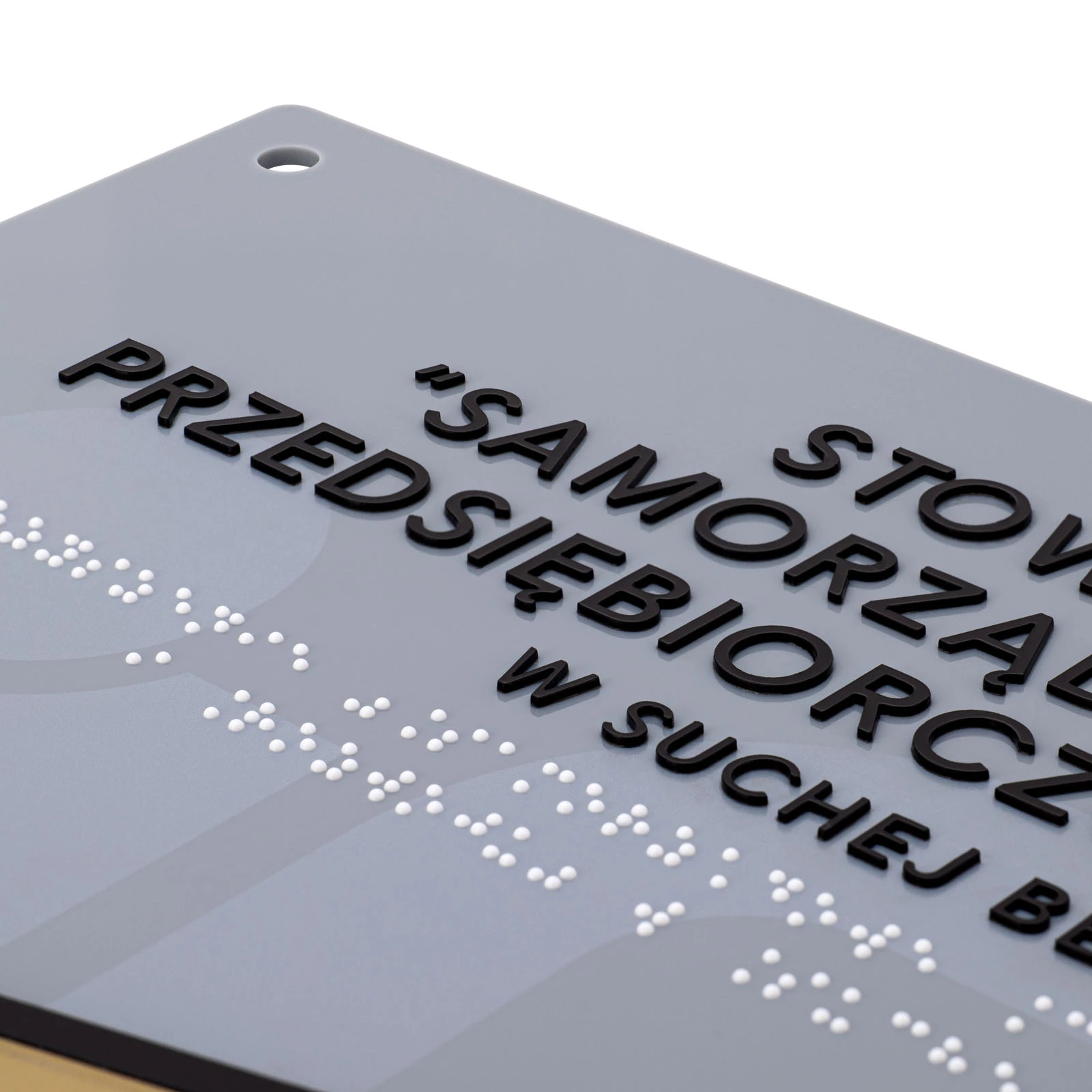

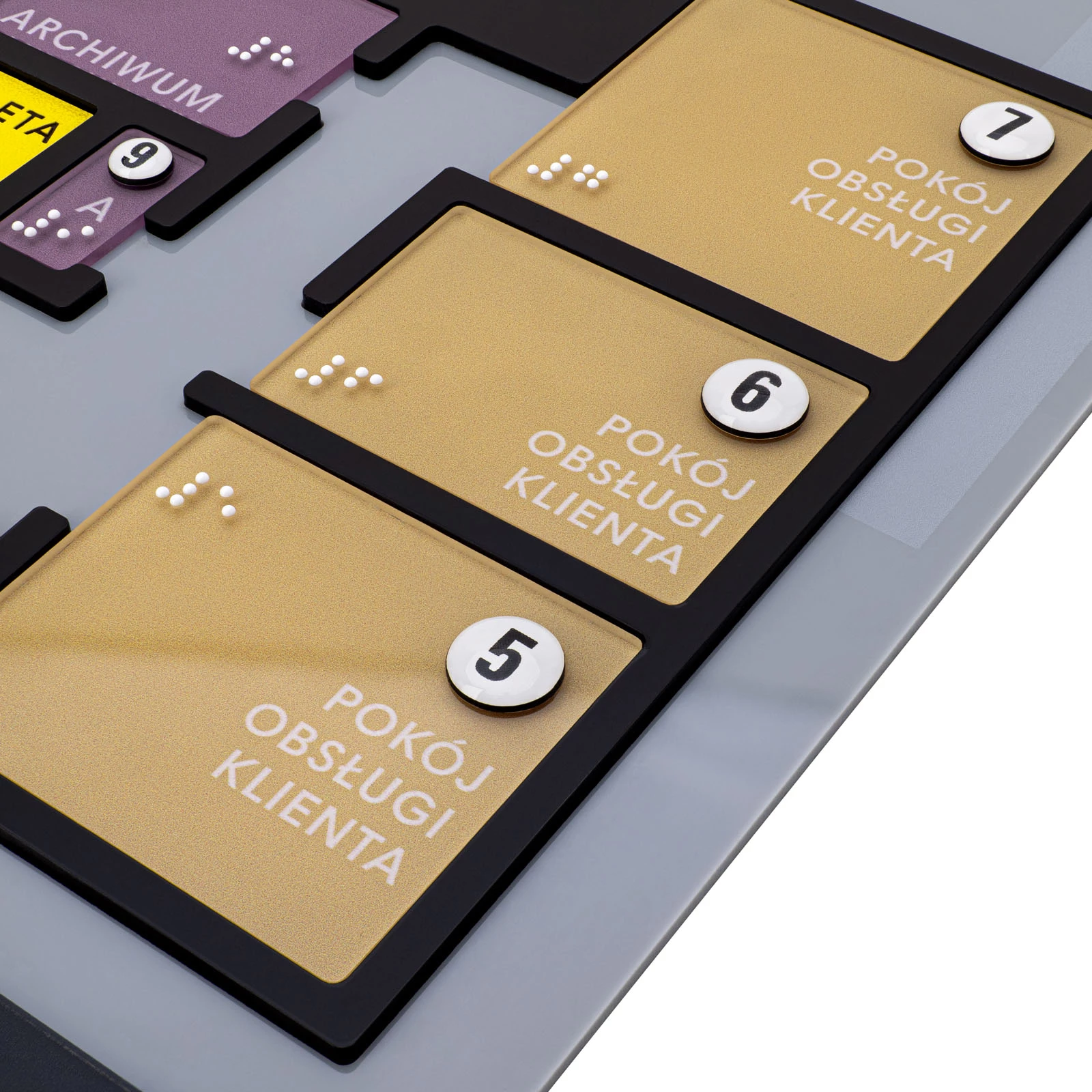

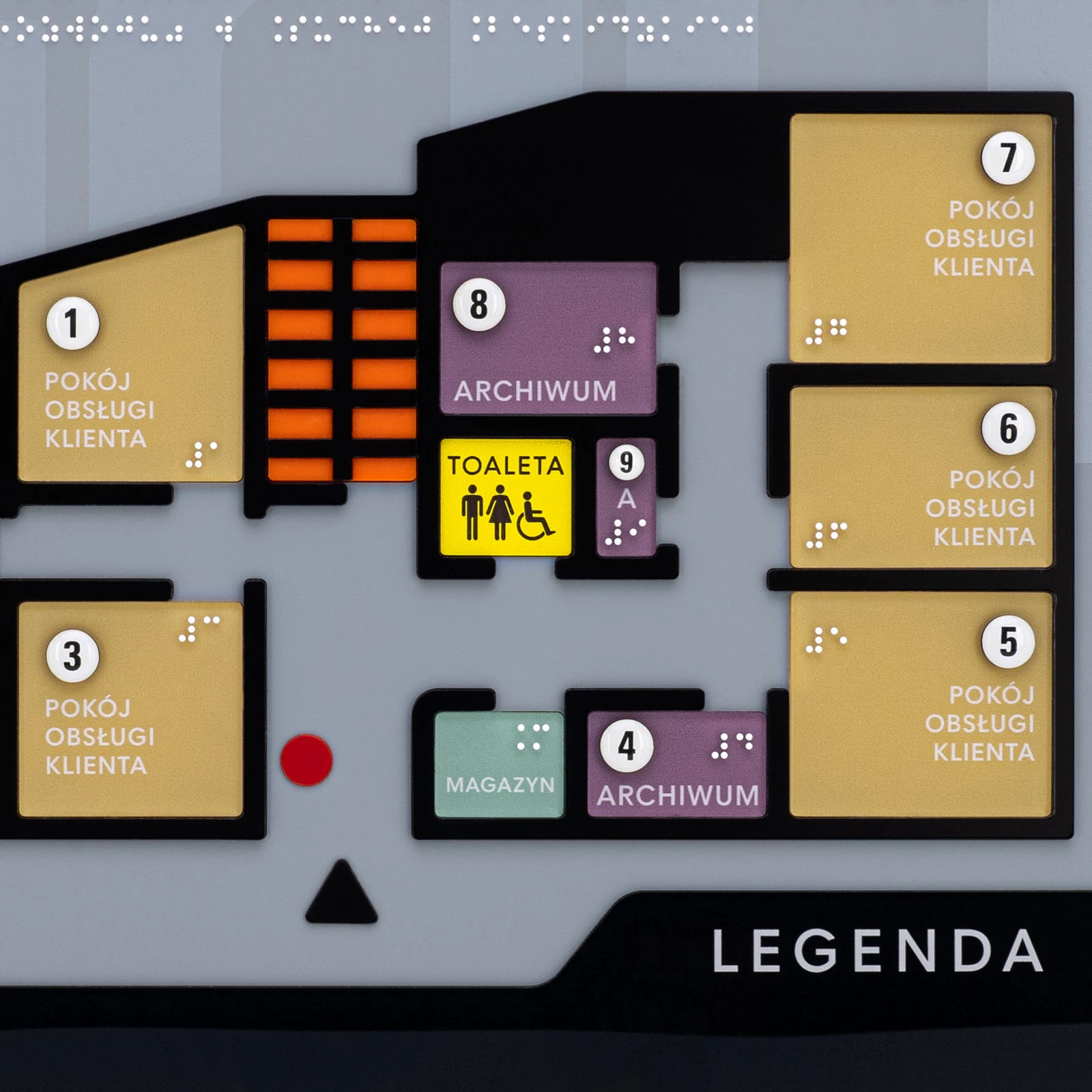

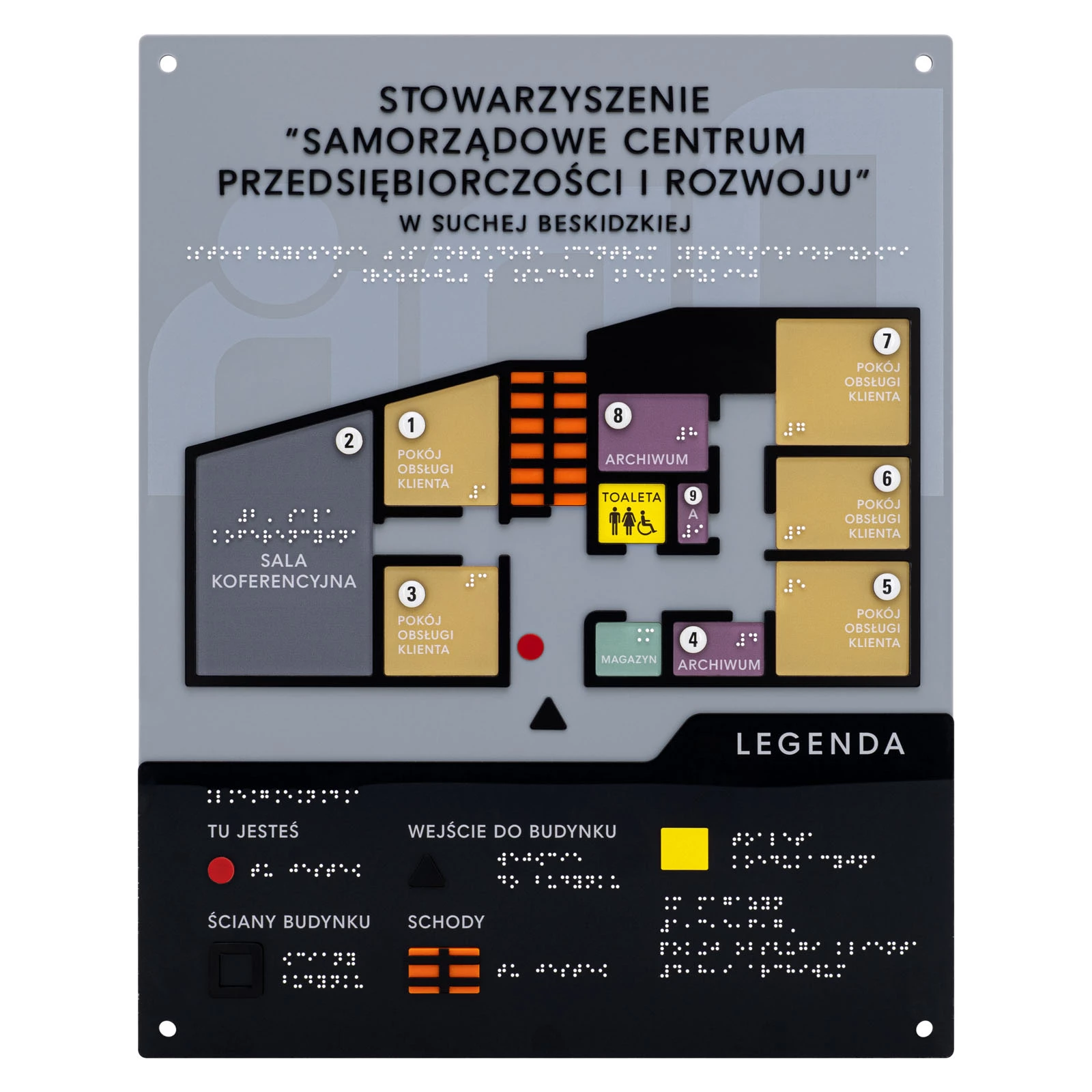

A tylographic plan with Braille writing is a comprehensive solution that makes orientation in space easier for blind and partially sighted people. Our team of specialists takes care of every detail, creating aesthetically pleasing and functional tylographic plans that are tailored to individual customer requirements. The base of our plan is 3 mm thick acrylic in grey. The walls of the rooms and the convex letters at the top of the plan are made of black ADA plastic. The toilet was marked out using yellow textures laminate. The other rooms were made of UV-printed transparent acrylic. The numerals in the circles are convex because they have been coated with resin (doming). The process of applying the resin darkens the white colour, resulting in an effect similar to a light grey. The plan has been described in detail using Braille. The colours used in the design are contrasting, improving legibility for the visually impaired. The braille characters can be clearly felt under the fingertip, thanks to the use of professional licensed CNC-inserted braille balls. In accordance with PZN recommendations, they are positioned at a height of 0.5 mm and have a base width of 1.5 mm. The whole is designed to be self-assembled.



The price presented applies to the board visible in the gallery. Please feel free to contact our sales department by email or phone for a detailed quote.



Dimensions:

- width: 480 mm

- height: 380 mm

- thickness: 6 mm
